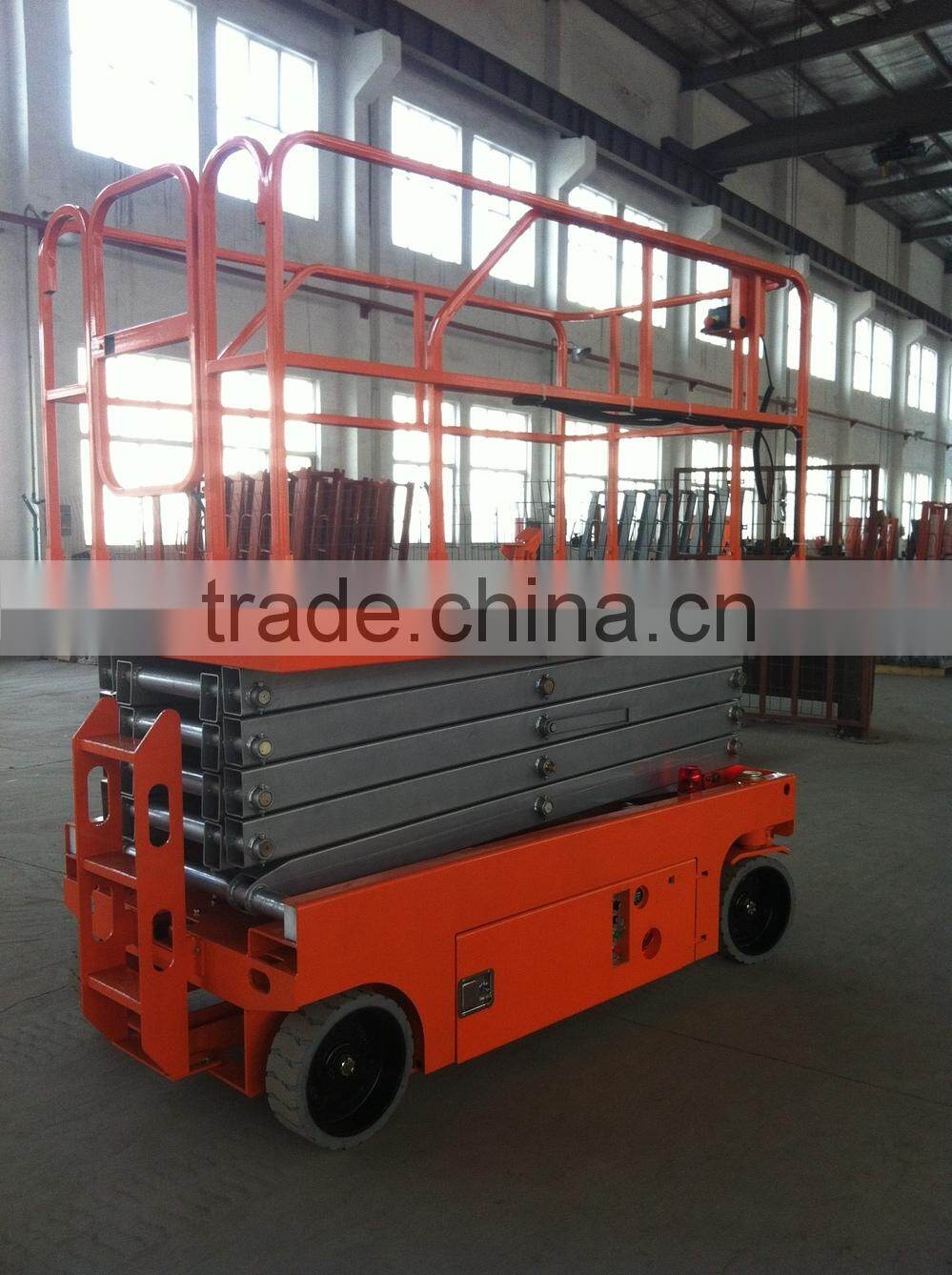

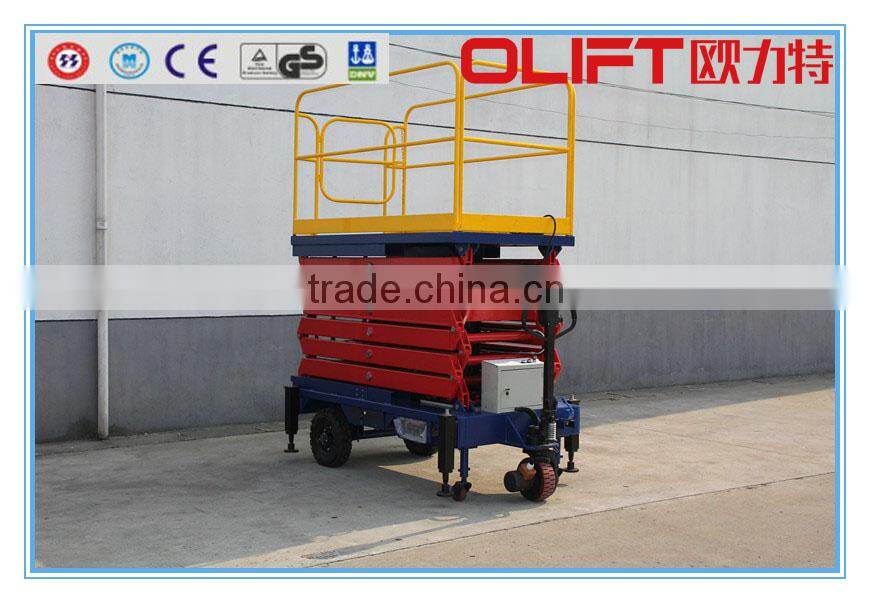

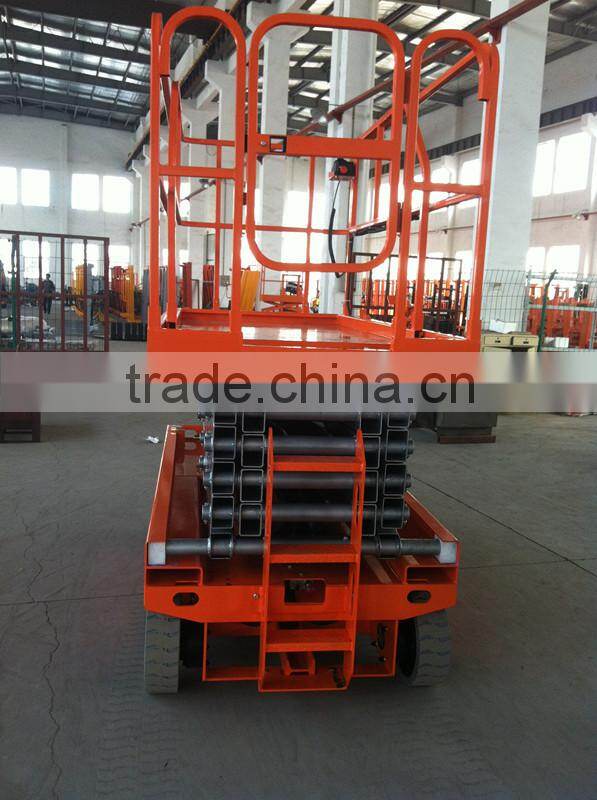

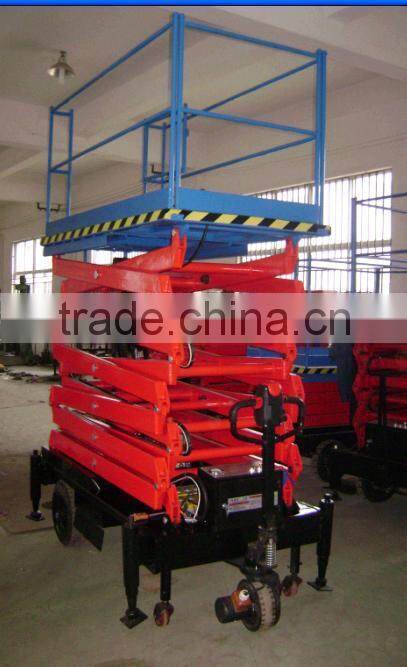

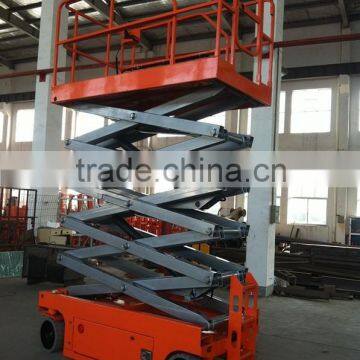

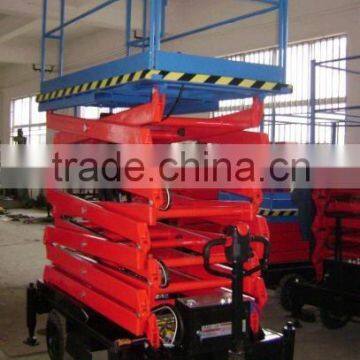

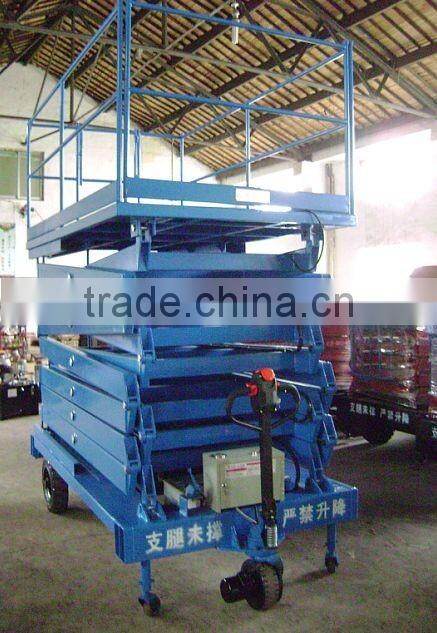

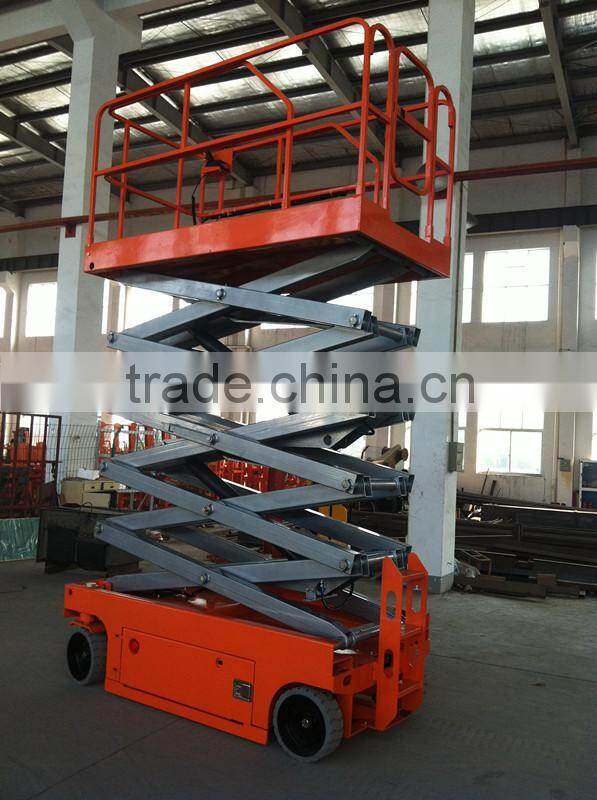

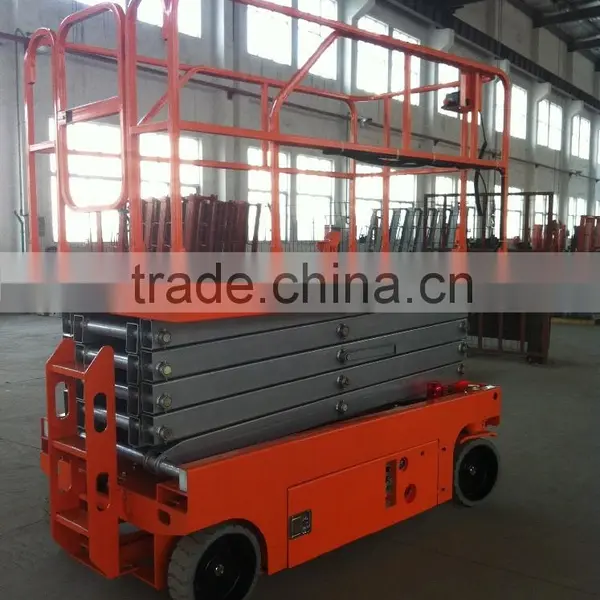

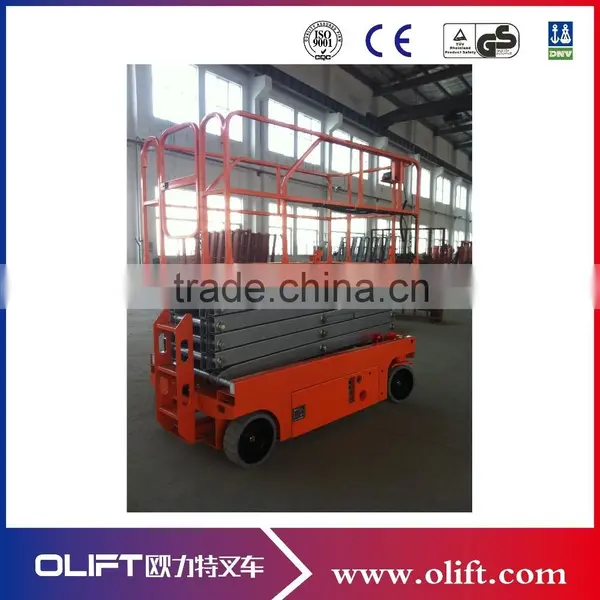

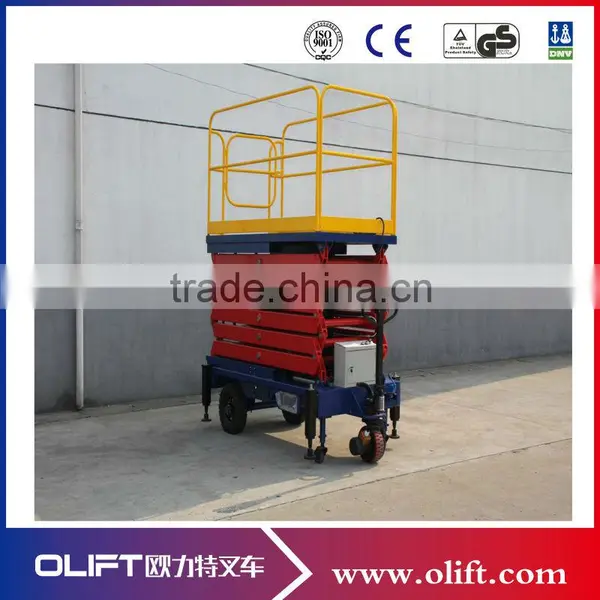

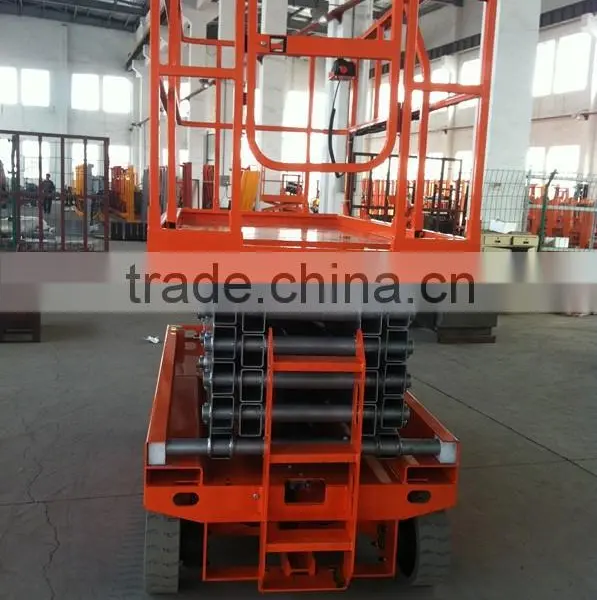

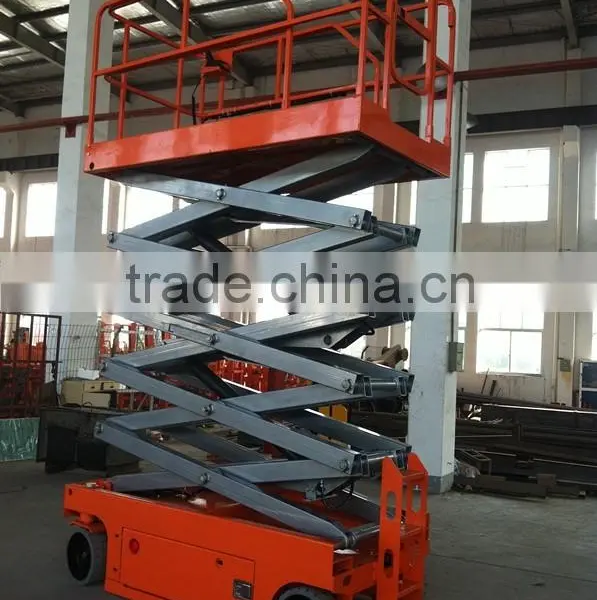

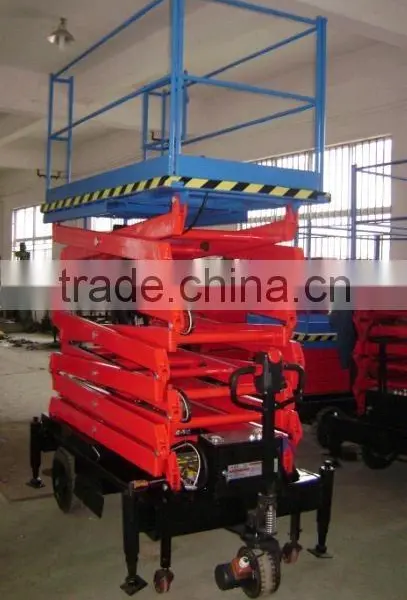

6-12m 300kg electric mobile scissor lift
Description
1.scissor lift Lifting control system on the platform and on the down place.
2.electric scissor lift with 24V battery voltage, keeping staff safety.
3.Emergency Decending Button: Although suddenly power off, the button will guarantee the staff getting down safely.
| Model | Load Capacity | Max Platform Height | Min Platform Height | Platform Size | Lifting time | Motor | Net Weight |
| kg | mm | mm | mm | s | kw | kg | |
| SJY 0.3-3 | 300 | 3000 | 850 | 1300×850 | 16 | 0.55 | 400 |
| SJY 0.5-4.5 | 500 | 4500 | 980 | 1300×850 | 31 | 0.75 | 560 |
| SJY 0.3-6 | 300 | 6000 | 950 | 1780×880 | 54 | 0.75 | 750 |
| SJY 0.5-6 | 500 | 6000 | 950 | 1780×880 | 49 | 0.75 | 750 |
| SJY 0.5-7.5 | 500 | 7500 | 1400 | 1800×1000 | 62 | 1 | 1150 |
| SJY 0.3-9 | 300 | 9000 | 1350 | 1800×1000 | 72 | 1 | 1200 |
| SJY 0.5-9 | 500 | 9000 | 1550 | 1800×1000 | 81 | 1 | 1260 |
| SJY 1-9 | 1000 | 9000 | 1550 | 2100×1150 | 55 | 2.2 | 1850 |
| SJY 0.3-11 | 300 | 11000 | 1600 | 2100×1150 | 73 | 1 | 1320 |
| SJY 0.5-11 | 500 | 11000 | 1600 | 2100×1150 | 80 | 1 | 1380 |
| SJY 0.3-12 | 300 | 12000 | 1750 | 2450×1350 | 85 | 2.2 | 1700 |
| SJY 0.5-12 | 500 | 12000 | 1750 | 2450×1350 | 90 | 2.2 | 1850 |
| SJY 0.3-14 | 300 | 14000 | 1900 | 2450×1350 | 98 | 2.2 | 2200 |
| SJY 0.5-14 | 500 | 14000 | 1900 | 2450×1350 | 120 | 2.2 | 2500 |
| SJY 0.3-16 | 300 | 16000 | 1950 | 2500×1500 | 130 | 3 | 2600 |
| Semi-electric Scissor Lift(heavy duty) | |||||||
| SJY 1-6 | 1000 | 6000 | 1300 | 1800×1100 | 50 | 1 | 1200 |
| SJY 1-9 | 1000 | 9000 | 1800 | 2600×1500 | 90 | 3 | 2200 |
| SJY 1-12 | 1000 | 12000 | 1800 | 2450×1350 | 95 | 2.2 | 2500 |
| SJY 1-14 | 1000 | 14000 | 1900 | 2500×1400 | 98 | 3 | 2600 |

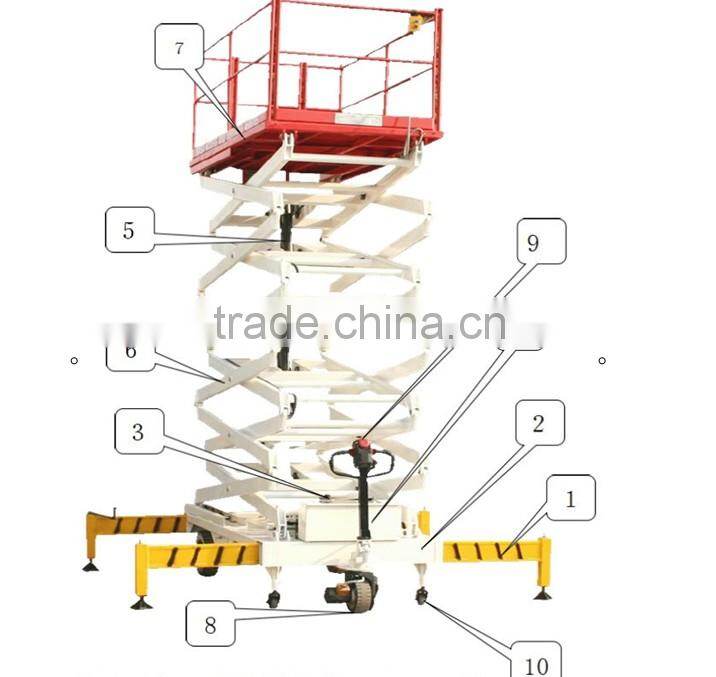

Configuration:
1.Platform Material:60mm*40mm rectangular tube +3mm checkered iron
2.Scissor material: 150mm*50mm*5mm high strength Manganese Steel.
3.Hydraulic system:
Motor: 24V/4Kw
Pump 310 10ml/r
4High Precision Hydraulic Cylinder:80*2sets, 100*2sets
5.Piston Rod: 40*2pieces, 50*2 hard chromium plating surface.
6.High-pressure oil pump
7.Hydraulic oil:Summer 45#,Winter:32#
8.Rubber wheel:600-9*2piece.
9.Driving System: one set(driving wheel 1 piece(0.75Kw),balance wheels:2pieces)
10.Battery:24V/200Ah,2pieces.
11.Charger:1set
electric scissor lift/mobile scissor lift
packaging standard seaworthy
shipping by sea
1.We can design the customerized scissor lift as per your requirement.
2.The most suitable Scissor lift will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the scissor lift break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.
1.How can customer buy parts once the scissor lift break down?
The scissor lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift.
One of the great advantage of scissor lift is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the scissor lift?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
5.How can we charge the battery?
It is equipped with a battery charger.You can connect the battery to the charger and connect the charger to the AC power.
Olift Equipment Co.,Ltd. provides wide selection of products such as forklift trucks, pallet trucks and stackers, scissor lifts, moving tools, platform lifting and more.
The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
