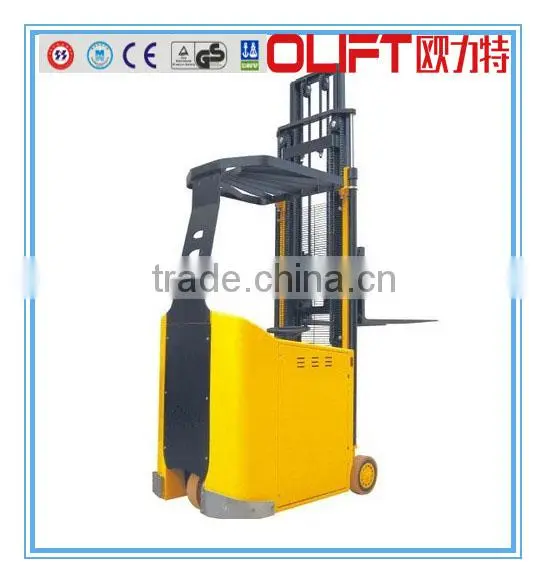

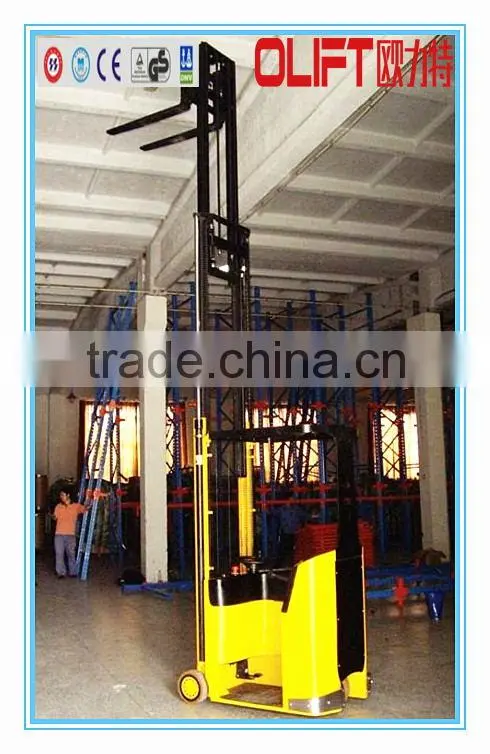

1.0ton Narrow Aisle Small Turning Radius Electric Forklift
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Olift
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Pallet Reach Truck/Stacker Factory PriceUS$ 5,000 - 10,000MOQ: 1 Unit -
2.0 Ton Electric Reach Pallet Truck for Warehouse Quality ChoiceUS$ 1,000 - 9,000MOQ: 1 Set
-
1000kgs Pallet Machine TN SeriesUS$ 3,000 - 6,000MOQ: 1 Piece
-
TW Series 1ton -1.25ton Fork Reach TruckUS$ 12,000 - 22,000MOQ: 1 Set
-
2500mm Electric Forklift TruckUS$ 13,000 - 22,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Olift
Model Number
NF
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1000KG
Max. Lifting Height
5000MM
Min. Lifting Height
90MM
Fork Length
2210MM
Fork Width
850MM
Overall Dimensions
2210*850*5000MM
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.0ton narrow aisle small turning radius electric forklift1.CE Certificated
2.Ac motor.
Product Description
1.0ton narrow aisle small turning radius electric forklift
Characteristic:
- Due to its small turning radius (1140mm),our narrow aisle forklift can be operated flexibly in narrow aisles.
- Using separate excitation drive and control technology, it provides regenerative braking.
- It is driven by AC motor, removing the need for regular brush change. What’s more, the efficiency of AC motor is 30% higher than common DC motor.
- The use of hydraulic steering system makes the operation more convenient and quiet.
- It can be provided with lateral movement and free rise functions upon request
- Solid overhead guard makes the operator more secure.
- The narrow aisle forklift, with a max. lift of 5 meters, is applicable to all kinds of pallets.
Specification
| Model No | NF10A | NF10B | |
| Capacity | kg | 1000 | 1000 |
| Lifting height | mm | 3000 | 5000 |
| Load center | mm | 600 | 500 |
| Front overhang | mm | 140 | 180 |
| Wheel base | mm | 975 | 1050 |
| Free lift | mm | 1600 | --- |
| Lowered mast height | mm | 2155 | 2250 |
| Max.machine height | mm | 3565 | 5600 |
| Overall length | mm | 2210 | 2250 |
| Overall width | mm | 850 | 850 |
| Fork minimum ground clearance | mm | 50 | 50 |
| Min.turning radius | mm | 1140 | 1180 |
| Max.speed(laden/unladen) | km/h | 5.8/6.0 | 5.8/6.0 |
| Lifting speed(laden/unladen ) | mm/s | 110/150 | 110/150 |
| Lifting speed(laden/unladen ) | mm/s | 150/110 | 150/110 |
| Max. Travel Grade(laden/unladen ) | % | 8-12 | 8-12 |
| Front wheel diameter | mm | 250 | 250 |
| Back wheel diameter | mm | 280 | 280 |
| Driving motor | kw | 2.2 | 2.2 |
| Lifting motor | kw | 3 | 3 |
| Aneroid battery | V/Ah | 24/360 | 24/360 |
| Net weight | kg | 2050 | 2150 |
