Specifications
1.Curtis electric control system2.High-capacity tration battery
3.Imported Winner hydraulic pump station

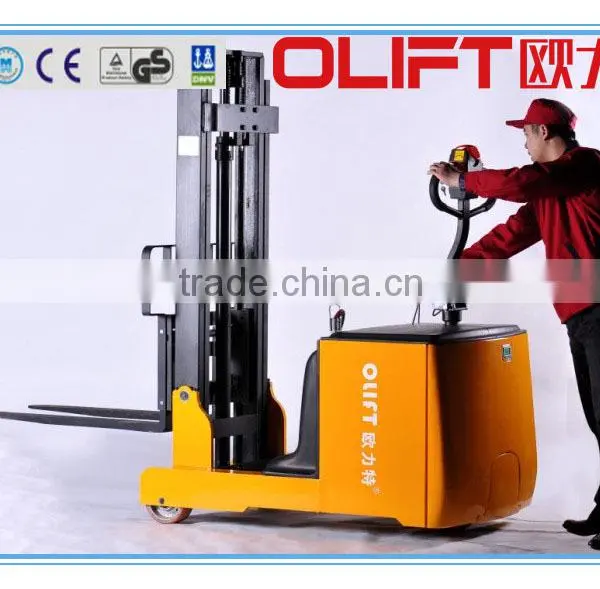

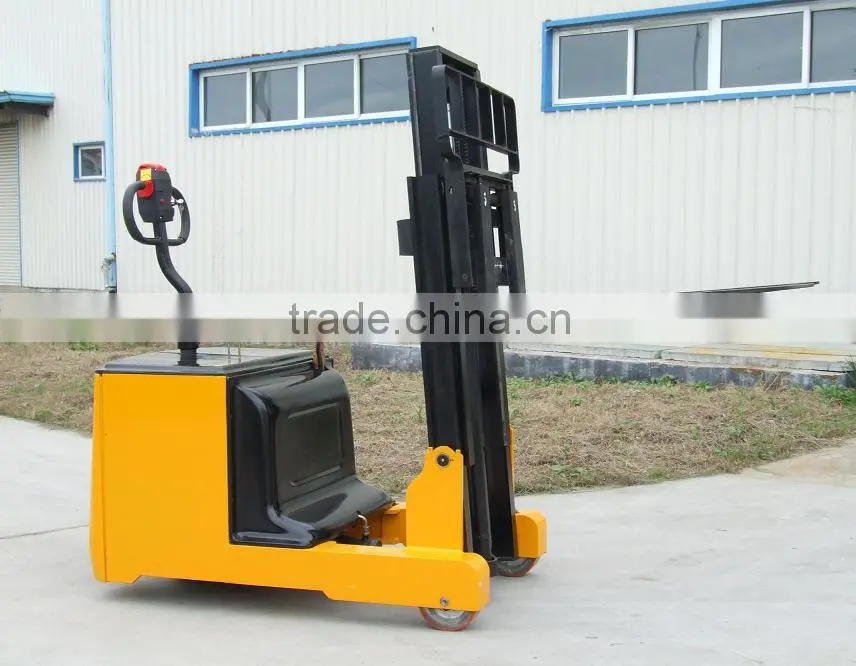

1000kgs pallet machine TN series
1. lifting up to 2.5m,3m
2. narrow space design
3. more than 20 year experience
4. with CE
1000kgs pallet machine TN series
l Streamlined Forms design
l Welded by high quality steel plates
l American CURTIS electrical controller
l Taiwan Winner hydraulic pump
l Fork work with tilt, forwards 1 degree, backwards 7 degree
l Forged adjustable forks available for all kinds of pallets
l Continuous operating time/day: 8 hours.
Model |
|
TN1025 |
TN1030 |
Capacity |
kg |
1000 |
1000 |
Load Center |
mm |
400 |
400 |
Fork Free Lifting Height |
mm |
140 |
140 |
Max. Fork Lifting Height |
mm |
2500 |
3000 |
Max. Machine Height |
mm |
3275 |
3500 |
Fork Length |
mm |
800/1000 |
800/1000 |
Fork Width |
mm |
Adjustable,Max.570 |
Adjustable,Max.570 |
Turning Radius |
mm |
1380 |
1380 |
Driving Motor |
V/kw |
24/1.2 |
24/1.2 |
Lifting Motor |
V/kw |
24/2.0 |
24/2.0 |
Run Speed (Load/Unload) |
km/h |
5.7/6.3 |
5.7/6.3 |
Lift Speed ( Load/Unload ) |
mm/s |
100/140 |
100/140 |
Lower Speed ( Load/Unload ) |
mm/s |
181/175 |
181/175 |
Grade ability ( Load/Unload ) |
5/8 |
5/8 |
|
Load Wheel |
mm |
Φ200 |
Φ200 |
Steering Wheel |
mm |
Φ250 |
Φ250 |
Battery |
V/Ah |
24/240 |
24/240 |
Charger |
V/A |
24/40 |
24/40 |
Overall Length |
mm |
2295 |
2295 |
Overall Width |
mm |
842 |
842 |
Overall Height |
mm |
1860 |
1900 |
Net. Weight |
kg |
1460 |
1500 |
Qingdao Olift Equipment Co.,Ltd.has been a material handling equipment manufacturer since 2003.We specialize in designing and producing electric forklifts,stackers,aerial work platforms and some industrial vehicles.At Olift,we are committed to providing unique material handling equipment and lifting equipment,which are designed to reduce the cost,time and the potential of workplace injury involved in moving heavy loads.
The company has passed ISO9001quality management system certification and our products have passed CE certification.Our products fall into 6main categories and are available in over 200 varieties.
Electric Reach Fork lift Truck
You should charge the battey with 12hours and you should put full electric stacker forklift in better environment,then you will
prolong the battery life time.The payment is TT or LC.
