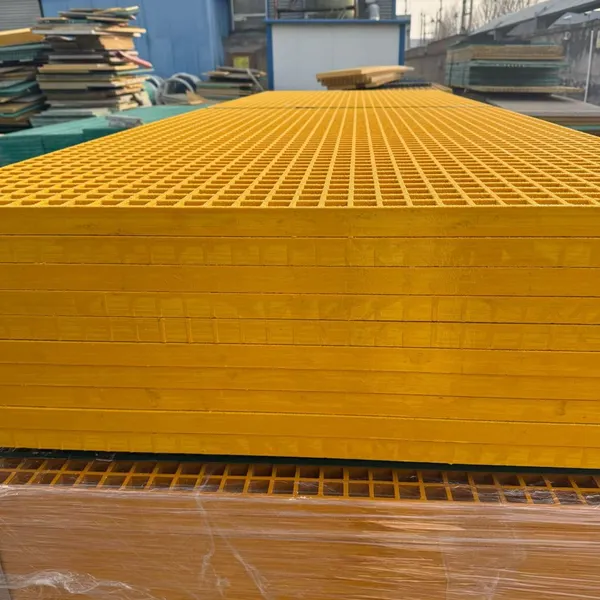

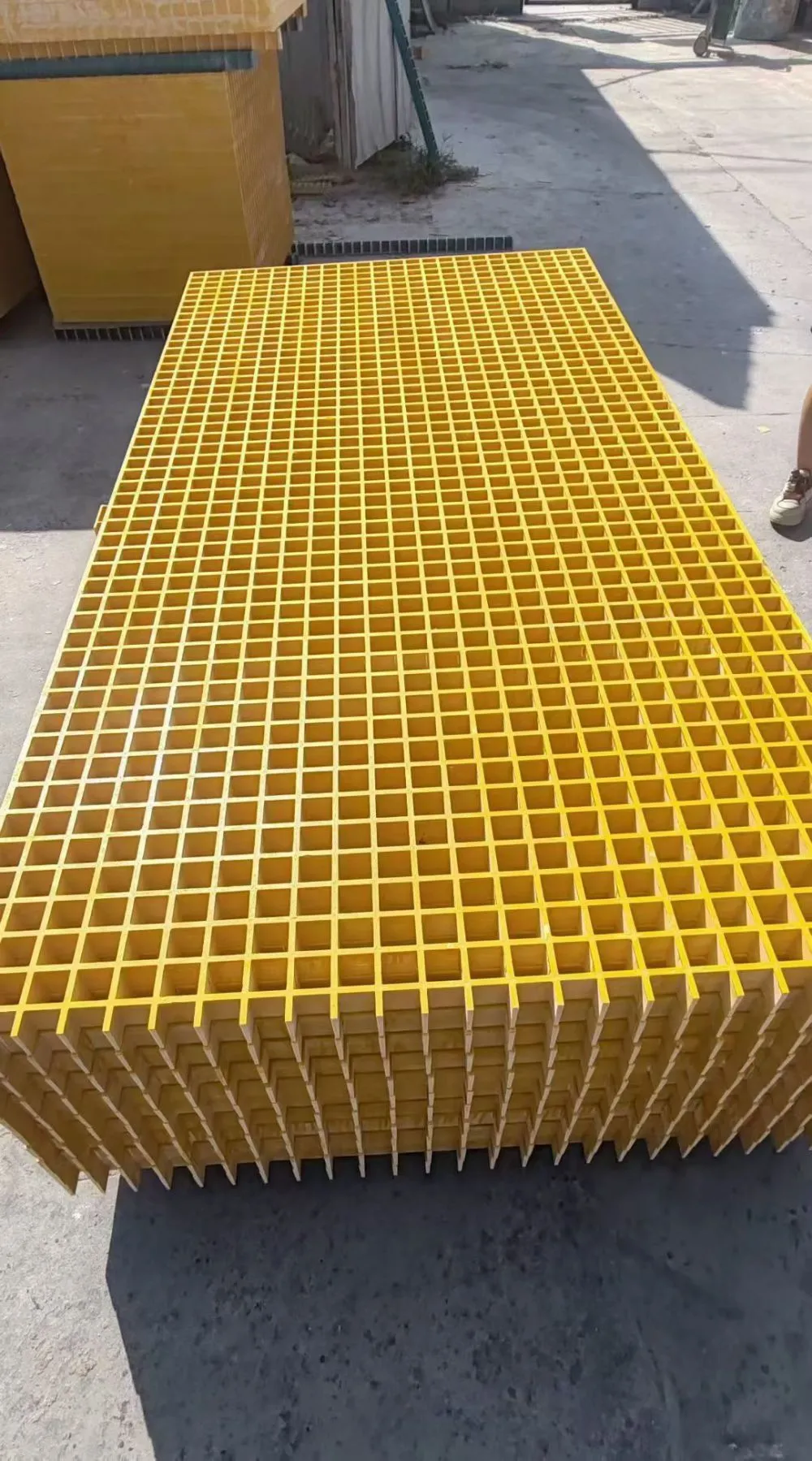

Fiberglass Grating 38mm Thick, 5000kg/m² Load Capacity, Isophthalic Polyester Resin, Yellow Anti-Slip Surface
Product Spotlights
38mm thick fiberglass grating with 5000kg/m² load capacity, made from Isophthalic Polyester Resin for superior chemical resistance. Yellow anti-slip surface enhances safety. ISO9001 certified, customizable sizes, lightweight, corrosion-free, low maintenance. Ideal for heavy-duty industrial platforms, walkways, and trench covers.
Negotiable
MOQ: 300 Square Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
thickness:
38mm
load_capacity:
5000kg/m²
resin_type:
Isophthalic Polyester Resin
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiberglass Grating for Wastewater Treatment, 50mm Thick, Heavy Duty, UV Stabilized, Slip Resistant Grit TopNegotiableMOQ: 300 Square Meters -
Fiberglass Grating 50mm Thick, Heavy Duty Load 7000kg/m², Vinyl Ester Resin, Orange Color, Chemical ResistantNegotiableMOQ: 300 Square Meters
-
Fiberglass Grating for Chemical Plant, Corrosion Resistant, 38mm Thick, Isophthalic Resin, Anti-Slip SurfaceNegotiableMOQ: 300 Square Meters
-
Fiberglass Grating 1.22m x 3.66m Panel, Grit Top Surface, UV Resistant, Fire Rating Class A, Lightweight 12kg/panelNegotiableMOQ: 300 Square Meters
-
Fiberglass Grating, 30mm Thickness, Load Capacity 3500kg/m², 12-Month Warranty, Technical Support ProvidedNegotiableMOQ: 300 Square Meters
thickness
38mm
load_capacity
5000kg/m²
resin_type
Isophthalic Polyester Resin
color
Yellow
surface
Anti-Slip (Grit Top)
material
Fiberglass Reinforced Plastic (FRP)
panel_size
Customizable (e.g., 1220x3660mm)
application
Industrial platforms, walkways, trenches
As a leading manufacturer based in Hengshui, Hebei, China, Hengshui Ruibin New Materials LLC specializes in producing high-quality fiberglass reinforced plastic (FRP) products. Established in 2019, our factory spans 1,000–3,000 square meters and is staffed by 101–200 skilled employees. We are proud to present our Fiberglass Grating 38mm Thick with a remarkable 5000kg/m² load capacity. Crafted from Isophthalic Polyester Resin and featuring a bright Yellow Anti-Slip Surface, this grating is designed to deliver superior durability, safety, and corrosion resistance in demanding industrial environments. Our commitment to quality is backed by ISO9001 and ISO9000 certifications, ensuring every panel meets rigorous international standards.
Key Features & Technical Specifications
- Exceptional Load Capacity: With a tested load rating of 5000kg/m², this grating is ideal for heavy-duty applications such as industrial platforms, mezzanines, and vehicle access areas.
- 38mm Thickness: The robust 38mm profile provides excellent structural rigidity while maintaining a lightweight advantage over steel alternatives.
- Isophthalic Polyester Resin: This premium resin offers enhanced chemical resistance and UV stability, making the grating suitable for harsh chemical environments, wastewater treatment plants, and outdoor installations.
- Yellow Anti-Slip Surface: The bright yellow color improves visibility for safety, while the grit-top surface provides reliable slip resistance even in wet or oily conditions.
- Corrosion & Rust-Free: Unlike metal grating, FRP will not rust, rot, or corrode, significantly reducing maintenance costs and extending service life.
- Fire Retardant Properties: The resin system can be formulated to meet various fire ratings (optional upon request).
- Low Thermal Conductivity: Safe to touch in extreme temperatures, reducing the risk of burns or slips from condensation.
- Easy Installation: Lightweight panels can be cut and drilled on-site using standard tools, and they are compatible with various support structures.
| Parameter | Value |
|---|---|
| Thickness | 38 mm (1.5 inches) |
| Load Capacity | 5000 kg/m² (uniformly distributed load) |
| Resin Type | Isophthalic Polyester Resin |
| Surface Finish | Yellow anti-slip grit top |
| Standard Panel Size | 1220 x 3660 mm (custom sizes available) |
| Mesh Configuration | 38 x 38 mm (square mesh) or as requested |
| Weight per Panel | Approx. 30–35 kg (varies by size) |
| Color | Yellow (other colors available upon request) |
Benefits to Your Business
- Long-Term Cost Savings: The non-corrosive nature of FRP eliminates the need for painting, galvanizing, or frequent replacements, reducing total lifecycle costs.
- Enhanced Workplace Safety: The high-visibility yellow color and anti-slip surface help prevent accidents, meeting OSHA and other safety standards.
- Versatile Applications: Suitable for walkways, platforms, stair treads, trench covers, drainage covers, and marine structures.
- Chemical Resistance: Isophthalic polyester resin resists a wide range of acids, alkalis, and solvents, making it ideal for chemical plants, refineries, and food processing facilities.
- Electrical Insulation: FRP is non-conductive, providing added safety in electrical substations and power generation facilities.
- Environmental Friendly: The material is recyclable and has a low carbon footprint during production.
Trust & Reliability
Hengshui Ruibin New Materials LLC has been a trusted supplier since 2019, with an annual export value of US$2.5 million to US$5 million. Our products are shipped from the ports of Tianjin and Qingdao to markets across North America, South America, Europe, Africa, Oceania, the Middle East, and Asia. We maintain strict quality control under our ISO9001 and ISO9000 certified management systems. Every batch of grating undergoes rigorous load testing and dimensional inspection to ensure consistent performance. Our dedicated team of 101–200 employees is committed to delivering customized solutions, from panel size adjustments to special resin formulations. With a factory area of 1,000–3,000 square meters, we have the capacity to fulfill large orders while maintaining short lead times.
Contact us today for a quote or technical consultation. Whether you need standard panels or custom designs, we are ready to support your project with competitive pricing and reliable delivery.
Frequently Asked Questions
-
Q: What is the maximum span for this 38mm thick grating under 5000kg/m² load?
A: The maximum safe span depends on the support configuration and mesh size. For a typical 38x38mm mesh, we recommend a maximum span of 600–800 mm for uniformly distributed loads. Detailed load tables are available upon request. -
Q: Can the color be customized?
A: Yes, we offer a variety of colors including gray, green, red, and blue. The yellow anti-slip surface is standard, but other colors can be produced with a minimum order quantity. -
Q: Is this grating suitable for outdoor use in extreme climates?
A: Absolutely. The Isophthalic Polyester Resin provides excellent UV resistance and weatherability. The material can withstand temperature ranges from -40°C to +80°C (-40°F to 176°F) without degradation. -
Q: How do I install the grating?
A: The panels can be cut to size using a diamond-blade saw or abrasive wheel. They can be fastened with clips, bolts, or adhesives. We provide installation guidelines and can recommend suitable hardware. -
Q: What is the lead time for a standard order?
A: For standard sizes and colors, lead time is typically 15–20 working days after order confirmation. Custom orders may require 25–30 working days. Urgent orders can be expedited upon request. -
Q: Does the grating meet fire safety standards?
A: Our standard resin formulation has a flame spread index within Class I or Class II per ASTM E84. If you require specific fire ratings, we can add fire-retardant additives to meet your local codes. -
Q: Can I get a sample before placing a bulk order?
A: Yes, we offer free samples for small pieces (e.g., 200x200mm) with the buyer covering shipping costs. Large samples are available at a nominal fee, which is refundable upon order placement. -
Q: What is the warranty period?
A: We provide a 12-month warranty against manufacturing defects under normal usage conditions. For specific applications, extended warranty options are negotiable.
