Welcome to Hengshui Ruibin New Materials LLC – your reliable partner for high-performance composite solutions. Our Composite Polyester Fiberglass Pedestrian Decking GRP Pultruded FRP Gratings are engineered to provide superior strength, corrosion resistance, and long service life. Manufactured using advanced pultrusion technology, these gratings are ideal for pedestrian walkways, platform decks, and industrial flooring where safety and durability are critical. With a focus on quality and customer satisfaction, we deliver products that meet diverse project requirements.
Our FRP gratings combine polyester resin with continuous fiberglass rovings, resulting in a lightweight yet robust structure. The pultrusion process ensures uniform fiber orientation, delivering consistent mechanical properties across the entire panel. Unlike traditional steel or wood decking, these gratings are non-conductive, non-magnetic, and resistant to chemicals, moisture, and UV degradation. They are designed to withstand harsh environments, including marine, chemical plants, and wastewater treatment facilities.
Key Features & Advantages
High Strength-to-Weight Ratio: Up to 75% lighter than steel, reducing installation costs and structural load.
Corrosion & Chemical Resistance: Impervious to rust, rot, and most chemicals, ideal for aggressive environments.
Slip-Resistant Surface: Available with serrated or gritted top for enhanced pedestrian safety, even in wet conditions.
Low Maintenance: No painting, coating, or special treatment required – simply wash with water.
Non-Conductive & Non-Magnetic: Safe for electrical substations, MRI rooms, and other sensitive areas.
UV Stabilized: Resin formulation includes UV inhibitors to prevent color fading and degradation.
Customizable Dimensions: Panels can be cut to size, with custom hole patterns and thicknesses available upon request.
Fire Retardant Options: Special resin formulations (e.g., halogen-free) can be supplied for fire safety compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Polyester resin + E-glass fiberglass |
| Resin Type | Isophthalic polyester (standard), Vinyl ester (optional) |
| Fiber Content | 65% – 70% by weight |
| Density | ~1.8 – 2.2 g/cm³ |
| Tensile Strength | ≥ 200 MPa (longitudinal) |
| Flexural Strength | ≥ 250 MPa |
| Service Temperature | -40°C to +80°C (higher with special resin) |
| Fire Rating | Class 1 (ASTM E84) / optional UL94 V-0 |
Our gratings are manufactured with strict quality control, ensuring consistent dimensions and mechanical properties. Each panel is inspected before shipment. The pultrusion process guarantees a smooth, uniform finish with no voids or delamination. We also offer color customization to match safety codes or aesthetic preferences – choose from safety yellow, gray, green, or custom RAL colors.
Applications

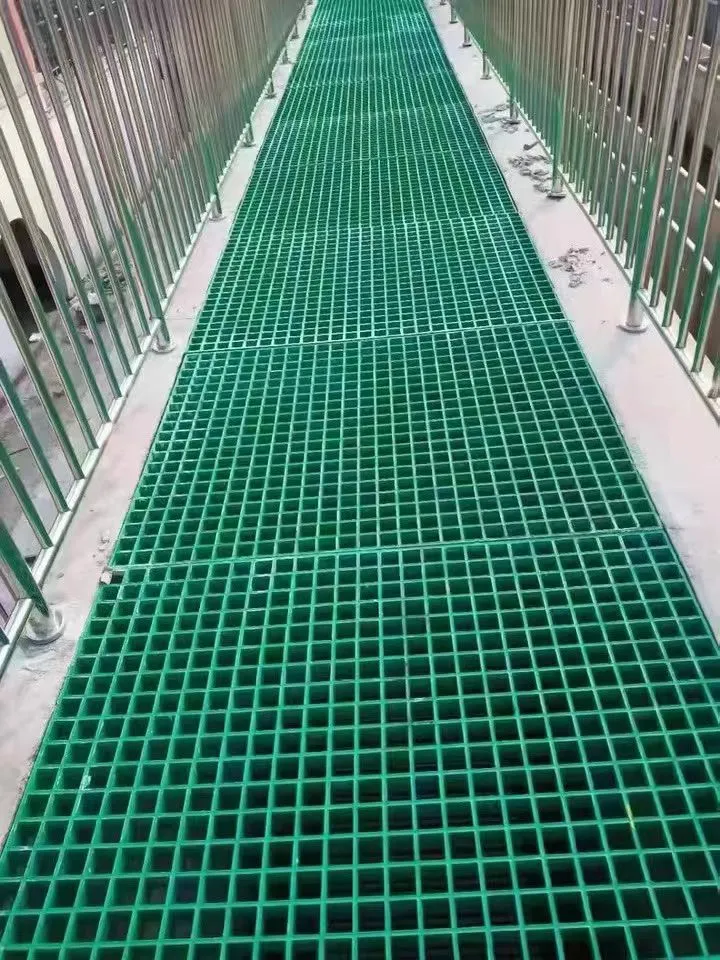

Pedestrian walkways and footbridges

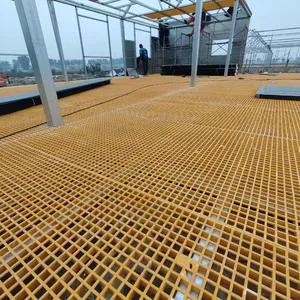

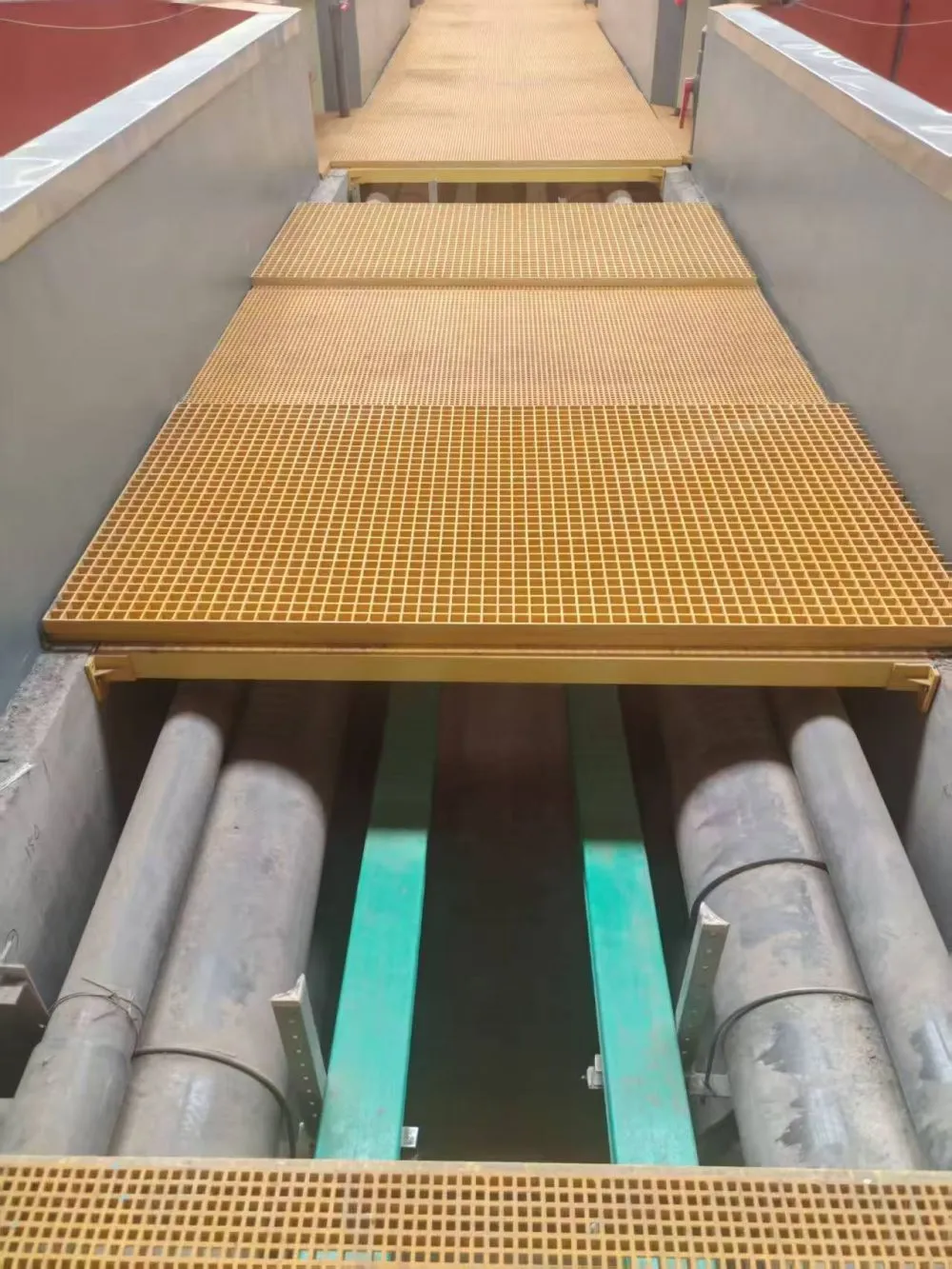

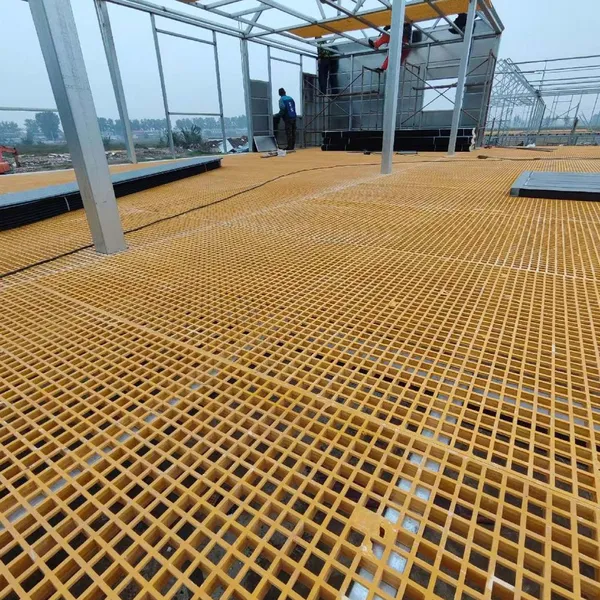

Industrial platform decking and mezzanines
Marine docks, piers, and offshore platforms

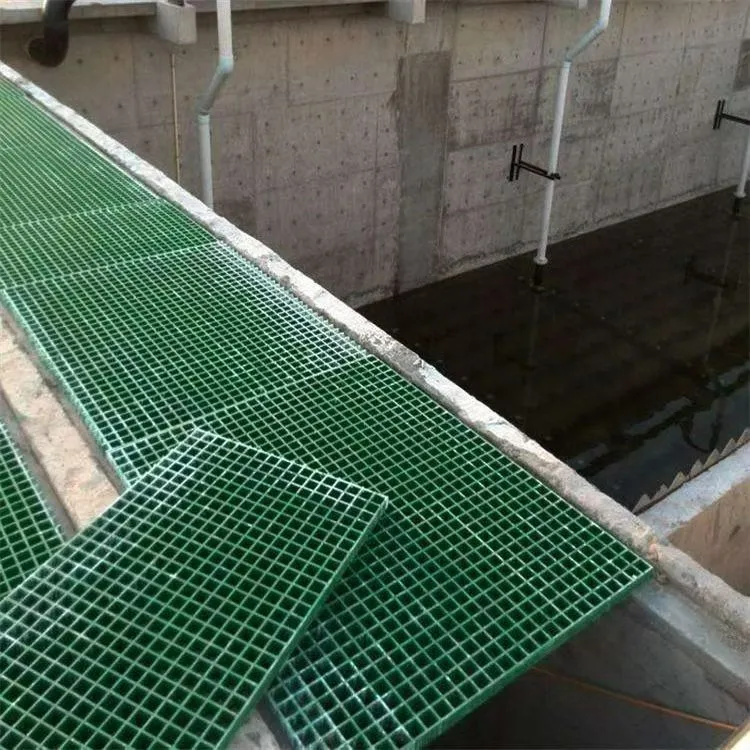

Wastewater treatment plant catwalks
Chemical processing plant flooring

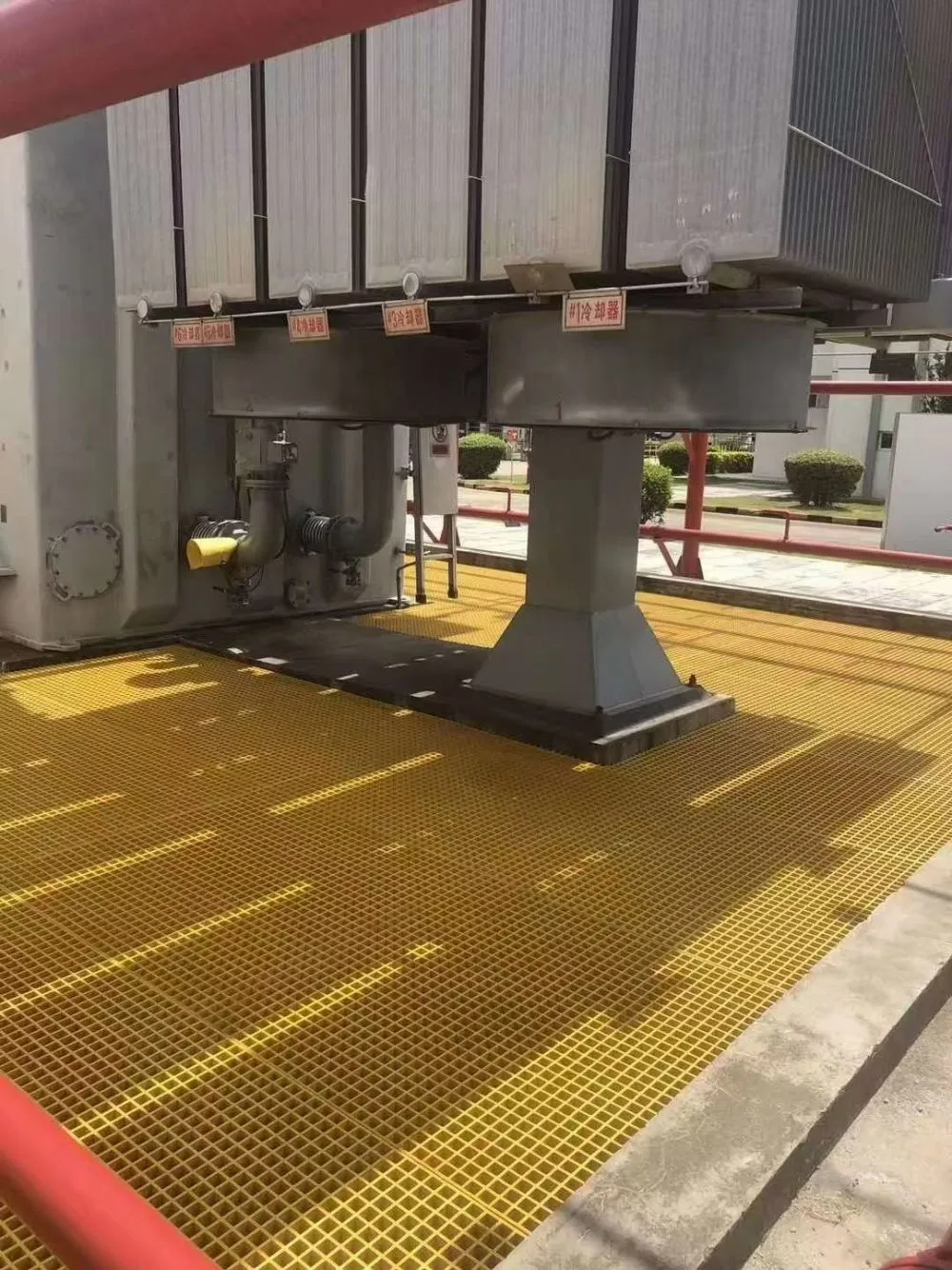

Electrical substation and utility access paths
Mining and metal refining walkways
Public parks, zoos, and recreational areas
At Hengshui Ruibin New Materials LLC, we have been supplying composite solutions for over a decade. Our factory in Hengshui, Hebei, China, is equipped with advanced pultrusion lines and a dedicated quality assurance team. We export to more than 30 countries, and our products have been used in projects ranging from municipal infrastructure to industrial plants. Our commitment is to provide reliable, cost-effective, and environmentally friendly alternatives to traditional materials. We offer free samples, technical datasheets, and engineering support. Contact us today to discuss your project requirements – let us help you find the perfect grating solution.
Frequently Asked Questions
Q: What is the difference between pultruded FRP gratings and molded gratings?
A: Pultruded gratings are made by pulling continuous fibers through a resin bath and into a heated die, resulting in high strength in the longitudinal direction. Molded gratings are made by pouring resin and fiber into a mold, offering isotropic strength. Pultruded gratings are typically lighter and stronger in one direction, making them ideal for pedestrian decking where load is directional.Q: Are these gratings suitable for outdoor use?
A: Yes, the polyester resin is UV stabilized, and the fiberglass does not corrode. They can withstand rain, sun, and temperature extremes. For extended outdoor exposure, we recommend adding a UV protective gel coat (available upon request).Q: Can the gratings be cut to size on-site?
A: Absolutely. FRP gratings can be cut using standard power tools with carbide-tipped blades. We can also pre-cut to your exact dimensions at the factory.Q: What load capacity do these gratings have?
A: Load capacity depends on thickness, span, and grid size. For example, a 38mm thick grating with 38x38mm mesh can support a uniformly distributed load of over 500 kg/m². We provide load tables with each product.Q: Do you offer fire-retardant versions?
A: Yes, we can formulate with halogen-free flame retardant resin to meet various fire standards. Please specify your requirement when ordering.Q: What is the typical lead time?
A: For standard sizes and colors, lead time is 10–15 working days. Custom orders may take 20–25 working days, depending on quantity.Q: How do I install these gratings?
A: They can be fixed using stainless steel clips, bolts, or embedded in a frame. We provide installation guides and can recommend suitable fasteners.Q: Are samples available?
A: Yes, we offer free small samples for quality evaluation. You only pay for shipping. Contact us to request a sample kit.
Choose Hengshui Ruibin New Materials LLC for your next project – where quality meets affordability. Our team is ready to support you with technical expertise and prompt service. Let’s build a safer, stronger, and more durable infrastructure together.
