As a leading manufacturer from Hengshui Ruibin New Materials LLC in Hebei, China, we specialize in engineering high-performance composite solutions. Our FRP Decking Fiberglass Walkway Grating is designed to withstand the most demanding heavy-load environments while offering exceptional durability, corrosion resistance, and safety. Whether you need reliable flooring for industrial plants, offshore platforms, or public infrastructure, our grating delivers long-term value with minimal maintenance.
Manufactured using advanced pultrusion or molding processes, each panel is reinforced with continuous glass fibers and premium resin systems. The result is a lightweight yet incredibly strong material that outperforms traditional steel or wood in corrosive, wet, or high-traffic areas. Choose from a range of standard sizes and custom configurations to meet your project requirements.
Key Features & Benefits
Exceptional Load Capacity: Engineered for heavy loads with high stiffness-to-weight ratio. Supports up to 1000 kg/m² depending on thickness and span.
Corrosion & Chemical Resistance: Impervious to moisture, saltwater, acids, alkalis, and UV radiation. Ideal for marine, chemical, and wastewater treatment plants.

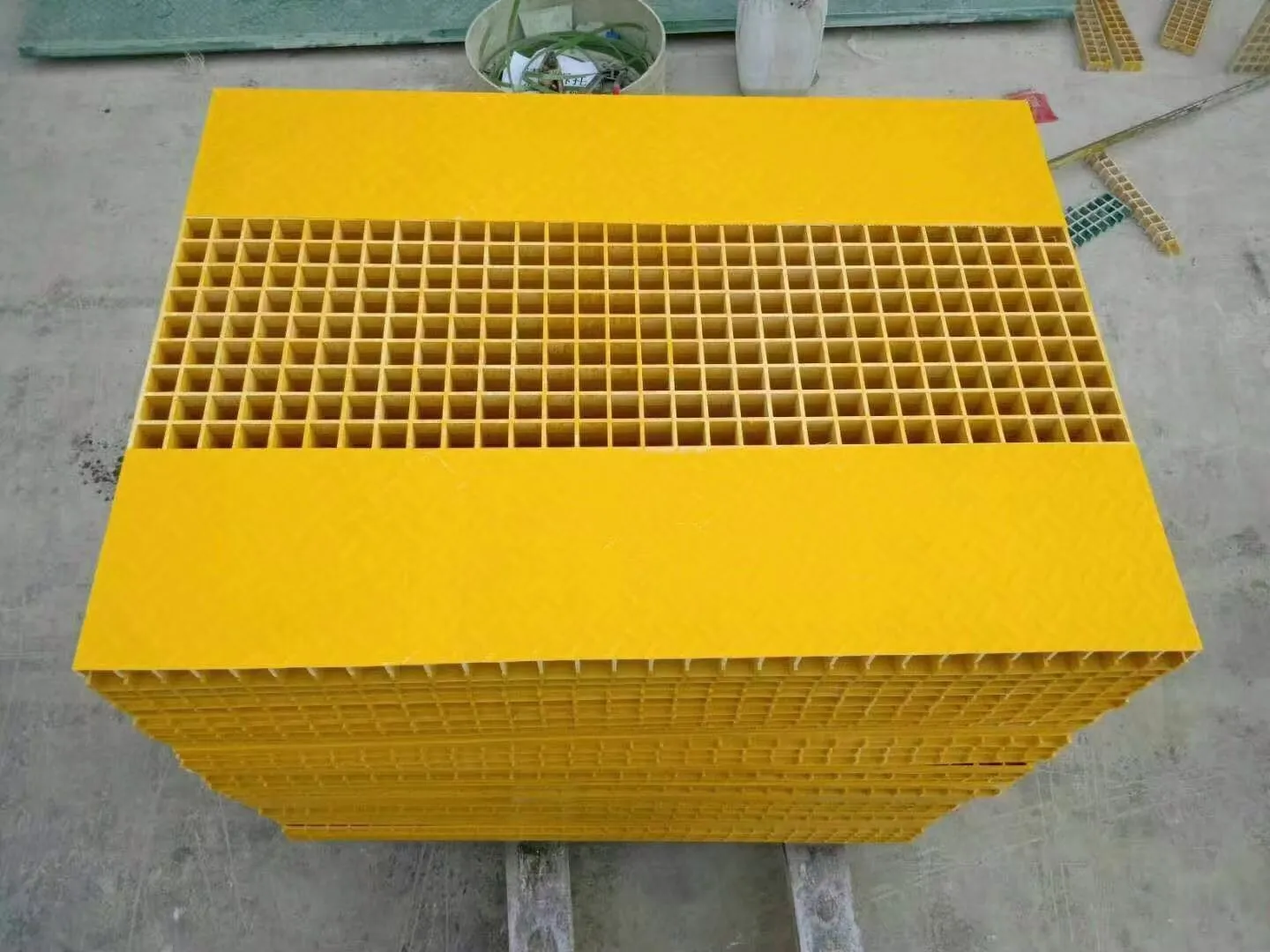

Anti-Slip Surface: Concave-convex or grit-top surface provides excellent traction even in wet or oily conditions, enhancing worker safety.
Non-Conductive & Spark-Proof: Electrical insulation and non-magnetic properties make it safe for electrical substations, mining, and explosive environments.
Lightweight & Easy Installation: Weighs only 1/4 of steel grating, reducing structural load and labor costs. Can be cut, drilled, and assembled on-site with simple tools.
Low Maintenance: No need for painting, coating, or rust-proofing. Simply wash with water to maintain appearance.
Customizable Options: Available in various colors, sizes, thicknesses, resin types (polyester, vinyl ester, phenolic), and fire-retardant grades.
Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Material | Fiberglass Reinforced Polymer (FRP) |
| Resin Type | Polyester / Vinyl Ester / Phenolic (optional) |
| Glass Content | 30% – 65% by weight |
| Density | ~1.8 – 2.0 g/cm³ |
| Tensile Strength | ≥ 200 MPa (customizable) |
| Flexural Strength | ≥ 300 MPa |
| Operating Temperature | -40°C to +120°C (higher with special resin) |
| Fire Rating | Class B / Class 1 (optional) |
Wide Applications
Industrial Walkways & Platforms: Factories, warehouses, refineries.
Offshore & Marine: Oil rigs, docks, ship decks, boat ramps.
Water & Wastewater Treatment: Trench covers, filter floors, catwalks.
Chemical Processing: Flooring in corrosive chemical plants.

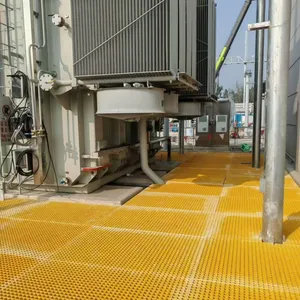

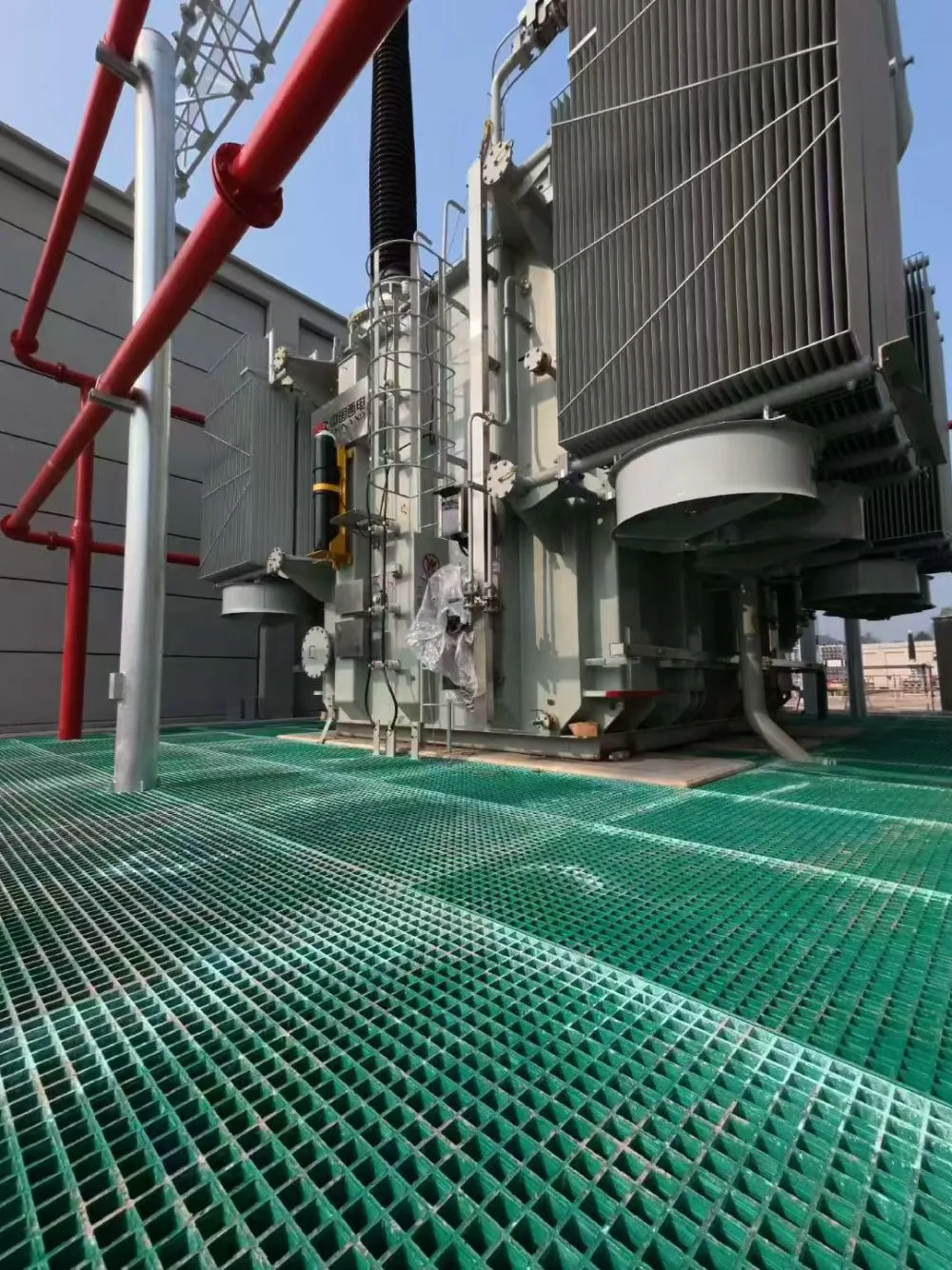

Electrical & Utility: Substation platforms, cable trenches, transformer yards.
Public Infrastructure: Pedestrian bridges, stadium seating, park walkways.
Why Choose Hengshui Ruibin New Materials LLC?

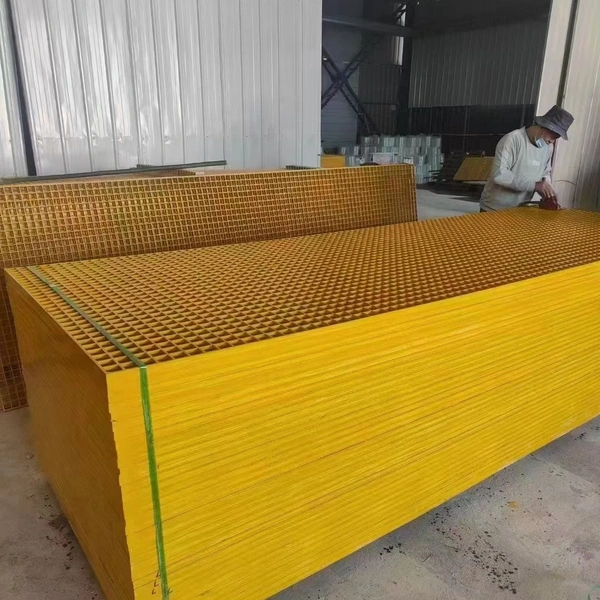

Located in the composite manufacturing hub of Hengshui, Hebei, our company has years of experience in producing FRP products for global markets. We utilize state-of-the-art pultrusion lines and molding presses to ensure consistent quality. Each batch undergoes strict quality control including dimensional checks, load testing, and surface finish inspection. Our team provides technical support from design to installation, and we offer competitive pricing without compromising on quality.
With a production capacity of over 10,000 square meters per month, we can handle large-scale projects and tight deadlines. Our products are exported to North America, Europe, Southeast Asia, and the Middle East, earning trust from contractors and engineers. We invite you to contact us for a quote or sample – let us help you build safer, stronger, and longer-lasting structures.
Frequently Asked Questions
Q1: What is the maximum span/load capacity of your FRP grating?
A: The load capacity depends on the thickness, grid design, and support spacing. Typically, our 38mm thick grating can safely support a concentrated load of 250 kg and a uniform load of 1000 kg/m². For specific requirements, we provide engineering calculations.
Q2: Can it be used in direct contact with chemicals?
A: Yes, our vinyl ester resin grating offers excellent resistance to most acids, alkalis, and solvents. For extreme chemical environments, we recommend phenolic resin options. Please provide your chemical details for a compatibility check.
Q3: Is the surface slip-resistant even when wet?
A: Absolutely. The molded surface features a convex-diamond pattern, and we also offer a grit-top coating (silica sand) for superior anti-slip performance. It meets OSHA and ASTM D2047 standards for slip resistance.
Q4: How do you cut and install FRP grating?
A: FRP grating can be cut using standard carbide-tipped saw blades. Drilling for anchor bolts is easy. For installation, we recommend using stainless steel clips or bearing bars. Detailed installation instructions are provided with each order.
Q5: Does the grating fade or degrade under sunlight?
A: We add UV stabilizers to the resin, and our grating includes a protective gel coat layer. This ensures long-term color retention and mechanical property stability in outdoor exposure.
Q6: What standard sizes are available?
A: Common panel sizes are 1220mm x 3660mm (4' x 12') and 1000mm x 3000mm. Custom widths up to 1500mm and lengths up to 6000mm are available upon request. Thickness ranges from 25mm to 50mm.
Q7: Is your product fire-retardant?
A: We offer fire-retardant grades that meet ASTM E84 Class 1 and BS 476 Part 7 standards. If fire safety is critical, please specify this requirement when ordering.
Q8: What is the minimum order quantity (MOQ)?
A: For standard panels, MOQ is 50 square meters. For custom sizes or special resins, MOQ may be higher. We are flexible and encourage small trial orders for first-time buyers.
Ready to upgrade your heavy-load walkway? Contact Hengshui Ruibin New Materials LLC today for a free consultation and quote. Our team ensures fast delivery and professional after-sales support.
