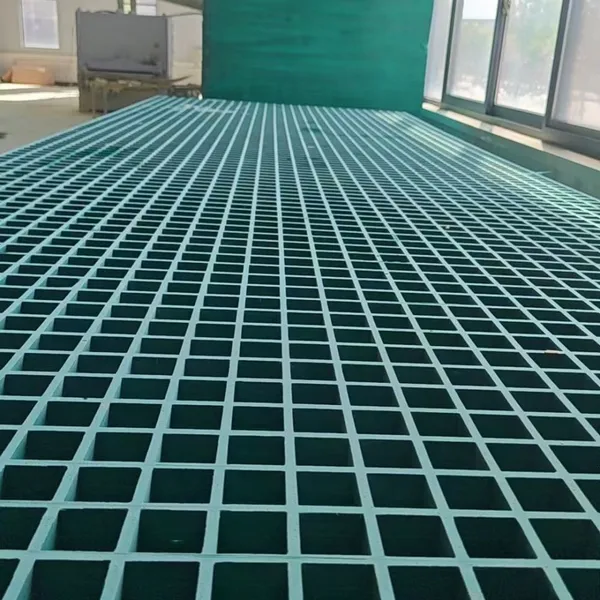

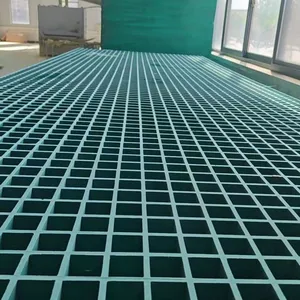

Help CenterFiberglass Grating With 304 Stainless Steel Inserts, Load Capacity 4000kg/m², Thickness 30mm, Anti-Slip Grooved Surface
Product Spotlights
Related Products
-
Fiberglass Grating With 1 Year Warranty, Free Sample Available, Mill Test Report Included, Standard CompliantNegotiableMOQ: 300 Square Meters -
Long Service Life Fiberglass Reinforced Plastic Grating for Cooling TowersNegotiableMOQ: 100 Square Meters
-
Versatile Covered FRP Grating for Enhanced Safety and Structural StrengthNegotiableMOQ: 100 Square Meters
-
FRP Decking Fiberglass Walkway Grating - Building Material for Heavy LoadNegotiableMOQ: 100 Square Meters
-
Anti-Slip Fiberglass Grating With Concave or Gritted Surface for SafetyNegotiableMOQ: 100 Square Meters
Hengshui Ruibin New Materials LLC is a professional manufacturer specializing in high-performance fiberglass grating products. Established in 2019, our factory spans 1,000–3,000 square meters and employs 101–200 skilled workers, with an annual export value of US$2.5–5 million. We are proud to introduce our Fiberglass Grating with 304 Stainless Steel Inserts, designed to deliver exceptional strength and durability. With a load capacity of 4000 kg/m² and a thickness of 30 mm, this grating is ideal for heavy-duty industrial applications. The anti-slip grooved surface ensures maximum safety, making it a reliable choice for platforms, walkways, and drainage covers.
Our grating is manufactured using premium fiberglass and 304 stainless steel inserts, offering superior corrosion resistance and structural integrity. The combination of fiberglass and stainless steel provides excellent mechanical properties while maintaining a lightweight profile for easy installation. Below are the key features and specifications:
- High Load Capacity: Supports up to 4000 kg/m², suitable for heavy machinery and high-traffic areas.
- 304 Stainless Steel Inserts: Embedded at critical points to enhance load-bearing and prevent deformation.
- Anti-Slip Grooved Surface: Deep grooves provide excellent traction even in wet or oily conditions.
- Corrosion & UV Resistant: Fiberglass material resists chemicals, moisture, and sunlight, ensuring long service life.
- Fire Retardant: Meets industry standards for fire safety (optional upon request).
- Lightweight & Easy to Cut: Can be easily fabricated on-site to fit specific dimensions.
- Non-Conductive & Non-Magnetic: Safe for electrical environments and sensitive equipment.
- Low Maintenance: Requires no painting or coating, reducing lifecycle costs.
| Parameter | Value |
|---|---|
| Material Composition | Fiberglass + Polyester/Epoxy Resin + 304 Stainless Steel Inserts |
| Load Capacity | 4000 kg/m² (uniformly distributed) |
| Thickness | 30 mm |
| Surface Finish | Anti-Slip Grooved (Grit top available) |
| Mesh Size | 38.1 x 38.1 mm (standard, customizable) |
| Panel Size | 1220 x 3660 mm (custom sizes available) |
| Operating Temperature | -40°C to +80°C (higher for special resins) |
| Weight | Approx. 25 kg/m² (varies with insert density) |
| Color Options | Yellow, Gray, Green, Blue, Red (custom colors upon request) |
| Certifications | ISO9001, ISO9000 |
Key Benefits for Your Business
- Enhanced Safety: The anti-slip grooved surface significantly reduces slip and fall accidents, meeting OSHA safety standards (optional compliance).
- Cost-Effective: Compared to steel grating, our fiberglass grating is lighter, easier to install, and requires no maintenance, saving on labor and material costs over time.
- Versatile Applications: Ideal for chemical plants, offshore platforms, water treatment facilities, food processing plants, and commercial walkways.
- Customizable Design: We can tailor the insert pattern, mesh size, and panel dimensions to match your specific project requirements.
- Long Service Life: With excellent resistance to corrosion, chemicals, and UV radiation, our grating lasts for decades even in harsh environments.
Why Choose Hengshui Ruibin New Materials LLC? As a direct manufacturer with over 101–200 employees and a factory size of 1,000–3,000 m², we control every step of production to ensure consistent quality. Our products are exported to major markets including North America, South America, Europe, Southeast Asia, Africa, and Oceania, with annual export value reaching US$2.5–5 million. We ship from the Port of Tianjin and Port of Qingdao, offering reliable logistics and competitive pricing. All our fiberglass grating lines are produced under ISO9001 and ISO9000 quality management systems, guaranteeing you receive a product that meets international standards. Our team is committed to providing technical support, custom solutions, and timely delivery. Contact us today to discuss your project requirements and receive a free quote!
Frequently Asked Questions
-
Q: What is the maximum load capacity of this grating?
A: The grating is designed for a uniform load capacity of 4000 kg/m². For concentrated loads, please consult our engineering team for verification. -
Q: Can the stainless steel inserts be customized in terms of spacing or size?
A: Yes, we can adjust the insert pattern and density based on your load requirements. Contact our sales team to discuss your specific needs. -
Q: Is this grating suitable for outdoor use in extreme weather?
A: Absolutely. The fiberglass material is UV-resistant and can withstand temperatures from -40°C to +80°C. For higher temperature applications, we offer special resin formulations. -
Q: How do I cut and install the grating on site?
A: The grating can be cut using standard woodworking tools (e.g., circular saw with carbide blade). We provide installation guidelines and cutting recommendations upon request. -
Q: What colors are available, and can I get a custom color?
A: Standard colors include yellow, gray, and green. Custom colors are available for bulk orders (minimum quantity may apply). -
Q: Does the grating have any fire resistance properties?
A: Standard polyester resin has self-extinguishing properties. For enhanced fire retardancy, we can supply grating with halogen-free or phenolic resin (optional). -
Q: What is the typical lead time for an order?
A: For standard sizes, lead time is 15–20 working days after deposit. Custom orders may require 25–30 working days. We also offer express shipping for urgent projects. -
Q: Do you provide samples for testing?
A: Yes, we offer free samples (300x300 mm) for evaluation. Freight charges may apply for international shipments. Contact us to arrange sample delivery.
