Hengshui Ruibin New Materials LLC is a professional manufacturer established in 2019, specializing in high-performance fiberglass products. Our Fiberglass Grating 50mm Thick with a heavy-duty load capacity of 7000 kg/m² is engineered for the most demanding industrial environments. Made from premium Vinyl Ester Resin and featuring a distinctive Orange Color for high visibility, this grating offers unmatched chemical resistance and structural integrity. Whether you need a durable flooring solution for a chemical plant or a safe walkway in an offshore platform, our grating delivers exceptional performance and longevity.
This product is designed to withstand corrosive chemicals, heavy loads, and extreme weather conditions. The 50mm thickness provides superior strength, while the orange color enhances safety by marking hazardous areas. With our ISO9001 certified manufacturing process, you can trust that every panel meets rigorous quality standards.
Key Features & Technical Specifications
- High Load Capacity: Supports up to 7000 kg/m², ideal for heavy machinery and vehicle traffic.
- Chemical Resistance: Vinyl Ester Resin provides excellent resistance to acids, alkalis, and organic solvents, far outperforming polyester or epoxy resins.
- Anti-Slip Surface: Gritted top surface (concave/convex) ensures safe footing even in wet or oily conditions.
- Lightweight yet Strong: Only 1/4 the weight of steel grating, reducing installation costs and structural load.
- Corrosion-Free: Non-conductive, non-magnetic, and completely rust-proof, perfect for harsh environments.
- UV Resistant: Orange color pigment is UV-stable, maintaining visibility and aesthetics over time.
- Easy to Fabricate: Can be cut, drilled, and shaped on-site using standard tools.
- Fire Retardant: Available with fire-retardant additives upon request (meets ASTM E84 Class A).
Detailed Product Parameters
| Parameter | Value |
| Thickness | 50 mm (2.0 inch) |
| Load Capacity | 7000 kg/m² (uniformly distributed) |
| Resin Type | Vinyl Ester Resin |
| Color | Orange (custom colors available) |
| Panel Size | Standard: 1220 x 3660 mm (4’ x 12’) – custom sizes available |
| Mesh Pattern | Square or rectangular, 38x38 mm typical |
| Surface Finish | Gritted anti-slip |
| Weight per Panel | Approx. 85 kg (for 1220x3660x50mm) |
Benefits Your Business Will Gain
- Enhanced Safety: The bright orange color improves visibility in low-light areas, while the anti-slip surface reduces slip-and-fall risks.
- Reduced Maintenance Costs: Unlike steel, this grating never rusts or corrodes, eliminating the need for painting or protective coatings.
- Long Service Life: Vinyl Ester Resin offers superior resistance to chemical attack, extending the lifespan even in aggressive environments like chlor-alkali plants, pulp mills, and battery rooms.
- Cost-Effective Installation: Lightweight design reduces labor and equipment costs; no welding required.

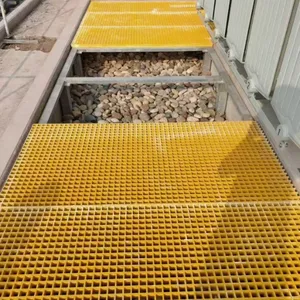

- Versatile Applications: Suitable for platforms, walkways, trench covers, stair treads, and marine structures.
Frequently Asked Questions
Q1: What is the maximum span for this grating under a 7000kg/m² load?
A: The maximum unsupported span depends on the load distribution. For a uniform load of 7000 kg/m², the recommended span is typically 600 mm to 800 mm. We can provide detailed deflection calculations based on your specific application.
Q2: Can I get this grating in a different color?
A: Yes, we offer custom colors including yellow, green, gray, and black. However, orange is the standard for high-visibility safety applications. Minimum order quantities may apply for custom colors.
Q3: Is the orange color UV-stable? Will it fade over time?
A: Our Vinyl Ester Resin includes UV stabilizers, and the pigment is formulated for outdoor durability. Under normal exposure, the color will remain vibrant for years. For extreme UV environments, we recommend adding a UV-resistant gel coat (optional).
Q4: How does the chemical resistance of Vinyl Ester Resin compare to Polyester or Epoxy?
A: Vinyl Ester Resin offers significantly better resistance to a wide range of chemicals, especially strong acids, alkalis, and bleaches. It is the preferred choice for chemical processing and wastewater treatment applications. For specific chemical compatibility, request our chemical resistance chart.
Q5: What standard sizes are available?
A: Standard panels are 1220 x 3660 mm (4 x 12 feet). Other common sizes include 1220 x 2440 mm (4 x 8 feet) and 1000 x 3000 mm. Custom sizes are available upon request with a short lead time.
Q6: Do you provide cut-to-size or pre-drilled panels?
A: Yes, we can fabricate panels to your exact dimensions, including cutouts, holes, and notches. Please provide a drawing or detailed specifications for a quotation.
Q7: Is this grating suitable for use in areas with high humidity or saltwater?
A: Absolutely. The fiberglass and resin composition is completely impervious to moisture and salt corrosion. It is widely used in marine environments, offshore platforms, and coastal facilities.
Q8: What certifications does your factory hold?
A: Our factory is ISO9001 and ISO9000 certified, ensuring consistent quality control. We also comply with international standards such as ASTM D3841 and BS 4592 for grating products. Third-party testing reports are available upon request.
Why Choose Hengshui Ruibin New Materials LLC?
As a manufacturer with over 100 employees and a factory size of 1,000-3,000 square meters, we have the capacity to produce high-quality fiberglass grating in large volumes. Our annual export value of US$2.5 Million - US$5 Million demonstrates the trust of global customers from North America, Europe, Southeast Asia, and beyond. We ship our products from the ports of Tianjin and Qingdao, ensuring timely delivery worldwide. With ISO9001/ISO9000 certification, we adhere to strict quality management throughout production. Our experienced team provides technical support, sample testing, and customized solutions. Choose Ruibin for reliable performance, competitive pricing, and professional service.
Contact us today for a quote or to discuss your project requirements. Let our heavy-duty fiberglass grating bring safety and durability to your facility.
