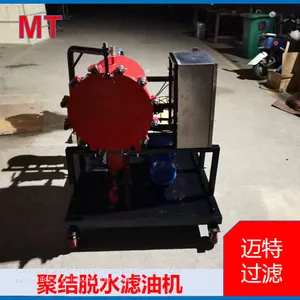

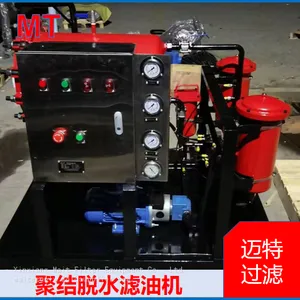

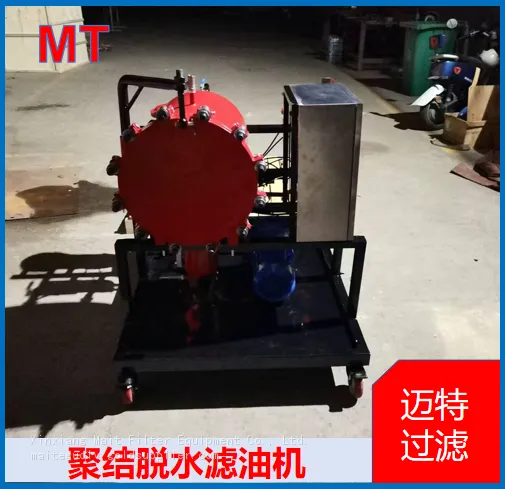

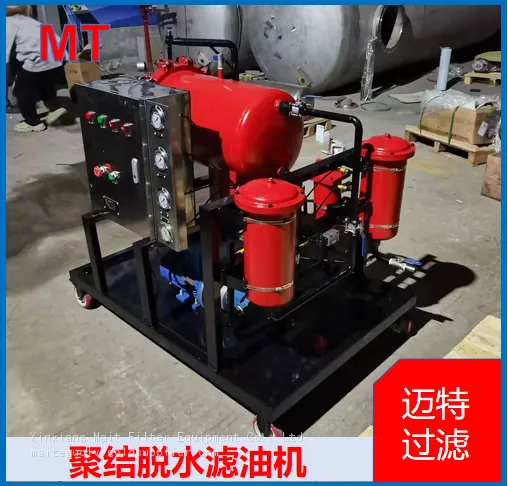

Help CenterCoalescing Dehydration Oil Purifier, Oil‑water Separator for Removing Trace Moisture From Hydraulic Oil
Product Spotlights
Related Products
-
Mobile Vacuum Oil‑purifying Machine, Stable Emulsion Breaking and Multi‑stage Precision Lubricant FiltrationNegotiableMOQ: 1 Piece -
Normal‑temperature Coalescing Dehydration Without Heating, Preserve Fuel Property and Avoid Oil DeteriorationNegotiableMOQ: 1 Piece
-
MT Corrosion‑resistant Diaphragm‑pump Filter, Mobile Circulating‑filter Unit for Acid‑alkali Solvent & Electroplating‑solutionNegotiableMOQ: 1 Piece
-
Mobile Oil Filter Cart With Lock‑able Casters, Precision Dehydration And Impurity Removal For Hydraulic‑oil and LubricantNegotiableMOQ: 1 Piece
-
Flanged T‑type Strainer, In‑line Basket Impurity Remover for Petrochemical, Steam and Industrial PipelineNegotiableMOQ: 1 Piece

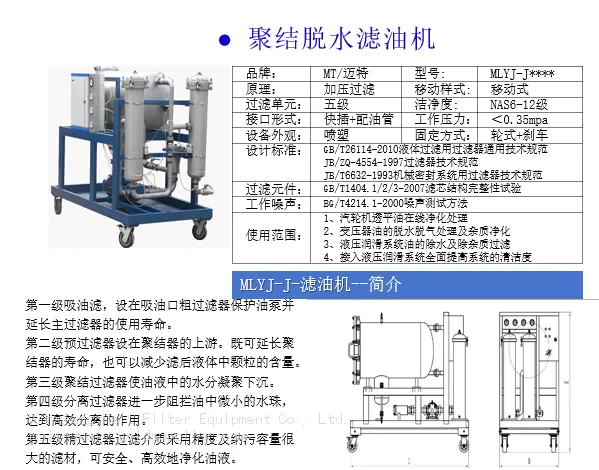

The first‑stage inlet strainer is mounted on the oil‑suction port. It protects the oil pump and extends the service life of the main filter assemblies.The second‑stage pre‑filter is installed upstream of the coalescer. It guards coalescing cartridges, prolongs their service life and cuts solid‑particle concentration in the incoming oil.The third‑stage coalescing filter enables tiny water droplets inside the oil to aggregate and settle downwards.The fourth‑stage separation filter intercepts residual fine water droplets and delivers high‑efficiency oil‑water separation.The fifth‑stage fine filter adopts filter‑media with high filtration accuracy and excellent dirt‑holding‑capacity for safe and efficient oil purification.

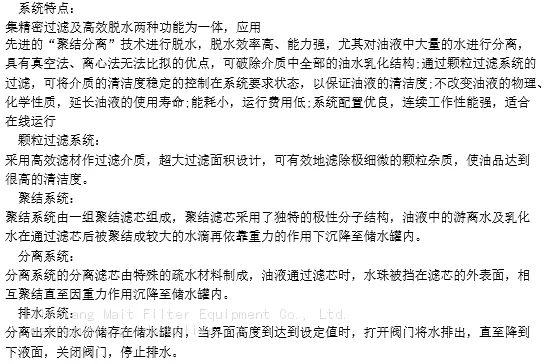

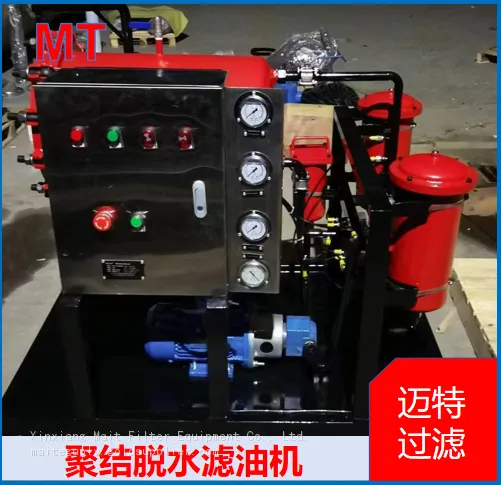

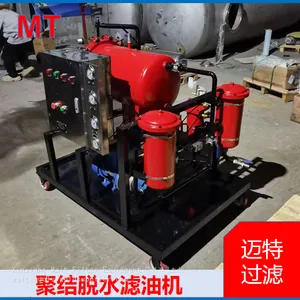

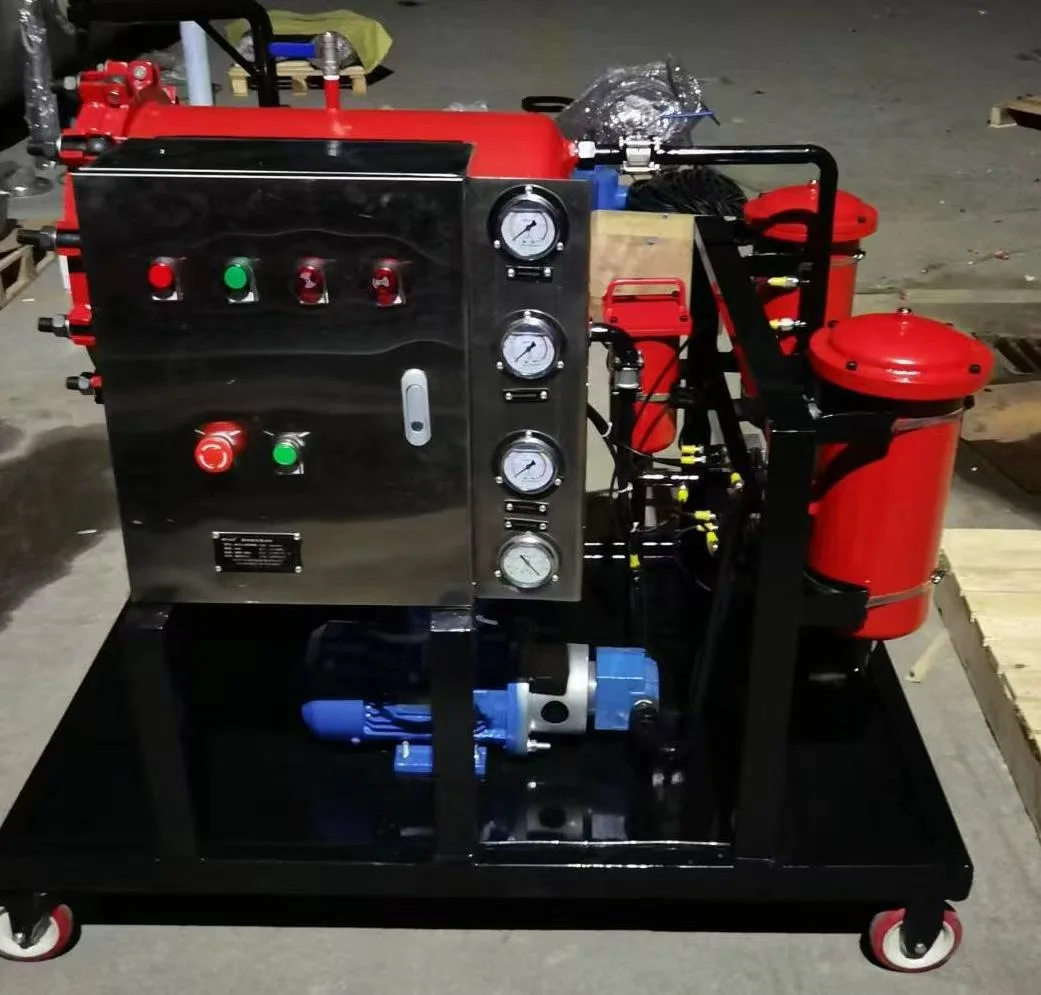

This equipment integrates precision particle filtration and high‑performance dehydration. It adopts advanced coalescence‑separation technology for moisture removal.It boasts outstanding dehydration capacity especially for heavily contaminated wet oil, outperforming vacuum‑type and centrifugal oil purifiers. The machine can fully break stable oil‑water emulsion.The particle‑filtration system maintains oil cleanliness within required specifications. The purification procedure will not alter oil physical‑chemical properties and extends oil service‑life.Low power‑consumption and cheap operating‑cost are guaranteed. Premium component configuration ensures stable long‑time continuous‑operation and on‑line bypass‑filtration.
High‑efficiency filter‑media and an enlarged effective filtering‑area trap ultra‑fine solid contaminants and achieve superior oil cleanliness.

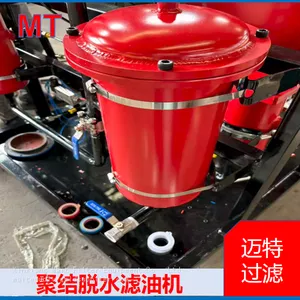

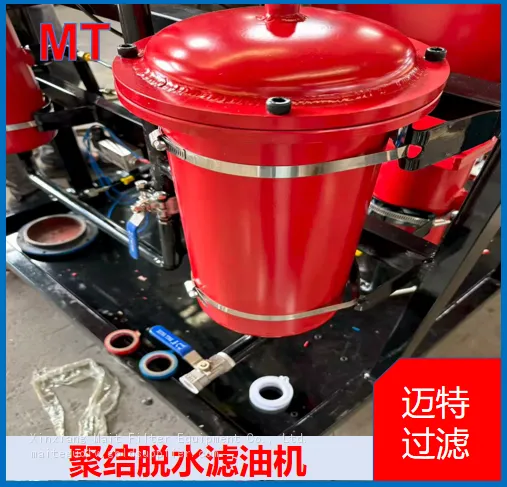

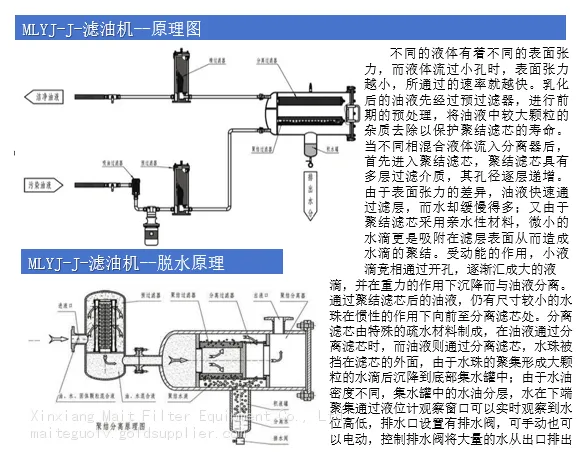

The coalescing unit consists of dedicated coalescing cartridges with unique polar‑molecule construction. Free water and emulsified moisture gather into large‑sized droplets while oil flows through the cartridges, and then sink into the water‑storage tank under gravity.
Separation cartridges are manufactured from special hydrophobic material. Water droplets are retained on the outer cartridge surface during oil passage. Droplets keep merging and finally drop into the water‑storage tank by gravity.

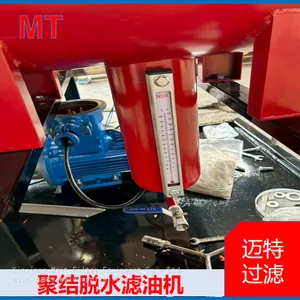

Separated moisture accumulates inside the water‑storage tank. The drain valve opens once the liquid‑level hits the preset height. The valve closes and drainage stops when water falls to the lower limit level.
