Japan Kosel Cosel Tuns Series Ultra-thin Ac-dc On-board Power Supply Module Tuns50f24
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Japan Cosel Pba Series Industrial Switching Power Supplies Pba100f/pba150f/pba300f/pba600fNegotiableMOQ: 0 Piece -
Cosel Japan Kosuo Imported Original Switching Power Supply Sucs Series Dc-dc Isolated Power Supply Module Sucs101205cNegotiableMOQ: 0 Piece
-
Original Imported Japanese Cosel Switch Power Supply, Chs Series dc Input Isolated Brick Module Chs1202415NegotiableMOQ: 0 Piece
-
Japanese Cosel Pca300f/pca600f/pca1000f/pca1500f Series Chassis-mounted Switching Power SuppliesNegotiableMOQ: 0 Piece
-
Authentic Original Imported Switching Power Supplies of the Zuw Series, Dc-dc Low to Medium Power Small Module Power Supplies From Cosel, JapanNegotiableMOQ: 0 Piece
Model: TUNS50F, TUNS100F, TUNS300F, TUNS500F, TUNS700F, TUNS1200F
(Most models are available in stock. Welcome to inquire.)
Country of origin: Japan
(The picture shows TUNS100F)
(The picture shows TUNS300F)
(The picture shows TUNS1200F)
(The picture shows the TUNS series)

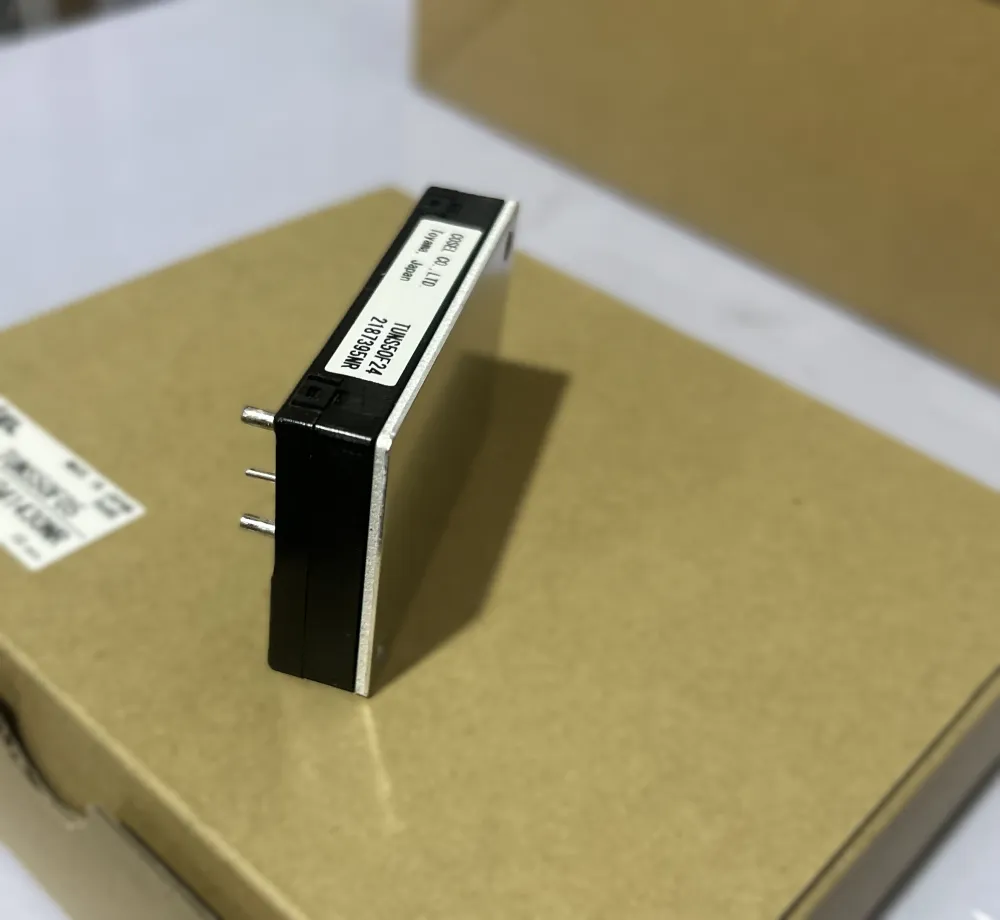

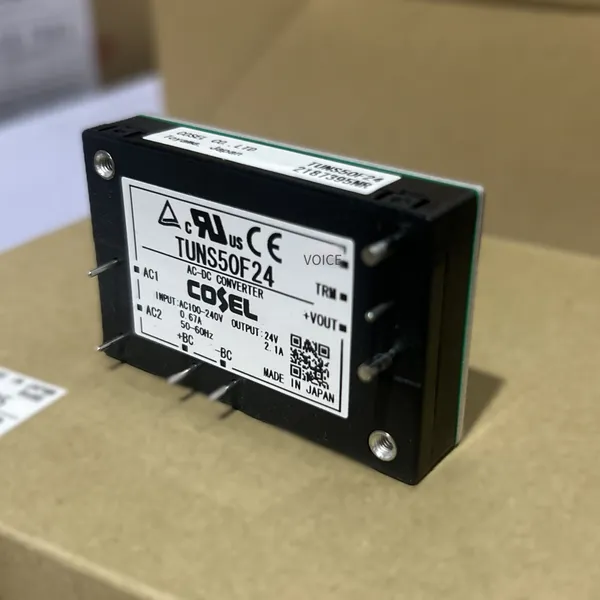

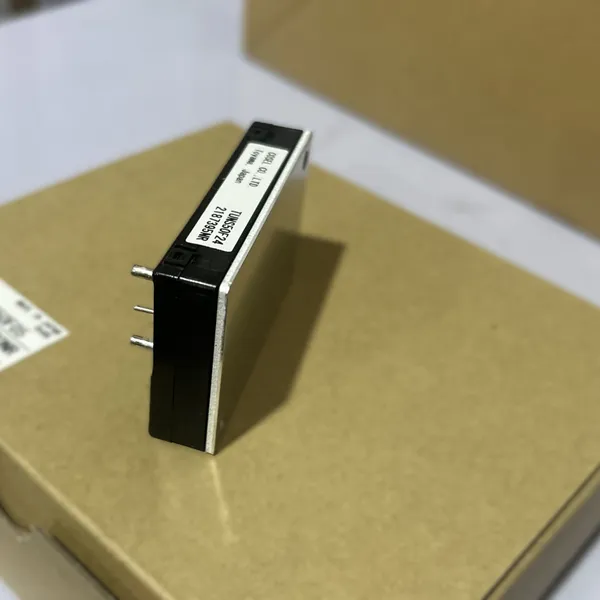

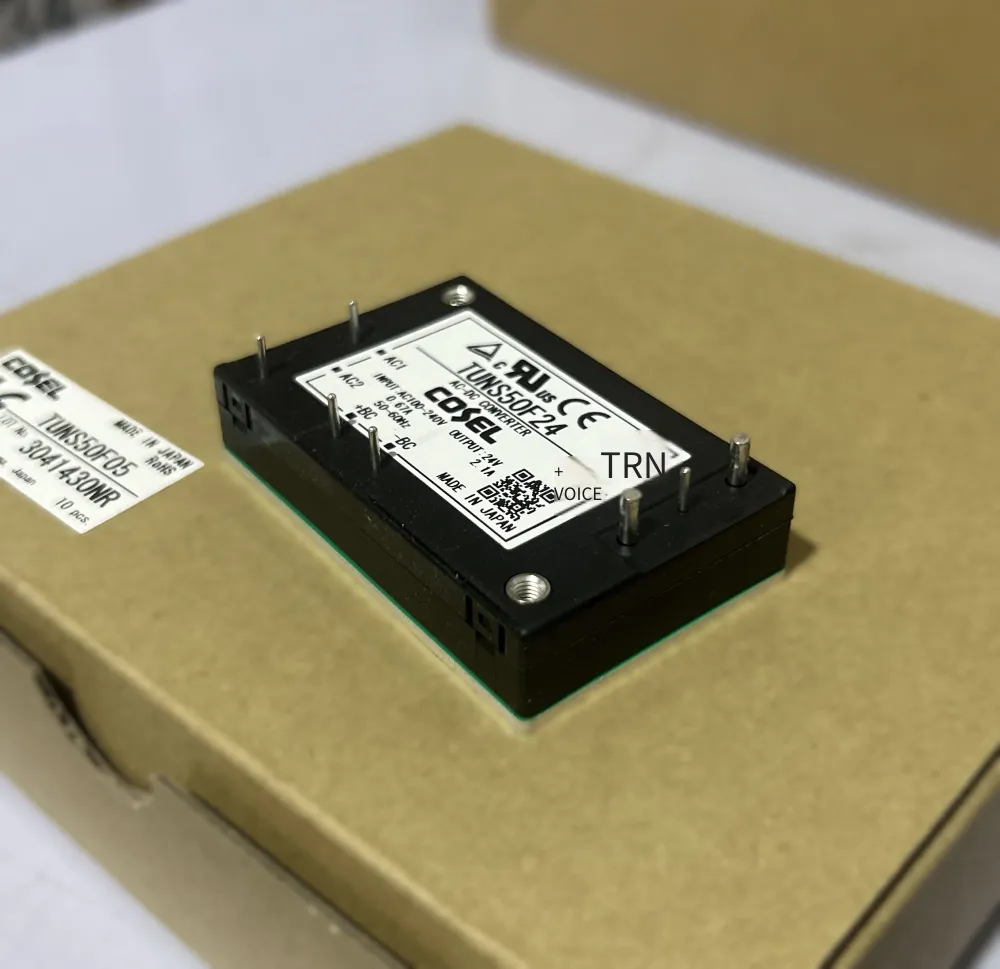

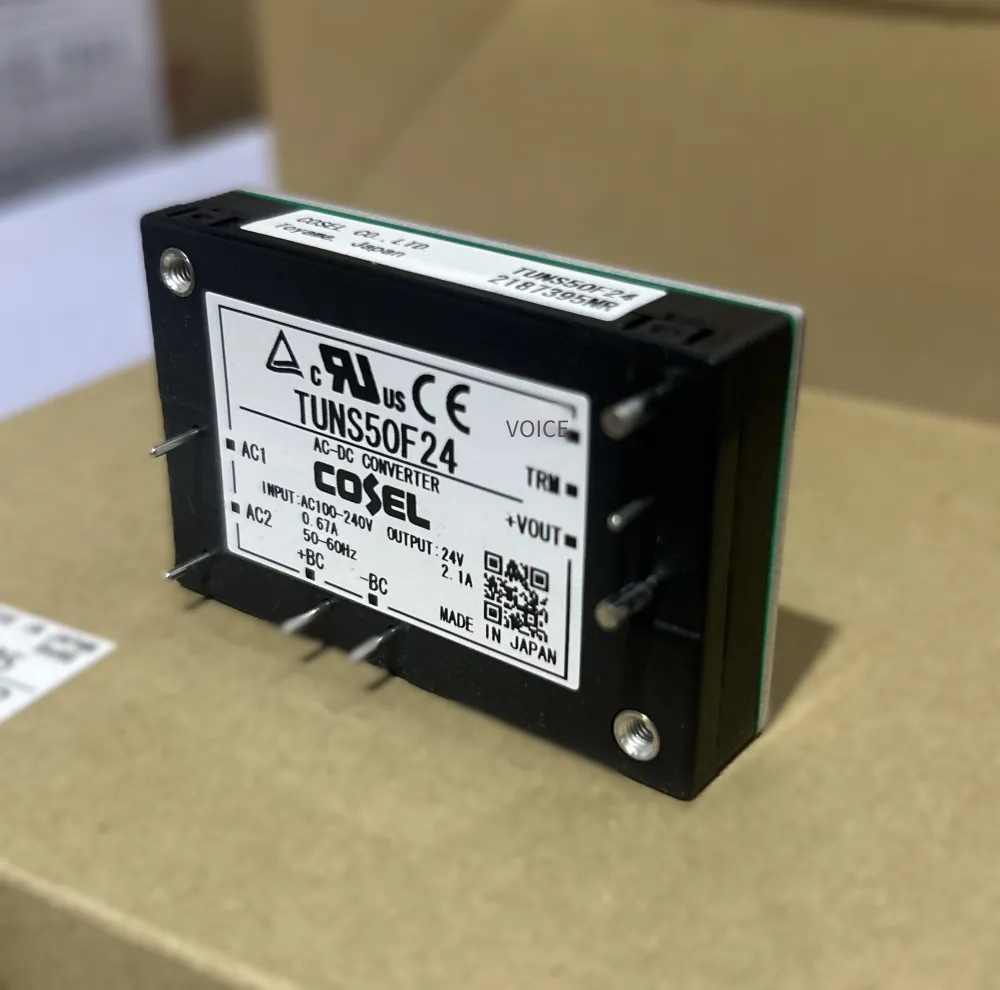

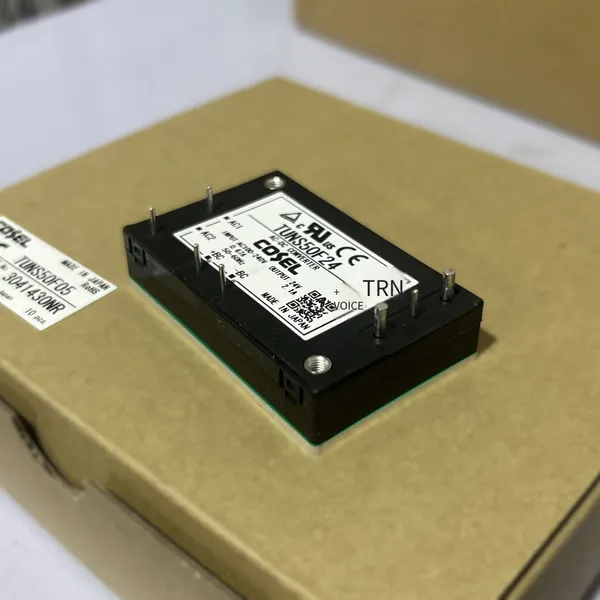

(The picture shows TUNS50F24)
Features:
| Parameter category |
Detailed specifications |
| Brand / Series |
Japan COSEL / TUNS Series (TUNS1R5 / TUNS3 / TUNS6 / TUNS10 / TUNS15 / TUNS30 / TUNS50 / TUNS70 / TUNS100 |
| Product type |
Single-output AC-DC isolated on-board module (On-board AC-DC Converter), with built-in EMI filter, ultra-thin and low-profile design |
| Application fields |
Small industrial equipment, IoT gateways, auxiliary power supply for medical equipment, measuring instruments, embedded systems with limited space |
| Input voltage |
AC 85 - 264V (universal) or DC 120 - 370V (all models are compatible with DC input), 47 - 63Hz |
| Output power |
1.5W / 3W / 6W / 10W / 15W / 30W / 50W / 70W / 100W (depending on the model) |
| Output voltage |
DC 3.3V / 5V / 12V / 15V / 24V / 48V (single-channel fully regulated), with ±5% - ±10% external fine-tuning (TRM terminal, 15W↑) |
| Output current (typical) |
TUNS30: 24V@1.3A / 5V@6A TUNS50: 24V@2.1A / 12V@4.2A TUNS100: 24V@4.2A / 48V@2.1A |
| Efficiency |
Typical 76% - 89% (about 89% for 100W models with 24V output), with built-in PFC (50W↑) |
| Design features |
● Ultra-thin and low-profile in the industry: about 9.6 - 16.5mm high (1"×1" or 2"×1" package) ● Built-in Class B EMI filter (passes EN55032/22-B without external filtering) ● No built-in aluminum electrolytic capacitors (all-solid-state/MLCC design, long service life) ● Supports Remote ON/OFF (negative logic, some models), Remote Sense (large models) ● Built-in DC OK signal / alarm output (optional for large models) |
| Protection function |
● Overcurrent protection (OCP) > 105% rated, automatic recovery (Hiccup) ● Overvoltage protection (OVP) automatic recovery ● Short-circuit protection (SCP) automatic recovery ● Overheat protection (OTP) (50W↑) |
| Isolation withstand voltage |
Input - Output: AC 3,000V (1 minute) Input - FG (if any): AC 2,000V Output - FG: AC 500V Insulation resistance: DC 500V, ≥100MΩ |
| Safety certification |
UL60950-1 / UL62368-1, c-UL (CSA62368-1), EN62368-1, EN60601-1 (part -H medical option), EN50178, CE, RoHS, UKCA, KC |
| EMI / EMS conduction |
EN55032 / EN55022 / FCC Class B (built-in filter meets the requirements) Immunity: EN61000-6-2 (ESD ±8kV/±15kV, EFT ±2kV, Surge ±2kV) |
| Operating environment |
-40～+85℃ (according to the derating curve, derating is required at high temperatures), humidity 20～95% RH (no condensation) Altitude ≤3000m Cooling: Natural convection / slight forced air cooling (a small amount of airflow is recommended for 70W↑) |
| Warranty |
5 years original factory warranty (conditional) |
| Typical models |
TUNS30512 (30W/12V), TUNS50124 (50W/24V), TUNS100F24 (100W/24V with cover -F suffix) TUNS15024 (150W belongs to the TUNS-T large model family), TUNS06105 (6W/5V/AC-DC) |
