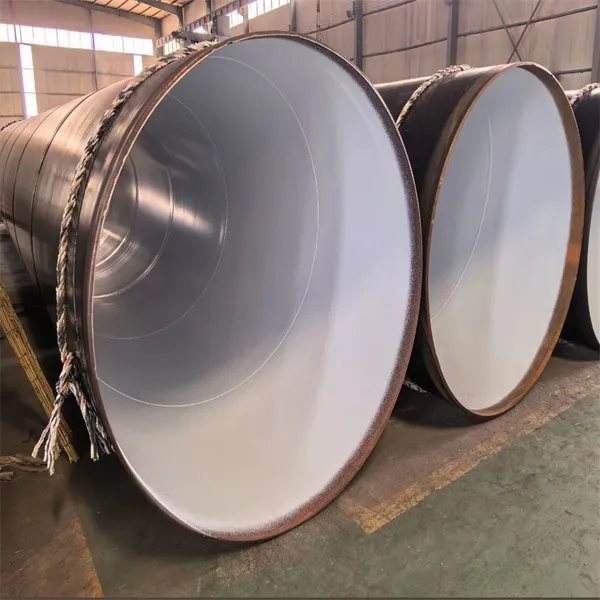

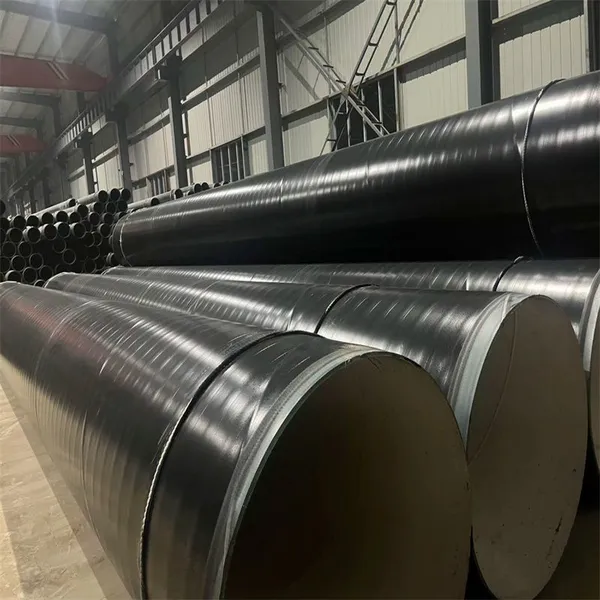

Help CenterEpoxy Coal Tar Anti-Corrosion Steel Pipe Three Oil Two Cloth Buried Sewage Water Pipeline Carbon Spiral Steel Pipe
Product Spotlights
✅ Anti acid & salt, fit coastal projects
✅ Long service life for underground burial
✅ Custom seamless / spiral welded pipe
✅ Widely used for water, gas, sewage pipeline
✅ Accept third-party inspection
Related Products
-
Underground Epoxy Coal Asphalt Coated Anti Corrosive Welded Steel Pipe for Wastewater TransportationNegotiableMOQ: 1 Ton -
IPN8710 Internal Epoxy Lined Anti-Corrosion Steel Pipe Potable Water Supply Pipeline Carbon Steel TubeNegotiableMOQ: 1 Ton
-
Anti Corrosion Steel Pipe 3PE FBE TPEP Epoxy Coal Tar Coated Seamless SSAW ERW Carbon Steel PipeNegotiableMOQ: 1 Ton
-
Buried Anti-Corrosive Coated Carbon Steel Pipe Custom OD Wall Thickness for Water Oil Gas ProjectNegotiableMOQ: 1 Ton
-
Pre-insulated Steel Pipe Thermal Insulation Pipe for Heating PipelineNegotiableMOQ: 1 Ton
【Product Overview】
Anti-corrosion steel pipe is composed of carbon steel base pipe combined with special anti-corrosion coating. It effectively isolates steel from soil, water, acid, alkali and salt to prevent rust and corrosion. Widely adopted for underground buried pipeline projects.We supply multiple anti-corrosion solutions: 3PE, 3LPE, TPEP, FBE, double FBE, 2PE, epoxy coal tar, IPN8710 coating. Available in seamless pipe, spiral welded pipe, ERW straight welded pipe and LSAW pipe. All specifications can be customized according to project requirements.
【Advantages】
✅ Strong coating adhesion, not easy to crack, peel or fall off during transportation and construction
✅ Excellent resistance to acid, alkali, salt water and saline soil, suitable for coastal and wetland projects
✅ High mechanical impact resistance, anti-extrusion for buried installation
✅ Smooth inner wall, low fluid resistance, reduce scaling and pipeline blockage
✅ Different coating options to balance service life and project budget
✅ Beveled ends available for convenient on-site welding
✅ Long service life up to 30+ years under normal underground conditions
✅ Strict quality control, support third-party inspection
【Main Coating Introduction】
1. 3PE / 3LPE Anti-corrosion Steel Pipe
Three-layer structure: Fusion bonded epoxy powder + adhesive + polyethylene outer layer.The most popular solution for long-distance oil, gas and water transmission pipelines. Outstanding cathodic disbondment resistance.
2. TPEP Composite Anti-corrosion Steel Pipe
Outer 3PE coating + internal epoxy coating.Non-toxic inner layer, meets drinking water transport standards. Ideal for municipal water supply, reclaimed water and sewage dual-purpose pipelines.
3. FBE / Double FBE Coated Steel Pipe
Fusion bonded epoxy coating, thin coating thickness, high temperature resistance.Easy repair after welding, widely used for oilfield gathering pipelines and high-temperature medium transportation.
4. IPN8710 Anti-corrosion Steel Pipe
Non-toxic inner anti-corrosion coating, specially used for portable water supply pipeline.
5. Epoxy Coal Tar Anti-corrosion Steel Pipe
Cost-effective choice, mainly applied in sewage, drainage and wastewater engineering.
【Technical Parameters】
1. General Technical Parameters
| Parameter Item | Specification |
|---|---|
| Base Material | Carbon Steel: Q235B, L245, L360, X42, X52, X60, X70 |
| Pipe Type | Spiral Welded Pipe, ERW Straight Welded Pipe, LSAW Pipe, Seamless Pipe |
| Executive Standard | API 5L, GB/T9711, GB/T8163, ASTM A53, ASTM A106 |
| Outer Diameter (OD) | 21.3mm ~ 3620mm, Customized Supported |
| Wall Thickness (WT) | 2.5mm ~ 25mm, Customized Supported |
| Pipe Length | 6m, 12m, Random Length, Custom Fixed Length |
| Pipe End Type | Plain End, Beveled End, Threaded End |
| Supply Ability | 5000 Tons Per Month |
| MOQ | 1 Ton |
| Certification | ISO, CE, Third-Party Inspection Report |
2. Anti-corrosion Coating Special Parameters
| Coating Type | Coating Structure | Coating Thickness | Core Feature |
|---|---|---|---|
| 3PE / 3LPE | FBE Powder + Adhesive + Polyethylene | 1.8mm ~ 3.7mm | 30+ years underground service life, excellent cathodic disbondment resistance |
| TPEP | Outer 3PE + Internal Liquid Epoxy | External 1.8~3.7mm, Internal 300~600μm | Non-toxic inner layer, meets drinking water transport standards |
| FBE / Double FBE | Single/Double Layer Fusion Bonded Epoxy | 300μm ~ 1000μm | High temperature resistant, easy repair after welding |
| 2PE | Adhesive + Polyethylene | 1.0mm ~ 2.0mm | Cost-effective, for general buried pipeline |
| IPN8710 | Inner IPN8710 Non-toxic Anti-corrosive Paint | 200μm ~ 400μm | Special for portable water supply pipeline |
| Epoxy Coal Tar | Epoxy Coal Tar Pitch Coating | 0.5mm ~ 1.5mm | High cost performance, for sewage & drainage engineering |
【Application Range】
🔹 Oil & natural gas long-distance transmission pipeline
🔹 Municipal drinking water supply pipeline
🔹 Sewage drainage and wastewater treatment project
🔹 Underground buried pipeline for construction engineering
🔹 Coastal, saline land and wetland pipeline projects
🔹 Industrial circulating water transportation
【Production & Packaging】
Raw steel pipe inspection → Surface cleaning → Preheating → Coating processing → Cooling → Inspection
Strict thickness test, adhesion test and visual inspection before delivery
End caps to prevent dirt entering pipe interior
-
Can be bundled with steel strips or packaged as customer’s demand
【Contact Us】
Welcome to send your detailed requirements: diameter, wall thickness, length, coating type, standard and quantity. We will provide competitive quotation quickly.
