Help CenterStainless Steel Mixing Tank With Heating Cooling Jacket & Vacuum Homogenizer Emulsifier for Liquid Soap Shampoo Lotion Food Beverage
Product Spotlights
2.Precise Temperature Control
3.Vacuum Emulsifying & Degassing
4.High-Shear Homogenization
5.Hygienic & Durable
6.Customizable Capacity– Available from 50L to 20,000L
Related Products
-
Stainless Steel Vacuum Mixing Emulsifying Tank - Daily Chemical Shampoo Shower Gel Laundry Detergent Liquid Soap Manufacturing Stirring EquipmentUS$ 3888 - 9888888MOQ: 1 Piece -
Mobile Sauce Cooling Tank Unit – Stainless Steel Jacketed Cooling Mixer With Double Helix Agitator,Temp Control, GMP Standard, Custom CapacityUS$ 3888 - 9888888MOQ: 1 Piece
-
Single-layer Mixing Tank, Electric Liquid Mixer, Beverage Mixing EquipmentUS$ 1500 - 6800MOQ: 1 Piece
-
Stainless W Type Mixing Machine for Dry Powder Double Cone Powder MixerUS$ 2000 - 20000MOQ: 1 Piece
-
Stainless Steel Electric Heating Sandwich Mixing Tank / Mixer / High-speed Emulsifier / Vertical ReactorUS$ 5600 - 9800MOQ: 1 Piece
Product Overview

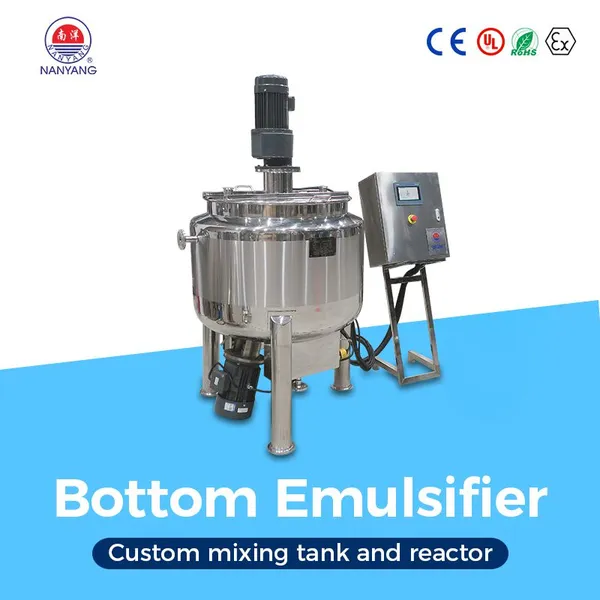

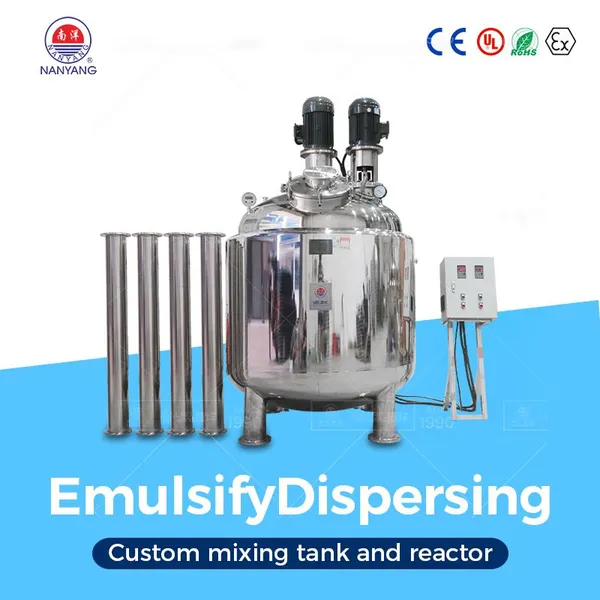

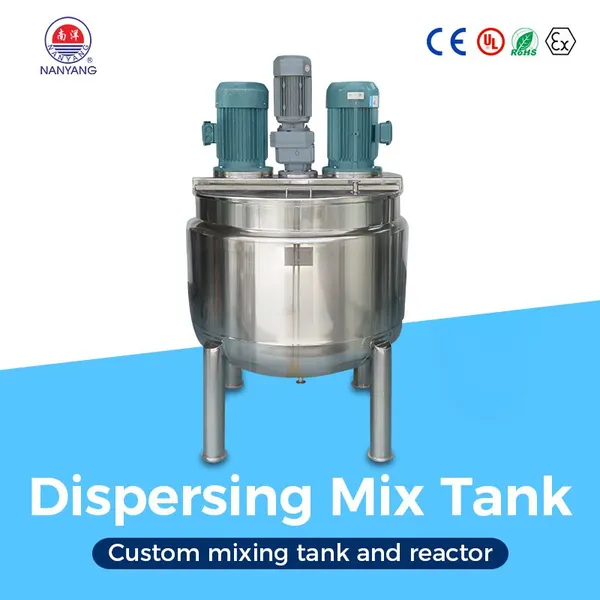

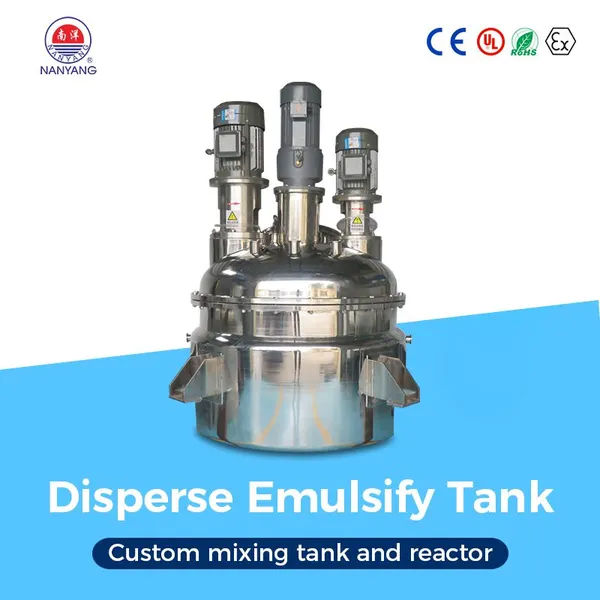

The Stainless Steel Mixing Tank (also known as a blending tank, preparation tank, or reaction vessel) and the Vacuum Homogenizer Emulsifier are premium industrial-grade processing equipment designed for high-efficiency production of liquid and semi-liquid products. Whether you are manufacturing liquid detergent, shampoo, shower gel, hand sanitizer, lotion, cream, fruit juice, milk, sauce, syrup, or pharmaceutical preparations, this machine delivers consistent quality and superior performance.
The equipment features a stainless steel tank body with advanced agitation, homogenization, heating, cooling, and vacuum systems integrated into a single compact unit. It is the indispensable core equipment for food, beverage, daily chemical, cosmetic, and pharmaceutical industries.
Key Features
1. Multi-Function Integrated Design
Combines mixing, stirring, dispersing, homogenizing, emulsifying, heating, cooling, vacuum degassing, and pumping discharge.
Eliminates the need for multiple separate machines, saving floor space and capital investment.
Ideal for both liquid-liquid mixing and liquid-powder dissolving applications.
2. Jacketed Heating & Cooling System
Double-layer or three-layer jacketed design with electric heating, steam heating, or thermal oil circulation options.
Large heat exchange area ensures rapid and uniform temperature distribution.
Precise temperature control from ambient to 150°C, suitable for heat-sensitive and high-temperature processes alike.
Cooling function available for rapid temperature reduction after heating cycles.
3. Vacuum Emulsifying & Homogenization
High-shear homogenizer with rotor-stator design achieves particle sizes as fine as 80mush.
Vacuum system removes entrained air and bubbles during processing, resulting in smooth, glossy, and bubble-free finished products.
Vacuum transfer capability allows powder materials to be drawn directly into the tank without dust flying.
Prevents oxidation and contamination, extending product shelf life.
4. Versatile Agitation System
Wall-scraping agitator with PTFE scraper prevents sticking and ensures 360° no-dead-corner mixing.
Frequency-controlled variable speed drive (0-36 RPM/0-300 RPM/0-1400 RPM/0-3600 RPM/) accommodates different viscosity materials.
Optional bottom-mounted or top-mounted homogenizer for enhanced dispersion.
5. Premium Stainless Steel Construction
All material-contact parts made of SUS304 or SUS316L stainless steel.
Corrosion-resistant, hygienic, and compliant with GMP, and CE standards.
6. Intelligent Control System
User-friendly control panel with PLC and touchscreen interface (optional).
Automatic temperature control, variable speed mixing, timing, and alarm functions.
Data storage and recipe management for consistent batch-to-batch quality.
Applications
This versatile equipment is widely used in:
Food & Beverage Industry:
Fruit juice, concentrate, syrup, milk, yogurt, sauce, jam, chocolate, mayonnaise, soup, and beverage processing.
Daily Chemical & Personal Care Industry:
Liquid detergent, laundry detergent, fabric softener, shampoo, shower gel, hand sanitizer, body wash, and facial cleanser.
Cosmetic Industry:
Cream, lotion, emulsion, gel, ointment, sunscreen, toothpaste, and skincare products.
Pharmaceutical Industry:
Syrup, oral liquid, ointment, cream, and other liquid/semi-solid preparations.
Technical Specifications (Reference)
| Model | Capacity (L) | Tank Diameter (mm) | Heating Options | Mixing Speed (RPM) | Homogenizer Speed (RPM) |
|---|---|---|---|---|---|
| FN-50 | 50 | 400 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-100 | 100 | 500 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-200 | 200 | 600 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-300 | 300 | 700 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-500 | 500 | 800 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-1000 | 1000 | 1000 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-2000 | 2000 | 1200 | Electric / Steam / Oil | 36 | 0-3600 |
| FN-5000 | 5000 | 1500 | Electric / Steam / Oil | 36 | 0-3600 |
Capacities from 50L to 20,000L available. Custom sizes and specifications are welcome.
Standard Configuration:
Tank body: SUS304 or SUS316L stainless steel (inner layer)
Jacket: SUS304 stainless steel (middle/outer layer)
Agitator: Wall-scraping paddle with PTFE scraper
Homogenizer: High-shear rotor-stator type
Vacuum pump: Water-ring or rotary vane type
Control: Manual button or PLC touchscreen
Why Choose Us
Factory Direct: Competitive pricing with guaranteed quality control from raw material to finished product.
Certified Quality: Products meet CE, GMP,standards.
Customization: We offer tailored solutions for capacity, heating method, voltage, material grade, mixing type, and control system.
After-Sales Support: One-year warranty, lifetime technical support, free spare parts, and online/on-site training.
Global Shipping: Professional export packaging (wooden cases, fumigation-free), fast and reliable logistics with complete shipping documentation.
Packaging & Delivery
Packaging: Standard export wooden case or fumigation-free plywood case, suitable for sea or air freight.
Delivery: Within 30-40 days after order confirmation, depending on quantity and customization requirements.
Payment: T/T.
Contact Us Today for the Best Quote!
Send Inquiry to This Supplier
