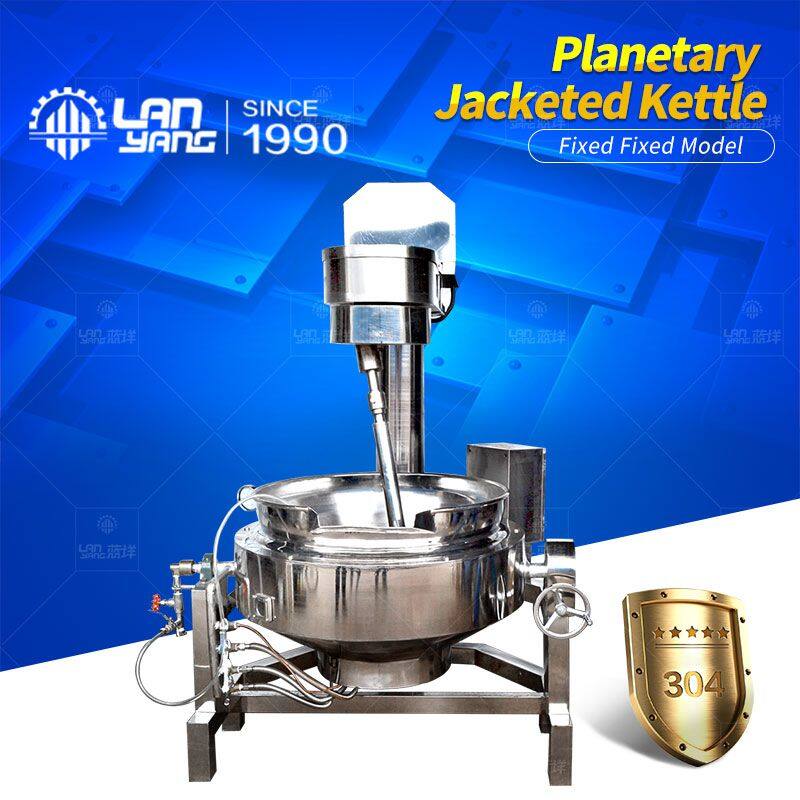

The gas planets stir fry pan
l Uses and features
The series is based on Japanese wok equipment, relevant reference design, mainly used in the food industry Lian Rong, fruit Rong, bean paste, jujube paste, candy, sauce, curry, fried food and all kinds of vegetables.
This series of products using a punch forming of hemispherical stainless steel pot body, the product is in the liquefied petroleum gas (natural gas) as a heat source, has large heating area, high thermal efficiency, fast heating of materials, has the advantages of uniform heating and heating temperature is easy to control. This product is part of all food contact and 0Cr18Ni9 stainless steel polishing treatment, in line with the "People's Republic of China food hygiene law" requirements, has beautiful appearance, reasonable design, compact structure, convenient installation, simple operation, easy maintenance. The mixing method adopts the special tilting type transmission, and the use of the planet type mixer and the pot body is fully contacted. The mixing system uses a combination of rotation and revolution, is not an integer transmission ratio of the transmission, to ensure that the mixing without any blind spots. The use of advanced transmission and sealing structure, make the transmission part and the pot clean and sanitary. This series of equipment / automatic hydraulic type is the use of hydraulic thrust of the mixing arm turning, free disassembly agitator, the hydraulic thrust tilting pan body, easy to import raw materials to save the manpower, stepless frequency conversion governor to high viscosity of the product mix, having the advantages of easy operation, high working efficiency, low energy consumption, long service life, compact structure, convenient maintenance, is an excellent mixer.
Mainly consists of pan body, frame body, stirring system, heating system, speed regulating drive device, stirring shaft, pan body turning system, etc.
1, pot body: This product pot body for the first time stamping forming the hemispherical stainless steel pot body (number only can query), the overall roundness error is small, the mixer and the pot considerate high degree, avoid the phenomenon of paste pot.
2, heating system: the use of steam (jacket heating (steam)), gas, electrical heating, heat conduction oil, electromagnetic heating and other forms of heating can be used for customers to choose.
Gas: natural gas stove heating, the size of the flame can be adjusted. Fast heating, high temperature, the surface of the pan is the number of Baidu, the material through the Maillard reaction thoroughly to stir frying effect. Full combustion, high thermal efficiency, pot body is heated evenly; the burner is annular, around the bottom of the pot, use gas, liquefied gas and natural gas heating. The gas is convenient to use, fast temperature rise, to meet the needs of some products of high temperature, not limited by the factory voltage.
Electrical heating of heat conductive oil: with a large area of heat, temperature control, heat evenly.
Steam: suitable for the production of products, not paste pot, temperature balance, according to the user's demand for automatic temperature control
Electromagnetic: heating up fast, can take into account the color smell of the product, than gas heating, electric heating heat conductive oil products 20%, environmental protection and no pollution.
3, stirring system mixing method using a special tilt rotation, so that the planet is in full contact with the pot stirrer, realize the rotation and rotation than the non integer autobiography, make the pot without stirring dead, material mixing is more uniform, the scraper and the pot stirrer adopts polytetrafluoroethylene fit, scraping the bottom more thoroughly. Not easy to paste material.
4, drive device: the use of advanced rotary stirring shaft and sealing structure, make the pot clean and sanitary; speed control using variable frequency power, stable operation.
5, pot body turnover system: hydraulic lifting method, mixing and the pot body after the separation of hydraulic tilt, tilt 90 degrees, but no dead ends, easy to clean, reduce labor intensity.
Automatic: the whole pot through the hydraulic, rod automatic turning out of the material, safe, stable and reliable.
6, part of the frame body is 304 stainless steel manufacturing and polishing, in line with the "People's Republic of China food hygiene law" requirements, has beautiful appearance, reasonable design, compact structure, convenient installation, simple operation, easy maintenance.
7, models according to the actual volume can be divided into 100L, 200L, 300L, 400L, 500L.600L and other specifications. The product can be customized to the production of custom.
Main specifications and technical parameters
Body volume |
Pot diameter |
Motor power |
speed /min |
Stirring form |
The crane/ Turn over the pot form |
Heating form |
|
rotation |
Revolution |
||||||
200L |
Φ900 |
1.5 |
6.7-33 |
14-69.3 |
Planet / scraper |
Automatic hydraulic |
Gas, electric heating. Electromagnetic heating, steam |
300L |
Φ1000 |
1.5 |
6.7-33 |
14-69.3 |
Planet / scraper |
Automatic hydraulic |
|
400L |
Φ1100 |
2.2 |
6.7-33 |
14-69.3 |
Planet / scraper |
Automatic hydraulic |
|
500L |
Φ1200 |
3 |
6.7-33 |
14-69.3 |
Planet / scraper |
Automatic hydraulic |
|
600L |
Φ1300 |
4 |
6.7-33 |
14-69.3 |
Planet / scraper |
Automatic hydraulic |
|
TET：13602788239
