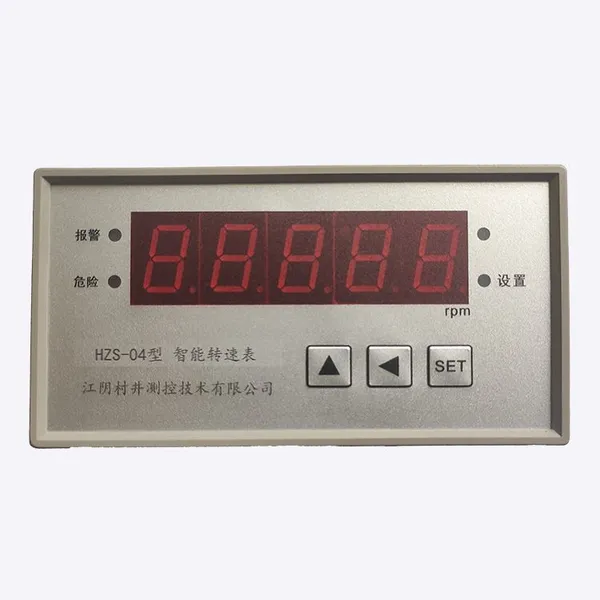

Help CenterSZC-04/G Speed Monitor
Related Products
-
CJ701 Vibration Velocity SensorNegotiableMOQ: 1 Set -
CUNJING CJ711 IEPE/ICP Camera Piezoelectric Accelerometer CJ-YD0000NegotiableMOQ: 1 Unit
-
CJ741 Magnetoresistive Speed Sensor for Fans, Water Pumps, Motors, and Rotating Mechanical EquipmentNegotiableMOQ: 5 Pieces
-
CJ3000 Eddy Current Sensor/Transmitter — Shaft Displacement, Vibration & Thermal ExpansionNegotiableMOQ: 1 Set
-
IEPE Acceleration Sensor Vibration MonitorNegotiableMOQ: 1 Piece
1.Overview
SZC-04/SZC-04G Speed Monitoring and Protection Instrument is a monitoring and protection instrument for online real-time monitoring of the speed of rotating mechanical shafts. This product can perform comprehensive measurement by frequency measurement and cycle measurement according to the speed of the measured object. According to different conditions, the user can set the number of teeth, coefficients, alarm values, etc. of the instrument through the keyboard on site. This product has power-on and power-off protection functions, and automatically saves the historical peak value and historical alarm status after the alarm. The set parameters and measurement history parameters can be stored for a long time after power failure. The speed ratio of the shaft is automatically calculated and displayed as the real rotational speed of the measured shaft. The product can provide two installation methods of flush-mounted and wall-mounted for users to choose.
2.Specifications
Power supply: AC220V@50Hz

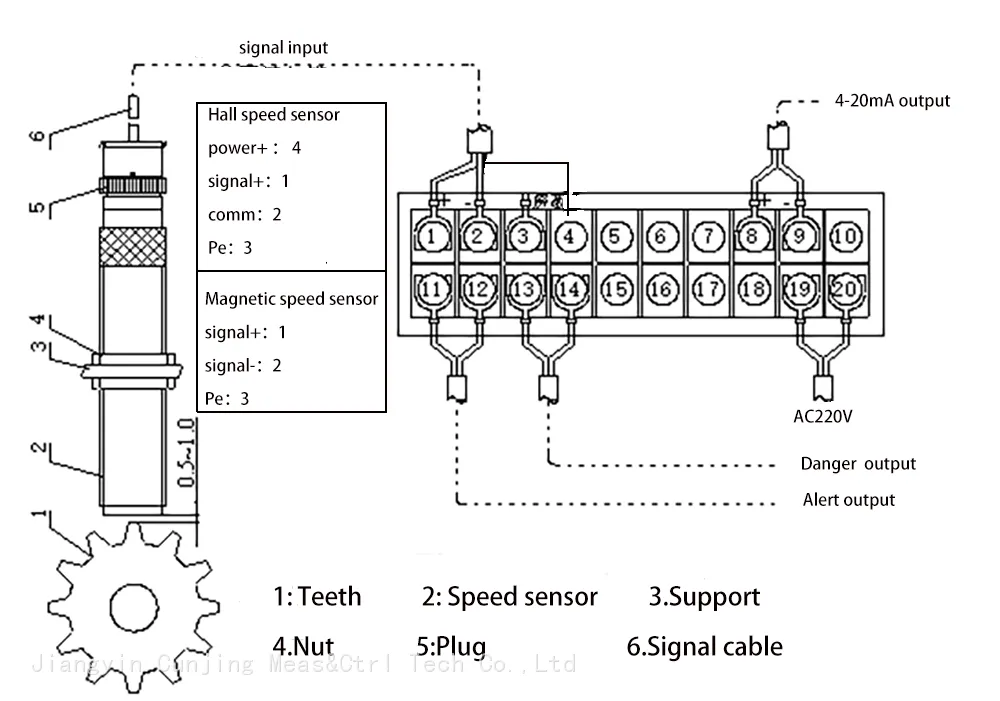

Input signal: Hall/reluctance speed sensor signal

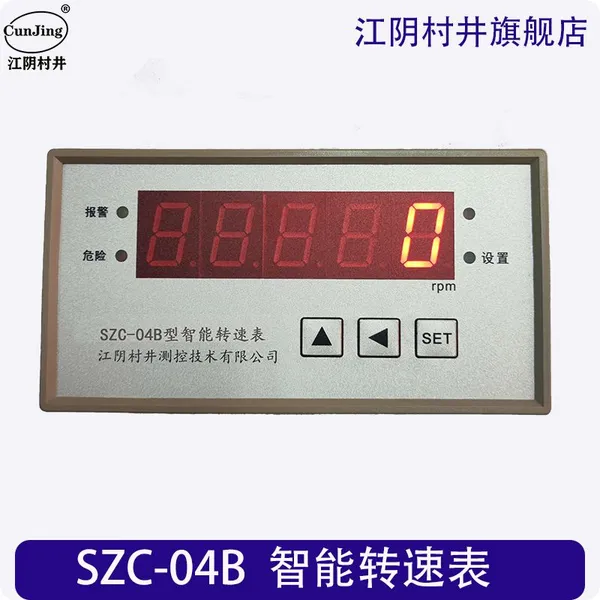

Display mode: 5 red LED digital display
Measuring range: 1-15000 rpm
Measurement accuracy: ±1 rpm & ±1 tooth
Speed measuring gear: setting range 1-200, recommended 60 teeth
Transmission coefficient: setting range 1-200
Output: 4 ~ 20mA (active range linear)
Accuracy: ±1% of full scale
Load: ≤500Ω
Alarm setting: set within LO HO range
Alarm output: LED indicator
Alarm reset: automatic/manual
Relay: capacity DC28V/2A, AC250V/2A (NO)
Power consumption:
Operating temperature: 0℃～50℃ (non-condensing)
Dimensions: 160x80x225mm (LxHxD) (fush-mounted)

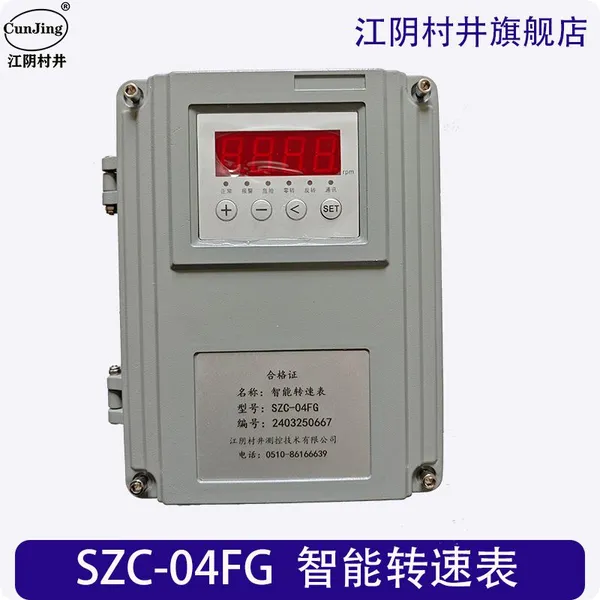

190x290x92mm (WxHxT) (wall-mounted)
Installation size: 152x76mm (L x H) (Fush-mounted)
170x272mm (WxH) (wall-mounted)
Mounting thread: M8x1.25x10mm(wall-mounted)
