CJ-LW6 Vibration Velocity Sensor

 1. OVERVIEW

CJ-LW6

CJ-LW6 series electromagnetic speed sensor is used to measure the bearing cap vibration of rotating machinery such as turbines, compressors, fans and pumps. It is a electromagnetic sensor outputs voltage by a moving coil cutting magnetic lines, so it does  not need to supply power at work and easily installation

2.1 Its output signal is proportional to the vibration velocity, and it can take account of the field of high-frequency, intermediate frequency and low-frequency vibration measurement.

2.2 The CJ-LW6 series sensors have a lower output impedance and a better signal-to-noise ratio. Without special requirements on output plugs and cables, it is easy to use.

2.3 This sensor canceled activities friction components in design, so its flexibility is good, you can measure the slight vibration (0. 01mm) .

2.4 The sensor has a certain anti-lateral vibration capability (not more than 10g peak).

2.5 It can be used to measure the vibration of the bearing housing, enclosure or structure (relative to absolute vibration of inertial space).It can be directly mounted on the outside of the machine, and maintenance is extremely easy,

2.6 Its shell is made of stainless steel shell laser welding process, and its protection grade is IP65.

3. 1 Sensitivity can choose 30mV/mm/s, error: ±5%; 50mV/mm/s, error±5%; 20mV/mm/s, error ± 6% ;

3.2 Test conditions: temperature 20±5°C (80Hz speed 10mm/s) 3.3Amplitude：≤ 2000 u m (p-p)；

3.4 Frequency response: 10-1000 Hz; 3.5Maximum Acceleration: 10g； 3.6Measuring direction: (Vertical or Horizontal) 3.7Use environment: (-30-120) °C ;

3.8 Relative humidity ≤95% (non-condensation);

3.9 Operation environment: No corrosive, no strong magnetic field in the surrounding;

3.10 Dimensions：φ33 X 131 （mm）;

3.11 Weight: about 350g.

3.12 Install: electromagnetic type speed sensor is fixed at the bottom of the sensor center hole with a M10X1.5 screws or with magnetic seat。

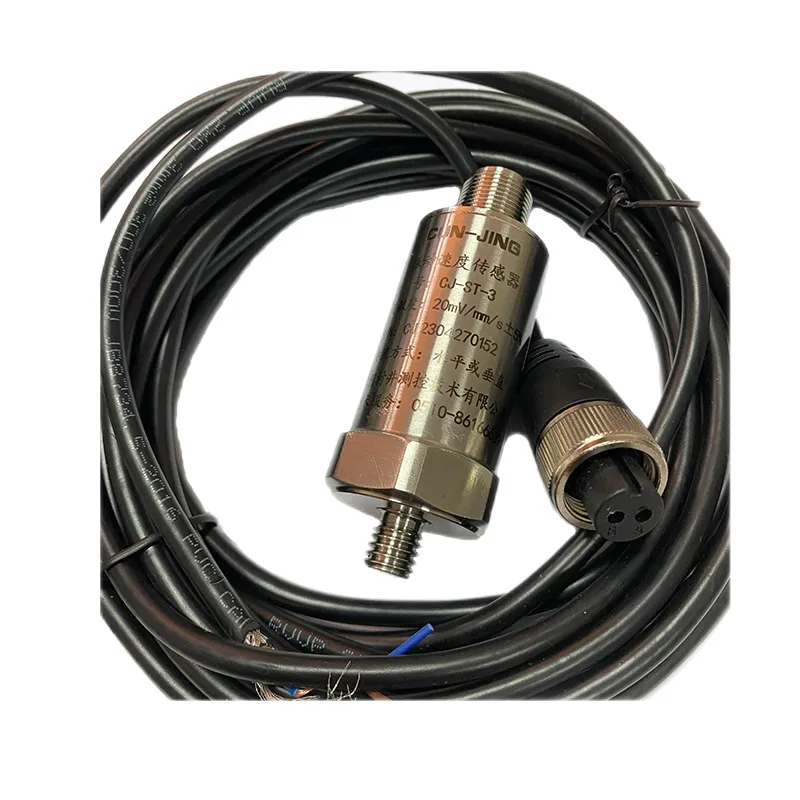

4.1 cable connect

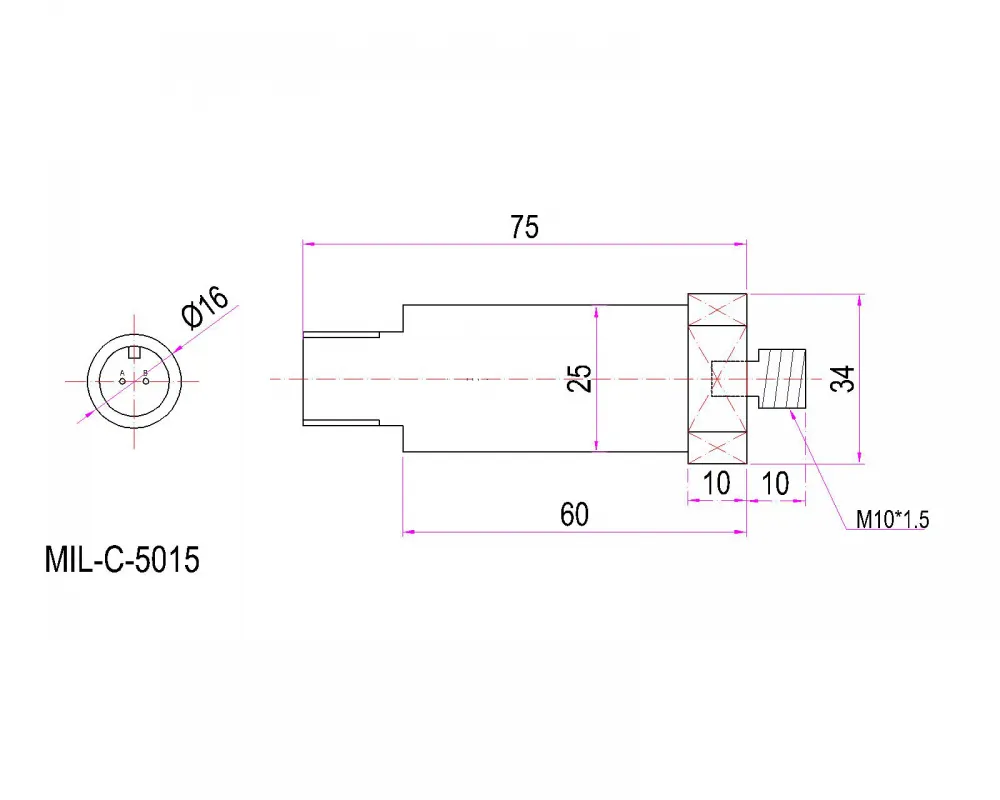

4.2 Dimension
