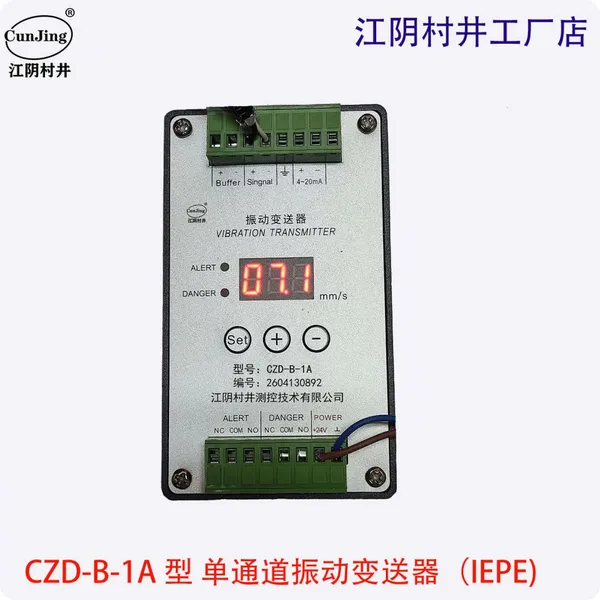

IEPE Acceleration Sensor Vibration Transmitter photo-2

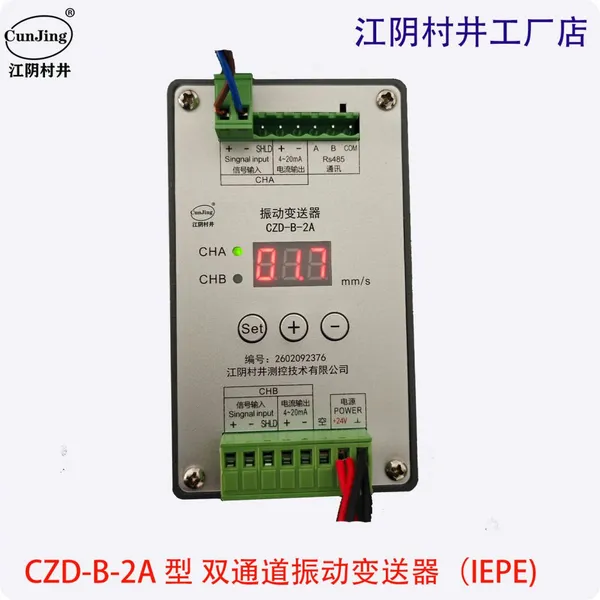

IEPE Acceleration Sensor Vibration Transmitter photo-3

Product Spotlights

1. Available with single channel or dual channels 2. standard rail-mounted 3. Supports measurement of acceleration / vibration velocity /vibration displacement 4. Wide frequency response; suitable for low-speed or ultra-high-speed rotating equipment
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Transport Package:
package
Specification:
1pc
Trademark:
CUNJING
Contact Supplier Request Quote Chat Now
Jiangyin Cunjing Meas&Ctrl Tech Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Transport Package package
Specification 1pc
Trademark CUNJING
Origin China

Note: The nameplate language can be customized according to user requirements.


  1. Overview




This series of vibration transmitters is an intelligent product for online vibration monitoring of traditional equipment based on IEPE acceleration technology. It is available in single-channel and dual-channel versions, effectively monitoring the operating condition of equipment. Characteristic parameters are extracted from the relevant data, and the machine unit's status data is displayed to provide early warning and alarm for the unit's condition, ensuring reliable protection for safe equipment operation. It is primarily used to monitor the vibration of rotating machinery rotors caused by rotor imbalance, misalignment, loose parts, etc., and is suitable for both high-speed and low-speed rotating equipment.



2. Technical Specifications



 Sensor ： IEPE acceleration sensor

 Frequency range：  0.5 ~ 15000 Hz

 Measuring range：  0 ~ 100.0 mm/s (adjustable)

 Accuracy ： ±1% (full scale)

 Current output ： 4–20 mA / RS485 (optional)

 Switching output ： AC 220 V / 5 A

 Alarm setting ： Adjustable within full scale

 Buffered output ： BUFF

 Digital display ： 3 digits (default: 1 decimal place); high precision (2 decimal places)

 Ambient temperature ： 0 ~ 45 °C

 Relative humidity ： ≤ 80%

 Power supply：  AC 86–265 V (24 VDC optional)

 External dimensions ： 120 × 90 × 72 mm

 Mounting method ： DIN rail mounting



3. Ordering Code



CZD-B-1A-A▢B▢C▢D▢

CZD-B-2A-A▢B▢C▢D▢



 A▢ (Power supply)

1  220 VAC

  2  24 VDC (default)



 B▢ (Measuring range)

1  0 ~ 10 mm/S

  2  0 ~ 20 mm/S (default)

  3  0 ~ 25 mm/S

  4  0 ~ 50 mm/S

  5  0 ~ 99.9 mm/S



 C▢ (Sensor sensitivity)

1  100 mV/g (default)

  2  500 mV/g

  9  Customized



 D (Decimal places)

NONE   0.0

  2       0.00



Example:

CZD-B-1A-221

- 2 → Power supply: 24 VDC

- 2 → Vibration velocity range: 0–20 mm/S

- 1 → Sensor sensitivity: 100 mV/g

- (none) → Standard 1 decimal place

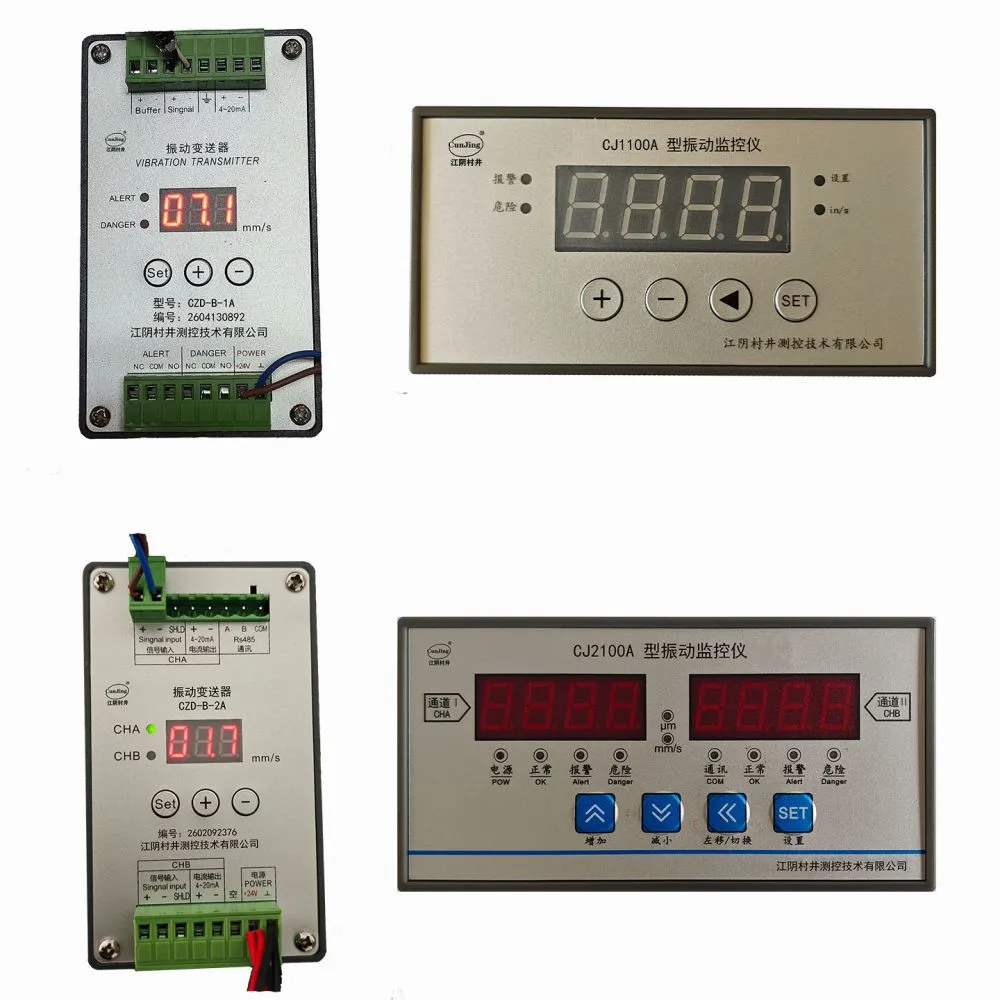

附图 5
