1.Overview
The HZD-L-X1 vibration monitor produced by our company is mainly used in the working environment where the ambient temperature of the tested equipment is greater than 65 degrees. It is matched with Velocity sensor, which can monitor the vibration or vibration intensity value of the rotating machinery in the vertical and horizontal directions. It is displayed on the front panel of the instrument and has a standard current output, which can be connected with various DCS and PLC systems. When the vibration value exceeds the limit, the instrument can be connected with an external sound and light alarm to remind the on-site operators to take preventive measures, and there is an alarm , Dangerous switch output to protect the safe and reliable operation of the machine.
2.Specifications
Frequency range: 10~1000Hz
Range: 0~100.0mm/s 0~1000um
Accuracy: ±1% (full scale)
Signal input: Velocity sensor
Access sensitivity: 20mv/mm/s default (can be adjusted as required)
Signal output: 4~20mA
Switch output: DC 30V / 5A or
AC250V / 5A (normally open dry contact)
Alarm setting: any setting within the full range
Ambient temperature: during operation: -30~65°
Relative humidity: to 95%, non-condensing
Power supply voltage: 220VAC/50Hz or DC24V
Dimensions: 160×80×90mm
Hole size: 152×74
3.Ordering information

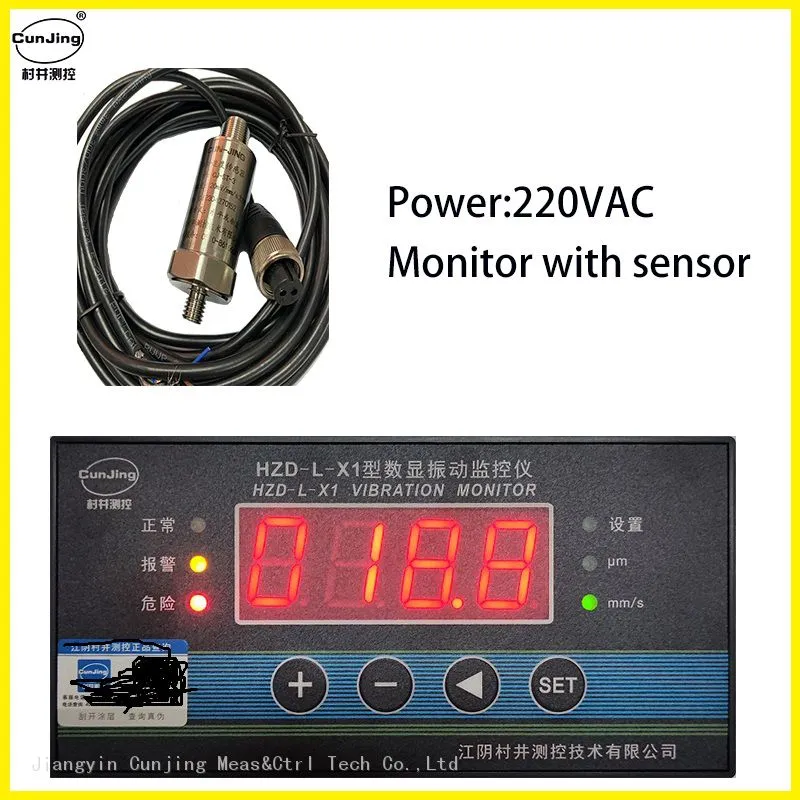

HZD-L-X1-AB▢▢-C▢D▢ 220VAC

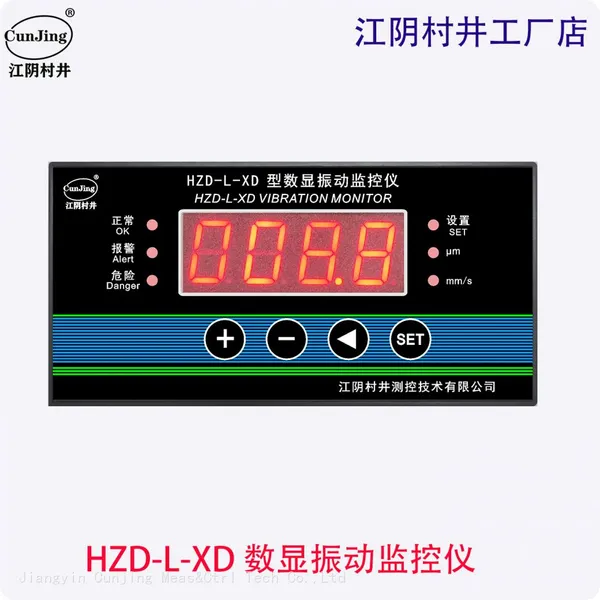

HZD-L-XD-AB▢▢-C▢D▢ 24VDC
Meas value A▢
L：（mm/S）（*） W（um）
Range B▢
1：0～10mm/S 0-100um
2：0～20mm/S 0-200um(*）
3：0～25mm/S 0-250um
4：0～50mm/S 0-500um
5：0～100mm/S 0-1000um
other：Customize
Sensor Sensitivity C▢
1：20mv/mm/S（*） 2：30mv/mm/S 3：50mv/mm/S
Sensor D▢
0：None （*） 1：with
2：Ex sensor
For Example：HZD-L-X1-L2-110
x1 power is 220VAC，L2 range is 0-20mm/S，1sensor sensitivity is 20mv/mm/s，0only transmitter without sensor
