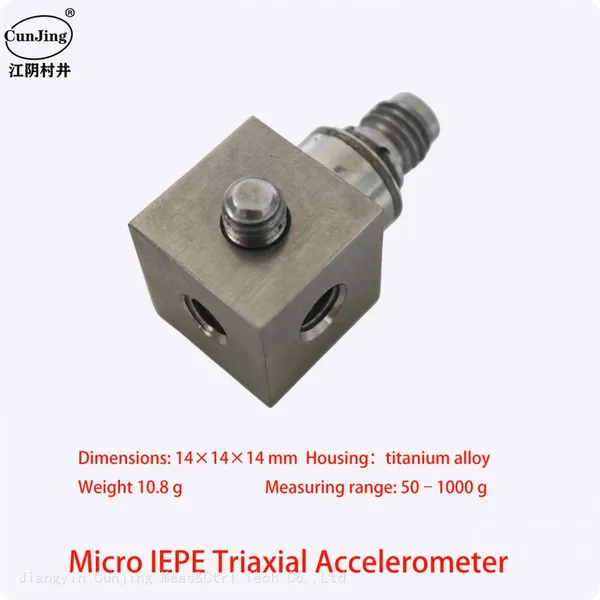

Micro IEPE Triaxial Accelerometer

Product Spotlights

1.Dimensions: 14×14×14 mm 2.Housing：titanium alloy 3.Weight 10.8 g 4.Measuring range: 50–1000 g

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Metal

Certification:

ISO

Accuracy Grade:

Other

Jiangyin Cunjing Meas&Ctrl Tech Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

5 days

Material Metal

Certification ISO

Accuracy Grade Other

Output Signal Type Other

Production Process Integration

Measuring Principle Other

Customized Customized

IP Rating IP65

Transport Package Package

Specification 1

Trademark CUNJING

Origin CHINA

SPECIFICATIONS
Performance
Sensitivity (±5 %)	100/50/25 mV/g
Measurement Range	±50 g/±100g/±200g
Frequency Range (±5 %)	1 to 2000 Hz
Frequency Range (±10 %)	0.8to 5000 Hz
Frequency Range (±3dB)	0.5 to 8000 Hz
Resonant Frequency	20 kHz
Broadband Resolution (1 to 10000 Hz)	100 µg

Non-Linearity	±1 %
Transverse Sensitivity	≤5 %
Environmental
Overload Limit (Shock)	5000 g pk
Temperature Range	-54 to +121 °C
Enclosure Rating	IP68
Electrical
Settling Time	≤3.0 sec
Discharge Time Constant	≥0.2 sec
Excitation Voltage	18 to 28 VDC
Constant Current Excitation	2 to 20 mA
Output Impedance
Output Bias Voltage	8 to 12 VDC
Electrical Isolation (Case)	≥108 Ohm
Physical
Sensing Element	Ceramic
Sensing Geometry	Shear
Housing Material	Titanium alloy
Sealing	Welded Hermetic
Mounting	3side M5
Mounting Torque	2.7 to 6.8 Nm
Electrical Connector	4-Pin Bayonet
Electrical Connector Position	Side
Weight	11 g
Accessories

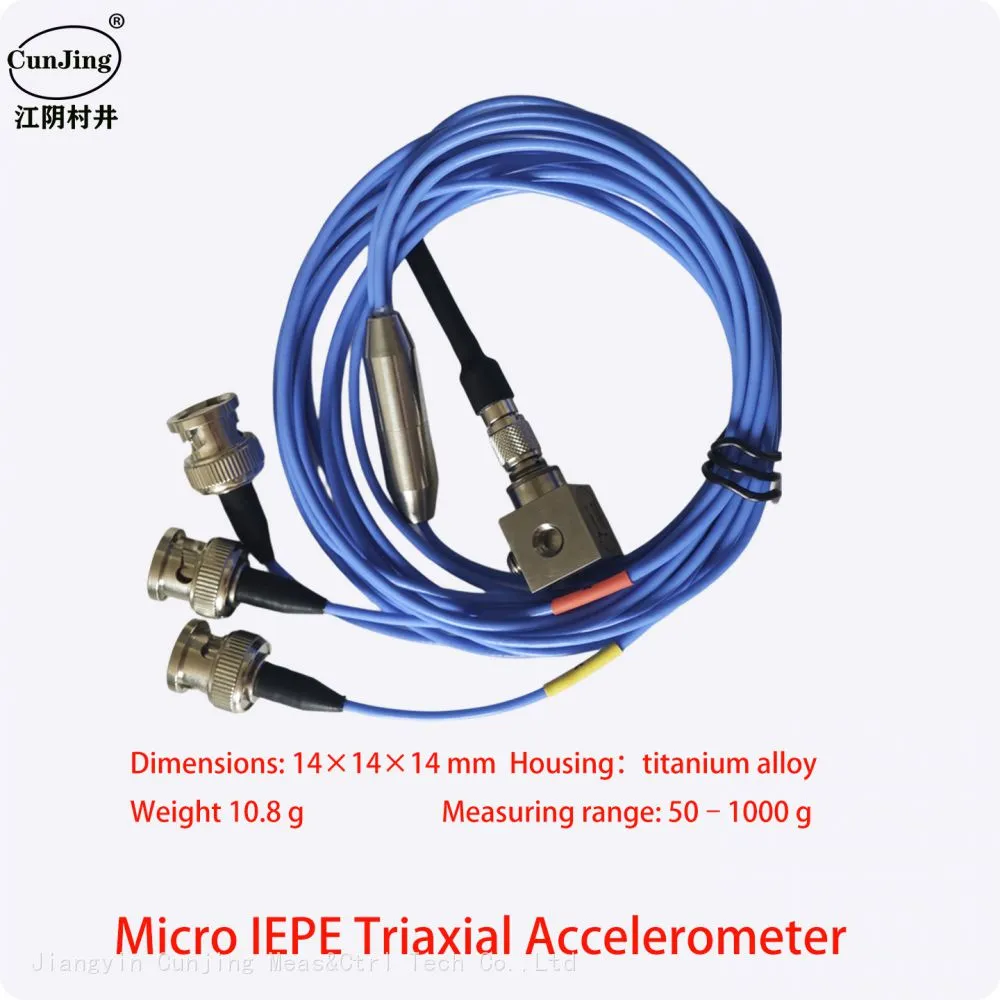

3-meter 4-core coaxial cable with 3 BNC connectors
