Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth thumbnail-3

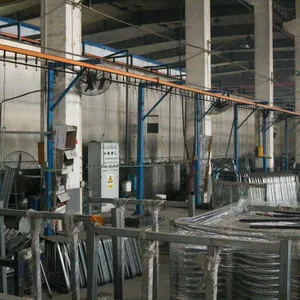

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth thumbnail-4

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth thumbnail-5

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth photo-1

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth photo-2

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth photo-3

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth photo-4

Industrial Non-Standard Heavy Metal Powder Coating Line With Integrated Powder Booth photo-5

Product Spotlights

Customizable non-standard heavy metal powder coating line with integrated high-recovery powder booth (≥95%). Designed for oversized/heavy parts up to 500kg. ISO9001 certified, energy-efficient curing oven, PLC-controlled automation. Over 10 years of manufacturing expertise, exported to 20+ countries. Free engineering consultation and tailored solution.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Voltage:

Other, 380V/220V / 50Hz/60Hz (Customizable)

model:

Customizable (Non-Standard)

material:

Steel Structure with Heavy-Duty Frame

Contact Supplier Request Quote Chat Now

Deqing Leixin Coating Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shnaghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Voltage Other, 380V/220V / 50Hz/60Hz (Customizable)

model Customizable (Non-Standard)

material Steel Structure with Heavy-Duty Frame

application Heavy Metal Industries, Automotive Parts, Construction, Machinery

color Customizable (Standard RAL Colors Available)

power Customizable (Based on Line Length and Equipment)

dimensions Customized According to Workpiece Size

line_speed 5–20 m/min (Adjustable)

gun_quantity 4–10 Guns (Optional)

recovery_system Integrated Cyclone + Cartridge Filter

certification ISO9001:2015

Deqing Leixin Coating Equipment Co., Ltd., with over a decade of manufacturing excellence since 2011, proudly introduces our Industrial Non-Standard Heavy Metal Powder Coating Line with Integrated Powder Booth. Designed for demanding heavy metal applications, this turnkey system combines a robust conveyor, advanced spray booth, curing oven, and powder recovery unit into a seamless production line. Our integrated powder booth ensures minimal powder waste and superior surface finish, making it the ideal choice for manufacturers seeking high efficiency, consistent quality, and flexible customization. Built on our ISO9001-certified production process, each line is engineered to meet the specific weight, size, and throughput requirements of heavy industrial components.

Key Features & Technical Specifications

Non-Standard Customization: Every line is tailored to handle non-standard heavy metal parts (e.g., beams, chassis, pipes, frames) with dimensions up to 6m length and 500kg per hook. Our engineering team collaborates with you to design the optimal layout, line speed, and oven zones.
Integrated Powder Booth: The booth features a sealed design with automatic filtration and cyclone recovery, achieving >95% material utilization. Compatible with both thermoplastic and thermosetting powders.
Heavy-Duty Conveyor System: Reinforced I-beam monorail with variable speed drive, capable of continuous operation under heavy loads. Automatic chain lubrication extends service life.
Multi-Zone Curing Oven: Gas-fired or electric heat options with precise PID temperature control (±2°C). Oven length customized to ensure complete cure for thick sections.
Advanced Electrostatic Spray Guns: 4–10 high-efficiency guns with adjustable voltage (30–80 kV) and powder flow. Equipped with automatic gun movers for even coating on complex shapes.
Environmentally Conscious: Low VOC emissions; the integrated booth captures overspray for reuse. Waste gas treatment system available as an option to comply with local regulations.

Parameter	Standard Range	Customizable Options
Conveyor Type	Monorail I-beam / Power+Free	Inverted, floor-mounted
Line Speed	5–20 m/min	Up to 30 m/min with upgrades
Max Workpiece Weight	500 kg per hook	Up to 1000 kg on request
Curing Temperature	160–220°C	Higher temp for specialty powders
Powder Recovery Efficiency	>95%	Optional cartridge filter upgrade
Automation Level	Semi-automatic / PLC control	Full automatic with HMI

Benefits to Your Business

Reduced Operating Cost: High powder recovery and energy-efficient oven lower material and fuel consumption by up to 30% compared to conventional lines.
Flawless Finish: The integrated booth and precision guns produce uniform coatings, eliminating rework and scrap. Suitable for high-gloss, matte, textured, and metallic finishes.
Scalability: Modular design allows future expansion or reconfiguration. Additional spray stations, pretreatment zones, or cool-down tunnels can be integrated.
Ease of Maintenance: Accessible filter units, self-cleaning conveyor, and quick-change powder hoppers minimize downtime. All components are from reputable suppliers.
Global Compliance: Electrical and safety components meet CE and UL standards (optional). Our ISO9001 quality management ensures consistent performance.

Why Choose Deqing Leixin?

With 51–100 experienced employees and a factory spanning 1,000–3,000 m², we have delivered powder coating lines to over 20 countries across North America, Europe, Southeast Asia, and Africa. Our annual export value of US$1–1.5 million reflects the trust global clients place in our equipment. We ship from Ningbo or Shanghai ports with full container or LCL options, and our after-sales team provides remote commissioning and spare parts support. Every system undergoes rigorous testing before delivery, ensuring trouble-free startup at your facility.

Ready to upgrade your heavy metal coating operation? Contact us for a customized proposal. We offer free engineering consultation, layout drawings, and a detailed quote within 48 hours. Experience the Deqing Leixin difference — reliability, flexibility, and performance.

Frequently Asked Questions (FAQ)

Q: What types of heavy metal parts can be coated on this line?
A: The line is designed for non-standard workpieces such as steel beams, pipes, castings, welding assemblies, and vehicle chassis. Maximum size and weight can be customized per your drawings.
Q: Is a pretreatment system included?
A: The standard line does not include pretreatment, but we can integrate a pre-treatment tunnel (spray or immersion) with iron phosphate or nanoceramic conversion as an optional module.
Q: What powder types are compatible?
A: The system works with epoxy, polyester, hybrid, polyurethane, and acrylic powders, both for indoor and outdoor applications. We recommend consulting our engineers for specific powder requirements.
Q: How long does installation take?
A: Typical installation and commissioning take 3–8 weeks depending on line complexity. We provide on-site supervision and training for your operators.
Q: What is the warranty period?
A: We offer a 12-month warranty covering manufacturing defects. Extended warranties and spare parts packages are available upon request.
Q: Can the line be expanded in the future?
A: Yes, the modular design allows adding extra spray booths, curing zones, or automatic handling equipment without major reconstruction. We can provide upgrade plans.
Q: Do you provide overseas installation services?
A: Yes, we can dispatch our experienced engineers to your site for installation and commissioning. Travel and accommodation costs are quoted separately.
Q: How does the integrated powder booth reduce waste?
A: The booth uses a cyclone separator to reclaim overspray powder, which is then sieved and reused. Combined with a cartridge final filter, the system achieves >95% material utilization, significantly reducing powder cost.
