Our Custom Size Semi-Automatic Powder Coating Line for Fan Motor Pump Motor Parts is engineered by Deqing Leixin Coating Equipment Co., Ltd., a trusted manufacturer since 2011 with ISO9001 certification. We specialize in providing flexible, high-performance coating solutions tailored to the specific dimensions and production needs of motor component manufacturers. This line offers a perfect balance between automation and manual control, ensuring consistent coverage, durability, and cost-efficiency for your fan motor and pump motor parts.
Key Features & Technical Specifications
- Customizable Line Size: Designed to fit your factory layout and workpiece dimensions – from small to large motor parts.
- Semi-Automatic Operation: Combines manual loading/unloading with automated conveyor, powder spraying, and curing processes for optimal control.

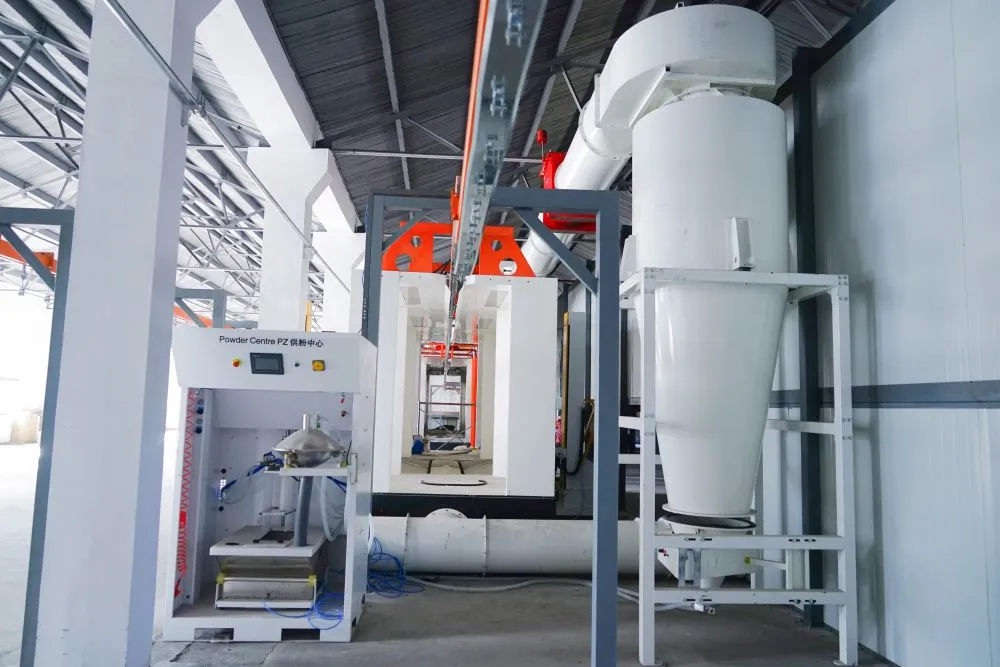

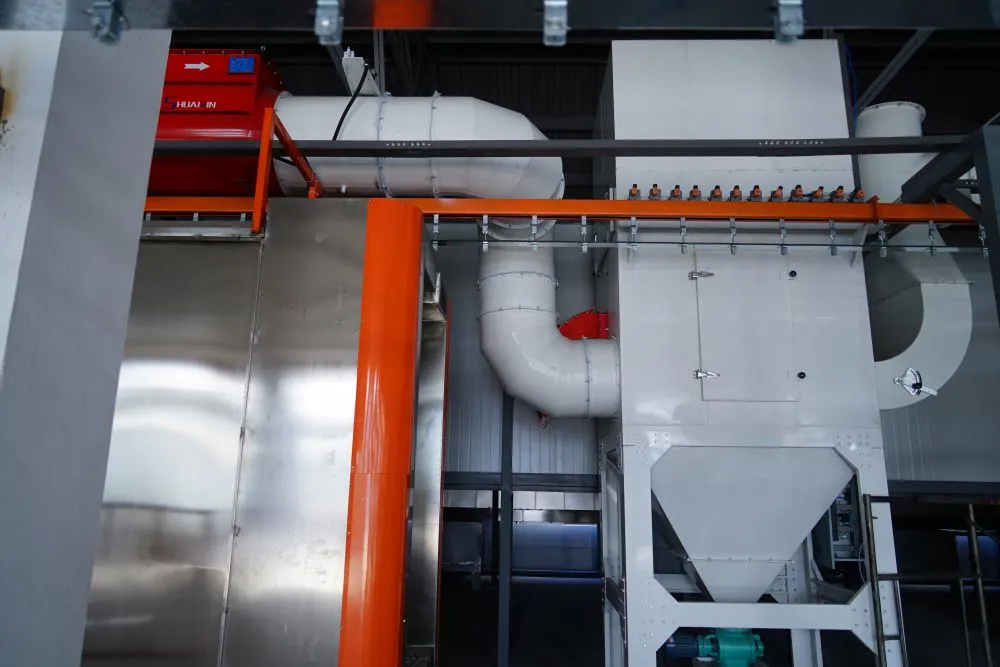

- High Efficiency Powder Recovery System: Advanced cyclone + cartridge filter ensures up to 95% powder recycling, reducing material waste.

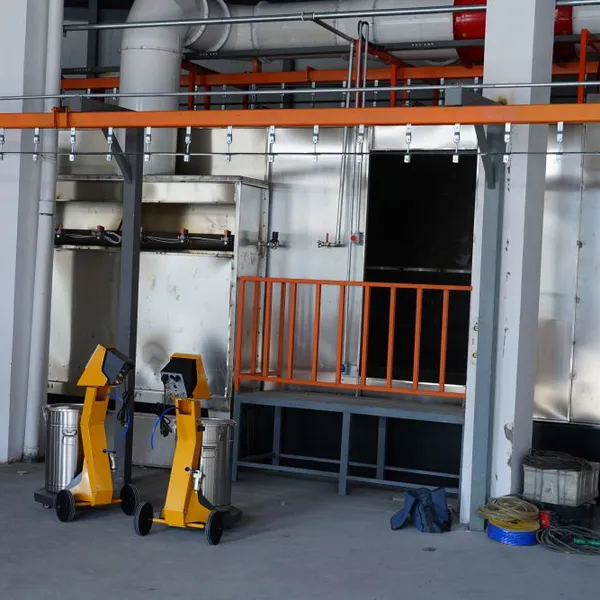

- Consistent Coating Thickness: Equipped with adjustable electrostatic spray guns (manual or automatic) for uniform film build, typically 60-120 μm.

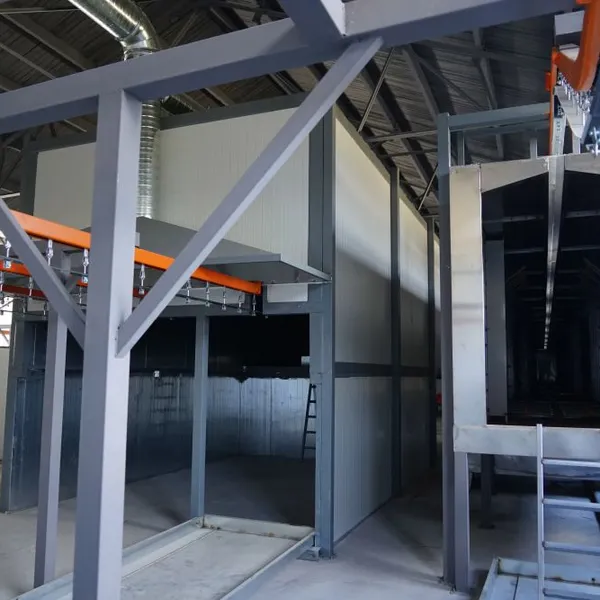

- Robust Curing Oven: Gas/electric heated, temperature range 160-220°C, with precise PLC control for reliable cross-linking.
- User-Friendly Control System: Touch screen interface with recipe storage for different motor part geometries.
- Durable Construction: Made from high-quality steel and aluminum alloy, with anti-corrosion treatment for long service life.
- Compliance: Designed according to ISO9001 quality management standards.
| Parameter | Description |
|---|---|
| Power Supply | 380V/50Hz 3-phase (other voltages available upon request) |
| Conveyor Speed | 0.5 – 5 m/min, adjustable |
| Max Workpiece Size | Up to 2,000 mm (customizable) |
| Powder Type | Thermosetting epoxy, polyester, hybrid |
| Coating Efficiency | ≥ 85% transfer efficiency with automatic guns |
| Production Capacity | Depends on line length; typical 100-500 pcs/hour |
Benefits for Your Motor Part Coating
This semi-automatic powder coating line is specifically designed to handle complex shapes of fan motor and pump motor parts, such as housings, impellers, rotors, and brackets. The custom design ensures that your parts are properly grounded and evenly coated, eliminating Faraday cage issues in recessed areas. The result is a smooth, durable finish that provides excellent corrosion resistance, electrical insulation, and aesthetic appeal. With low maintenance requirements and a compact footprint, this line integrates seamlessly into your existing production flow.
Why Choose Deqing Leixin?
Founded in 2011, our factory spans 1,000–3,000 square meters with 51–100 skilled employees. We export annually US$1–1.5 million worth of coating equipment to markets across North America, South America, Europe, Asia, Africa, and Oceania. Each line undergoes strict quality checks under ISO9001 procedures. Our team offers comprehensive after-sales support, including installation guidance, operator training, and spare parts supply. When you invest in our Custom Size Semi-Automatic Powder Coating Line, you gain a reliable partner committed to your productivity and coating quality.
Contact us today for a tailored quotation or to discuss your specific motor part dimensions. We are ready to engineer a solution that meets your production targets.
Frequently Asked Questions
-
Q: Can this line handle different sizes of motor parts without major adjustments?
A: Yes, the line is custom-sized based on your typical workpiece dimensions. The conveyor width, spray booth opening, and oven tunnel can be designed to accommodate a range of sizes. Quick-change recipes on the PLC allow easy switching between part types. -
Q: What is the typical lead time for delivery?
A: Lead time depends on the complexity and size of the line, typically 30–60 days after order confirmation. We will provide a detailed schedule during the quotation phase. -
Q: Do you provide installation and training?
A: Yes, we offer on-site installation supervision and operator training (optional). We also provide detailed manuals and video guides. -
Q: Is the system compatible with both manual and automatic powder guns?

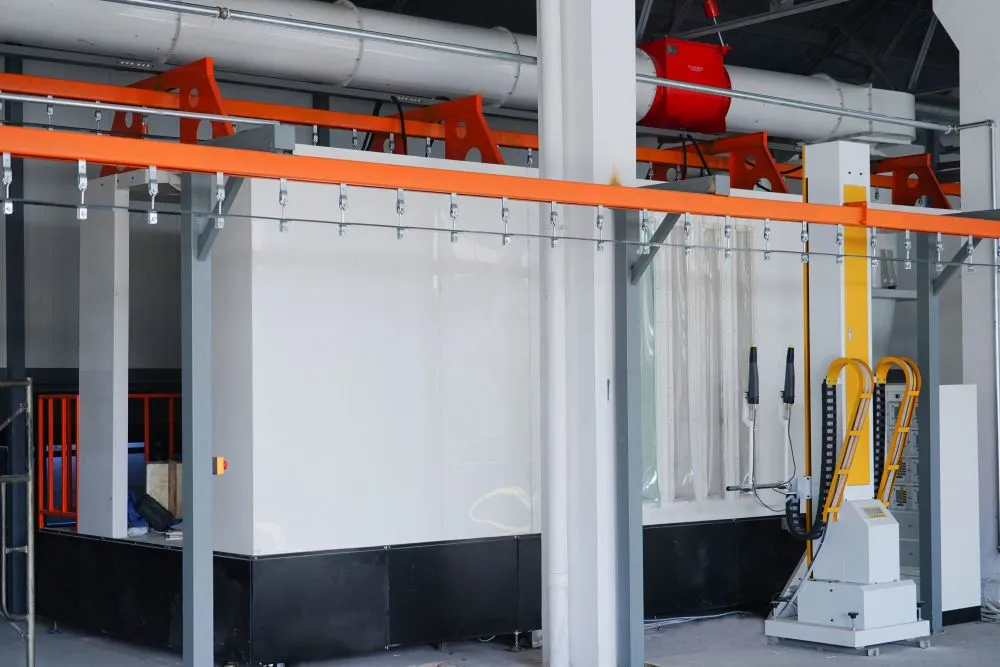

A: Yes, the line can be configured with manual guns for complex parts or automatic reciprocating guns for high-volume production. Both options are available. -
Q: What safety features are included?
A: The line includes emergency stop buttons, flame arrestors in the powder recovery system, temperature over-limit protection, and anti-static grounding. -
Q: Can you provide samples of coated motor parts for quality testing?
A: We can arrange sample coating testing at our facility using your parts or mock-ups. Contact our sales team for details. -
Q: What warranty do you offer?
A: We provide a standard 12-month warranty against manufacturing defects. Extended warranty is available upon request.
