NSPV Launches PV Cable Jumper with Inline Fuse Connector for Faster Installation and Reliable String Protection
Pre-Assembled Solar Cable Solution Combining Easy Installation with Overcurrent Protection

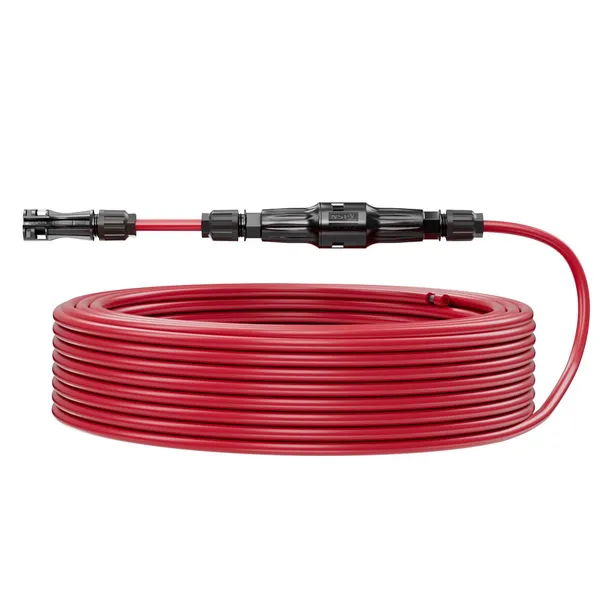

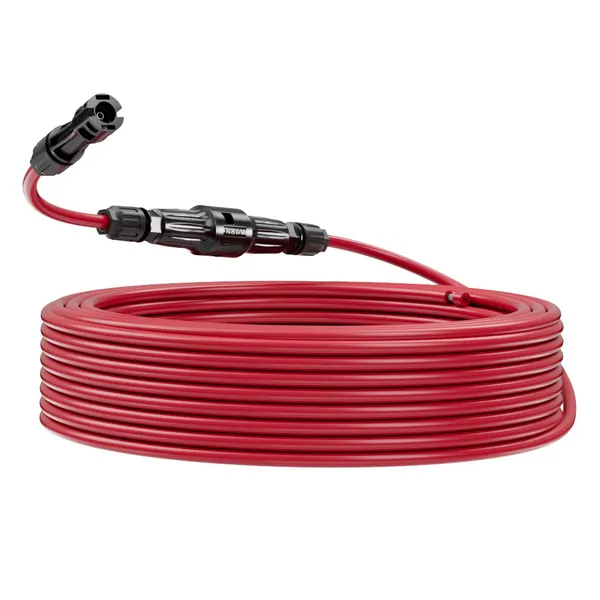

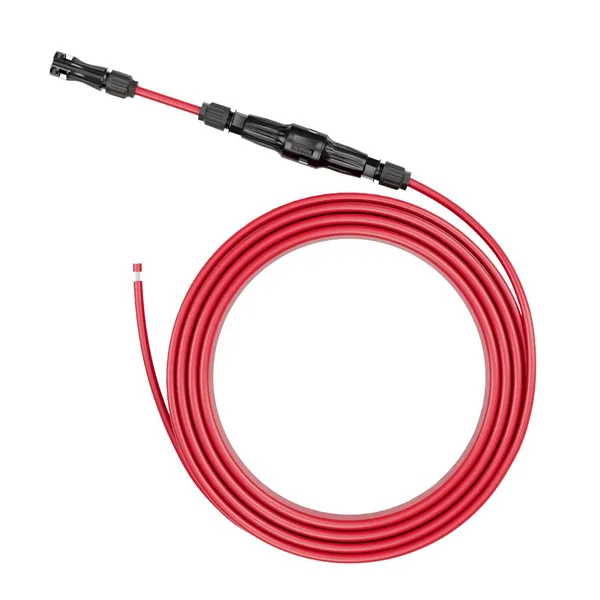

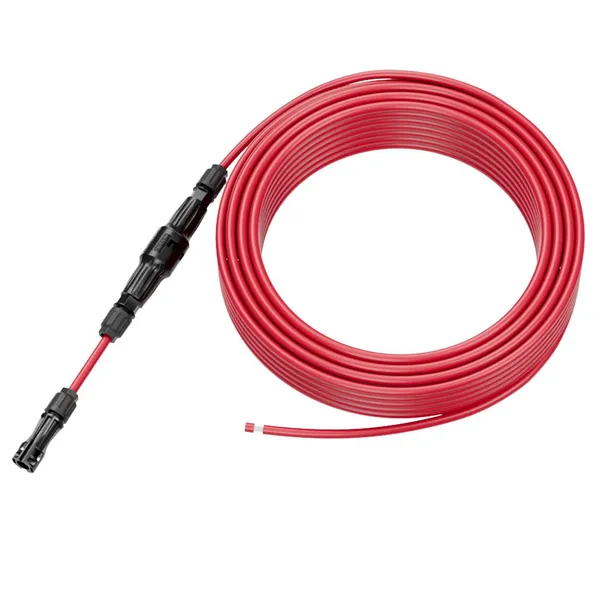

To improve installation efficiency and enhance DC-side safety in photovoltaic (PV) systems, NSPV introduces its new PV Cable Jumper with Inline Fuse Connector, a factory-assembled solar cable solution designed for fast installation, reliable electrical connection, and effective overcurrent protection.
By integrating a solar DC cable jumper and inline fuse connector into one pre-assembled component, NSPV helps EPC contractors, solar installers, and system integrators reduce field installation time, simplify inventory management, and improve overall project efficiency.
The NSPV Cable Jumper with Fuse Connector is designed to provide complete fuse disconnection under overload conditions, helping protect PV strings, DC cables, combiner boxes, and inverter systems from potential damage caused by excessive current.
Certified with TÜV and ETL, and featuring IP68 waterproof protection, this solution is suitable for residential, commercial, and utility-scale photovoltaic applications.
Simplified PV Installation with Factory-Assembled Cable Solutions
Traditional PV string installations often require separate cable preparation, connector assembly, and fuse installation on-site.
NSPV’s Cable Jumper with Inline Fuse Connector eliminates these additional steps by delivering a ready-to-install solution.
Key installation advantages:
Factory pre-assembled cable harness
Plug-and-play installation
No additional crimping or assembly required
Reduced installation labor time
Lower risk of field wiring errors
Improved consistency and reliability
For large-scale solar projects with thousands of PV strings, reducing installation time per string can significantly improve project construction efficiency.
Reliable Overcurrent Protection Through Complete Fuse Disconnection
Photovoltaic systems require effective protection against abnormal current conditions, including:
Reverse current
String overload
Short circuit faults
Cable overheating risks
The integrated inline fuse provides fast protection by melting when current exceeds the rated value, achieving complete electrical disconnection of the faulty circuit.
This helps protect:
PV modules
DC cables
PV connectors
Combiner boxes
String inverters
DC protection equipment
Typical PV Application: Positive Cable with Fuse, Negative Cable Without Fuse
In practical PV system installations, most customers choose an optimized configuration:
Positive (+) cable:
Cable Jumper with Inline Fuse Connector
Negative (-) cable:
Standard Cable Jumper without Fuse Connector
This configuration is widely adopted because the positive conductor normally provides the required string overcurrent protection, while the negative conductor does not require an additional fuse in many system designs.
Advantages include:
✔ Meets PV string protection requirements
✔ Reduces unnecessary component cost
✔ Simplifies installation
✔ Improves project cost efficiency
NSPV supports customized solutions according to different project designs, regional standards, and customer requirements.
Flexible Connector Options for Global PV Projects
To meet different market requirements, NSPV provides flexible connector selections.
Customers can choose:
Option 1: NSPV Standard MC Compatible Connector
High compatibility with mainstream photovoltaic systems
Reliable connection performance
Cost-effective solution for standard PV applications
Option 2: Customer-Specified Connector Brand
NSPV also supports OEM customization by using customer-designated PV connector brands according to project requirements.
Available customization options include:
Connector brand selection
Cable length
Cable size
Fuse rating
Label printing
Packaging design
OEM branding
Standard Fuse Options Available from NSPV
NSPV provides commonly used PV fuse configurations for different solar system designs.
Standard Fuse Ratings:
20A
25A
30A
Fuse Size Options:
10 × 85mm PV Fuse
14 × 85mm PV Fuse
Different fuse ratings can be selected according to:
PV module current characteristics
String design requirements
Inverter specifications
Project protection standards
Product Features
NSPV PV Cable Jumper with Fuse Connector
✔ Integrated solar cable and inline fuse connector
✔ Designed for 1000V / 1500V DC photovoltaic systems
✔ Complete fuse melting and circuit isolation protection
✔ IP68 waterproof protection
✔ UV resistant and weather-resistant housing
✔ Low contact resistance
✔ High mechanical reliability
✔ Factory-tested before shipment
✔ Compatible with mainstream MC PV connector systems
✔ OEM and ODM customization available
✔ Suitable for residential, commercial, and utility-scale PV projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | PV Cable Jumper with Inline Fuse Connector |
| Application | Solar PV DC Side Protection |
| Rated Voltage | Up to 1500V DC |
| Fuse Rating | 20A / 25A / 30A |
| Fuse Dimension | 10×85mm / 14×85mm |
| Cable Size | Customized according to project requirements |
| Connector Type | NSPV MC Compatible / Customer Specified Brand |
| Protection Degree | IP68 |
| Cable Material | Tinned Copper PV Cable |
| Operating Temperature | -40°C to +85°C |
| Certification | TÜV / ETL |
| Application Standard | Residential, Commercial & Utility Scale PV Systems |
Applications
NSPV PV Cable Jumper with Fuse Connector is widely used in:
Utility-scale solar power plants
Commercial rooftop PV systems
Residential solar installations
Solar string inverter systems
PV combiner box connections
Floating solar projects
Agricultural PV systems
Battery Energy Storage Systems (BESS)
Frequently Asked Questions (FAQ)
1. What is a PV Cable Jumper with Inline Fuse Connector?
A PV Cable Jumper with Inline Fuse Connector is a pre-assembled solar cable solution combining a DC cable jumper and photovoltaic fuse connector. It provides fast installation and overcurrent protection for PV string circuits.
2. Why do many customers install the fuse connector only on the positive cable?
In many PV system designs, the positive (+) conductor is selected for inline fuse protection, while the negative (-) conductor uses a standard jumper cable.
This configuration provides effective overcurrent protection while reducing unnecessary component costs.
3. What fuse ratings does NSPV normally provide?
NSPV standard fuse options include:
20A
25A
30A
Available fuse dimensions:
10×85mm
14×85mm
Customized fuse ratings are also available according to project requirements.
4. Can NSPV provide different connector brands?
Yes.
Customers can select NSPV standard MC compatible connectors or request their preferred connector brand for OEM production.
NSPV supports customized cable assemblies for different PV project requirements.
5. Is the Cable Jumper with Fuse Connector suitable for outdoor solar installations?
Yes.
With IP68 waterproof protection, UV resistance, TÜV and ETL certification, NSPV Cable Jumper with Fuse Connector is designed for long-term outdoor operation in harsh photovoltaic environments.
NSPV – Professional PV Connection and Protection Solution Provider
NSPV specializes in developing and manufacturing photovoltaic connection and protection products, including:
PV Cable Jumper
Solar Inline Fuse Connector
PV Y Cable Harness
DC Solar Connectors
Insulation Piercing Connectors (IPC)
DC Protection Components
With certified manufacturing capability, OEM/ODM support, and global project experience, NSPV provides reliable solar connection solutions for EPC contractors, distributors, and renewable energy companies worldwide.
SEO Keywords Covered:
PV Cable Jumper, Solar Cable Jumper with Fuse, PV Inline Fuse Connector, Solar Fuse Cable Assembly, DC Solar Fuse Connector, PV String Protection, Solar Cable Harness, 1500V DC PV Cable, Solar EPC Installation Solution, Photovoltaic Overcurrent Protection, Solar Connector Manufacturer, MC Compatible Solar Connector, Utility Scale Solar Components, Solar BOS Components, PV Cable Assembly Manufacturer.
