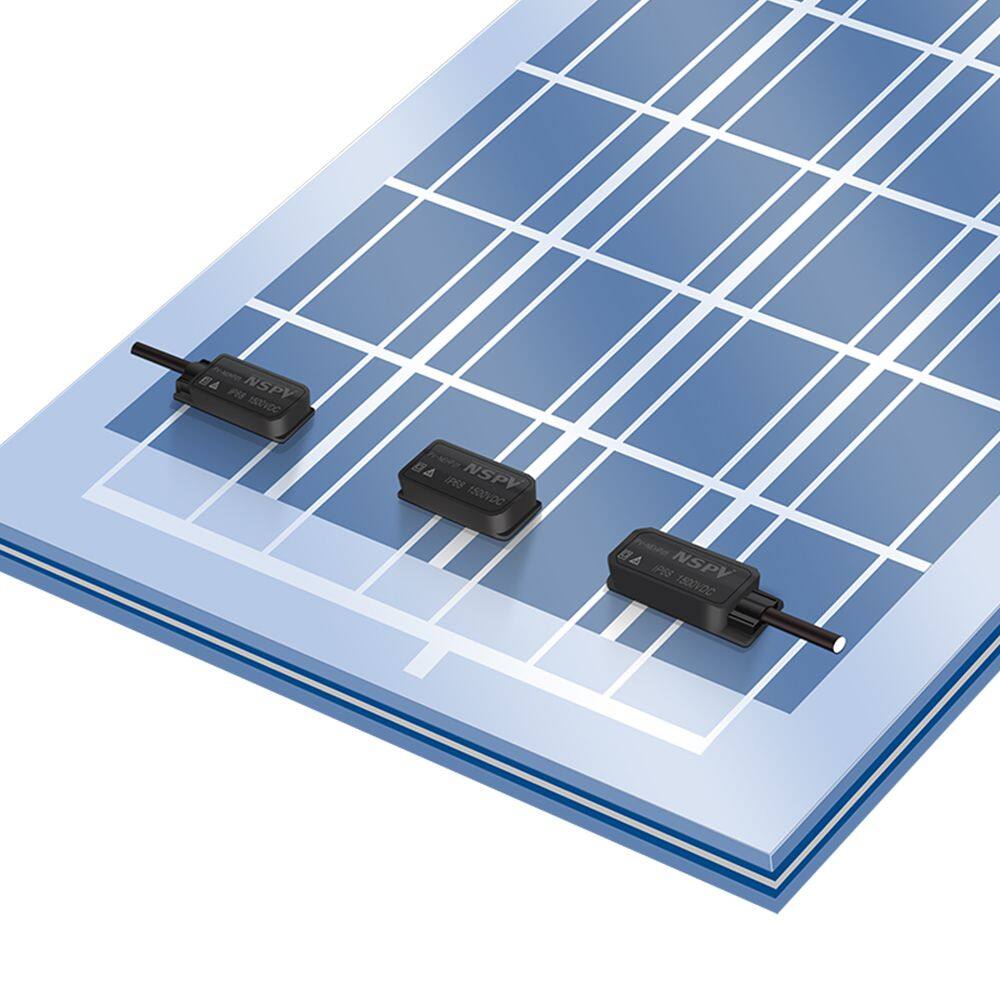

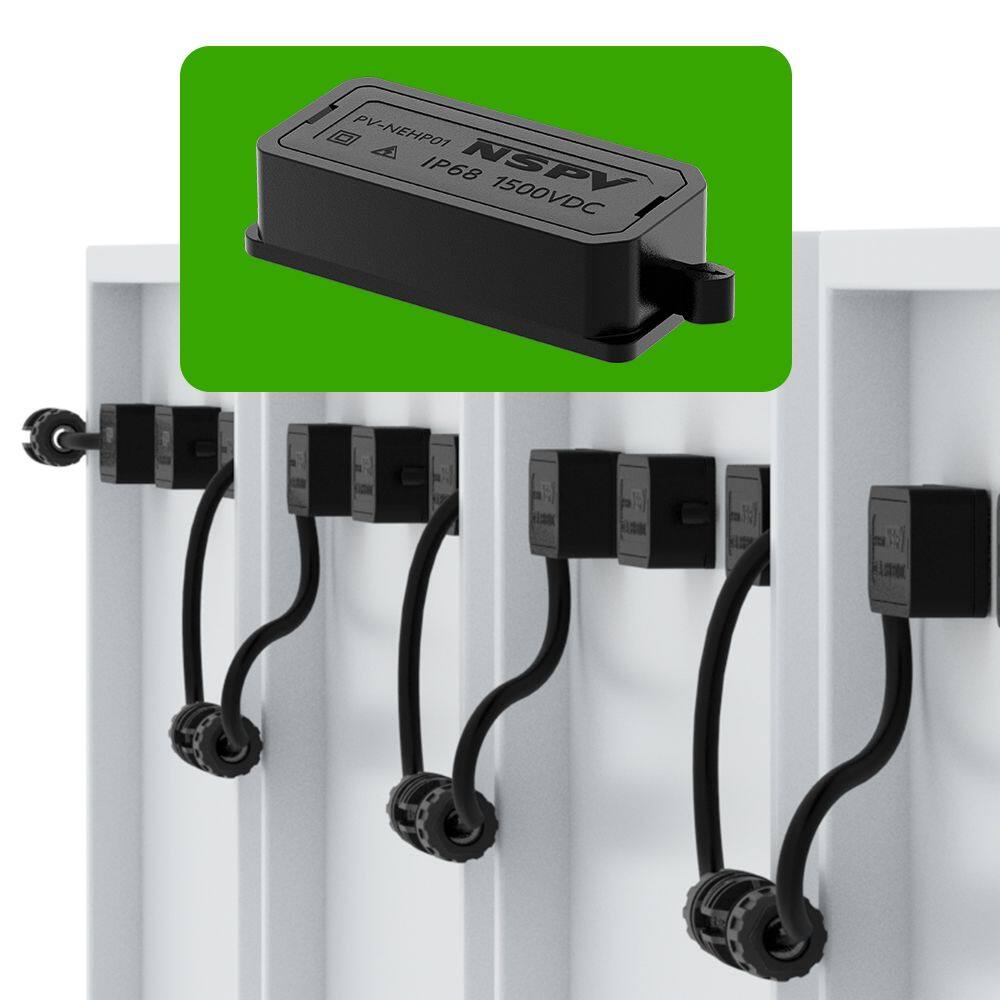

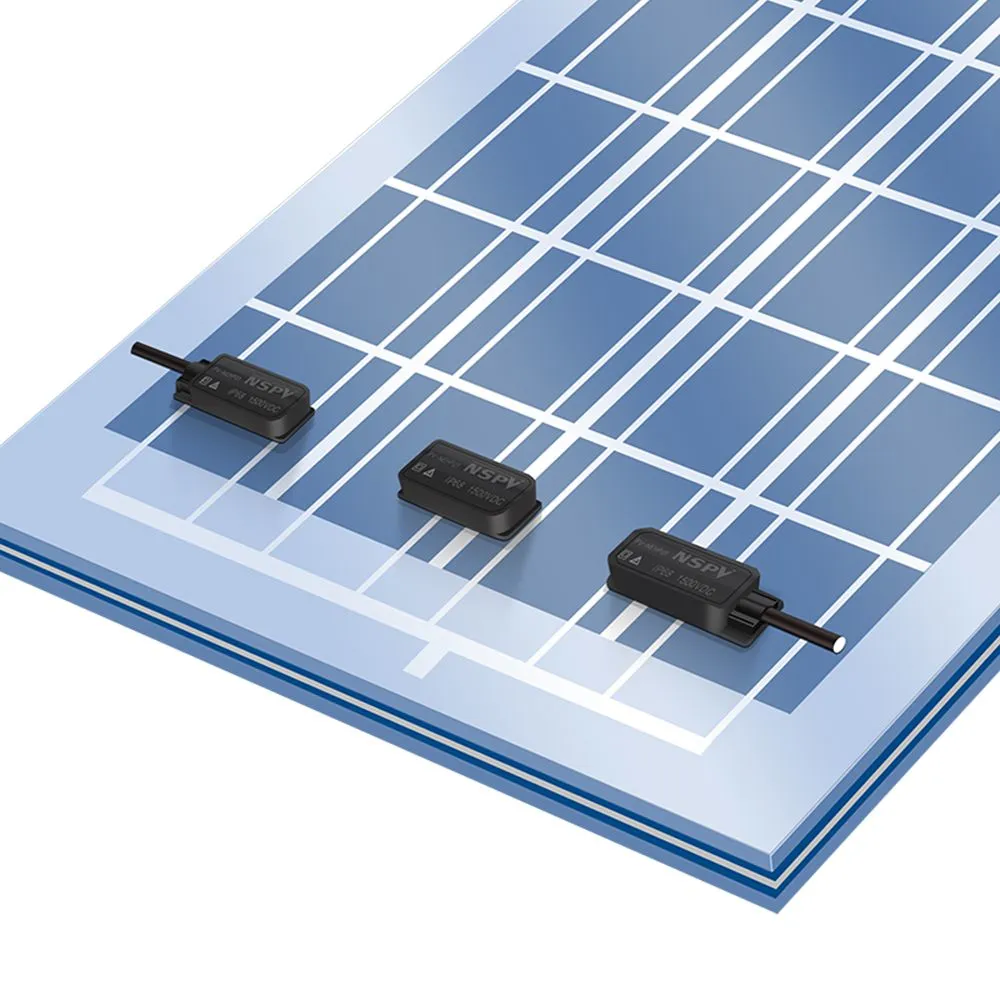

NSPV Patent-Designed Solar PV Panel NEHP01 Junction Box: Technical Overview

The NSPV NEHP01 Junction Box is a cutting-edge component engineered to optimize the performance, safety, and longevity of solar photovoltaic (PV) systems. Designed with precision and patented technology, this junction box integrates advanced materials, rigorous safety certifications, and robust environmental protection to meet the demands of modern solar energy applications. Below is a detailed breakdown of its features and benefits:

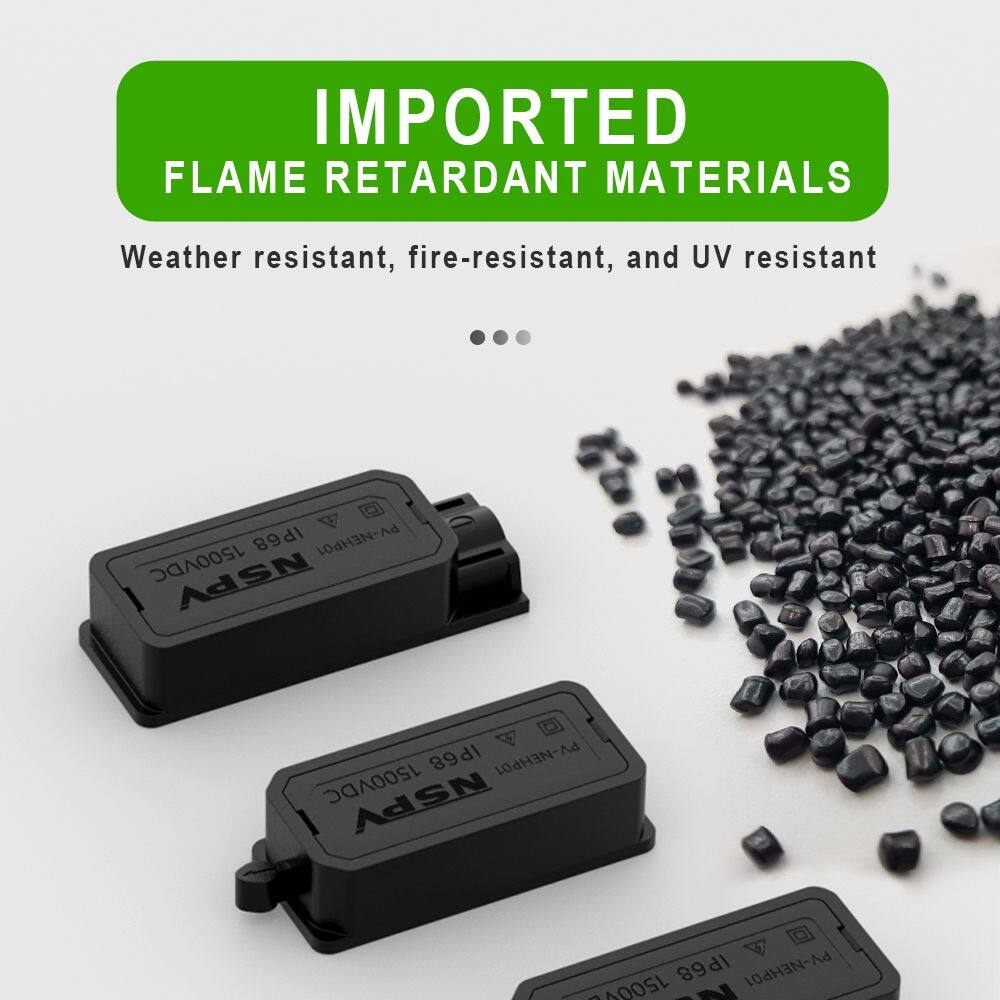

1. Premium Material: 100% Brand-New Imported PPE

The NEHP01 utilizes polyphenylene ether (PPE), a high-performance thermoplastic imported for its exceptional durability and resistance to harsh conditions. PPE is renowned for its:

• Thermal Stability: Withstands temperatures from -40°C to 120°C, ensuring reliability in extreme climates.

• Chemical Resistance: Immune to corrosion from UV exposure, moisture, acids, and alkalis.

• Mechanical Strength: Maintains structural integrity under mechanical stress, reducing risk of cracking or deformation.
  This material choice guarantees a 25+ year lifespan, aligning with the operational life of solar panels.

2. Flame Resistance: UL94V-0 Certification

Safety is paramount in electrical components. The NEHP01 junction box complies with UL94V-0, the highest standard for flame retardancy in plastics. Key attributes include:

• Self-Extinguishing Properties: Halts flame spread within 10 seconds of ignition, preventing fire hazards.

• Zero Dripping: Eliminates molten debris during combustion, safeguarding surrounding components.
  This certification ensures compliance with international safety regulations, making it suitable for residential, commercial, and industrial installations.

3. IP67 Waterproof and Dustproof Protection

The junction box achieves an IP67 rating, offering complete defense against environmental challenges:

• Dust Ingress Protection (6X): Sealed against fine particulates, ideal for arid or dusty regions.

• Water Immersion Resistance (7): Withstands submersion in 1 meter of water for 30 minutes, ensuring functionality during floods or heavy rain.

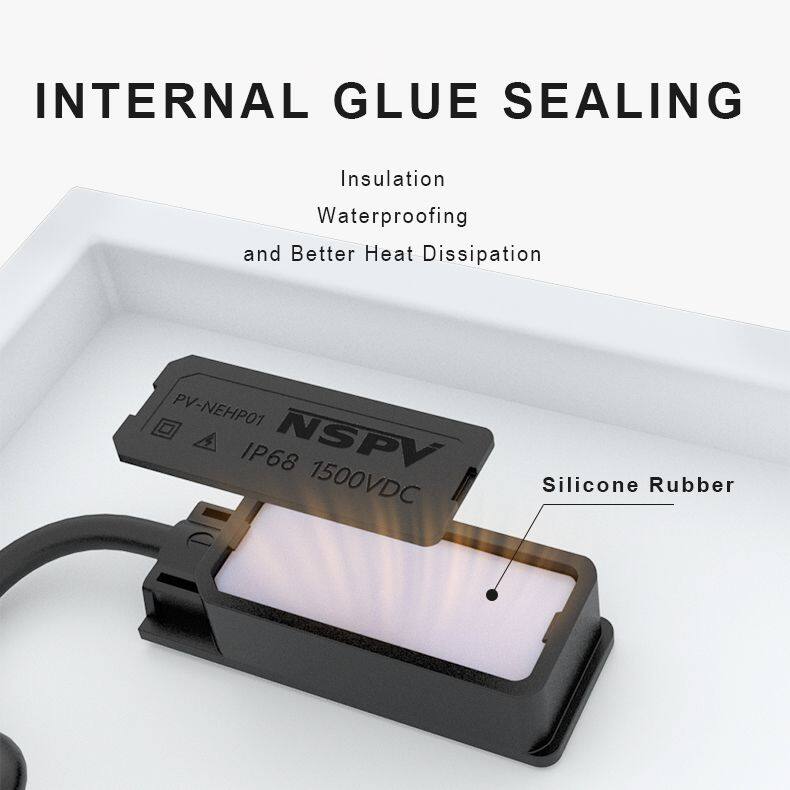

• Enhanced Sealing: Silicone gaskets and ultrasonic welding provide airtight/watertight sealing for internal terminals and cables.

4. Advanced Electrical Performance

Designed for seamless integration with solar panels, the NEHP01 offers:

• Low Contact Resistance: Minimizes energy loss, maximizing system efficiency.

• High Current Capacity: Supports up to 20A continuous current, compatible with high-power PV modules.

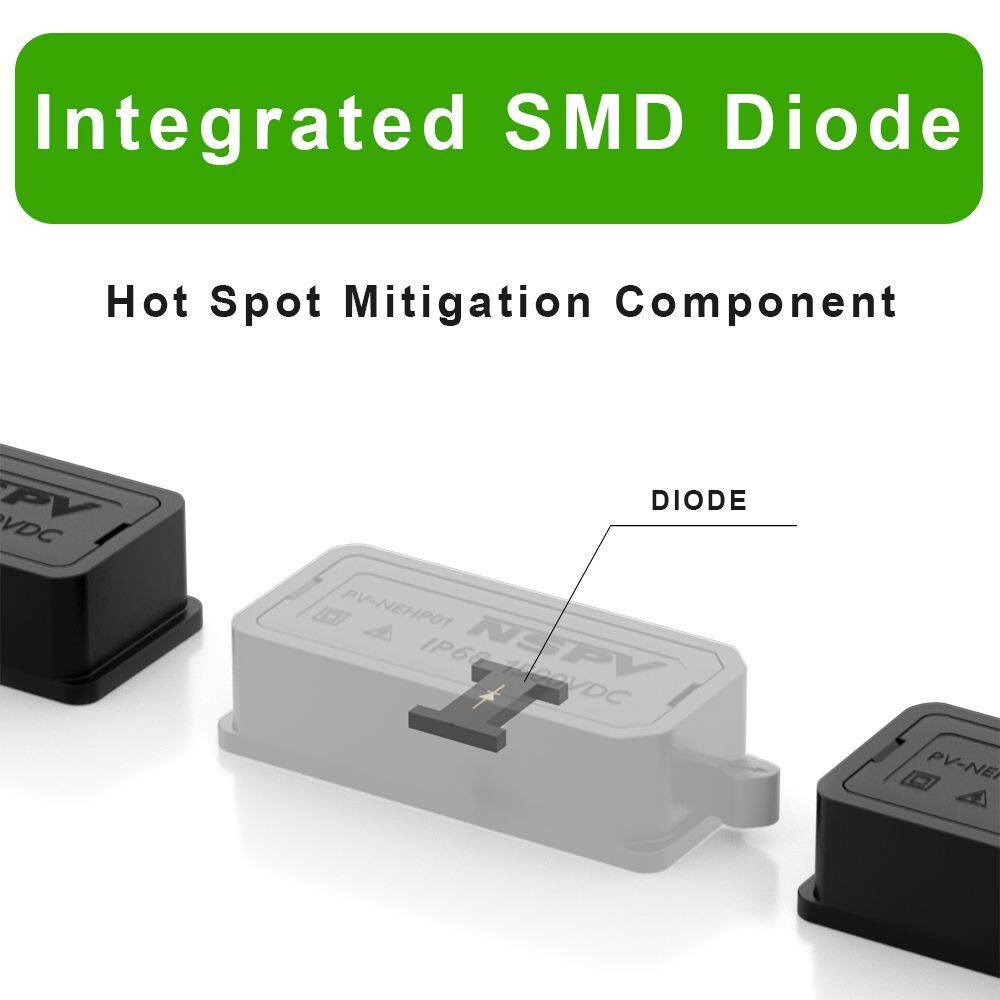

• Diode Integration: Optional bypass diodes prevent hotspot formation, protecting panels from shading damage.

5. Solar Panel Solution Services

Beyond hardware, NSPV provides end-to-end support:

• Custom Design: Tailored solutions for unique panel configurations or environmental needs.

• Technical Guidance: Installation, maintenance, and troubleshooting assistance.

• Quality Assurance: Rigorous pre-shipment testing (thermal cycling, humidity exposure, etc.) ensures compliance with IEC 62790 and TÜV standards.

Applications

The NEHP01 is ideal for:

• Rooftop solar arrays

• Utility-scale solar farms

• Off-grid systems in harsh environments (deserts, coastal areas)

Conclusion

The NSPV NEHP01 Junction Box sets a new benchmark for solar PV components, combining premium PPE material, unmatched safety (UL94V-0), and IP67-rated environmental protection. Paired with comprehensive technical services, it delivers a future-proof solution for global solar energy projects. By minimizing maintenance costs and maximizing ROI, this innovation empowers the transition to sustainable energy systems.

For specifications, certifications, or partnership inquiries, contact NSPV’s engineering team today.
