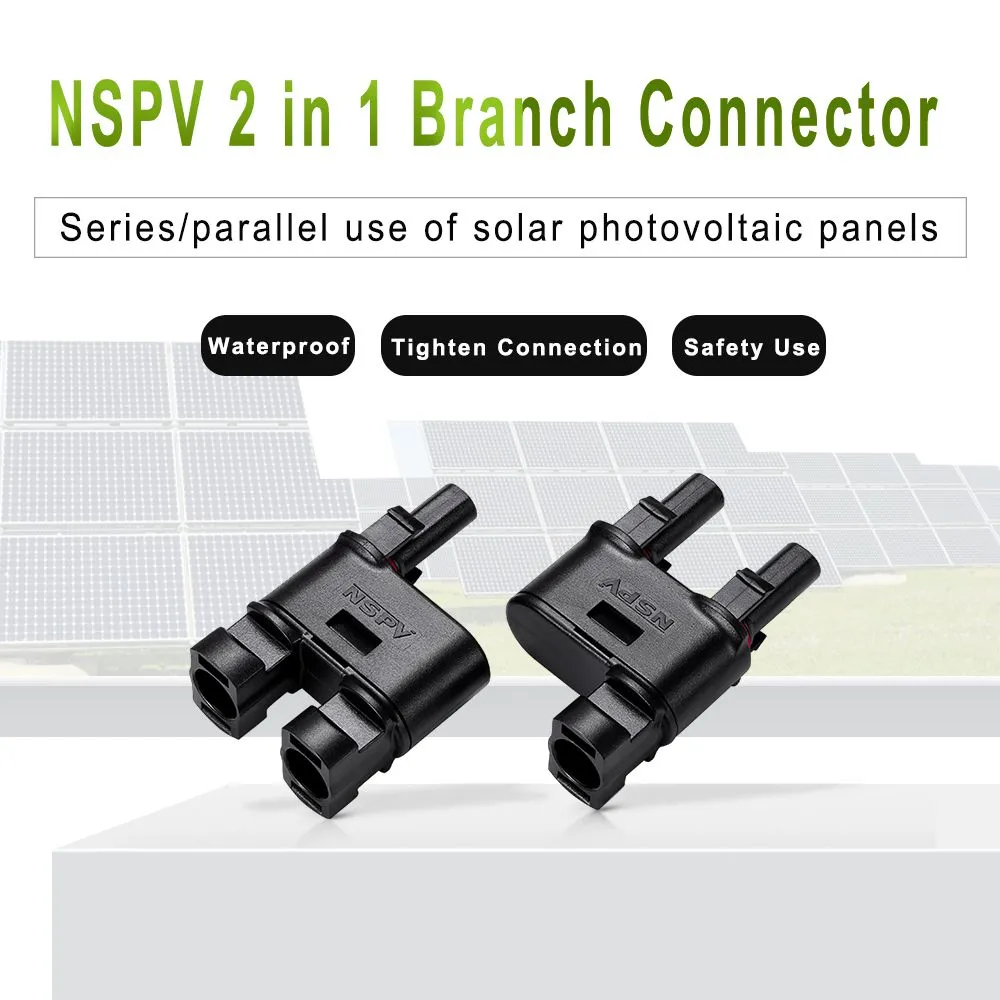

NSPV Solar Panel Parallel Series Compatible MC4 1500VDC 2-in-1 Branch Connector
The NSPV Solar Panel Parallel Series Compatible MC4 1500VDC 2-in-1 Branch Connector is a cutting-edge electrical component designed to optimize solar photovoltaic (PV) system performance, streamline installation, and enhance safety in high-voltage applications. Engineered for compatibility with industry-standard MC4 connectors, this innovative branch connector simplifies the integration of parallel solar panel configurations while supporting systems rated up to 1500VDC. Its 2-in-1 design ensures efficient power consolidation, reduced wiring complexity, and robust durability, making it ideal for commercial, industrial, and utility-scale solar installations.
Key Features
High Voltage Capacity
Rated for 1500VDC systems, this connector meets the growing demand for high-voltage solar arrays, which minimize energy loss over long distances and improve overall system efficiency. Its advanced insulation materials and precision engineering ensure safe operation even under extreme electrical loads.2-in-1 Parallel Branching

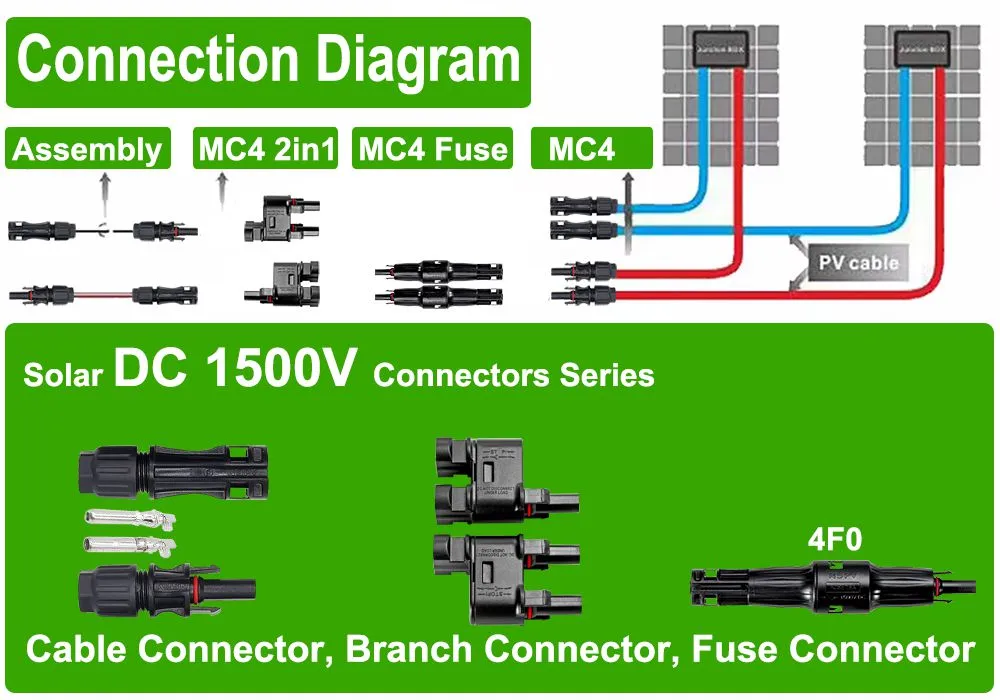

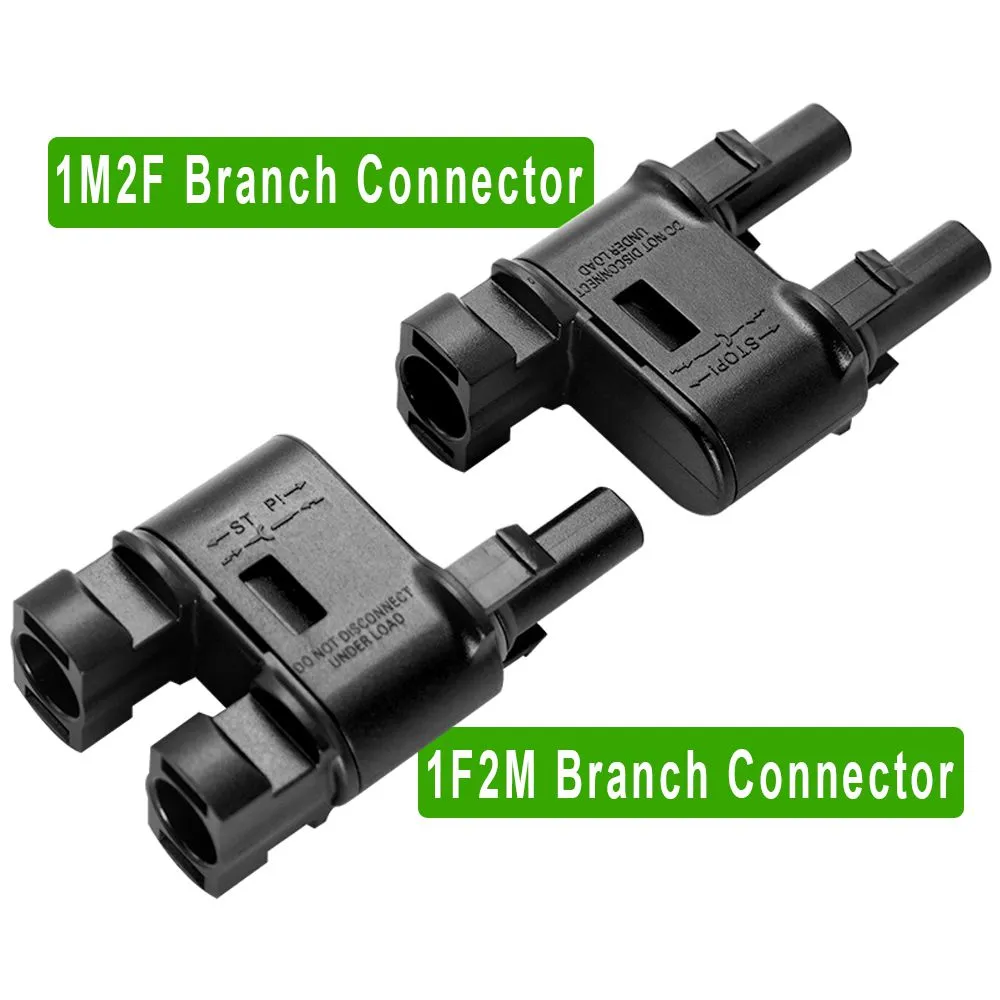

The connector’s dual-input, single-output design allows two solar panels or strings to be combined into a single circuit. This parallel configuration maximizes energy yield by mitigating shading or mismatch losses and simplifies system expansion without requiring additional junction boxes.MC4 Compatibility

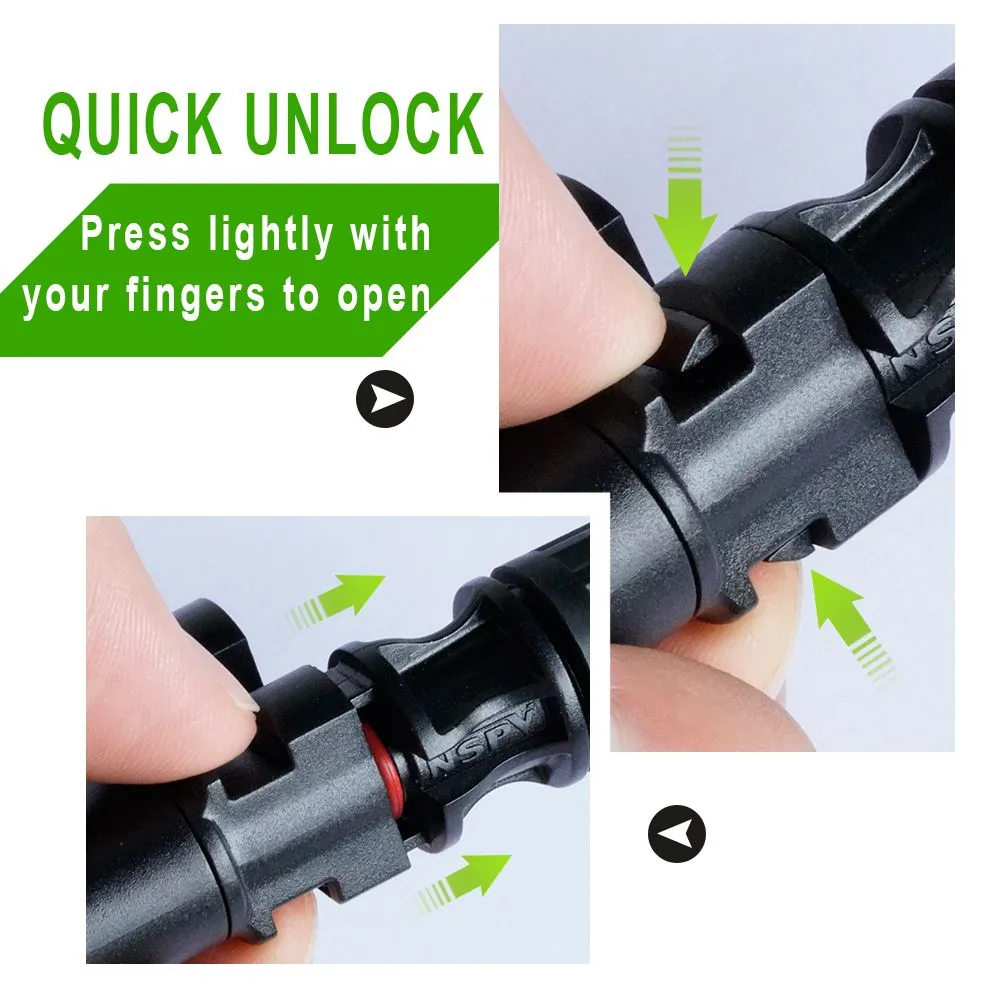

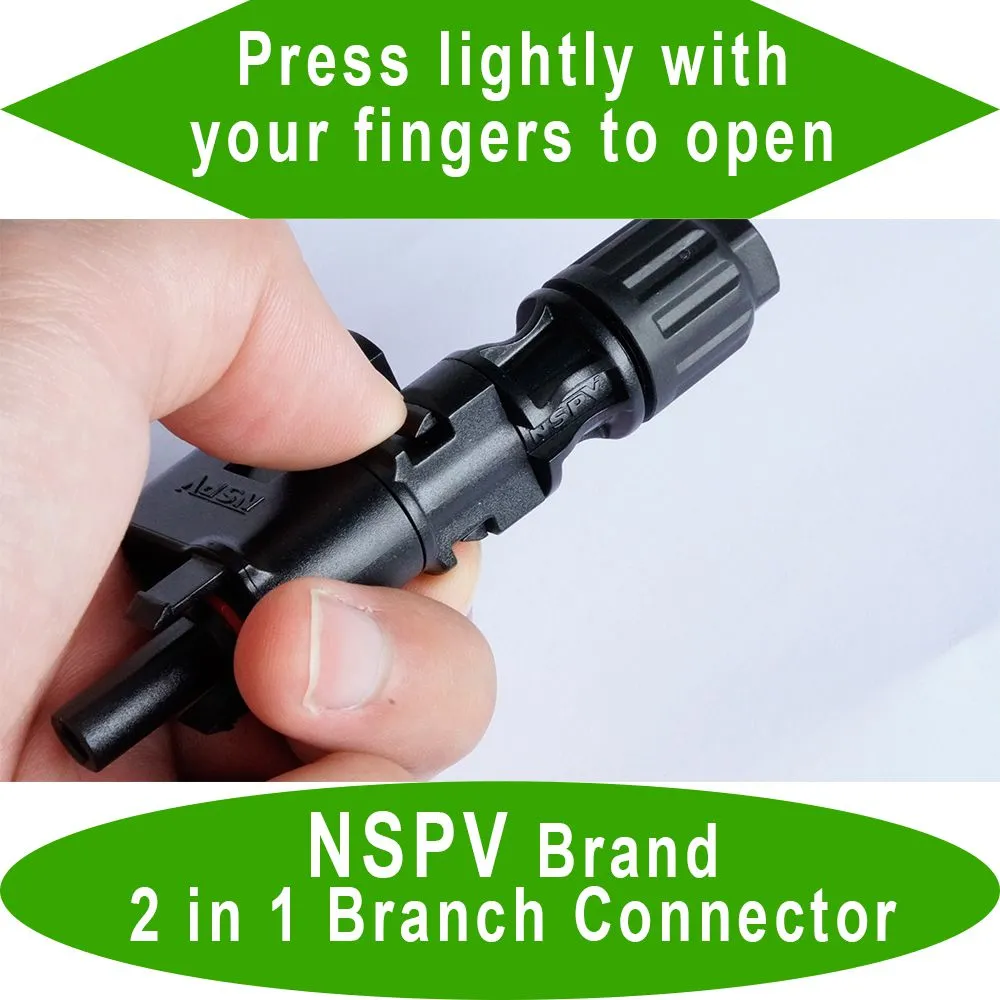

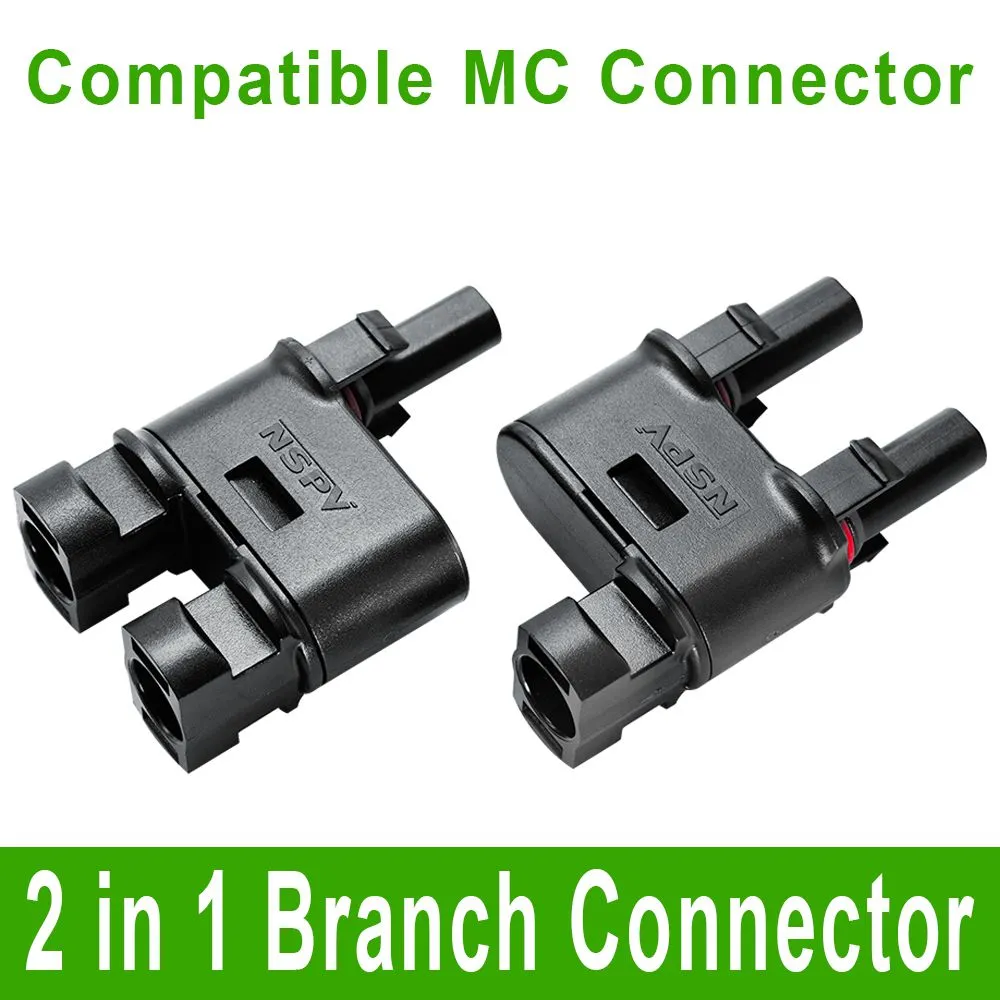

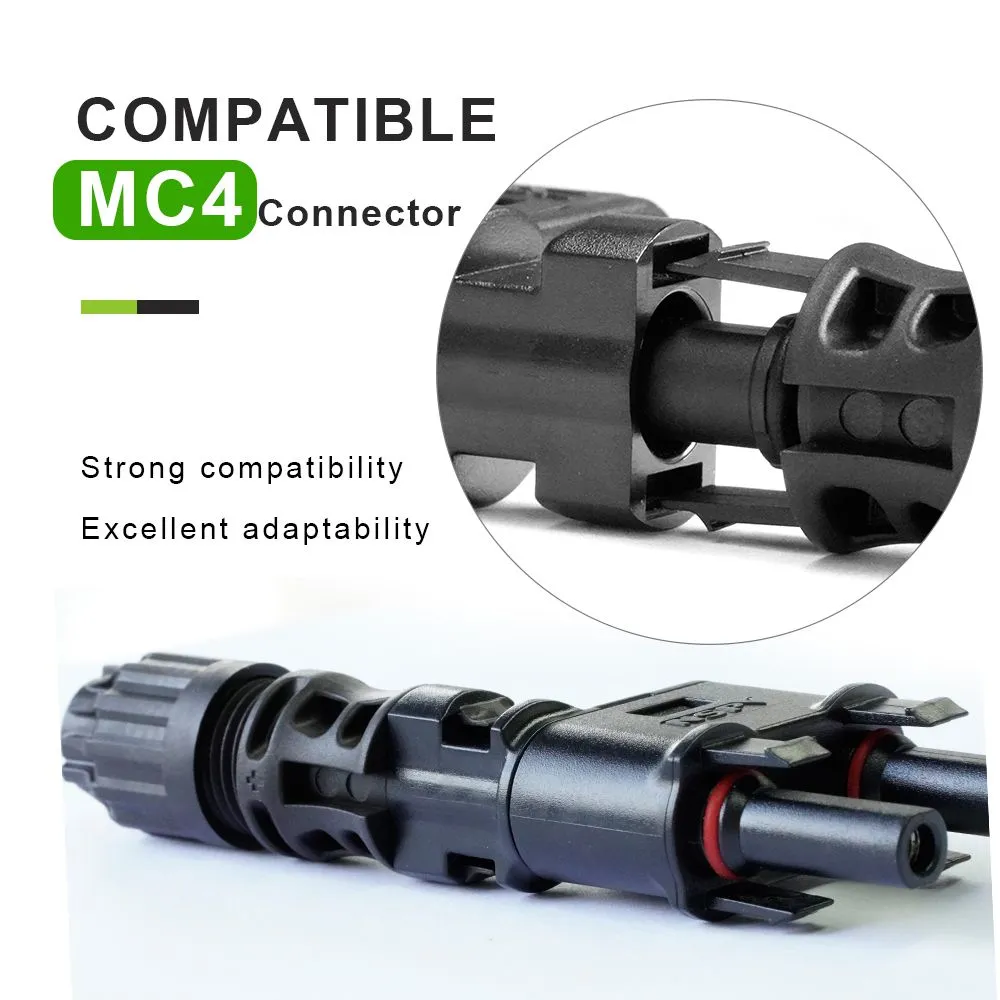

Fully compatible with MC4 connectors—the global standard for solar PV interconnections—this product guarantees seamless integration with existing panels, inverters, and cabling. Its snap-lock mechanism ensures secure, tool-free mating while maintaining IP68 waterproof and dustproof ratings for outdoor reliability.Durability & Safety
Constructed from UV-resistant, flame-retardant thermoplastics and corrosion-resistant metal contacts, the connector withstands harsh environmental conditions, including temperature extremes (-40°C to +90°C) and mechanical stress. It complies with IEC 62852 and UL 6703 standards, ensuring user safety and long-term performance.-
Time-Saving Installation
Pre-assembled with field-replaceable contacts, the connector reduces on-site labor and maintenance costs. Color-coded terminals and ergonomic housing enable intuitive wiring, minimizing errors during setup.
Technical Specifications
Max Voltage: 1500VDC
Current Rating: 30A (per branch)

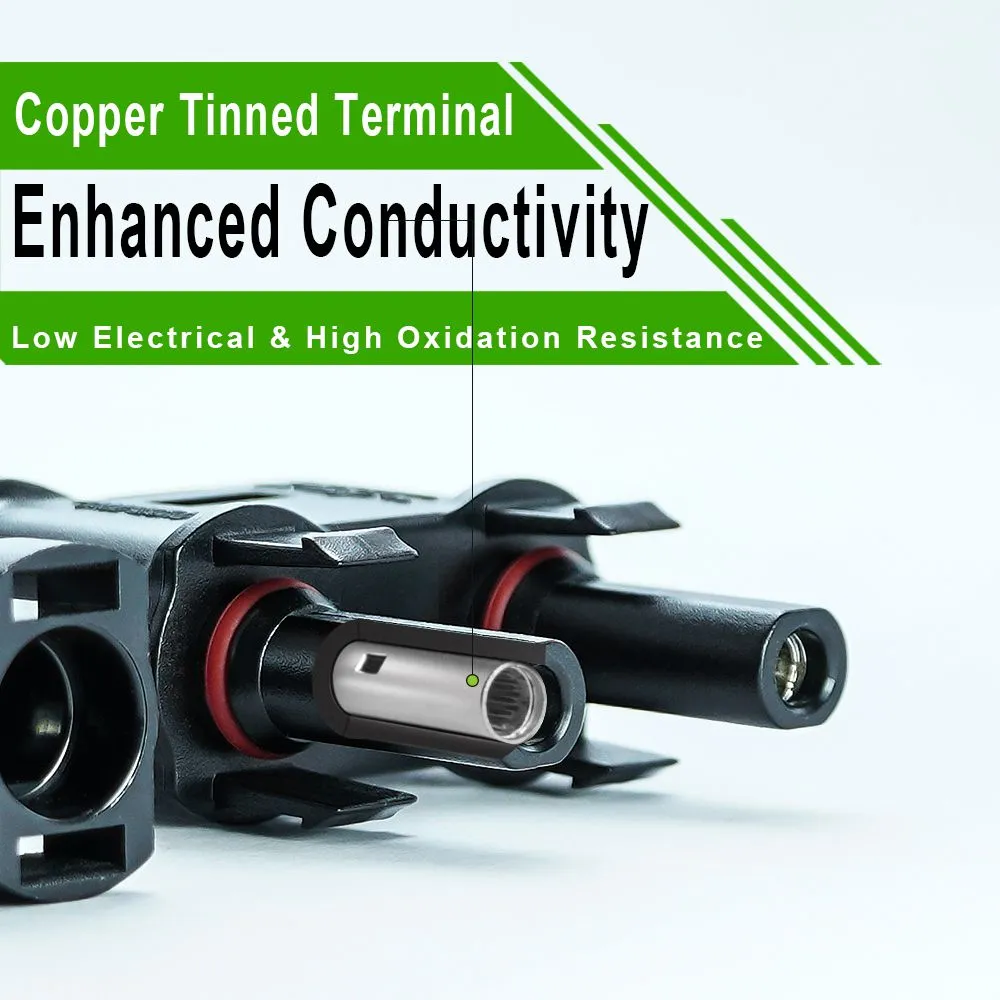

Contact Material: Tin-plated copper for low resistance (
Housing Material: Halogen-free, high-temperature thermoplastic
Ingress Protection: IP68
Operating Temperature: -40°C to +90°C
Certifications: IEC 62852, UL 6703, TÜV Rheinland
Applications
This connector is ideal for:
Large-scale solar farms requiring high-voltage string connections.
Commercial rooftop systems with parallel panel configurations.
Off-grid installations needing reliable, low-loss power consolidation.
Retrofitting older systems to meet modern voltage standards.
Advantages Over Traditional Solutions
Unlike conventional single-input connectors, the NSPV 2-in-1 branch connector reduces the number of components needed in a PV array, lowering material costs and potential failure points. Its 1500VDC rating future-proofs systems for next-generation solar technologies, while its rugged design ensures a 25-year service life aligned with solar panel warranties.
Conclusion
The NSPV Solar Panel Parallel Series Compatible MC4 1500VDC 2-in-1 Branch Connector represents a leap forward in solar connectivity solutions. By combining high-voltage resilience, user-friendly design, and industry-standard compatibility, it empowers installers to build safer, more efficient, and cost-effective solar energy systems. Whether for utility-scale projects or complex commercial setups, this connector delivers the reliability and performance demanded by modern renewable energy applications.
