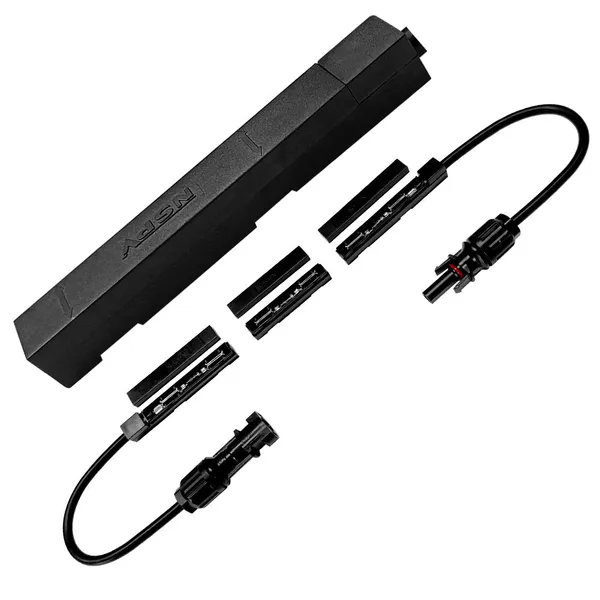

Wholesales Solar PV BIPV Connector Photovoltaic Panel Negative Middle Positive JBBM01 Junction Box

Wholesale NSPV Patent-Designed BIPV Junction Box for Solar PV Panels

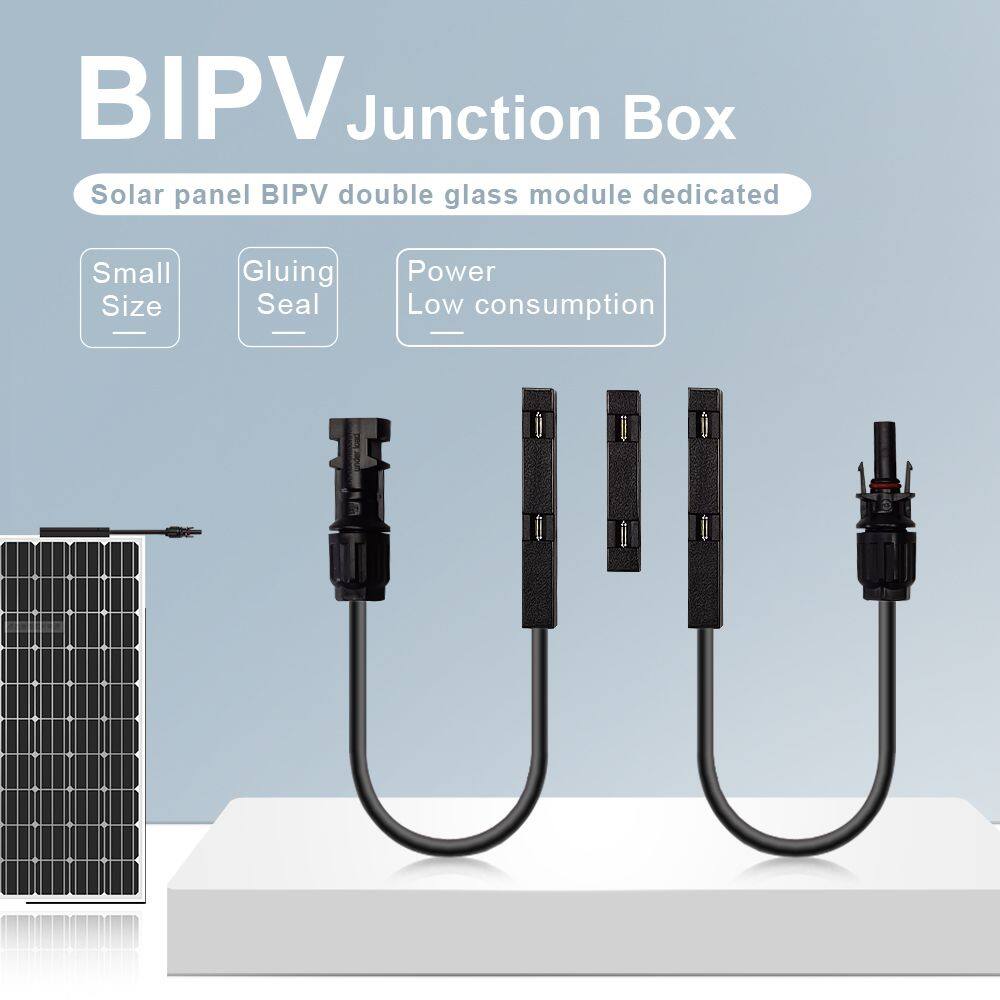

Introducing the NSPV BIPV Junction Box, a cutting-edge solution designed for Building-Integrated Photovoltaic (BIPV) systems, combining superior functionality, safety, and aesthetics. Engineered with patented technology and premium materials, this junction box is tailored to meet the rigorous demands of modern solar energy installations while enhancing the visual appeal of architectural designs.

1. Premium Material: 100% Brand-New Imported PPE

The NSPV BIPV junction box is crafted from 100% imported PPE (Polyphenylene Ether), a high-performance engineering plastic renowned for its exceptional durability, thermal stability, and resistance to environmental stressors. PPE ensures:

• Flame Resistance: Compliant with UL94 V-0 standards, offering superior fire-retardant properties to minimize fire hazards in extreme conditions.

• Chemical & UV Resistance: Withstands exposure to harsh chemicals, UV radiation, and temperature fluctuations (-40°C to 120°C), ensuring long-term reliability.

• Eco-Friendly: Free from hazardous substances (RoHS compliant), aligning with global sustainability goals.

2. IP68 Waterproof & Dustproof Protection

Designed for outdoor and challenging environments, the junction box achieves an IP68 protection rating, the highest ingress protection standard. This guarantees:

• Complete Waterproofing: Submersion up to 1.5 meters for 30 minutes without leakage, ideal for heavy rain, snow, or coastal areas.

• Dustproof Construction: Sealed against particulate matter, ensuring uninterrupted performance in dusty or polluted settings.

• Corrosion Resistance: Enhanced sealing gaskets and robust housing protect internal components from moisture, salt spray, and oxidation.

3. Innovative Patent-Protected Design

The NSPV junction box features a dual-patented design (structural and connector patents), setting it apart from conventional models:

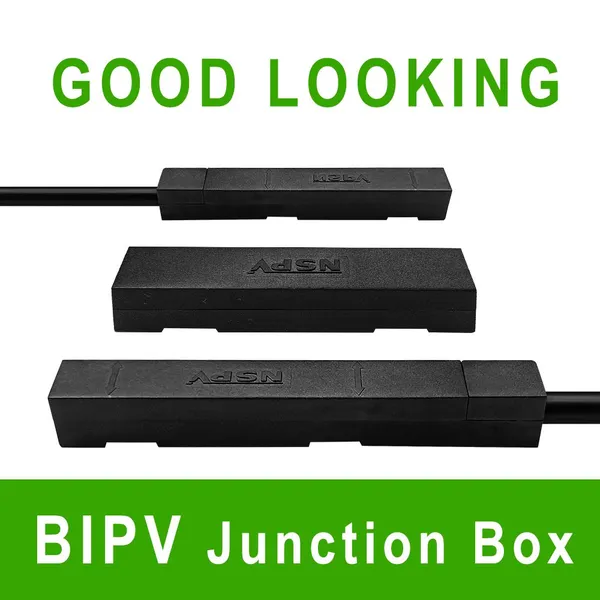

• Sleek Aesthetic: Low-profile, compact design integrates seamlessly into BIPV systems, maintaining the architectural integrity of roofs, facades, or windows.

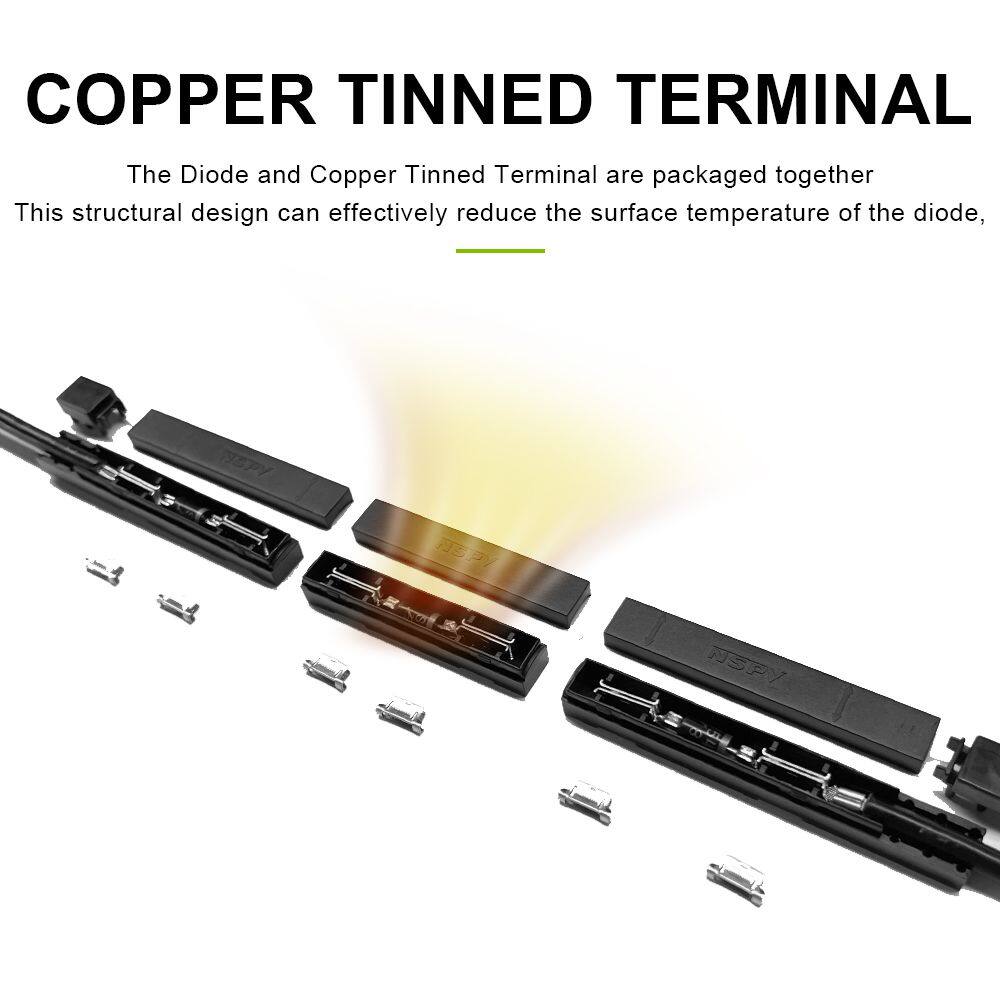

• Optimized Heat Dissipation: Unique airflow channels and heat-resistant materials prevent overheating, boosting efficiency and lifespan.

• Easy Installation: Pre-assembled connectors and tool-free clamps reduce installation time by 30%, lowering labor costs.

4. Special Mini Connector with Patent

The integrated mini connector revolutionizes BIPV wiring with its patented technology:

• Space-Saving Design: 40% smaller than standard connectors, ideal for confined spaces in integrated solar setups.

• High Conductivity: Gold-plated terminals minimize energy loss (<0.2%), maximizing power output.

• Secure Locking Mechanism: A click-and-lock system ensures vibration-proof, tamper-resistant connections, critical for rooftop or high-wind installations.

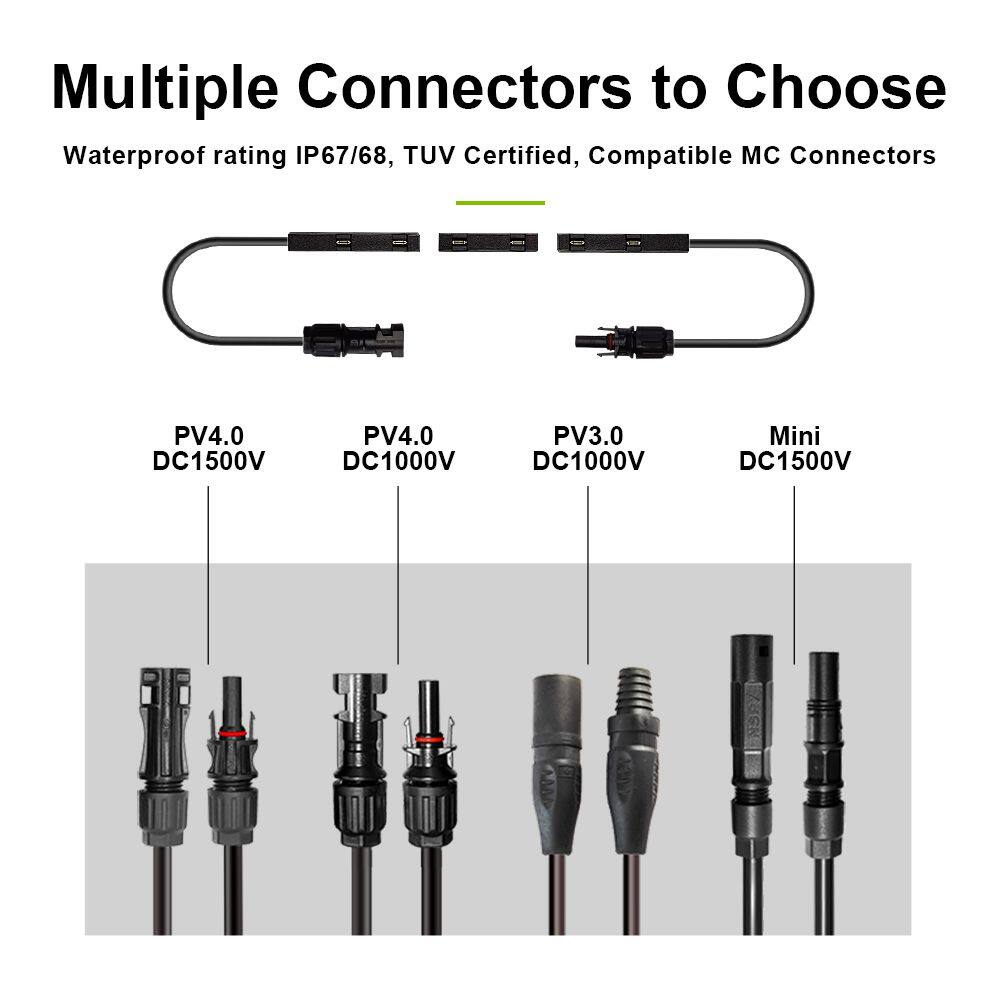

• Universal Compatibility: Compatible with MC4 and other industry-standard connectors, offering flexibility across solar projects.

5. Applications & Quality Assurance

This junction box is ideal for residential, commercial, and industrial BIPV systems, including solar glass, curtain walls, and rooftop tiles. Each unit undergoes rigorous testing (IEC 62790, IEC 62852) to guarantee performance and safety.

Why Choose NSPV BIPV Junction Box?

• Unmatched Safety: Flame-resistant PPE + IP68 protection.

• Future-Proof Design: Patented innovations for efficiency and aesthetics.

• Trusted Durability: Built to last 25+ years in harsh conditions.

Elevate your BIPV projects with the NSPV junction box—where advanced engineering meets sustainable design. Perfect for wholesalers seeking high-margin, premium solar components. Contact us for bulk pricing and OEM/ODM support!
