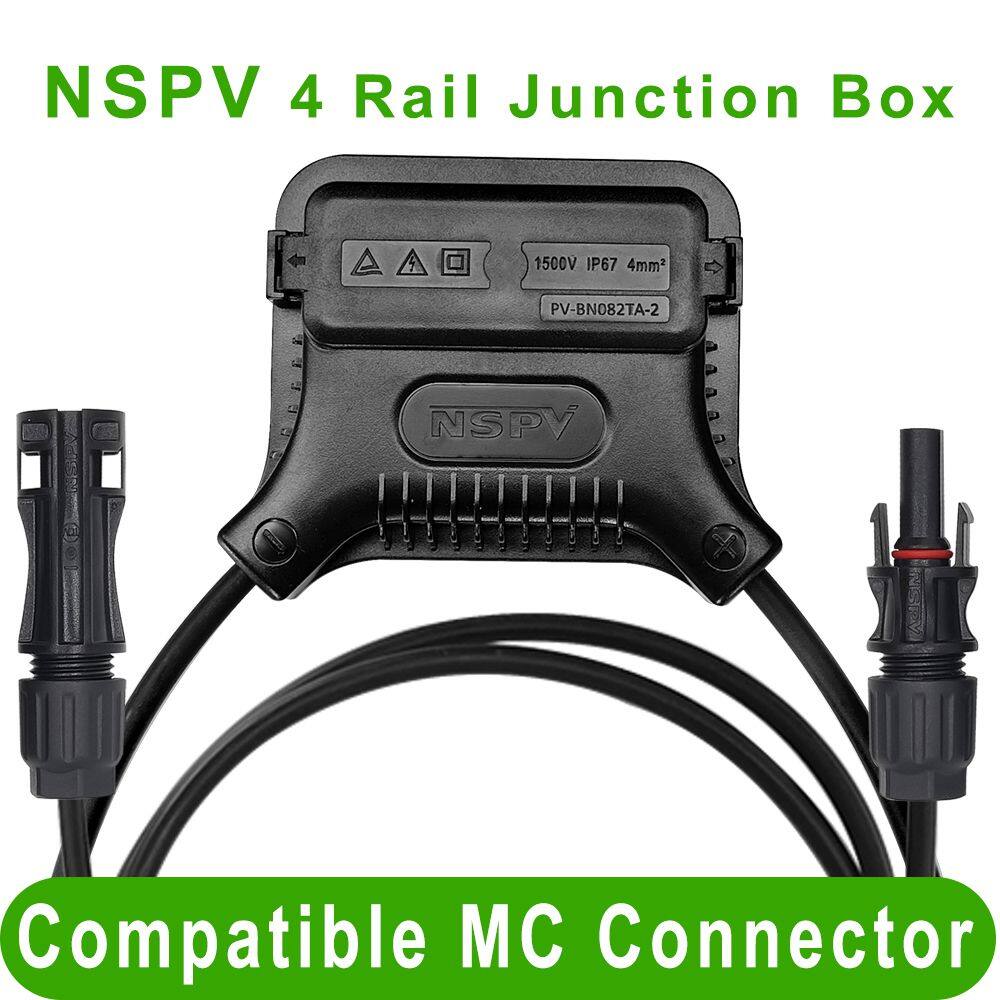

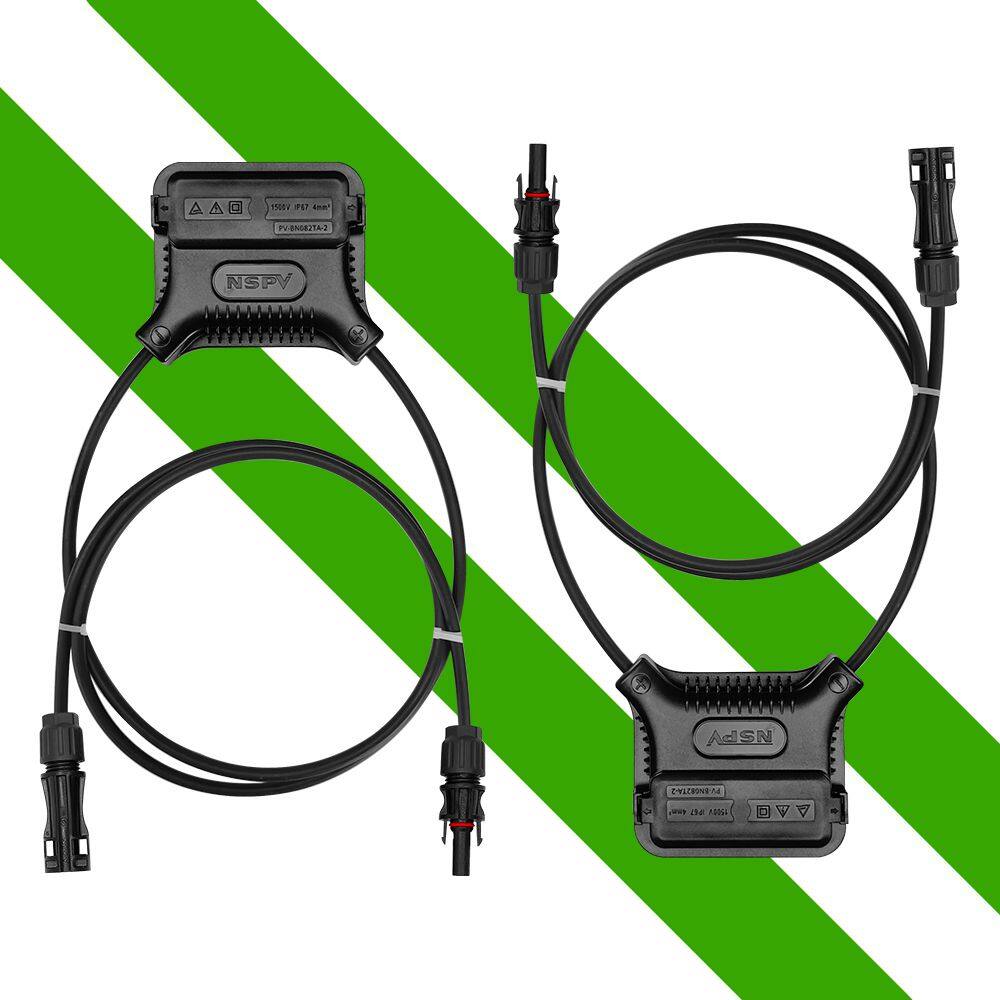

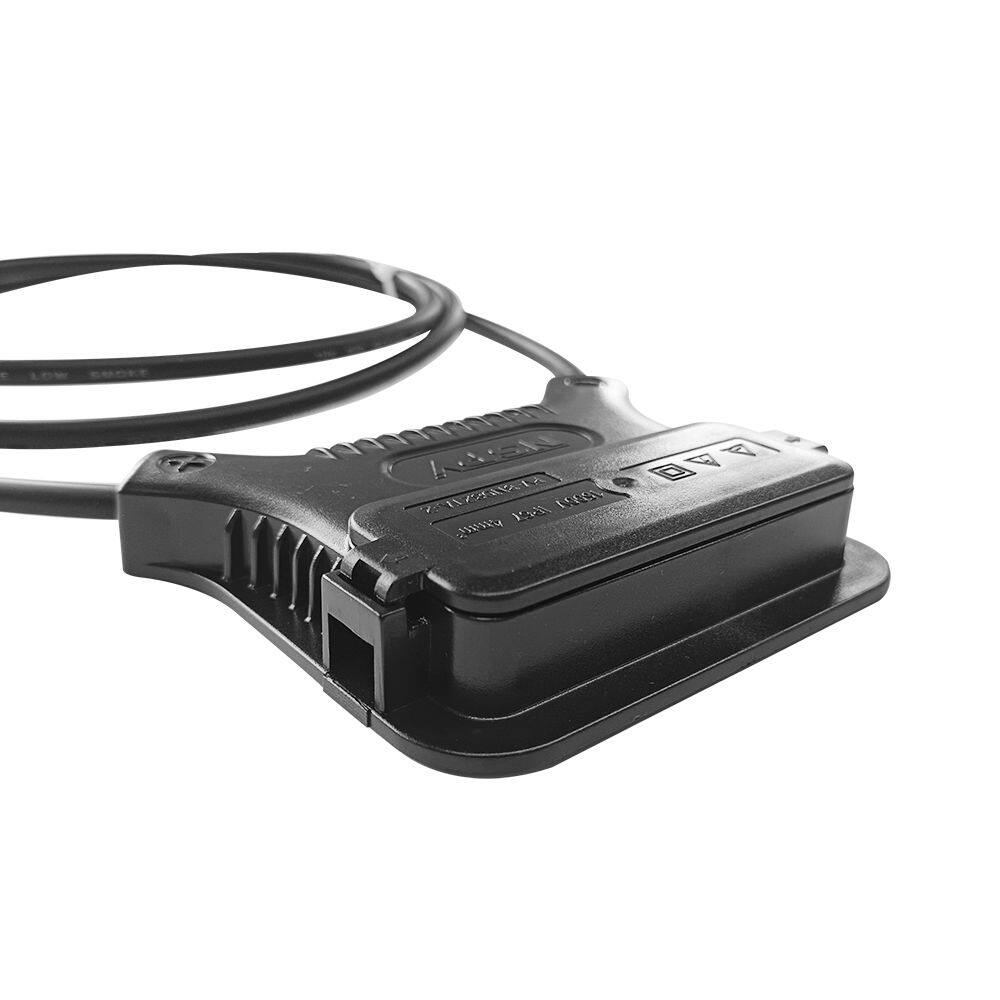

NSPV Solar PV Panel 4-Rail Junction Box
The NSPV Solar PV Panel 4-Rail Junction Box is a critical component designed to enhance the efficiency, safety, and reliability of photovoltaic (PV) systems. This junction box serves as a centralized hub for electrical connections in solar panels, integrating advanced features tailored for modern solar installations. Below is a detailed breakdown of its design, functionality, and applications.
1. Key Features

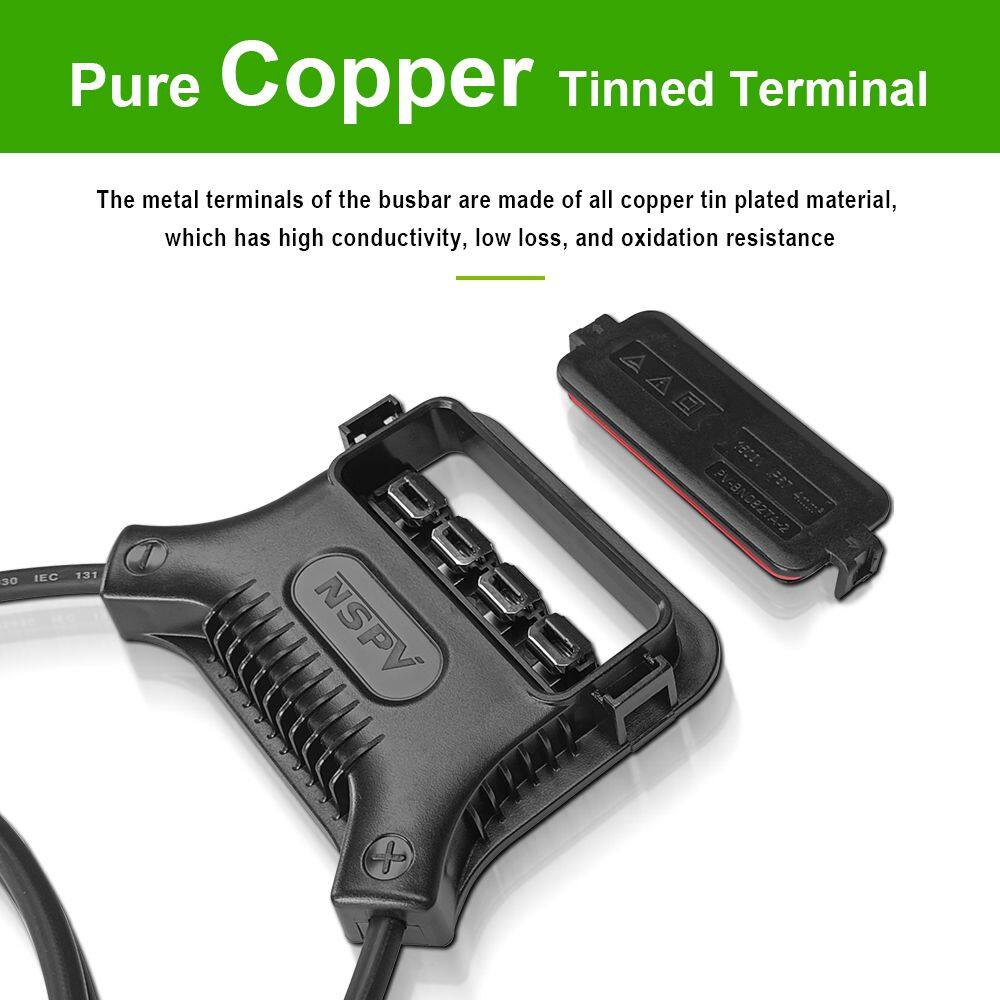

4-Rail Design: The junction box incorporates four independent conductive rails, enabling parallel connections for up to four PV cell strings. This design optimizes current distribution, minimizes power loss, and simplifies wiring in high-capacity solar arrays.
Bypass Diode Integration: Equipped with high-quality bypass diodes (typically rated for 15–20A), it prevents reverse current flow during shading or panel failure, mitigating "hot spot" damage and ensuring system continuity.

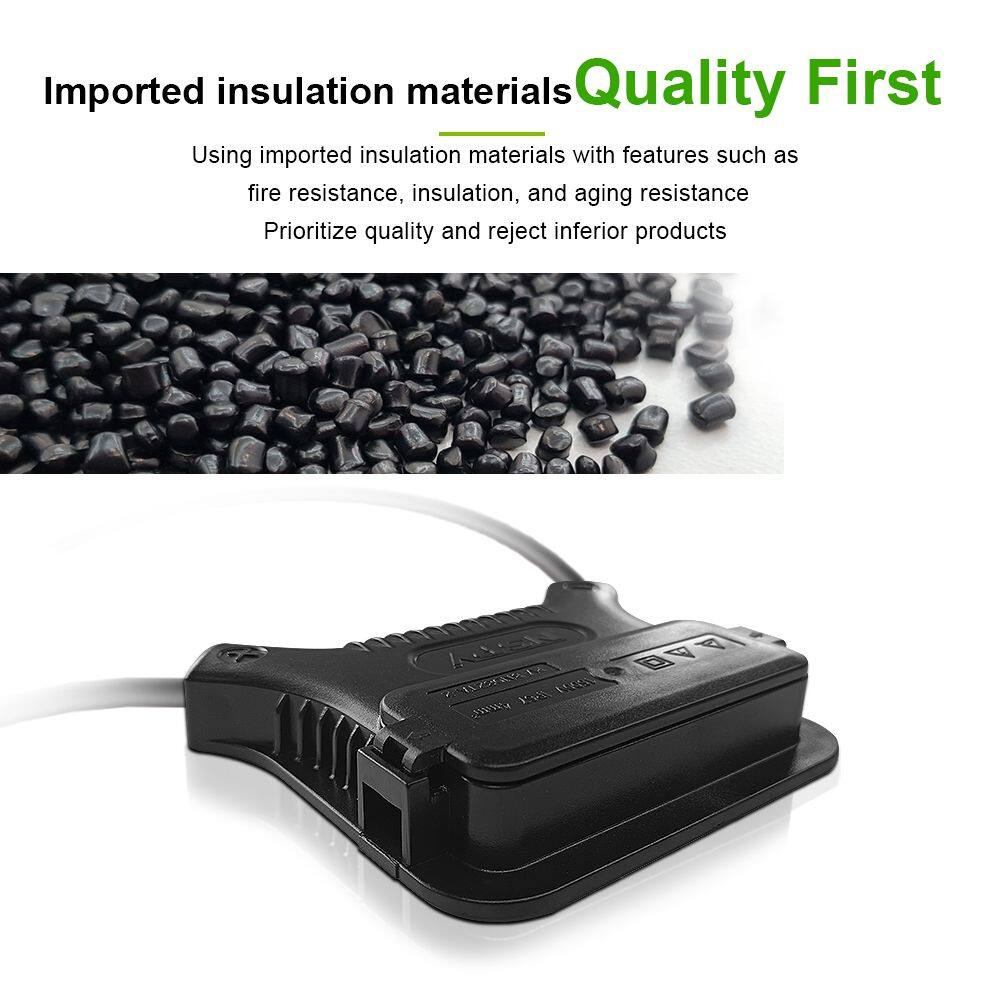

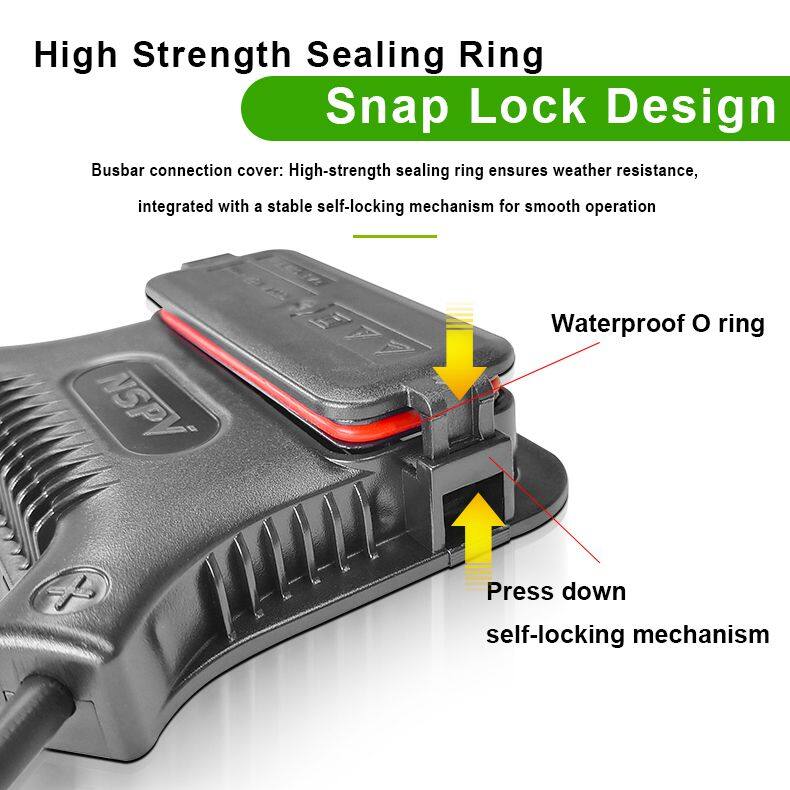

Robust Housing: Constructed from weather-resistant materials (e.g., polyamide or PPO), the enclosure offers IP67/IP68 protection against dust, moisture, and UV radiation, suitable for harsh outdoor environments.
Thermal Management: Advanced heat dissipation channels and flame-retardant materials ensure stable operation under temperatures ranging from -40°C to 85°C.
Quick-Connect Terminals: Pre-installed MC4 or MC4-compatible connectors allow tool-free, secure cable connections, reducing installation time.
2. Technical Specifications
Rated Voltage: 1000–1500V DC (compatible with most grid-tied and off-grid systems).
Max Current Capacity: 20–30A per rail, depending on model.
Diode Specifications: Schottky or PN-junction diodes with low forward voltage drop (≤0.55V) to minimize energy loss.
Certifications: Complies with IEC 62790 (junction box standards), IEC 61215 (panel reliability), and UL 3730 (safety).
3. Applications
Residential/Commercial Solar Arrays: Ideal for rooftop or ground-mounted systems requiring scalable connections.
BIPV (Building-Integrated PV): Low-profile design integrates seamlessly with architectural solar panels.
High-Voltage Systems: Supports large-scale solar farms by enabling efficient string combining.
4. Advantages Over Conventional Junction Boxes
Scalability: The 4-rail configuration accommodates panels with higher wattage (400W+) and bifacial modules.
Durability: Reinforced seals and corrosion-resistant terminals extend lifespan beyond 25 years.
Ease of Maintenance: Modular diode trays allow quick replacement without disassembling the entire unit.
5. Installation Guidelines
Mounting: Secure the box to the panel’s rear using adhesive or mechanical clamps, ensuring alignment with cell strings.

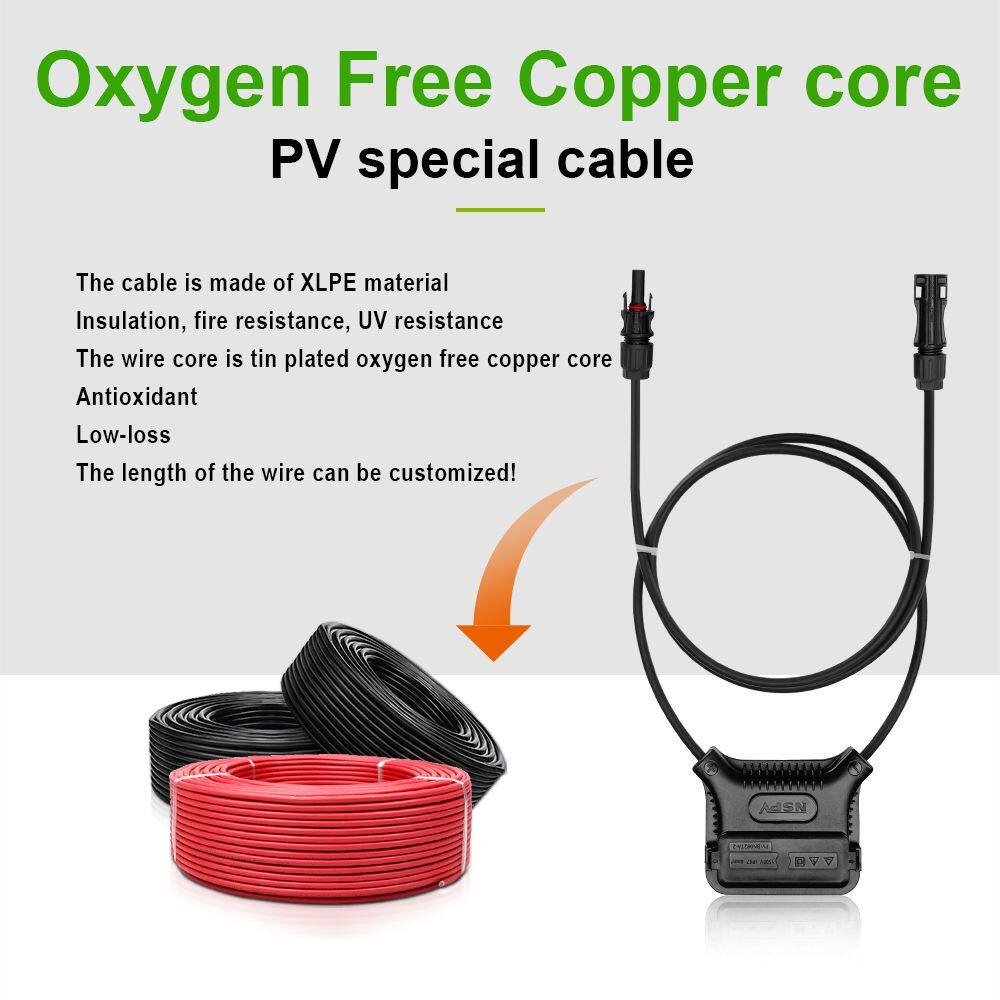

Wiring: Connect cell strings to designated rails, observing polarity. Use UV-resistant cables for external links.
Sealing: Apply silicone gel or gaskets to entry points for waterproofing.
Testing: Verify continuity, insulation resistance (>100MΩ), and diode functionality post-installation.
6. Troubleshooting & Safety
Hot Spots: Check diode functionality if localized overheating occurs.
Open Circuit Failures: Inspect rail connections for looseness or oxidation.
Compliance: Always adhere to local electrical codes and disconnect panels during maintenance.
Conclusion
The NSPV 4-Rail Junction Box combines cutting-edge engineering with user-centric design, addressing the demands of modern solar systems. Its multi-rail architecture, robust build, and compliance with international standards make it a versatile solution for optimizing energy yield and ensuring long-term system reliability. For installers and developers, this component reduces labor costs and enhances operational safety, positioning it as a vital asset in the renewable energy sector.
