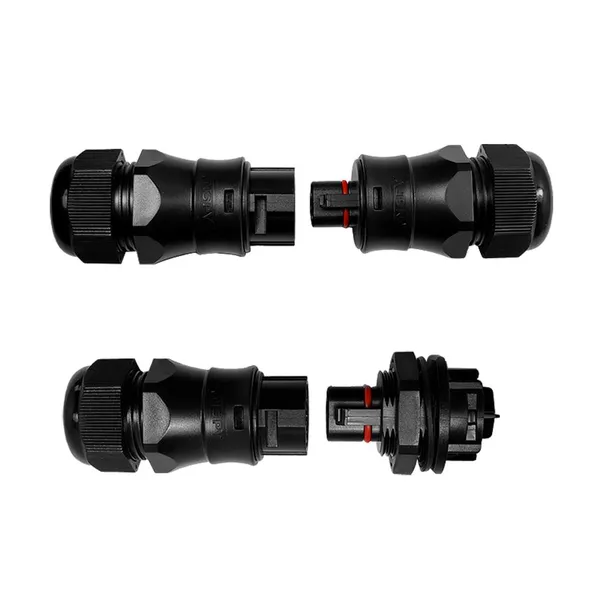

Fire-Resistant, High-Quality 3PCF/3PCM/3PPM NSPV Solar PV Connectors for Hybrid Inverter-Battery Systems and 3P AC Applications
In solar photovoltaic (PV) systems, connectors play a critical role in ensuring safe, efficient, and reliable energy transmission between components such as hybrid inverters, batteries, and AC grids. The 3PCF, 3PCM, and 3PPM NSPV connectors are specialized fire-resistant, high-quality solutions designed for demanding solar applications. Below is a detailed breakdown of their features, applications, and benefits.
1. Fire-Resistant Design
Material Composition: These connectors utilize flame-retardant thermoplastic housing (e.g., UL94 V-0-rated) and high-temperature-resistant metal contacts (e.g., tinned copper or silver-plated alloy). This ensures minimal flammability and prevents fire propagation during electrical faults or overheating.
Certifications: Compliant with international safety standards such as IEC 62852 (for PV connectors) and UL 6703, guaranteeing resistance to ignition and self-extinguishing properties.
Application Safety: Critical for rooftop PV systems, battery storage units, and hybrid inverters where fire risks from arc faults or short circuits must be mitigated.
2. High-Quality Construction
Durability:
Housing: UV-resistant, waterproof (IP67/IP68), and corrosion-proof, ensuring longevity in harsh outdoor environments.
Contacts: Precision-engineered with gold-plated or tin-coated terminals to minimize resistance (
Electrical Performance:
Rated for high current (up to 30A) and voltage (1000V DC/AC), suitable for both DC solar arrays and AC grid connections.
Low power loss (
Mechanical Reliability:
Secure locking mechanisms (e.g., screw-lock or snap-fit) prevent accidental disconnections.
Vibration- and impact-resistant for use in mobile or industrial settings.
3. Model-Specific Features
3PCF (3-Pole Compact Female):
Compact design for space-constrained installations.
Ideal for low-to-medium current DC/AC connections in residential hybrid systems.
3PCM (3-Pole Climate-Resistant Male):
Enhanced weatherproofing for extreme temperatures (-40°C to +120°C).
Suited for battery terminals and outdoor inverters.
3PPM (3-Pole High-Power Male):
Heavy-duty contacts for high-current applications (e.g., commercial PV farms or battery banks).
Compatible with thick cables (up to 10mm²).
NSPV (Non-Standard Photovoltaic Voltage):
Customizable for unique voltage requirements (e.g., 1500V DC systems or off-grid configurations).
4. Applications in Hybrid Inverter-Battery Systems
DC Side: Connect solar panels to hybrid inverters, ensuring efficient energy harvesting.
Battery Integration: Link lithium-ion/lead-acid batteries to inverters with low-resistance, heat-resistant terminals.
AC Side: Facilitate grid-tie or off-grid connections via 3P AC connectors, enabling bidirectional power flow.
Modularity: Interoperable with major brands (e.g., SMA, Victron) for flexible system design.
5. Advantages Over Standard Connectors
Safety: Fire resistance reduces risk in energy-dense environments.
Efficiency: High conductivity minimizes energy loss, boosting system ROI.
Versatility: Compatible with DC/AC, low/high voltage, and diverse climates.
Compliance: Meets IEC, UL, and TÜV standards for global market acceptance.
6. Installation & Maintenance
Tool-Free Assembly: Pre-insulated crimp terminals enable quick, error-proof installation.
Testing: Built-in test points for voltage/current diagnostics.
Lifespan: 25+ years with minimal maintenance, aligned with PV system lifetimes.
Conclusion
The 3PCF, 3PCM, and 3PPM NSPV connectors represent a fusion of safety, durability, and adaptability for modern solar hybrid systems. By prioritizing fire resistance, electrical efficiency, and robust construction, these connectors ensure reliable performance in residential, commercial, and industrial applications, while adhering to stringent global safety norms.
