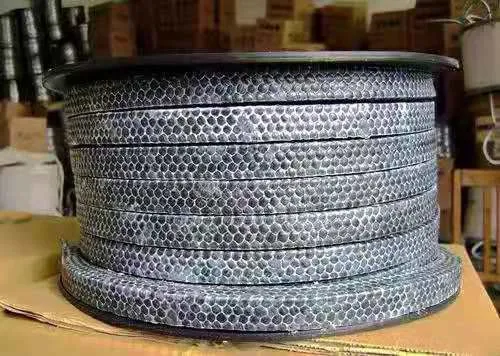

Help CenterCarbon Fiber Packing; PTFE Graphite Carbon Fiber Packing; Water Pump and Valve Wear-resistant High-temperature Sealing Packing Rope
Product Spotlights
Good sealing: Carbon packing has stable sealing performance and can prevent leaks.
Related Products
-
Aramid Packing, High-strength Wear-resistant Slurry Pump Agitator Shaft Seal PackingNegotiableMOQ: 100 Kilograms -
Carbon Ring for Steam Pump; Self-lubricating High-temperature and High-pressure Pump Shaft Integral Molded Sealing Packing RingNegotiableMOQ: 100 Units
-
Aramid Carbon Packing Ring for High-pressure Reactor Plunger Pump; Acid and Alkali Resistant Composite Fiber Molded Packing RingNegotiableMOQ: 100 Units
-
Power Plant Circulation Pump Graphite Packing Ring; High-speed Shaft Heat Dissipation Stainless Steel Reinforced Graphite Packing RingNegotiableMOQ: 100 Units
-
Pure PTFE Oil-free Packing Ring; Food and Pharmaceutical Oil-free Contamination Dry Friction Equipment Corrosion-resistant Molded Sealing Packing RingNegotiableMOQ: 100 Units
I. What is Carbon Packing? Carbon packing, also known as carbon fiber packing or carbon fiber braided packing, is a sealing filler made from-carbon pre-oxidized carbon fiber base yarn using a square braiding process. Most products are impregnated with graphite, PTFE emulsion, or silicone oil to enhance lubrication and anti-corrosion properties. It a universal shaft sealing material for industrial pumps, valves, and reactors, capable of replacing traditional asbestos packing, and is environmentally friendly and dust-free.
II. Main Material ClassificationsOrdinary Graphite Carbon Packing Carbon fiber braided graphite impregnated; features good self-lubrication, fast heat conduction and dissipation, and high cost-performance ratio. Suitable for clean water,, and ordinary steam pumps. Impregnated PTFE Carbon Packing (PTFE Carbon Packing) Surface impregnated with polytetrafluoroethylene emulsion; resistant to strong acids, strong alkalis, solvent corrosion; has a lower friction coefficient and does not damage the pump shaft. Specially designed for chemical engineering and corrosive media. Silicone-Oil-Free Carbon Packing No oil impregnation; will not contaminate oil, food, or heat transfer oil media. Suitable for food equipment, oil pumps, and heat transfer oil furnace seals. Aramid-Blended Packing Carbon fiber blended with aramid fibers; enhanced tensile strength and wear resistance. Specially designed for high-pressure, high-speed, and heavy-duty slurry pumps and agitator tanks
III. Core Product Advantages High-temperature resistance and heat conduction: Carbon fiber has excellent heat conduction performance, quickly dissipating frictional from the shaft to prevent shaft burning and hardening failure; long-term operating temperature range: -50°C to 350°C. High wear resistance without damaging the shaft Graphite/PTFE lubrication layer features a low friction coefficient, ensuring no scratches to pump or agitator shafts during long-term operation, thereby extending shaft service life. Corrosion and media resistance The PTFE-impregnated version can withstand acids, alkalis, sewage, oils, and weak oxidants, making it suitable for various media in chemical, metallurgical, and power plant. High-pressure sealing without leakage: The tight multi-layer braided structure offers good resilience and strong pressure-bearing capacity, ensuring no water or air leakage in steam and highpressure pumps. Environmentally friendly and asbestos-free: Contains no asbestos dust, complies with industrial environmental protection standards, is free of carcinogenic dust, and is safer for workshop use. installation and cuttable: Square braided rope can be cut and wrapped on-site, or processed into pre-formed packing rings, making installation simple.
IV. Applicable Working Conditions and Equipment Applicable Media Fresh water, sewage, steam, heat transfer oil, machine oil, weak acid/alkali solutions, salt solutions, sewage sludge, mildly corrosive chemical fluids Applicable Equipment Centrifugal pumps, sewage pumps, slurry pumps, pipeline valves, steam valves, reactor agitators, agitator shafts, reducers, boiler water pumps, plant circulation pumps, metallurgical transfer pumps.
V. Common Specifications and Dimensions Standard square cross-section sizes: 4mm, 6mm, 8mm, 10mm 12mm, 14mm, 16mm, 18mm, 20mm; Sold in standard rolls, supports custom cutting and processing into pre- packing rings.
