The highly compact, pocket-sized thermal imaging camera designed for both daily home diagnostics and light industrial inspection tasks. Integrated with a high-sensitivity infrared detector and a built-in color LCD screen, it delivers real-time thermal imaging and accurate non-contact temperature measurement without requiring external devices such as smartphones.
Its ultra-portable form factor and straightforward button operation make it an accessible thermal detection tool for end users, while its modular design also makes it an ideal solution for system integration, OEM and ODM projects for global clients.
Key Features
Ultra-Portable Pocket DesignMiniature lightweight body fits easily into pockets and tool bags; supports one-hand operation for on-site inspection, outdoor detection and mobile working scenarios.

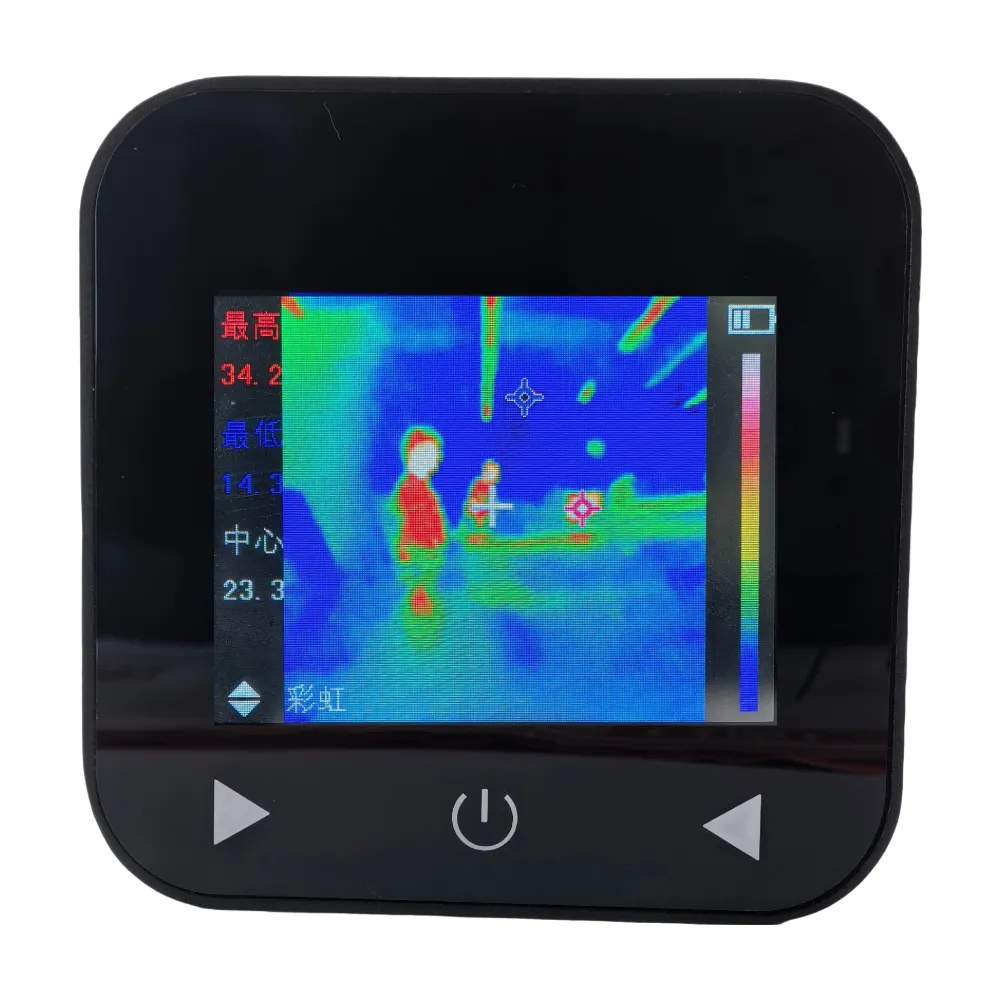

Real-Time Multi-Point Temperature MonitoringAutomatically tracks and displays full-screen maximum temperature, minimum temperature and center-point temperature in real time, helping users quickly locate thermal anomalies and fault points.
Multiple Color Palette ModesSupports rainbow, white hot, black hot and other pseudo-color palettes. Users can switch freely according to different scenarios to improve temperature difference identification and image readability.

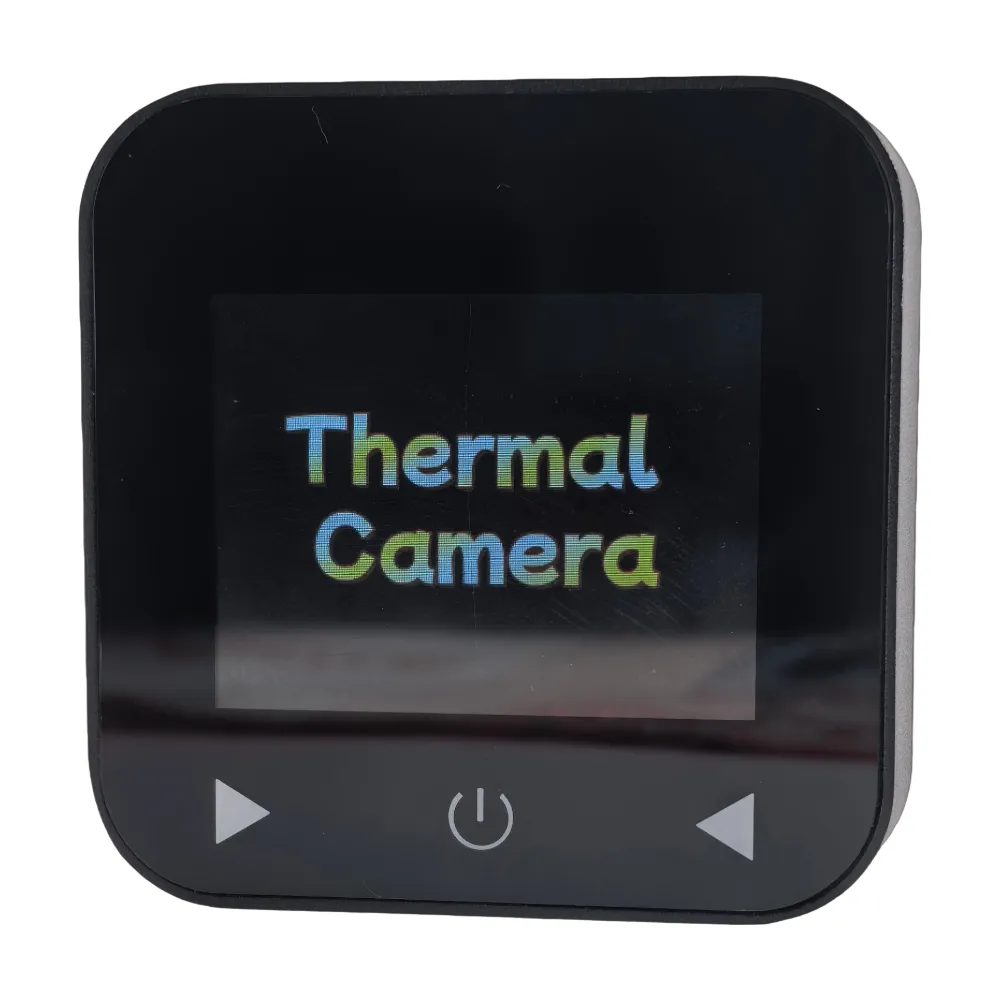

Built-in HD LCD DisplayEquipped with an integrated color LCD screen that presents thermal images and temperature data directly on the device, no smartphone or external display is required for immediate use.
Long-Lasting Rechargeable BatteryBuilt-in rechargeable lithium battery with USB charging port supports hours of continuous operation, suitable for long-time field work and outdoor detection tasks.
Simple & Intuitive OperationPhysical button layout with power, mode switching and navigation keys; zero learning curve for entry-level users, ready to use right out of the box.
Full Customization & OEM/ODM SupportAs a professional imaging module manufacturer, we support full customization including infrared resolution, temperature range, housing structure, interface type and firmware functions to match various industry applications.
Technical Specifications
| Item | Specification |
|---|---|
| Detector Type | Uncooled VOx Microbolometer |
| Thermal Resolution | Customizable (entry-level base resolution) |
| Thermal Sensitivity (NETD) | ≤ 50 mK @ 25℃ |
| Temperature Range | -20℃ ~ +150℃ (higher range expandable upon request) |
| Temperature Accuracy | ±2℃ or ±2% of reading, whichever is greater |
| Display | Built-in color TFT LCD screen |
| Color Palettes | Rainbow, White Hot, Black Hot, etc. |
| Power Supply | Built-in rechargeable Li-ion battery, USB charging |
| Continuous Working Time | ≥ 4 hours |
| Control Mode | Physical key operation |
| Housing Material | Durable ABS engineering plastic |
| Customization | Fully supported (resolution, range, interface, housing, firmware) |
Application Scenarios
Home Use: Floor heating leak detection, wall insulation inspection, home appliance overheat check, door & window air leakage detection, indoor pipeline temperature monitoring
Light Industrial: Electrical panel routine inspection, circuit board thermal testing, HVAC system leak detection, small mechanical equipment temperature monitoring
Other Scenarios: Outdoor night vision assistance, surface temperature screening, plumbing fault location, DIY thermal detection projects
Packaging & Service
Packaging: Standard neutral export packaging; custom branded packaging available for bulk orders
MOQ Policy: Sample orders are accepted for quality and function testing; OEM/ODM MOQ is negotiable based on customization requirements
Custom Service: Full ODM/OEM services covering appearance design, hardware parameter adjustment and function customization
Technical Support: Professional pre-sales consultation and after-sales technical guidance
Warranty: Standard product warranty with reliable after-sales support
We are a professional manufacturer specializing in camera modules and imaging solutions with rich experience in customized development for global clients. Welcome to contact us for detailed specifications and exclusive quotation.
