Product Description
The specialized animal carcass crusher for harmless treatment is a dedicated pre-treatment crushing equipment developed for materials such as diseased and dead livestock and poultry, animal carcasses, and slaughter waste. Specifically designed for the harmless treatment process, it can quickly crush entire animal carcasses, internal organs, bones, skin, and flesh into uniform particles, effectively enhancing the efficiency of subsequent high-temperature processing, drying, fermentation, and other treatments. It ensures thorough sterilization and stable operation, making it a core supporting equipment for livestock farms, slaughterhouses, and harmless treatment centers.
Main Purpose
1. Animal carcass shredding and volume reduction: Efficiently shred the carcasses of dead pigs, cattle, sheep, chickens, ducks, geese, and other livestock and poultry, as well as whole animals, to significantly reduce their volume, facilitating closed transportation, storage, and subsequent processing.
2. The harmless pretreatment ensures that large materials are crushed into uniform small particles, avoiding issues such as material accumulation, uneven heating, incomplete sterilization, and machine jamming in downstream equipment, thereby enhancing the overall processing efficiency.
3. Epidemic prevention and environmental protection: The entire process of closed crushing is conducted in a sealed environment to prevent the spread of blood, odor, and pathogens, meeting the requirements of animal epidemic prevention, biosecurity, and environmental emissions.
4. Improving resource utilization efficiency: After crushing, the material is heated more evenly and dehydrated more thoroughly, facilitating subsequent processing into meat and bone meal, organic fertilizer raw materials, etc., thereby enhancing the efficiency of resource conversion.
Working Principle

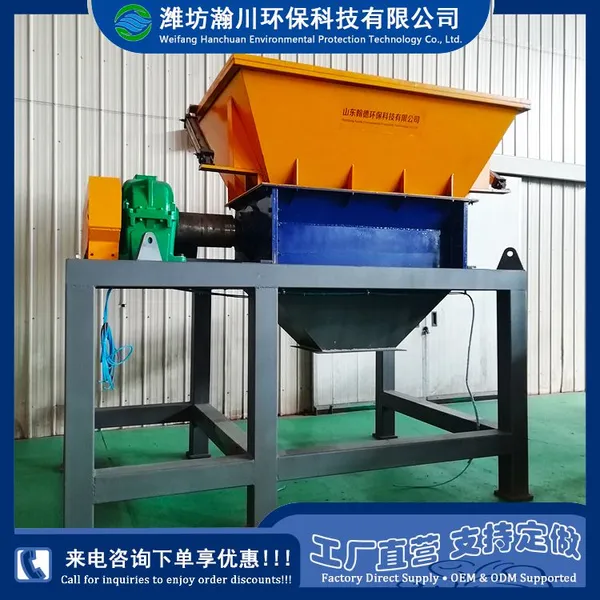

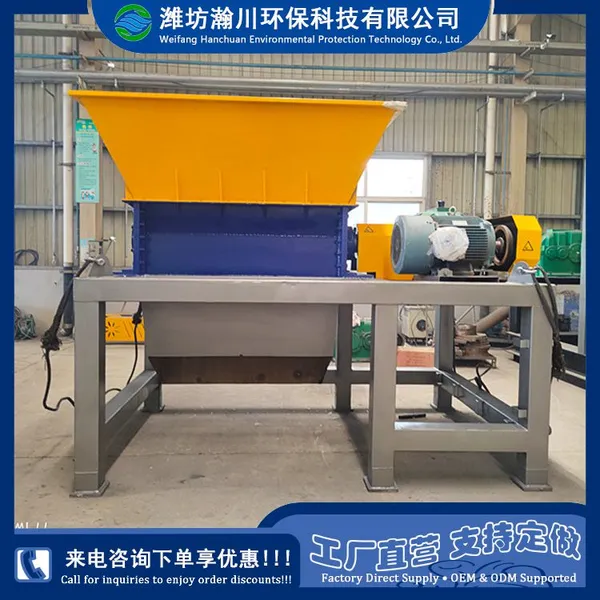

The equipment adopts a powerful shear and extrusion crushing structure, consisting of a motor, a reducer, a crushing blade shaft, a crushing chamber, a frame, etc. During operation, the motor drives the blade shaft to rotate at low speed with high torque. Through the shearing, tearing, extrusion, and biting actions of the blades, animal carcasses, flesh, bones, and internal organs are forcibly pulled into the crushing chamber and quickly crushed into uniform materials that meet the requirements for harmless treatment. The entire machine operates stably, without splashing, tangling, and uniform material discharge, allowing for seamless docking with downstream processing equipment.
Equipment Advantages
1. Dedicated design, strong crushing capability. The structure is optimized for animal carcasses, bones, and flesh, allowing for the direct crushing of entire livestock and poultry without cutting. It features fast processing speed and high efficiency.
2. Low-speed high torque, stable operation. It features low-speed, high torque output, low noise, low vibration, and is less prone to jamming, making it suitable for long-term continuous operation.
3. Fully enclosed structure, with an airtight and sealed body design for epidemic prevention and safety, ensuring no leakage of blood or water, no diffusion of odor, and no splashing of materials, meeting biosafety and harmless treatment standards.
4. The cutting tool is sturdy and durable, with a long lifespan. Made of high-strength wear-resistant alloy material and subjected to special heat treatment, it is resistant to impact and wear, resulting in a long replacement cycle and low maintenance costs.
5. The intelligent overload protection is equipped with an automatic forward and reverse rotation as well as an overload protection system. In the event of encountering hard objects or material jams, it automatically adjusts the direction of rotation, effectively protecting the equipment and motor.
6. High degree of automation, simple operation with one-click start, automatic feeding, automatic crushing, automatic discharging, and can be equipped with a conveyor to achieve fully automated assembly line operation, which can be operated by a single person.
7. Easy to clean and disinfect, the machine features a simple structure with no sanitary dead spaces, making it convenient for washing and disinfection. It meets the hygiene management requirements of breeding, slaughtering, and innoculation sites.
Scope of Application
1. Large-scale livestock and poultry farms handle the carcasses of sick or dead pigs, cattle, sheep, chickens, ducks, geese, and other livestock and poultry.
2. Designated slaughterhouses and meat processing plants handle sick and dead livestock and poultry, diseased carcasses, slaughter waste, etc.
3. Harmless treatment centers at all levels serve as front-end pretreatment equipment for high-temperature and high-pressure humidifiers, dryers, and fermentation equipment.
4. Animal epidemic prevention agencies and animal husbandry and veterinary stations are used for emergency response to outbreaks and centralized disposal of dead animals.
5. Disposal of carcasses of experimental animals and diseased or dead wild animals by zoos and scientific research laboratories.
Specification, Model, and Parameters
| Model | Tank size (mm) | Material | Power (kw) | Processing capacity (kg/h) | Broken diameter (cm) |
HDPSJ-37 |
3100*2100*2700 |
Q345R |
37 |
10-15 |
10-15 |
HDPSJ-45 |
3100*2100*2700 |
Q345R |
45 |
10-15 |
10-15 |
HDPSJ-55 |
3300*2100*3000 |
Q345R |
55 |
10-15 |
10-15 |
