Product Attributes
Brand: Golden Electric
Model: GD-PV2/1
Circuit: 2 Input, 1 Output
Rated DC Voltage: 1000V
Single Branch Current: 32A
Protection Grade: IP65 Waterproof & Dustproof
Housing Material: High-strength ABS Plastic
Internal Components: 2pcs DC MCB + 1set DC SPD Surge Protector
Working Temperature: -25℃ ~ +65℃
Humidity: 0~95% non-condensing
Installation: Wall Mounted
Application: Residential rooftop small solar power station
Product Detail Description

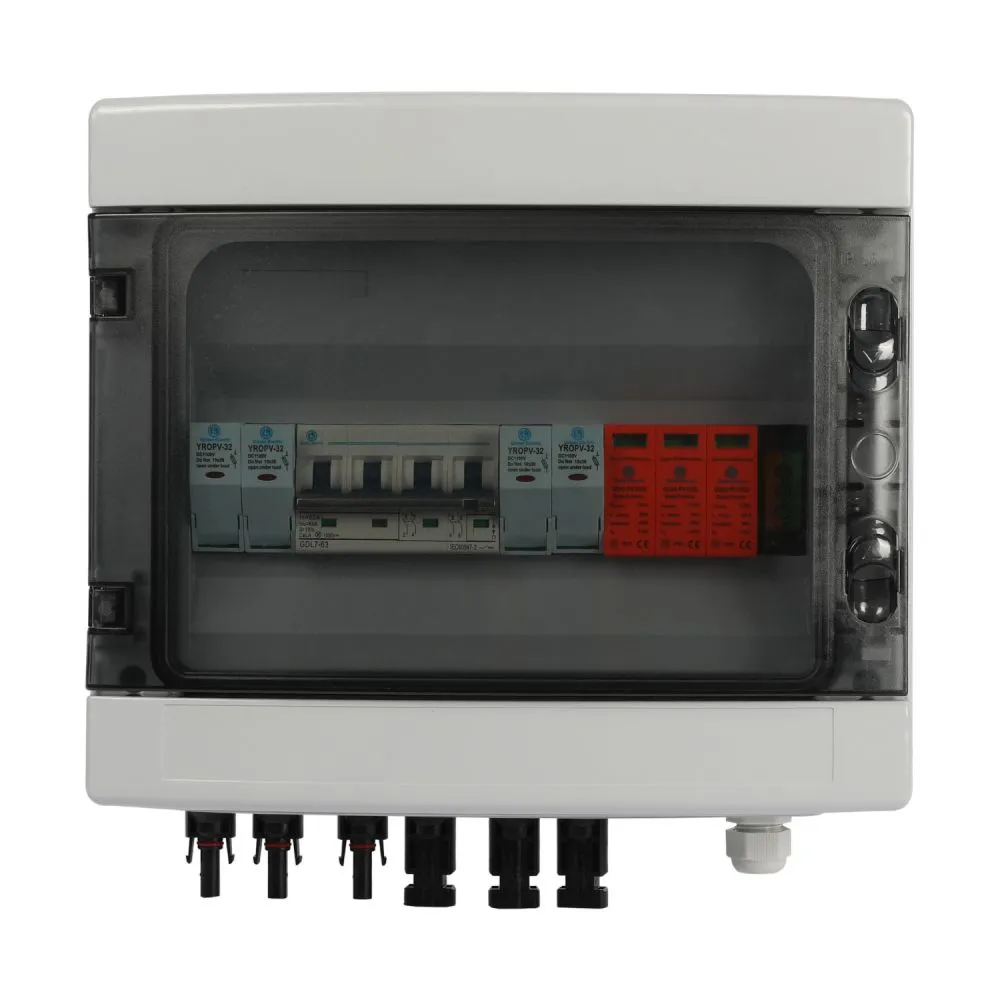

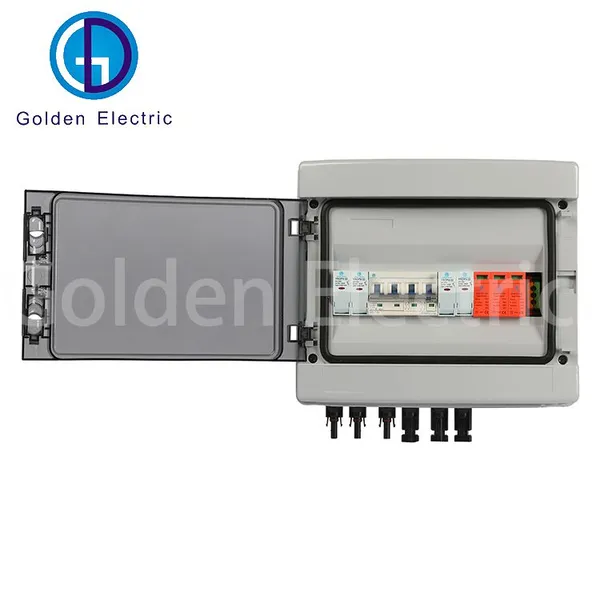

Golden Electric 2 In 1 Out PV Combiner Box
This photovoltaic combiner box converges 2 groups of solar panel strings into one main circuit to connect inverters, an essential safety distribution device for small on-grid & off-grid household solar systems.
Complete Multi-layer Safety Protection
Independent DC miniature circuit breakers are equipped for each PV string to cut off overload and short-circuit current instantly. The built-in DC surge protection device absorbs lightning surge voltage, effectively protecting solar panels and inverters from lightning strike damage. Standard internal wiring optimizes current transmission and reduces heat loss.

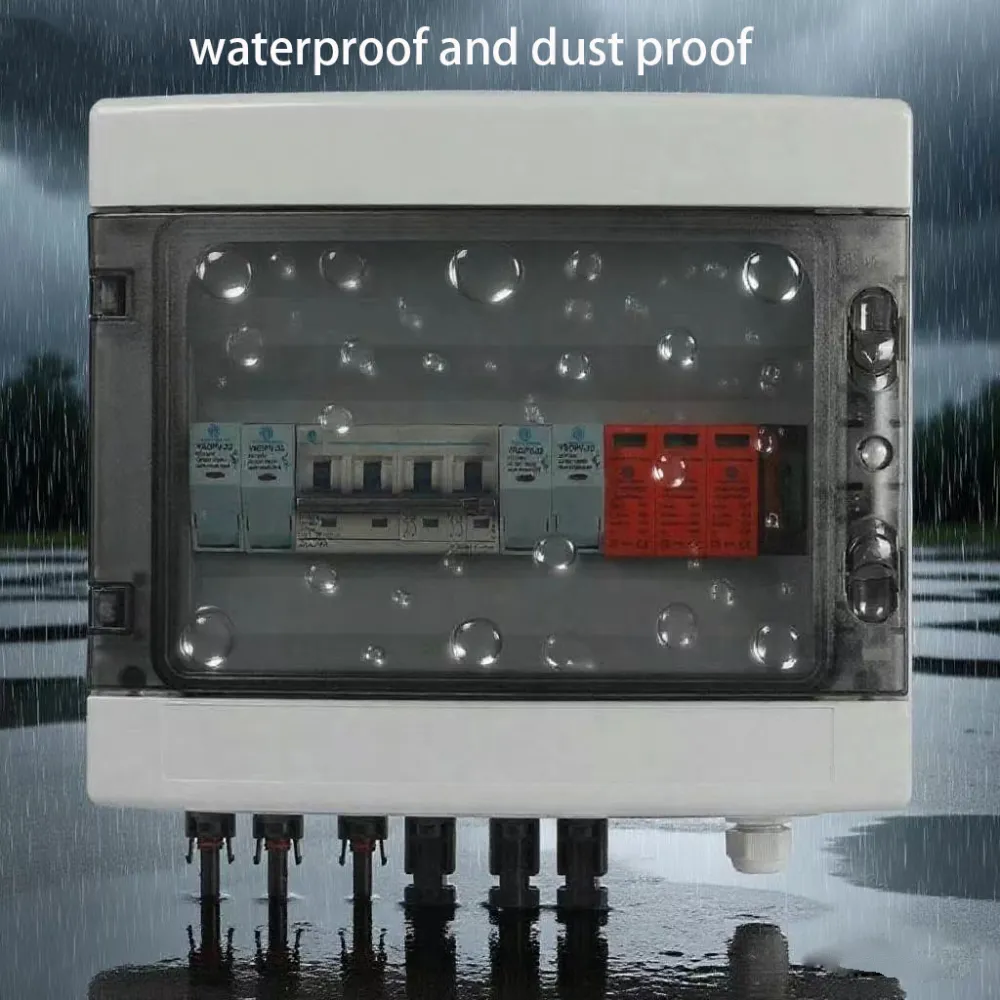

IP65 Durable Outdoor Enclosure

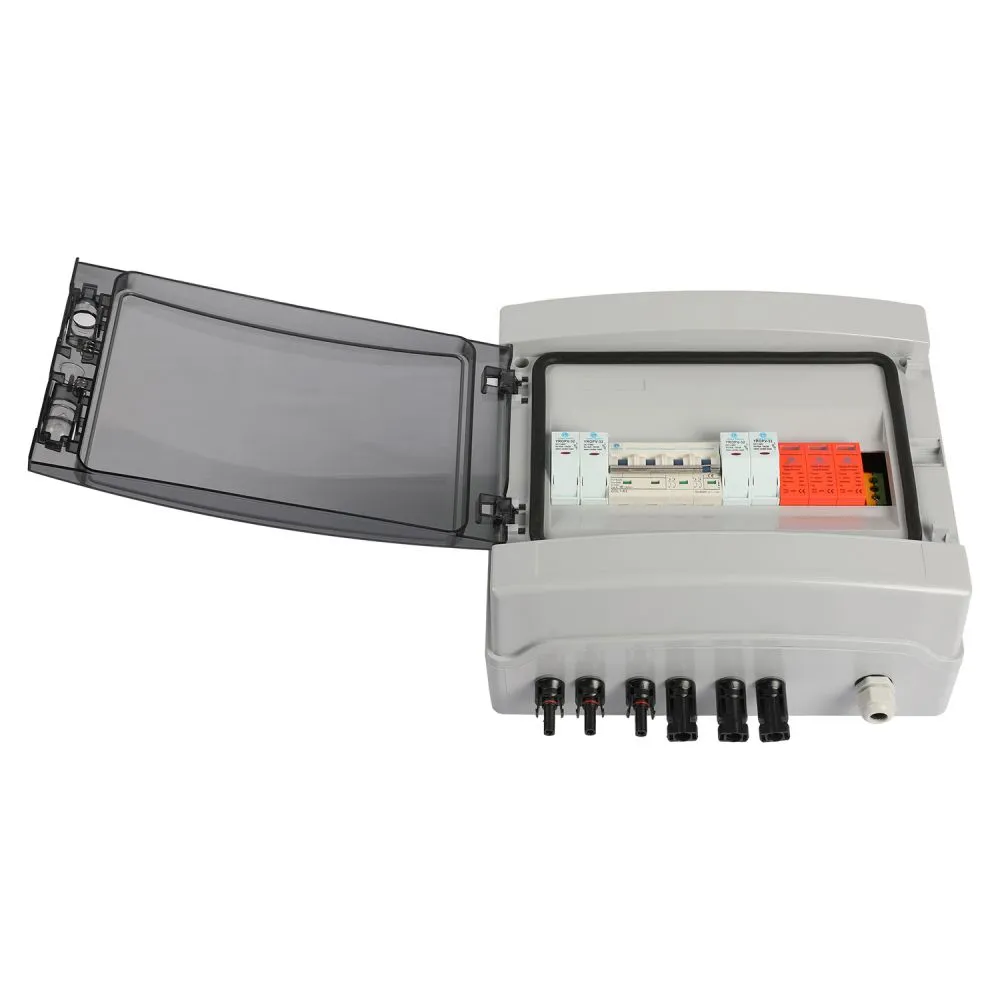

Thickened anti-aging ABS plastic housing with full-circle rubber sealing strip reaches IP65 waterproof and dustproof level. The transparent flip cover allows real-time observation of internal switch status without opening the whole box. Matching lock buckles ensure tight sealing against rain, snow and strong UV radiation, adapting to long-term outdoor harsh climate.
Easy & Fast Installation
All internal wiring is pre-connected before delivery to save field wiring time. Multiple pre-reserved cable glands at the bottom fit solar PV cables perfectly. Wall hanging holes are reserved on the back for simple and firm wall mounting, suitable for rooftop, courtyard and outdoor solar projects.
Wide Application Scenarios
Household rooftop solar power station, small off-grid solar monitoring power supply, mini agricultural solar irrigation power equipment, residential independent photovoltaic power system.
Technical Parameters
Circuit configuration: 2 PV string input, 1 main output
Max DC voltage: 1000V
Rated branch current: 32A
Protection level: IP65
Operating ambient temperature: -25℃ ~ +65℃
Internal fittings: DC MCB ×2, DC SPD ×1
Shell material: Insulated ABS plastic
Packaging & After-sales Service
Each unit wrapped with stretch film, packed in export carton. We provide 12-month warranty, support OEM logo silk printing, customized circuit schemes and professional global technical support.
