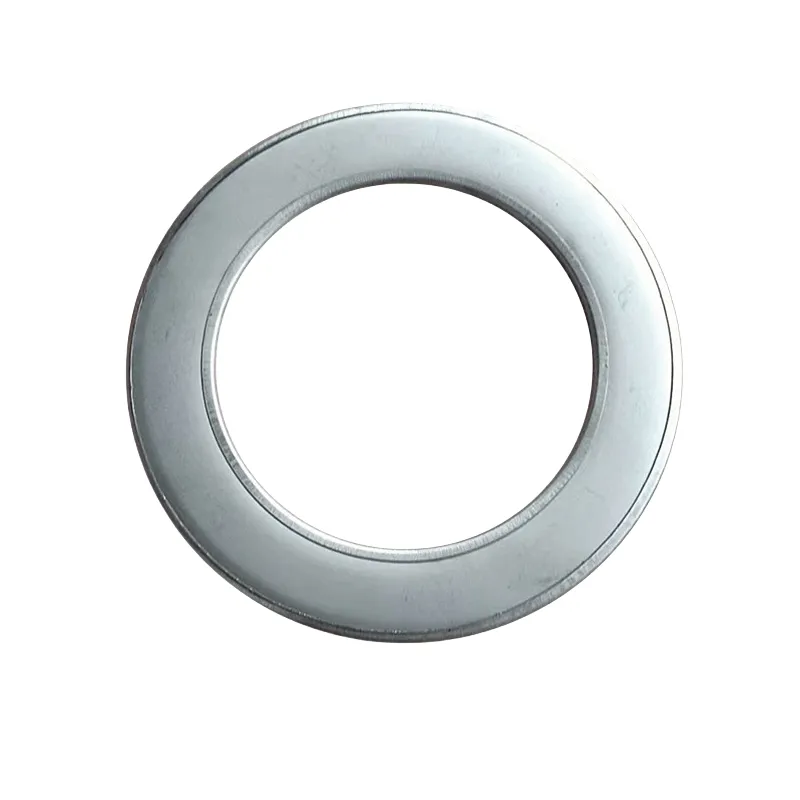

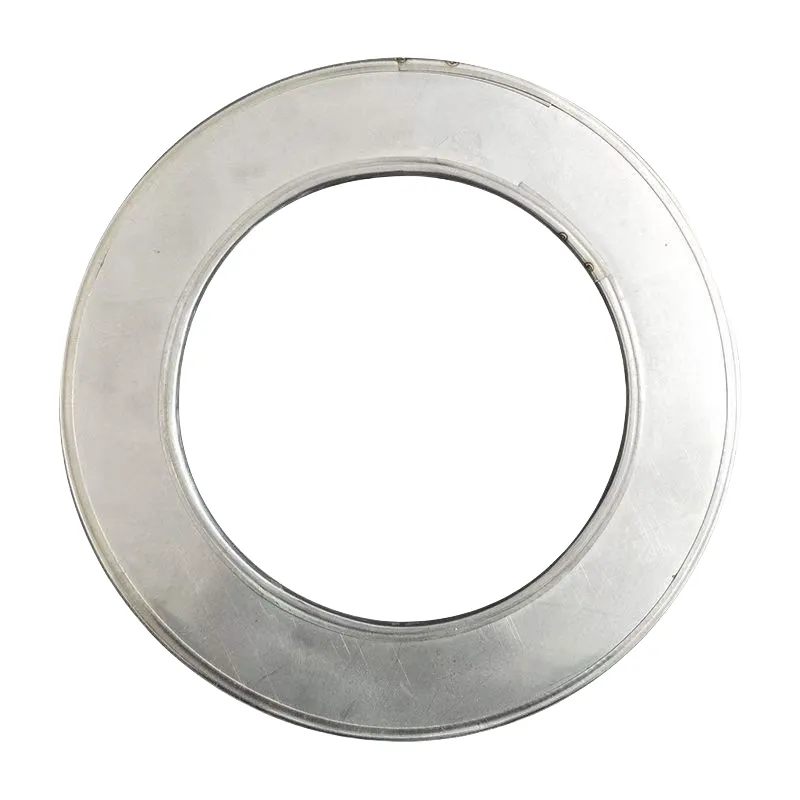

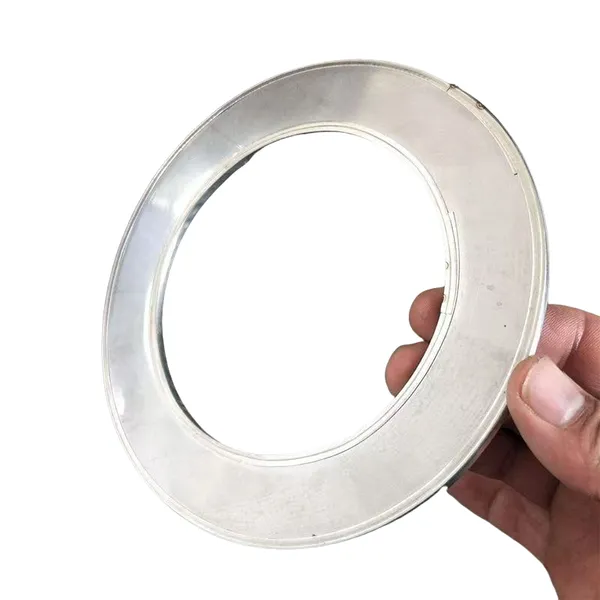

Metal-jacketed gaskets, commonly known as steel-jacketed gaskets or metal-jacketed gaskets, are composite-pressed by stamping and wrapping a high-temperature filler core with a thin metal sheet. The outer metal shell provides support, erosion resistance, and fracture prevention, while the internal flexible filler material provides resilient sealing. They are the mainstream flange sealing for high-temperature and high-pressure operating conditions, complying with the HG/T20609 standard.
Outer metal casing Common materials: 304 stainless steel, 316L stainless steel, 201, copper, aluminum plate tinplate; Function: High strength, erosion resistance, protects the inner core, prevents packing from being washed away by the medium, and extends overall service life. Internal filling (select as needed) Flexible graphite core: High temperature resistance, good thermal conductivity, excellent resilience, preferred for steam boilers and thermal pipelines; Asbestos-free fiber core: Environment friendly and dust-free, suitable for food, ovens, exhaust, and mildly corrosive working conditions; Ceramic fiber core: Ultra-high temperature fireproofing, suitable for furnace chambers high-temperature flues, and heat treatment equipment; PTFE core: Specially designed for strong acid and alkali chemical anti-corrosion pipelines

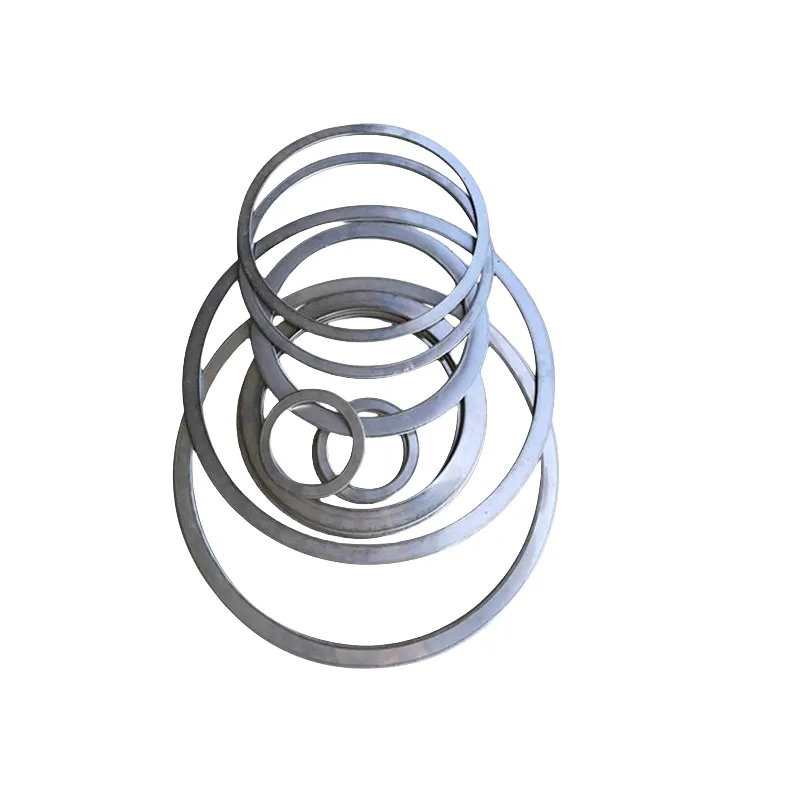

High temperature and high pressure resistant Graphite version long-term operating temperature - 200~650℃, ceramic fiber can reach 800℃, suitable for high-temperature steam, heat transfer oil, high-temperature flue gas, and high-pressure vessels. Good sealing rebound, resistant to leakage material has flexible compression rebound, which can compensate for slight unevenness and gaps in flanges; it will not harden or fail under high temperatures, ensuring long-lasting sealing. Res to damage and media erosion The outer layer is metal-encased, making it less prone to breaking or shedding powder compared to pure graphite gaskets; it prevents the filler from being eroded detached by high-speed fluids, keeping the media clean and dust-free. Corrosion resistant, wide media compatibility 304/316 shells paired with different can adapt to media such as steam, hot water, oil, weak acids and alkalis, flue gas, and heat transfer oil; the 316 version can be used in corrosive chemical environments. Complete specifications and styles, supports custom shapes Standard circular flange gaskets DN15-DN600, also available in square, oval, racetrack, and irregular shapes with positioning holes; non-standard sizes can be cut and punched to order. Easy installation, compatible with universal flanges Suitable for plate flat welding flanges, neck welding flanges heat exchanger tube sheets, valves, pressure vessels, and boiler manholes.
304 Stainless Steel Flexible Graphite (Best Seller) Boilers, thermal steam piping, heat exchangers, thermal oil equipment, power plant piping, high-temperature. 316L Stainless Steel Graphite Chemical industry, salt spray, mild acid and alkali conditions, coastal equipment, high-temperature corrosive piping. 304 Asbestos-free Fiber Food equipment, ovens, exhaust flues, environmental protection equipment, asbestos-prohibited conditions. 304 Ceramic Fiber Heat treatment furnaces high-temperature flues, kilns, incineration equipment, ultra-high temperature fireproof sealing. Copper-clad Gasket Automotive exhaust pipes, internal combustion engines,lers, small high-temperature exhaust interfaces.
