Help CenterMetal Serrated Gasket | Wave Profile Composite Gasket for High Temperature and High Pressure Flange Sealing
Product Spotlights
Related Products
-
Metal-reinforced Graphite Composite Gasket; High-temperature Steam Flange Sealing GasketNegotiableMOQ: 100 Blades -
High Temperature and High Pressure Octagonal Ring Joint Gasket Oval Flange Gasket Carbon Steel 304 316 Stainless SteelNegotiableMOQ: 1 Unit
-
304 Stainless Steel Oval Metal Ring Gasket RJ Flange Oval Gasket High Pressure and High Temperature Resistant Sealing WasherNegotiableMOQ: 10 Units
-
PTFE Gasket, Polytetrafluoroethylene Sealing Gasket, White Teflon Flat Gasket, High Temperature and Acid/alkali Resistant Industrial Flange WasherNegotiableMOQ: 25 Units
-
Flexible Graphite Packing Ring Valve Stem Sealing Ring High Temperature and High Pressure 304 Stainless Steel Reinforced Graphite Self-sealing RingNegotiableMOQ: 50 Units

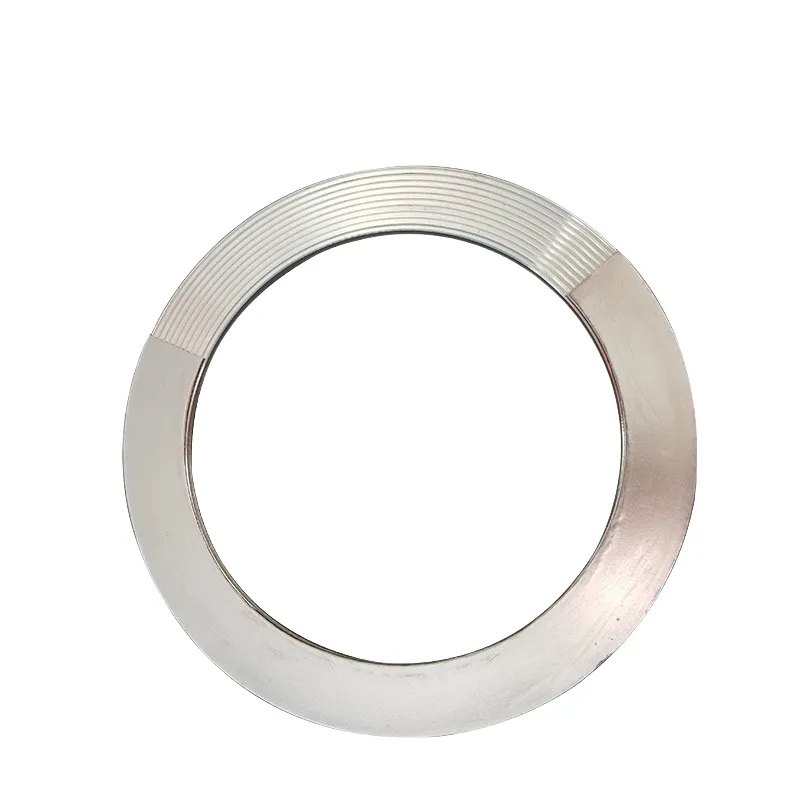

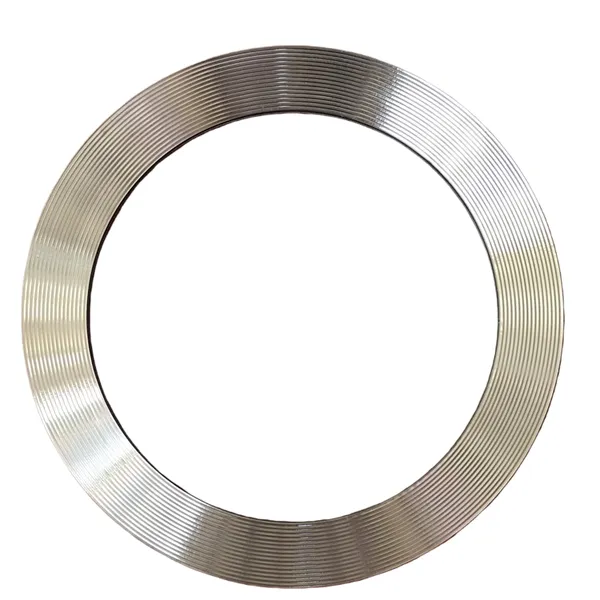

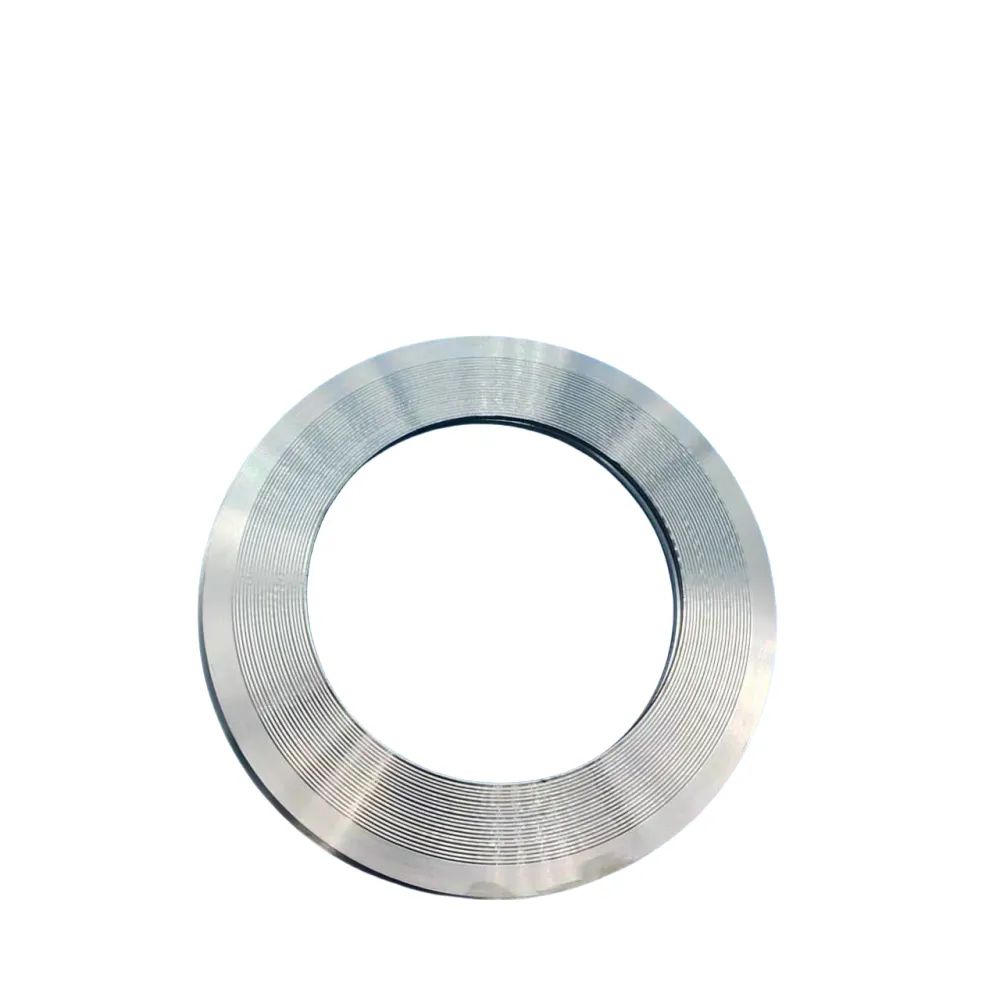

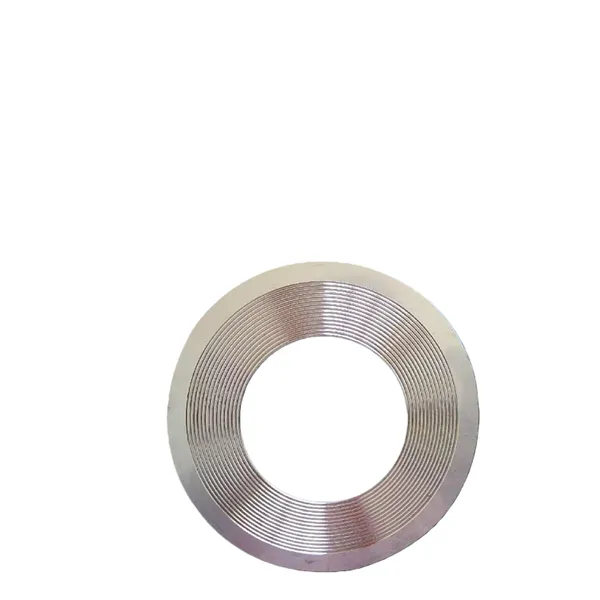

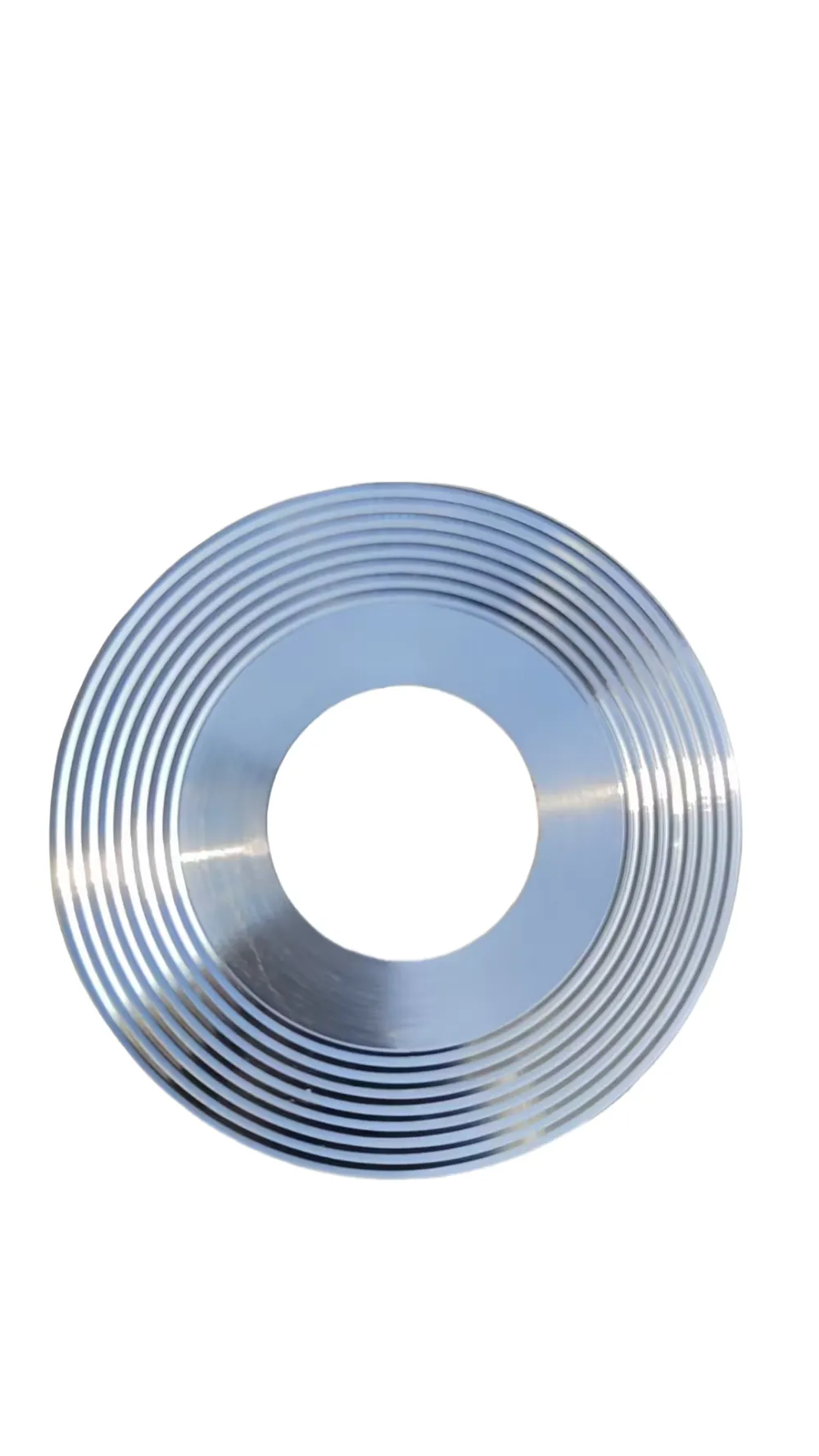

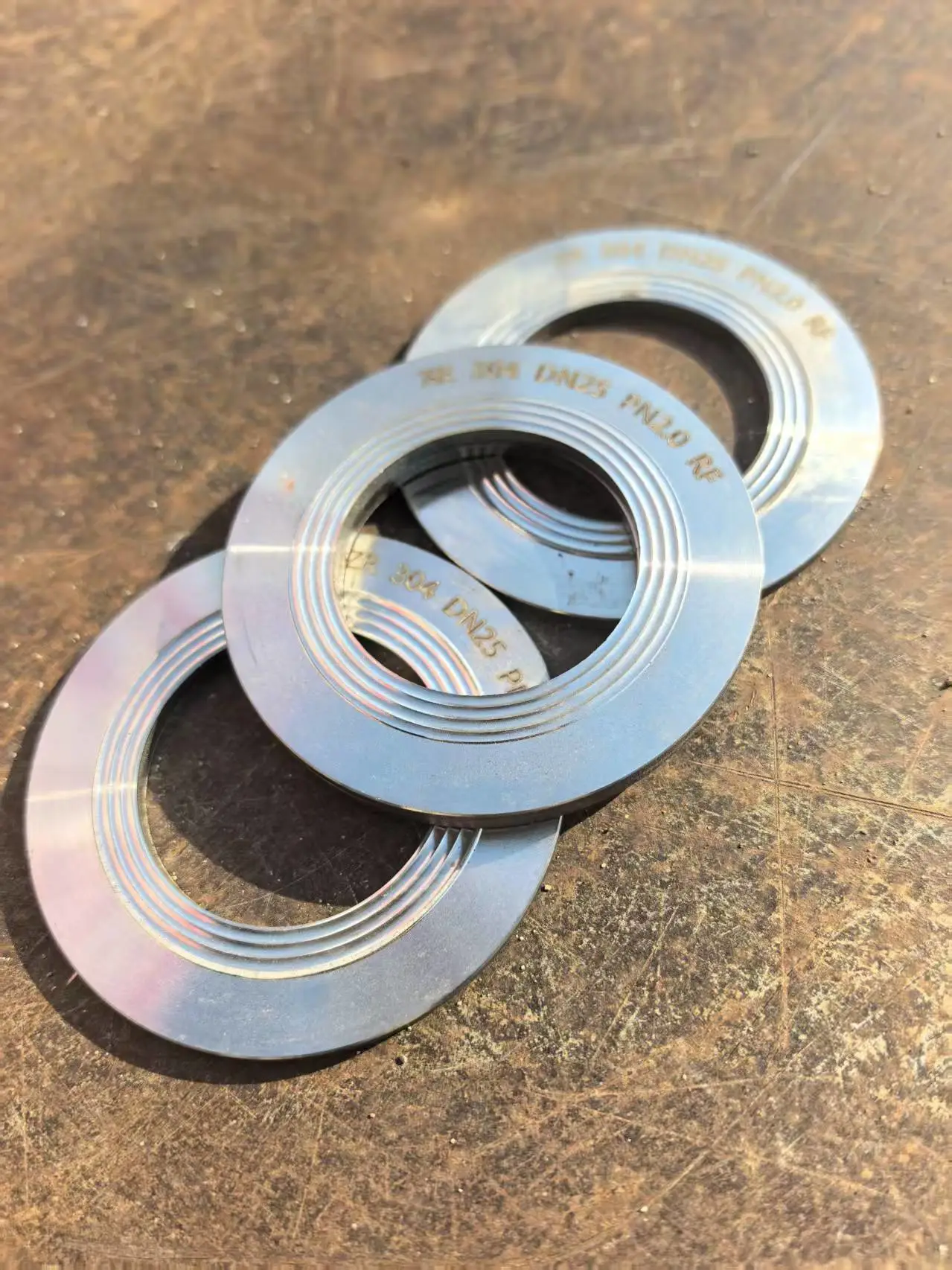

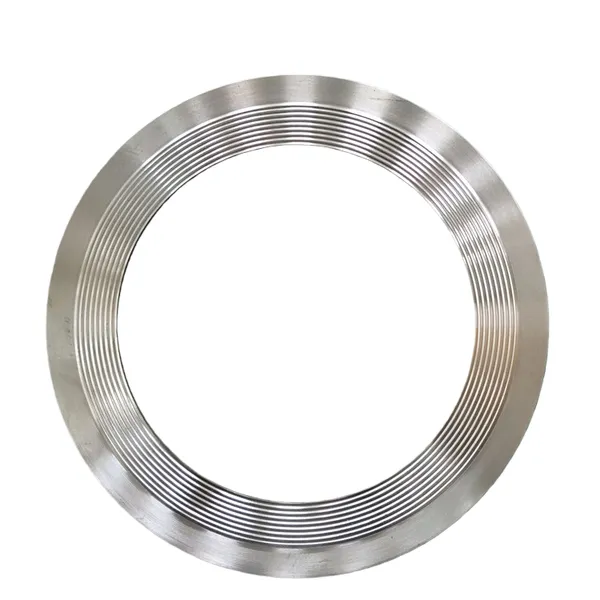

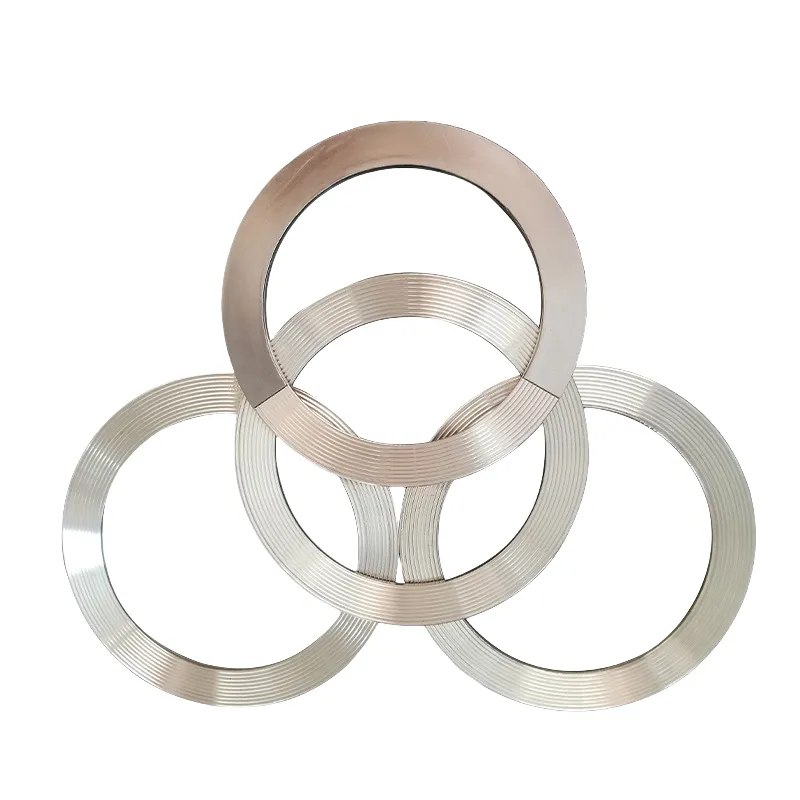

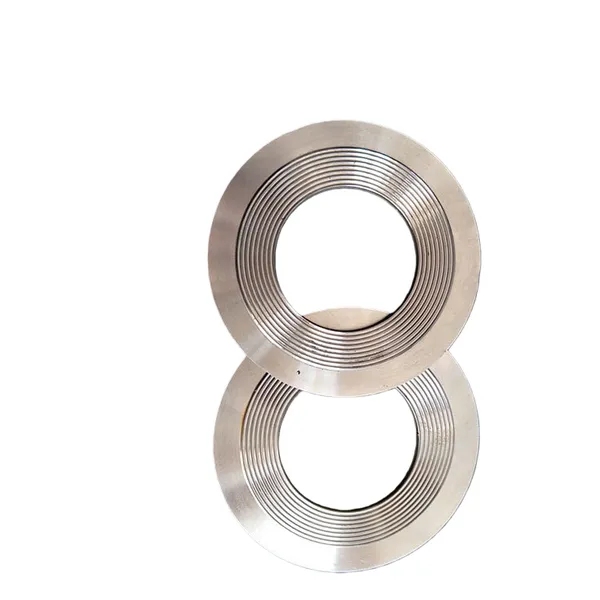

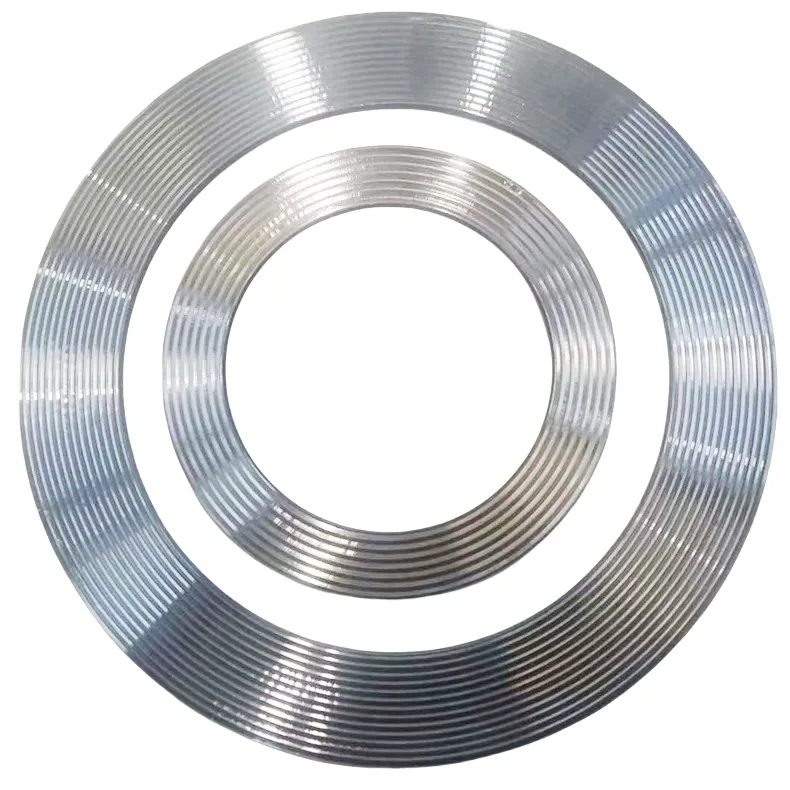

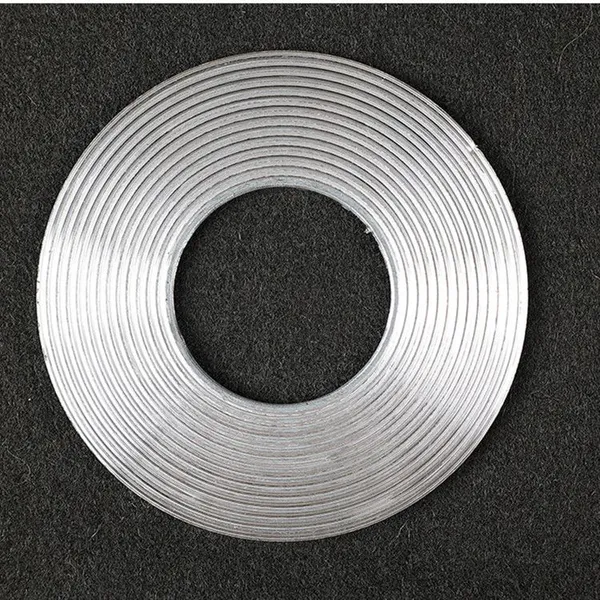

I. Product Introduction Metal serrated gaskets, also known as wave-serrated composite gaskets or Kammprofile gaskets, precision-machined with concentric serrated grooves on a 304/316L stainless steel base material, featuring double-sided composite flexible graphite / PTFE / mica sealing. They are categorized into three types: basic type, integral with outer ring, and split with outer ring. Combining the high strength of the metal skeleton with the excellent sealing properties of soft coating, they are resistant to ultra-high temperatures and pressures, and resist thermal cycling creep. They achieve zero leakage with low pre-tightening force, making them high-end specialized for power plant boilers and petrochemical high-temperature/high-pressure flanges, with performance far exceeding metal-wound gaskets. II. Distinction of Three Mainstream Styles 1.-faced serrated gaskets (Preferred for thermal power plants) Base material 304/316, double-sided flexible graphite; temperature resistance -196550°C, suitable for steam, heat transfer oil, high-temperature flue gas, boilers, and steam turbines; creep-resistant and leak-proof under alternating hot and cold. 2. PTFE-faced serrated gaskets (Specialized for chemical anti-corrosion) Double-sided polytetrafluoroethylene coating, resistant to strong acids and bases organic solvents, and electroplating media; no graphite contamination; specialized for food and pharmaceutical industries, acid-pickling reaction vessels, and corrosive pipelines. 3. Pure metal unfaced serrated gaskets (Dry high-temperature conditions) Full stainless steel serrated structure, no soft coating, maximum resistance to 600°C dry hot flue gas metallurgical blast furnaces, and high-temperature hot air pipelines; wear-resistant and resistant to dust erosion. Structural Classification Type A Basic: No outer ring, suitable for small flanges tongue-and-groove or raised-face; Type LA Integral Outer Ring: Metal core and outer ring are integrated, providing positioning and anti-misalignment, suitable for raised-face flanges; Type SJ Split Outer Ring: Outer ring can be carbon steel to reduce the cost of large gaskets, used in large-diameter pressure vessels. III. Core Product ✅ High temperature and pressure resistance, wide operating condition coverage 304 base material up to 550°C, 321 / titanium alloy up to 50°C, suitable for PN10~PN160 high-pressure pipelines, no leakage under repeated hot and cold start-ups. ✅ Low pre-tightening force, no damage to flanges Multi-layer serrated multi-point line sealing, no need for ultra-large bolt pre-tightening; soft coating buffers, will not scratch the flange surface, making equipment maintenance and disassembly simple. ✅ Creep-resistant and non-relaxing, long-term sealing Rigid support from metal serrations, not easily prone creep relaxation under long-term high-temperature pressure, service life increased by 2-3 times compared to wound gaskets, reducing downtime for maintenance. ✅ Low leakage and environmentally, suitable for harsh conditions Multi-layer concentric serrations block media layer by layer, excellent control of trace leakage of steam, oil, and gas, meeting environmental sealing standards for power, nuclear power, and petrochemical industries. ✅ Multi-media adaptation, choice by model Graphite model for high-temperature steam; PTFE model for strong corrosion; pure metal model dry high-temperature dust and flue gas, covering all industrial high-temperature operating conditions.
