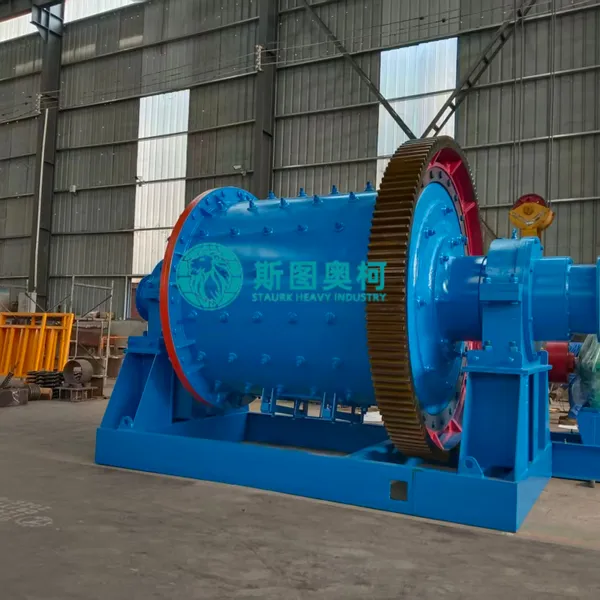

industrial ball mill OEM manufacturer China
1. Product Introduction
An Industrial Ball Mill OEM (Original Equipment Manufacturer) in China provides custom-built, large-scale grinding equipment directly tailored to the specifications of global mining and engineering brands. Operating out of heavy-duty casting and machining facilities, an OEM manufacturer produces complete wet and dry ball milling systems, overflow mills, and grate discharge mills. From casting the giant steel shells to precision-machining the girth gears and fabricating custom wear liners, the entire machine is built to international standards under the buyer's or proprietary brand name.
2. Working Principle
Tailored Blueprint Engineering: Complete freedom of design customization. Engineers can modify dimensions, transmission structures, lining materials, and auxiliary components to match exact ore hardness and existing plant layouts.
Unmatched Cost Efficiency: By leveraging China’s massive domestic steel supply chain, advanced casting infrastructure, and optimized labor, OEMs deliver world-class heavy machinery at a fraction of Western manufacturing costs.
State-of-the-Art Machining: Modern Chinese OEMs use advanced large-scale CNC vertical lathes, automated welding robots, and digital ultrasonic testing to ensure precise gear meshing and flawless structural integrity.
Flexible Brand Integration: Fully equipped to produce machinery under global distributors' brands (White-Label / OEM), meeting strict regional certifications (like CE, ISO, or SGS) and specific international client standards.
Massive Production Capacity: High-scale manufacturing bays allow for shorter lead times, ensuring prompt fabrication and delivery of even the largest industrial-sized mills (e.g., diameters over 5 meters).
3. Industrial Line Advantages
Engineered Intake: Crushed mineral ore is continuously introduced into the horizontal cylinder through a custom-fabricated hollow trunnion at a controlled rate.
Precision Lifting Mechanics: As the OEM-balanced drum rotates, internal liners lift the grinding media (steel or ceramic balls). At a calibrated apex, the balls cascade downward to shatter the incoming ore via heavy impact.
Optimized Pulverization: At the bottom of the shell, the rolling motion of the media continuously grinds the trapped minerals via shearing and attrition (friction).
Controlled Discharge: The pressure from the incoming material stream continuously pushes the finely ground powder or slurry toward the output end, where it exits through an overflow trunnion or discharge grate for downstream classification.
4.Technical Specifications
Model |
Cylinder RPM |
Ball Load |
Feeding Size |
Discharging Size |
Capacity (t/h) |
Motor Model |
Power (kW) |
Weight (t) |
MQG600*1800 |
45.5 |
0.5 |
≤10 |
0.074-0.5 |
0.2-0.5 |
Y160M-6 |
7.5 |
2.5 |
MQG900*1800 |
38 |
1.8 |
≤20 |
0.074-0.6 |
0.8-2 |
Y180L-6 |
15 |
5.8 |
MQG900*3000 |
37.4 |
2.7 |
≤20 |
0.074-0.3 |
0.8-3 |
Y200L2-6 |
22 |
7.5 |
MQG1200*2400 |
32 |
4.8 |
≤25 |
0.074-0.6 |
1.5-4 |
Y225M-6 |
30 |
9.8 |
MQG1200*4500 |
30 |
5.2 |
≤25 |
0.074-0.6 |
1.5-6 |
Y280S-6 |
45 |
13.2 |
MQG1300*4000 |
36 |
5.8 |
≤25 |
0.074-0.6 |
2-6 |
Y280S-8 |
45 |
14.8 |
MQG1500*3500 |
28.8 |
8.3 |
≤25 |
0.074-0.6 |
3-6 |
YR280M-8 |
90 |
17.6 |
MQG1500*4500 |
28.8 |
10 |
≤25 |
0.074-0.4 |
4-8 |
JR125-8 |
95 |
22.3 |
MQG1500*5700 |
28.8 |
12 |
≤25 |
0.074-0.4 |
5-10 |
JR126-8 |
110 |
26.7 |
MQG1500*6400 |
28.8 |
13 |
≤25 |
0.074-0.4 |
8-12 |
JR127-8 |
130 |
29.2 |
MQG1830*3600 |
24.5 |
12 |
≤25 |
0.074-0.4 |
5-10 |
JR127-8 |
130 |
31.4 |
MQG1830*5400 |
24.5 |
15 |
≤25 |
0.074-0.4 |
5-20 |
JR137-8 |
210 |
33.6 |
MQG1830*6400 |
24.5 |
19 |
≤25 |
0.074-0.4 |
6-25 |
JR137-8 |
210 |
36.5 |
MQG1830*7000 |
24.5 |
20 |
≤25 |
0.074-0.4 |
8-30 |
JR138-8 |
245 |
39.6 |
MQG2100*3600 |
24.1 |
21 |
≤25 |
0.074-0.6 |
8-20 |
YR355L1-8 |
210 |
43.2 |
MQG2100*4500 |
24.57 |
26 |
≤25 |
0.074-0.6 |
8-35 |
JR138-8 |
280 |
53.6 |
MQG2200*3600 |
21.8 |
22 |
≤25 |
0.074-0.6 |
9-25 |
JR138-8 |
245 |
47.8 |
MQG2200*4500 |
21.4 |
27 |
≤25 |
0.074-0.6 |
10-30 |
JR138-8 |
280 |
54.7 |
MQG2200*7500 |
21.8 |
35 |
≤25 |
0.074-0.6 |
10-40 |
JR158-8 |
380 |
68.4 |
MQG2200*9000 |
21.4 |
36 |
≤25 |
0.074-0.6 |
10-45 |
JR1510-8 |
475 |
76.5 |
MQG2400*3600 |
21.26 |
26 |
≤25 |
0.074-0.6 |
10-40 |
JR138-8 |
280 |
63.8 |
MQG2400*7000 |
21.8 |
36 |
≤25 |
0.074-0.6 |
10-45 |
JR1510-8 |
475 |
82.4 |
MQG2400*8000 |
21.8 |
42 |
≤25 |
0.074-0.6 |
13-50 |
JR630-8 |
560 |
85.7 |
MQG2400*10000 |
21 |
65 |
≤25 |
0.074-0.6 |
15-60 |
YR560-8 |
710 |
88.6 |
MQG2600*8000 |
19.6 |
52 |
≤25 |
0.074-0.6 |
16-70 |
JR1512-8 |
630 |
97.8 |
MQG2700*3600 |
21.4 |
39 |
≤25 |
0.074-0.4 |
13-75 |
JR158-8 |
380 |
86.8 |
MQG2700*4500 |
21.4 |
43 |
≤25 |
0.074-0.4 |
13-90 |
JR1510-8 |
475 |
91.8 |
MQG3000*5400 |
19 |
58 |
≤25 |
0.074-0.6 |
TDMK-30 |
630 |
119.7 |
|
MQG3000*9000 |
18.3 |
78 |
≤25 |
0.074-0.4 |
20-90 |
MQG3000*9000 |
18.3 |
78 |
MQG3000*11000 |
18 |
100 |
≤25 |
0.074-0.6 |
30-90 |
MQG3000*11000 |
18 |
100 |
MQG3200*3600 |
18.6 |
56.5 |
≤25 |
0.074-0.6 |
20-80 |
MQG3200*3600 |
18.6 |
56.5 |
MQG3200*4500 |
18.6 |
65 |
≤25 |
0.074-0.6 |
20-90 |
MQG3200*4500 |
18.6 |
65 |
MQG3200*5400 |
18 |
72 |
≤25 |
0.074-0.6 |
30-100 |
MQG3200*5400 |
18 |
72 |
MQG3200*9000 |
18 |
85 |
≤25 |
0.074-0.6 |
30-100 |
MQG3200*9000 |
18 |
85 |
MQG3600*4500 |
18 |
86 |
≤25 |
0.074-0.6 |
30-100 |
MQG3600*4500 |
18 |
86 |
MQG3600*6000 |
18 |
117 |
≤25 |
0.074-0.6 |
45-180 |
MQG3600*6000 |
18 |
117 |
MQG4000*6000 |
16.9 |
145 |
≤25 |
0.074-0.6 |
60-230 |
MQG4000*6000 |
16.9 |
145 |
MQG4500*6000 |
15.6 |
180 |
≤25 |
0.074-0.6 |
80-300 |
MQG4500*6000 |
15.6 |
180 |
