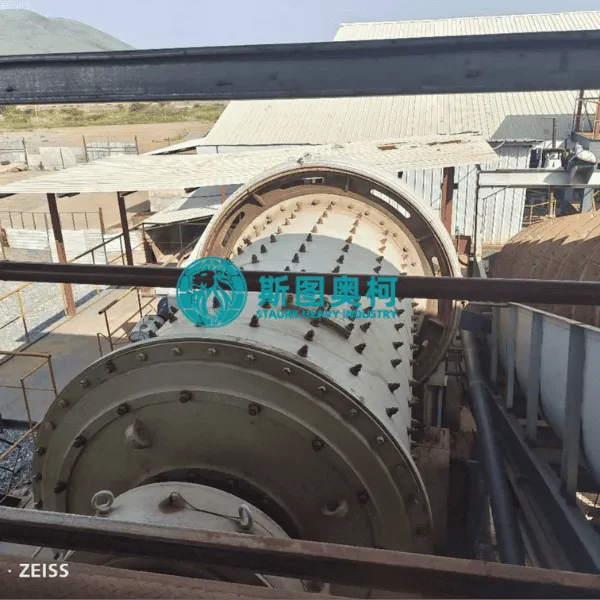

Help CenterBall Mill for Hard Rock Gold Grinding
Product Spotlights
Related Products
-
Gold Mine Grinding Ball Mill SupplieNegotiableMOQ: 1 Set -
Energy Saving Ball Mill Used For Grinding MaterialsNegotiableMOQ: 1 Set
-
Hot Sell In Middle East Cement Mill From Henan Staurk MachineryNegotiableMOQ: 1 Set
-
Raymond Grinding Mill for Marble Limestone Calcite BariteNegotiableMOQ: 1 Set
-
100TPD-2000TPD Rod Mill Mineral Grinding EquipmentNegotiableMOQ: 1 Set
Product Introduction
This ball mill for hard rock gold grinding is a high-wear-resistant heavy-duty grinding equipment specially tailored for high-hardness hard rock gold ore processing scenarios. It adopts an enhanced anti-impact structural design, covering full-series specifications from small test units to large industrial continuous grinding systems. It can efficiently complete the crushing and fine grinding of high-hardness hard rock gold ore, and the ground pulp can be directly connected to subsequent processes such as gravity separation, flotation and cyanidation, which is the core grinding equipment to ensure the recovery rate of hard rock gold mines.
Working Principle
The thickened heavy cylinder is driven by a high-torque transmission system to rotate at a reasonable speed, driving the built-in large-diameter high-chromium alloy wear-resistant steel balls to rise to a sufficient height along the reinforced corrugated liner and then fall in a parabolic trajectory. The hard rock gold ore with high hardness is continuously fed into the cylinder, and is fully crushed and ground by the strong impact force of the falling steel balls and the continuous grinding effect between the media. The ground pulp that meets the fineness requirement is stably discharged through the discharge port, completing the efficient grinding process of hard rock gold ore.
Core Features
This product has multiple targeted advantages for hard rock gold grinding. The enhanced wear-resistant design of the liner and steel balls greatly improves the impact resistance, effectively reducing the wear rate when grinding high-hardness hard rock gold ore. The optimized impact crushing structure significantly improves the grinding efficiency of hard rock ore, and the unit processing capacity is higher than that of ordinary ball mills. The heavy-duty main body can adapt to long-term high-load operation, with low failure rate. The stable grinding fineness can effectively avoid the problem of gold grain dissociation not completely, and maximize the recovery rate of hard rock gold.
Technical Specifications
| Model | Cylinder RPM (r/min) | Ball Load (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Model | Power (kW) | Weight (t) |
| MQG600*1800 | 45.5 | 0.5 | ≤ 10 | 0.074-0.5 | 0.2-0.5 | Y160M-6 | 7.5 | 2.5 |
| MQG900*1800 | 38 | 1.8 | ≤ 20 | 0.074-0.6 | 0.8-2 | Y180L-6 | 15 | 5.8 |
| MQG900*3000 | 37.4 | 2.7 | ≤ 20 | 0.074-0.3 | 0.8-3 | Y200L2-6 | 22 | 7.5 |
| MQG1200*2400 | 32 | 4.8 | ≤ 25 | 0.074-0.6 | 1.5-4 | Y225M-6 | 30 | 9.8 |
| MQG1200*4500 | 30 | 5.2 | ≤ 25 | 0.074-0.6 | 1.5-6 | Y280S-6 | 45 | 13.2 |
| MQG1300*4000 | 36 | 5.8 | ≤ 25 | 0.074-0.6 | 2-6 | Y280S-8 | 45 | 14.8 |
| MQG1500*3500 | 28.8 | 8.3 | ≤ 25 | 0.074-0.6 | 3-6 | YR280M-8 | 90 | 17.6 |
| MQG1500*4500 | 28.8 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | JR125-8 | 95 | 22.3 |
| MQG1500*5700 | 28.8 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR126-8 | 110 | 26.7 |
| MQG1500*6400 | 28.8 | 13 | ≤ 25 | 0.074-0.4 | 8-12 | JR127-8 | 130 | 29.2 |
| MQG1830*3600 | 24.5 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR127-8 | 130 | 31.4 |
| MQG1830*5400 | 24.5 | 15 | ≤ 25 | 0.074-0.4 | 5-20 | JR137-8 | 210 | 33.6 |
| MQG1830*6400 | 24.5 | 19 | ≤ 25 | 0.074-0.4 | 6-25 | JR137-8 | 210 | 36.5 |
| MQG1830*7000 | 24.5 | 20 | ≤ 25 | 0.074-0.4 | 8-30 | JR138-8 | 245 | 39.6 |
| MQG2100*3600 | 24.1 | 21 | ≤ 25 | 0.074-0.6 | 8-20 | YR355L1-8 | 210 | 43.2 |
| MQG2100*4500 | 24.57 | 26 | ≤ 25 | 0.074-0.6 | 8-35 | JR138-8 | 280 | 53.6 |
| MQG2200*3600 | 21.8 | 22 | ≤ 25 | 0.074-0.6 | 9-25 | JR138-8 | 245 | 47.8 |
| MQG2200*4500 | 21.4 | 27 | ≤ 25 | 0.074-0.6 | 10-30 | JR138-8 | 280 | 54.7 |
| MQG2200*7500 | 21.8 | 35 | ≤ 25 | 0.074-0.6 | 10-40 | JR158-8 | 380 | 68.4 |
| MQG2200*9000 | 21.4 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 76.5 |
| MQG2400*3600 | 21.26 | 26 | ≤ 25 | 0.074-0.6 | 10-40 | JR138-8 | 280 | 63.8 |
| MQG2400*7000 | 21.8 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 82.4 |
| MQG2400*8000 | 21.8 | 42 | ≤ 25 | 0.074-0.6 | 13-50 | JR630-8 | 560 | 85.7 |
| MQG2400*10000 | 21 | 65 | ≤ 25 | 0.074-0.6 | 15-60 | YR560-8 | 710 | 88.6 |
| MQG2600*8000 | 19.6 | 52 | ≤ 25 | 0.074-0.6 | 16-70 | JR1512-8 | 630 | 97.8 |
| MQG2700*3600 | 21.4 | 39 | ≤ 25 | 0.074-0.4 | 13-75 | JR158-8 | 380 | 86.8 |
| MQG2700*4500 | 21.4 | 43 | ≤ 25 | 0.074-0.4 | 13-90 | JR1510-8 | 475 | 91.8 |
| MQG3000*5400 | 19 | 58 | ≤ 25 | 0.074-0.6 | - | TDMK-30 | 630 | 119.7 |
| MQG3000*9000 | 18.3 | 78 | ≤ 25 | 0.074-0.4 | 20-90 | YR1000-8/1180 | 1000 | 152.4 |
| MQG3000*11000 | 18 | 100 | ≤ 25 | 0.074-0.6 | 30-90 | YR6306-8 | 1120 | 166.7 |
| MQG3200*3600 | 18.6 | 56.5 | ≤ 25 | 0.074-0.6 | 20-80 | YR6302-8 | 630 | 127.4 |
| MQG3200*4500 | 18.6 | 65 | ≤ 25 | 0.074-0.6 | 20-90 | YR6302-8 | 800 | 138.6 |
| MQG3200*5400 | 18 | 72 | ≤ 25 | 0.074-0.6 | 30-100 | YR1000-8 | 1000 | 146.7 |
| MQG3200*9000 | 18 | 85 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 168.6 |
| MQG3600*4500 | 18 | 86 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 158.7 |
| MQG3600*6000 | 18 | 117 | ≤ 25 | 0.074-0.6 | 45-180 | - | 14000 | 195.6 |
| MQG4000*6000 | 16.9 | 145 | ≤ 25 | 0.074-0.6 | 60-230 | - | 1800 | 221.7 |
| MQG4500*6000 | 15.6 | 180 | ≤ 25 | 0.074-0.6 | 80-300 | - | 2300 | 269.6 |
