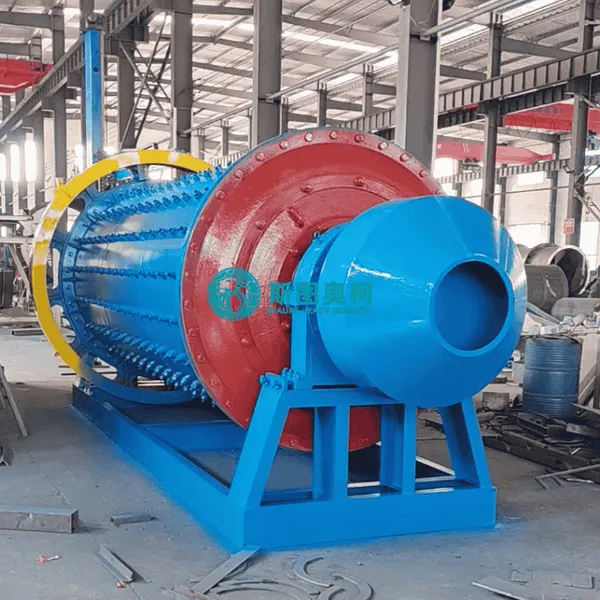

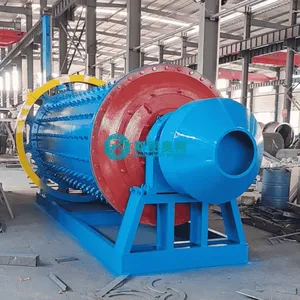

Help CenterGold Ore Mining Dry Ball Mill
Product Spotlights
Related Products
-
2026 Hot Sale Wet and Dry Ball MillNegotiableMOQ: 1 Set -
Industrial Ball Mill for Ore Grinding and Cement ProcessingNegotiableMOQ: 1 Set
-
Ball Mill With Large Diameter SizesNegotiableMOQ: 1 Set
-
Mining Machinery Iron Ore, Copper Ore, Limestone, Concrete Grinding Ball MillNegotiableMOQ: 1 Set
-
Mineral Stone Grinding MachineNegotiableMOQ: 1 Set
Product Overview
In gold extraction, liberating microscopic gold particles from tough rock matrices requires both brute force and precision. Our Gold Ore Mining Dry Ball Mill is engineered specifically for the rugged, high-stakes demands of gold beneficiation loops. This heavy-duty dry-grinding machine is designed to reduce run-of-mine gold-bearing quartz, sulfide ores, and complex concentrates into an ultra-fine powder ready for downstream dry separation, cyanidation, or roasting.
By eliminating water from the grinding stage, this mill is the ideal solution for gold mining operations in arid regions, water-scarce environments, or plants looking to bypass wet dewatering processes and cut down on environmental tailing management costs.
Key Features & Gold-Processing Advantages
● Maximized Gold Liberation: The internal dynamics of the drum are precision-tuned to prevent over-grinding (which can slim gold and hurt recovery rates) while ensuring the thorough fracturing of host rocks to expose even the finest gold grains.
● Air-Swept System for Continuous Discharge: Equipped with a high-efficiency air draft system. As soon as the gold quartz is pulverized to the target mesh size, the internal air current sweeps the qualified particles out of the mill. This increases throughput and significantly lowers internal heat build-up.
● Premium Alloy Wear Liners: Gold-bearing quartz is notoriously abrasive. To combat severe wear, the mill is lined with bolt-on, ultra-high-chromium alloy or manganese steel liner plates, ensuring maximum equipment uptime and drastically reducing maintenance intervals.
● Dust-Enclosed Eco-Design: Operating completely under negative pressure, the mill prevents fine, valuable gold-bearing dust from escaping into the environment, keeping your workplace safe, compliant, and preventing material loss.
● Heavy-Duty Powertrain: Features a reinforced girth gear, a low-vibration drive motor, and an automatic auxiliary drive system that allows the mill to be rotated slowly during maintenance or lining changes.
Advanced Crushing & Grinding Dynamics
The dry ball mill operates by rotating a massive steel cylinder loaded with forged steel grinding media. As the drum spins, the balls are lifted by internal wave liners to a critical apex before cascading down onto the incoming gold ore.
The machine utilizes a highly effective combination of impact shattering (to instantly break down hard quartz veins) and inter-particle attrition (rubbing action to polish and reduce the material to an ultra-fine mesh). This dual action guarantees a highly uniform particle size distribution, which directly optimizes downstream leaching and flotation efficiency.
Tailored for Diverse Gold Ore Matrices
Our dry milling equipment is ruggedly versatile and highly successful in processing:
● Gold-Bearing Quartz Veins: Highly abrasive rocks requiring extreme impact energy.
● Refractory Gold Ores: Sulfide matrices (pyrite, arsenopyrite) that require fine dry grinding prior to roasting or pressure oxidation.
● Alluvial/Placer Concentrates: Dry reduction of dense mineral mixes to isolate fine gold particles.
Why Choose Our Gold Mining Equipment?
Gold mining requires uncompromised reliability; an hour of downtime translates directly into lost revenue. Every mill we manufacture undergoes rigorous non-destructive structural testing and dynamic balancing before shipment. We provide full engineering support, including initial ore grindability testing, custom plant layout integration, and on-site commissioning by experienced mining field technicians.
Optimize your gold recovery and future-proof your mining operation. Contact our engineering specialists today for a custom project consultation!
Technical Specifications
| Model | Cylinder RPM (r/min) | Ball Load (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Model | Power (kW) | Weight (t) |
| MQG600*1800 | 45.5 | 0.5 | ≤ 10 | 0.074-0.5 | 0.2-0.5 | Y160M-6 | 7.5 | 2.5 |
| MQG900*1800 | 38 | 1.8 | ≤ 20 | 0.074-0.6 | 0.8-2 | Y180L-6 | 15 | 5.8 |
| MQG900*3000 | 37.4 | 2.7 | ≤ 20 | 0.074-0.3 | 0.8-3 | Y200L2-6 | 22 | 7.5 |
| MQG1200*2400 | 32 | 4.8 | ≤ 25 | 0.074-0.6 | 1.5-4 | Y225M-6 | 30 | 9.8 |
| MQG1200*4500 | 30 | 5.2 | ≤ 25 | 0.074-0.6 | 1.5-6 | Y280S-6 | 45 | 13.2 |
| MQG1300*4000 | 36 | 5.8 | ≤ 25 | 0.074-0.6 | 2-6 | Y280S-8 | 45 | 14.8 |
| MQG1500*3500 | 28.8 | 8.3 | ≤ 25 | 0.074-0.6 | 3-6 | YR280M-8 | 90 | 17.6 |
| MQG1500*4500 | 28.8 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | JR125-8 | 95 | 22.3 |
| MQG1500*5700 | 28.8 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR126-8 | 110 | 26.7 |
| MQG1500*6400 | 28.8 | 13 | ≤ 25 | 0.074-0.4 | 8-12 | JR127-8 | 130 | 29.2 |
| MQG1830*3600 | 24.5 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR127-8 | 130 | 31.4 |
| MQG1830*5400 | 24.5 | 15 | ≤ 25 | 0.074-0.4 | 5-20 | JR137-8 | 210 | 33.6 |
| MQG1830*6400 | 24.5 | 19 | ≤ 25 | 0.074-0.4 | 6-25 | JR137-8 | 210 | 36.5 |
| MQG1830*7000 | 24.5 | 20 | ≤ 25 | 0.074-0.4 | 8-30 | JR138-8 | 245 | 39.6 |
| MQG2100*3600 | 24.1 | 21 | ≤ 25 | 0.074-0.6 | 8-20 | YR355L1-8 | 210 | 43.2 |
| MQG2100*4500 | 24.57 | 26 | ≤ 25 | 0.074-0.6 | 8-35 | JR138-8 | 280 | 53.6 |
| MQG2200*3600 | 21.8 | 22 | ≤ 25 | 0.074-0.6 | 9-25 | JR138-8 | 245 | 47.8 |
| MQG2200*4500 | 21.4 | 27 | ≤ 25 | 0.074-0.6 | 10-30 | JR138-8 | 280 | 54.7 |
| MQG2200*7500 | 21.8 | 35 | ≤ 25 | 0.074-0.6 | 10-40 | JR158-8 | 380 | 68.4 |
| MQG2200*9000 | 21.4 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 76.5 |
| MQG2400*3600 | 21.26 | 26 | ≤ 25 | 0.074-0.6 | 10-40 | JR138-8 | 280 | 63.8 |
| MQG2400*7000 | 21.8 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 82.4 |
| MQG2400*8000 | 21.8 | 42 | ≤ 25 | 0.074-0.6 | 13-50 | JR630-8 | 560 | 85.7 |
| MQG2400*10000 | 21 | 65 | ≤ 25 | 0.074-0.6 | 15-60 | YR560-8 | 710 | 88.6 |
| MQG2600*8000 | 19.6 | 52 | ≤ 25 | 0.074-0.6 | 16-70 | JR1512-8 | 630 | 97.8 |
| MQG2700*3600 | 21.4 | 39 | ≤ 25 | 0.074-0.4 | 13-75 | JR158-8 | 380 | 86.8 |
| MQG2700*4500 | 21.4 | 43 | ≤ 25 | 0.074-0.4 | 13-90 | JR1510-8 | 475 | 91.8 |
| MQG3000*5400 | 19 | 58 | ≤ 25 | 0.074-0.6 | - | TDMK-30 | 630 | 119.7 |
| MQG3000*9000 | 18.3 | 78 | ≤ 25 | 0.074-0.4 | 20-90 | YR1000-8/1180 | 1000 | 152.4 |
| MQG3000*11000 | 18 | 100 | ≤ 25 | 0.074-0.6 | 30-90 | YR6306-8 | 1120 | 166.7 |
| MQG3200*3600 | 18.6 | 56.5 | ≤ 25 | 0.074-0.6 | 20-80 | YR6302-8 | 630 | 127.4 |
| MQG3200*4500 | 18.6 | 65 | ≤ 25 | 0.074-0.6 | 20-90 | YR6302-8 | 800 | 138.6 |
| MQG3200*5400 | 18 | 72 | ≤ 25 | 0.074-0.6 | 30-100 | YR1000-8 | 1000 | 146.7 |
| MQG3200*9000 | 18 | 85 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 168.6 |
| MQG3600*4500 | 18 | 86 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 158.7 |
| MQG3600*6000 | 18 | 117 | ≤ 25 | 0.074-0.6 | 45-180 | - | 14000 | 195.6 |
| MQG4000*6000 | 16.9 | 145 | ≤ 25 | 0.074-0.6 | 60-230 | - | 1800 | 221.7 |
| MQG4500*6000 | 15.6 | 180 | ≤ 25 | 0.074-0.6 | 80-300 | - | 2300 | 269.6 |
