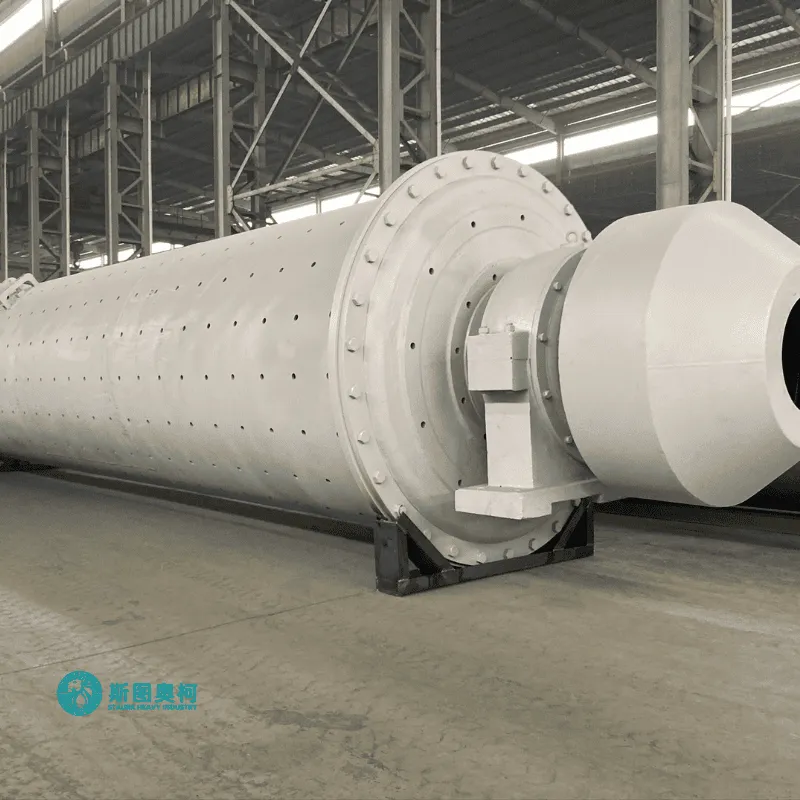

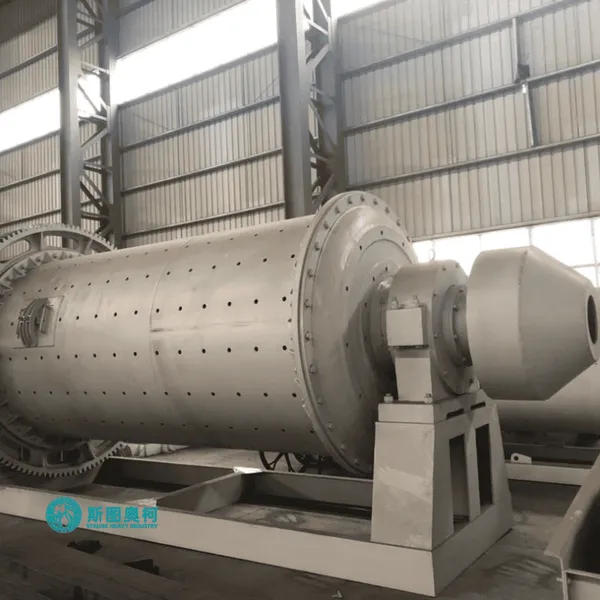

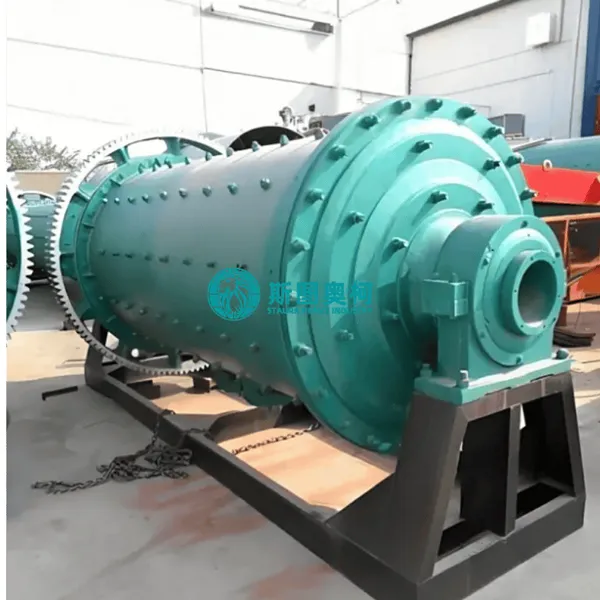

Our Wet and Dry Ball Mill is the ultimate grinding solution designed to handle the most demanding mineral processing environments. Engineering with cutting-edge technology, this versatile grinding machine is capable of reducing various ores and other materials into fine powder, whether through a wet slurry process or a dry grinding method.
Whether you are processing gold, copper, iron ore, or industrial minerals, this ball mill delivers optimal particle size distribution, maximizing your downstream recovery rates while minimizing energy consumption.
Key Features & Benefits
● Dual Grinding Modes (Wet & Dry): Seamlessly adaptable to your specific processing flow. Use the wet mode for efficient slurry mixing and flotation preparation, or the dry mode for moisture-sensitive materials and cement clinker.
● Heavy-Duty Construction: Built with a high-manganese steel or wear-resistant rubber liner, the drum resists severe abrasion and impacts, drastically extending the machine's operational lifespan.

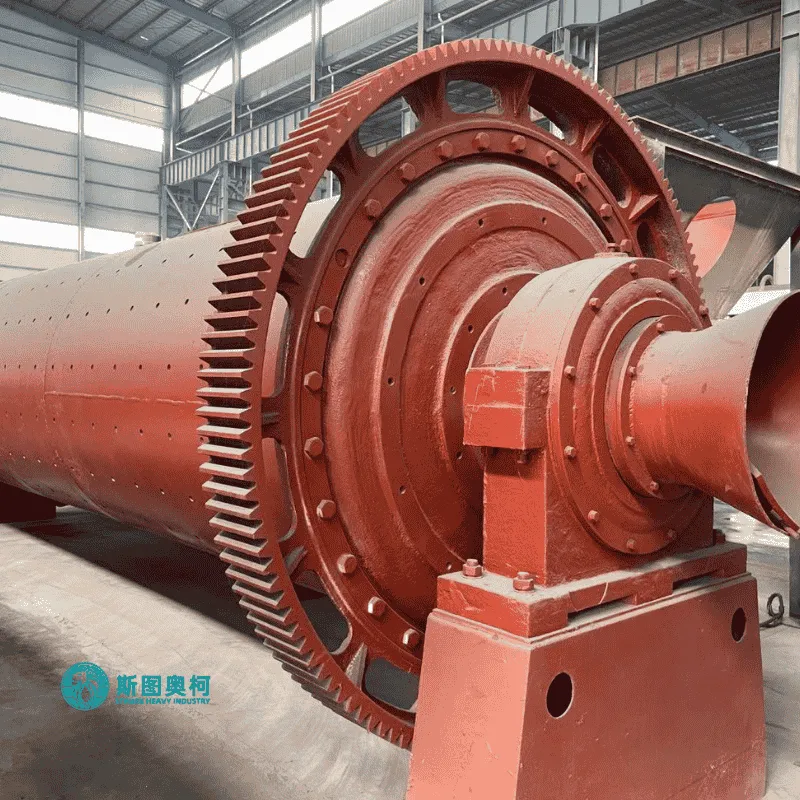

● Energy-Efficient Drive System: Equipped with advanced motor and gear configurations that reduce start-up friction and lower overall power consumption by up to 15–20% compared to traditional models.
● Customizable Discharge Options: Available in both grate discharge (ideal for coarse grinding and high-throughput) and overflow discharge (perfect for ultra-fine grinding).
● Smart Automation Integration: Fully compatible with modern PLC control systems for real-time monitoring of bearing temperatures, oil pressure, and grinding efficiency.
Technical Specifications
The table below outlines our standard configurations. Custom dimensions and capacities can be engineered to meet your specific project requirements.
Working Principle
The ball mill operates by rotating a hollow cylinder filled with steel grinding balls. Materials are fed into the drum through a hollow shaft. As the cylinder rotates, the centrifugal force lifts the grinding balls up to a certain height before they cascade back down, crushing and grinding the ore via impact and attrition.
● In Wet Grinding: Water or chemicals are added to form a slurry, reducing dust and aiding in chemical separation.
● In Dry Grinding: Air currents are often used to draw the fine, dry powder out of the mill continuously.

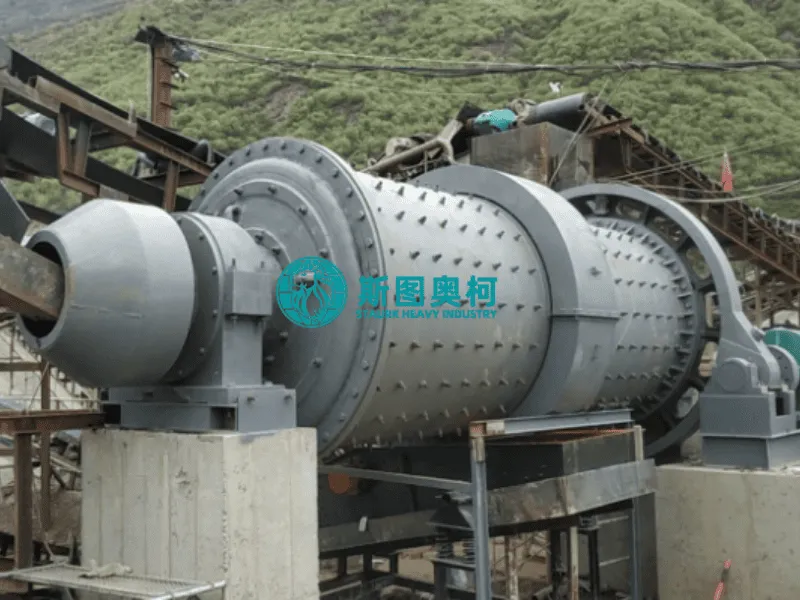

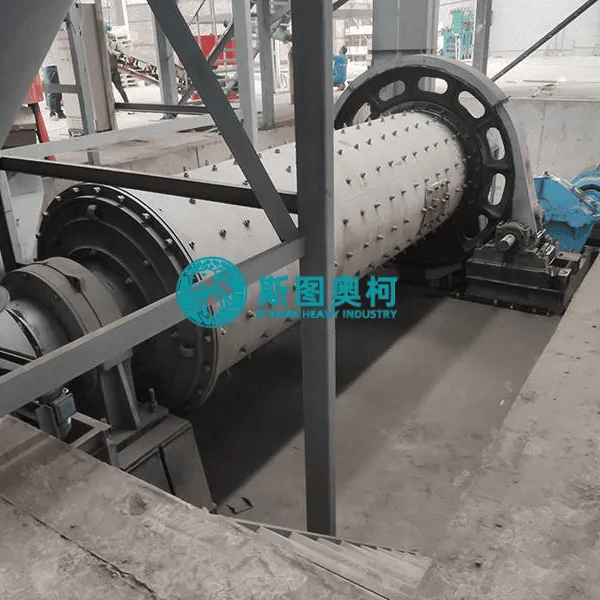

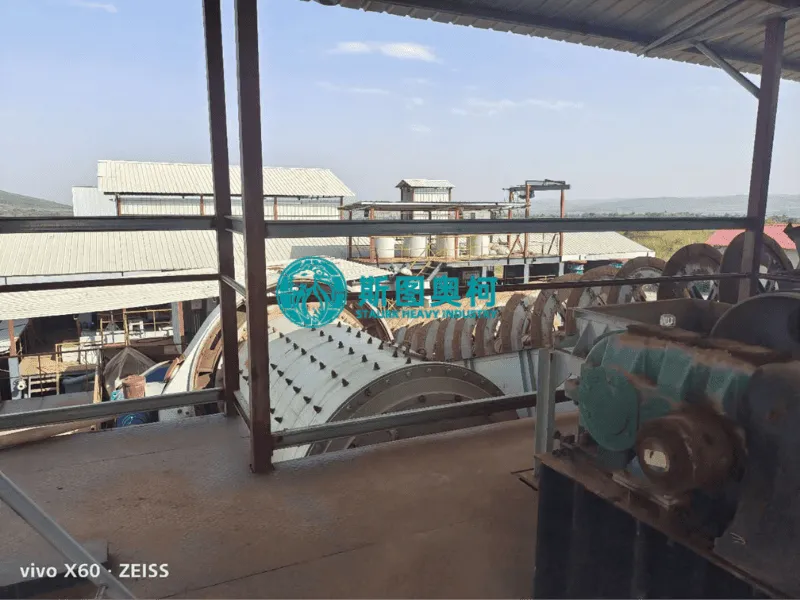

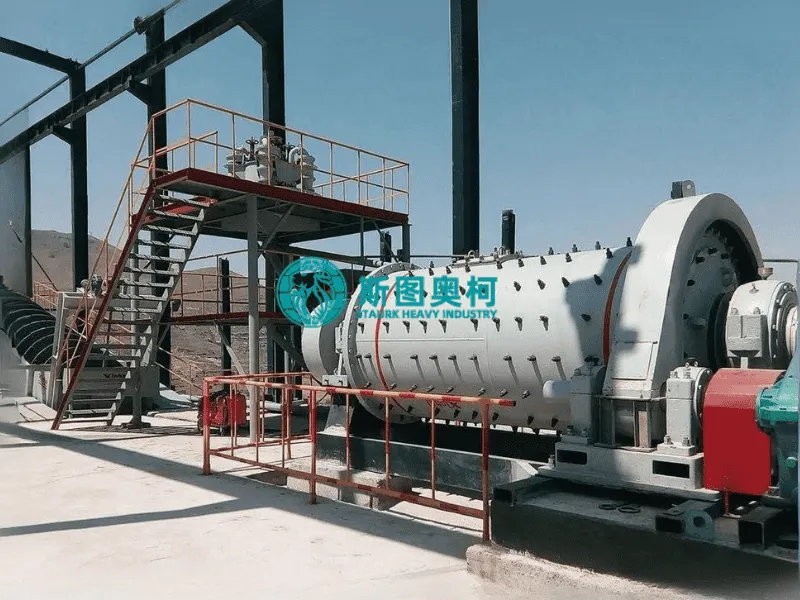

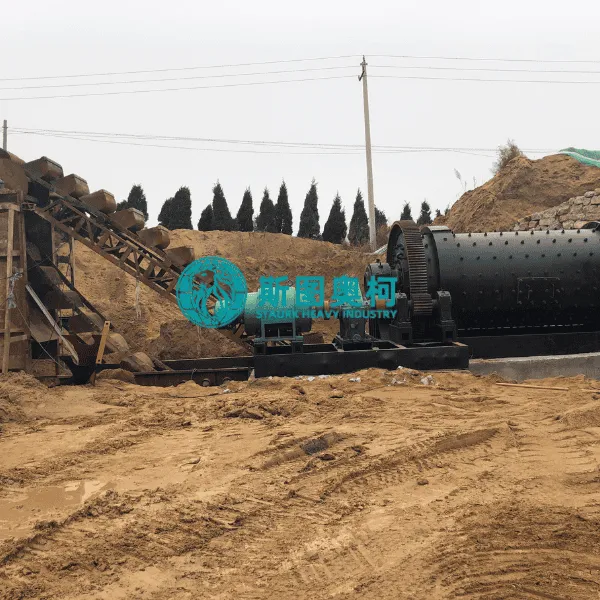

Applications in Mining
Our ball mills are widely utilized in a variety of mineral beneficiation plants, including:
● Precious Metals: Gold, Silver, Platinum
● Base Metals: Copper, Lead, Zinc, Iron, Nickel
● Industrial Minerals: Quartz, Feldspar, Limestone, Gypsum, and Cement Clinker
Why Choose Us?
With decades of expertise in mining machinery manufacture, we provide more than just equipment—we provide complete grinding solutions. Our services include initial ore testing, customized layout design, seamless on-site installation, and 24/7 global spare parts support to ensure your operation never stops.
Contact our engineering team today for a tailored quotation!
Technical Specifications
| Model | Cylinder RPM (r/min) | Ball Load (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Model | Power (kW) | Weight (t) |
| MQG600*1800 | 45.5 | 0.5 | ≤ 10 | 0.074-0.5 | 0.2-0.5 | Y160M-6 | 7.5 | 2.5 |
| MQG900*1800 | 38 | 1.8 | ≤ 20 | 0.074-0.6 | 0.8-2 | Y180L-6 | 15 | 5.8 |
| MQG900*3000 | 37.4 | 2.7 | ≤ 20 | 0.074-0.3 | 0.8-3 | Y200L2-6 | 22 | 7.5 |
| MQG1200*2400 | 32 | 4.8 | ≤ 25 | 0.074-0.6 | 1.5-4 | Y225M-6 | 30 | 9.8 |
| MQG1200*4500 | 30 | 5.2 | ≤ 25 | 0.074-0.6 | 1.5-6 | Y280S-6 | 45 | 13.2 |
| MQG1300*4000 | 36 | 5.8 | ≤ 25 | 0.074-0.6 | 2-6 | Y280S-8 | 45 | 14.8 |
| MQG1500*3500 | 28.8 | 8.3 | ≤ 25 | 0.074-0.6 | 3-6 | YR280M-8 | 90 | 17.6 |
| MQG1500*4500 | 28.8 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | JR125-8 | 95 | 22.3 |
| MQG1500*5700 | 28.8 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR126-8 | 110 | 26.7 |
| MQG1500*6400 | 28.8 | 13 | ≤ 25 | 0.074-0.4 | 8-12 | JR127-8 | 130 | 29.2 |
| MQG1830*3600 | 24.5 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR127-8 | 130 | 31.4 |
| MQG1830*5400 | 24.5 | 15 | ≤ 25 | 0.074-0.4 | 5-20 | JR137-8 | 210 | 33.6 |
| MQG1830*6400 | 24.5 | 19 | ≤ 25 | 0.074-0.4 | 6-25 | JR137-8 | 210 | 36.5 |
| MQG1830*7000 | 24.5 | 20 | ≤ 25 | 0.074-0.4 | 8-30 | JR138-8 | 245 | 39.6 |
| MQG2100*3600 | 24.1 | 21 | ≤ 25 | 0.074-0.6 | 8-20 | YR355L1-8 | 210 | 43.2 |
| MQG2100*4500 | 24.57 | 26 | ≤ 25 | 0.074-0.6 | 8-35 | JR138-8 | 280 | 53.6 |
| MQG2200*3600 | 21.8 | 22 | ≤ 25 | 0.074-0.6 | 9-25 | JR138-8 | 245 | 47.8 |
| MQG2200*4500 | 21.4 | 27 | ≤ 25 | 0.074-0.6 | 10-30 | JR138-8 | 280 | 54.7 |
| MQG2200*7500 | 21.8 | 35 | ≤ 25 | 0.074-0.6 | 10-40 | JR158-8 | 380 | 68.4 |
| MQG2200*9000 | 21.4 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 76.5 |
| MQG2400*3600 | 21.26 | 26 | ≤ 25 | 0.074-0.6 | 10-40 | JR138-8 | 280 | 63.8 |
| MQG2400*7000 | 21.8 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 82.4 |
| MQG2400*8000 | 21.8 | 42 | ≤ 25 | 0.074-0.6 | 13-50 | JR630-8 | 560 | 85.7 |
| MQG2400*10000 | 21 | 65 | ≤ 25 | 0.074-0.6 | 15-60 | YR560-8 | 710 | 88.6 |
| MQG2600*8000 | 19.6 | 52 | ≤ 25 | 0.074-0.6 | 16-70 | JR1512-8 | 630 | 97.8 |
| MQG2700*3600 | 21.4 | 39 | ≤ 25 | 0.074-0.4 | 13-75 | JR158-8 | 380 | 86.8 |
| MQG2700*4500 | 21.4 | 43 | ≤ 25 | 0.074-0.4 | 13-90 | JR1510-8 | 475 | 91.8 |
| MQG3000*5400 | 19 | 58 | ≤ 25 | 0.074-0.6 | - | TDMK-30 | 630 | 119.7 |
| MQG3000*9000 | 18.3 | 78 | ≤ 25 | 0.074-0.4 | 20-90 | YR1000-8/1180 | 1000 | 152.4 |
| MQG3000*11000 | 18 | 100 | ≤ 25 | 0.074-0.6 | 30-90 | YR6306-8 | 1120 | 166.7 |
| MQG3200*3600 | 18.6 | 56.5 | ≤ 25 | 0.074-0.6 | 20-80 | YR6302-8 | 630 | 127.4 |
| MQG3200*4500 | 18.6 | 65 | ≤ 25 | 0.074-0.6 | 20-90 | YR6302-8 | 800 | 138.6 |
| MQG3200*5400 | 18 | 72 | ≤ 25 | 0.074-0.6 | 30-100 | YR1000-8 | 1000 | 146.7 |
| MQG3200*9000 | 18 | 85 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 168.6 |
| MQG3600*4500 | 18 | 86 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 158.7 |
| MQG3600*6000 | 18 | 117 | ≤ 25 | 0.074-0.6 | 45-180 | - | 14000 | 195.6 |
| MQG4000*6000 | 16.9 | 145 | ≤ 25 | 0.074-0.6 | 60-230 | - | 1800 | 221.7 |
| MQG4500*6000 | 15.6 | 180 | ≤ 25 | 0.074-0.6 | 80-300 | - | 2300 | 269.6 |
