Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill

Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill thumbnail-1
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill thumbnail-2
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill thumbnail-3
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill thumbnail-4
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill photo-1
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill photo-2
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill photo-3
Tyre Mill Mineral Grinding Equipment 100TPH Ore Ball Mill photo-4

Product Spotlights

1. No Large Gears or Bearings | 2. Simple & Compact Structure | 3. Low Maintenance Cost | 4. Rubber Liner Option (Light Weight, Low Noise, Wear-Resistant) | 5. Steel Liner Option for Hard Materials | 6. Easy to Install & Transport | 7. Standard Components Readily Available
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Ball Mill
Warranty:
1 year
Motor Power:
Other, Select by type
Contact Supplier Request Quote Chat Now
Henan Staurk Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjing Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Ball Mill
Warranty 1 year
Motor Power Other, Select by type
After-sales Service 24/7 technical support
Condition New
Motor Type AC Motor
Rotationl Speed Other, Select by type
Application Mine
Materials Other
Transport Package Standard
Trademark Staurk
Origin China

 Tyre Mill Manufactured From Henan Staurk Machinery Co.,Ltd

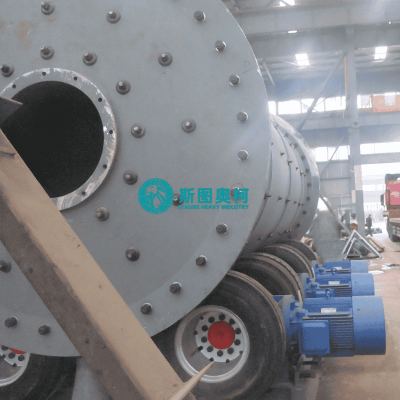

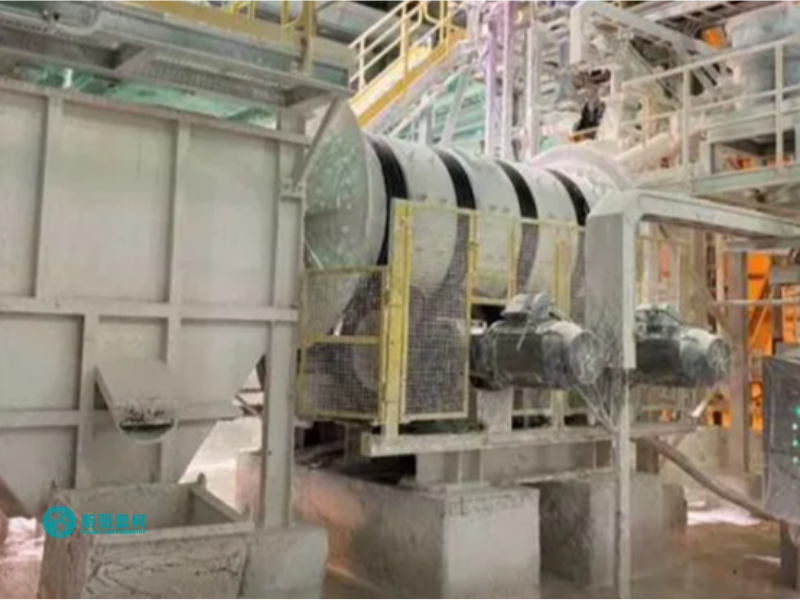

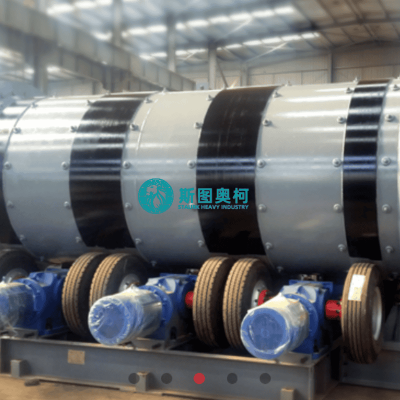

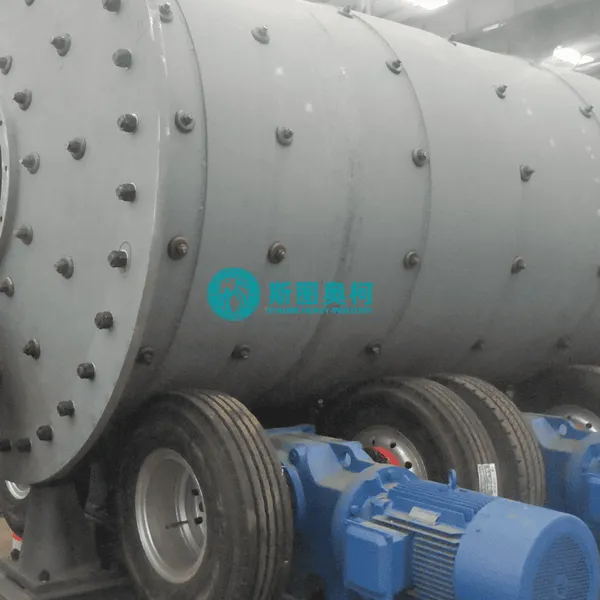

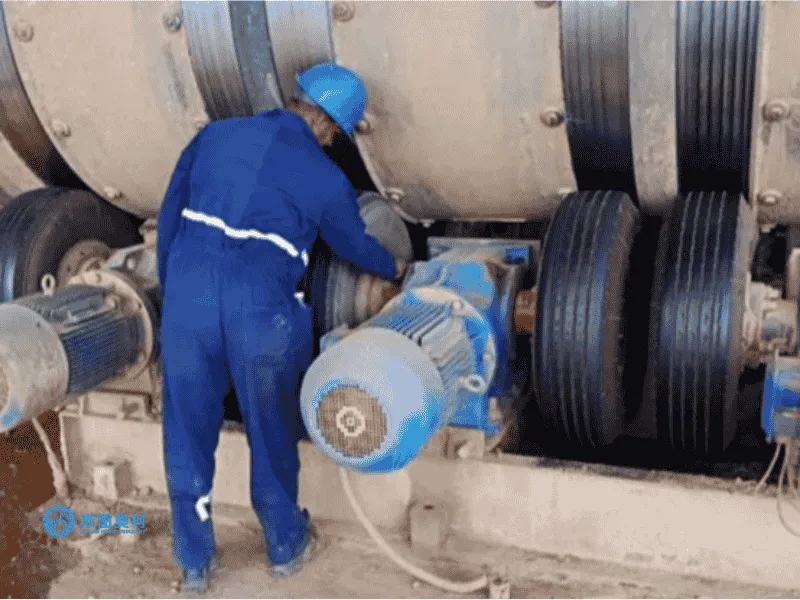

The Tyre Drive Ball Mill from Henan Staurk Machinery features a simple, gearless design that eliminates large ring gears and lubrication systems, significantly reducing maintenance costs and downtime . Its rubber liner option provides lighter weight, lower noise, and excellent wear resistance, while a manganese steel liner is also available for harder materials . The heavy steel base frame ensures durability, and standard components like wear-resistant truck tires are easy to replace locally . With customizable discharge options (overflow or grate) and applications ranging from iron ore to quartz sand, it offers efficient, low-maintenance grinding for both dry and wet processes.


1.Product Introduction


The Tyre Mill is a type of industrial crushing equipment, typically designed based on mechanical grinding or impact crushing principles. Its structure primarily consists of a feed system, a grinding main unit (such as grinding rollers and rings or high-speed impact devices), a classification system, and a collection device. The equipment can process various types of waste tires, including passenger car tires and truck tires, producing rubber particles or fine powder with controllable particle size. These products serve as important raw materials in fields such as rubber recycling, building materials, and road surfacing materials.



2.Application

  • Rubber Recycling Industry: Serves as raw material for producing reclaimed rubber and rubber products (such as gaskets and seals).

  • Building Materials Sector: Used in manufacturing rubber-modified asphalt, waterproofing membranes, soundproofing materials, and more.

  • Environmental Protection and Resource Recovery: A critical component in the resource recovery of waste tires, supporting the recycling of solid waste.

  • Other Industries: Also finds applications in sports field surfacing and automotive component fillers.


3.Working Principle


Large tire material is conveyed into the grinding chamber after preliminary crushing. Within the chamber, rotating grinding rollers press against the grinding ring under centrifugal force, or high-speed airflow/rotors drive the material to collide violently with each other. The material is crushed and pulverized through grinding and shearing between the grinding rollers and ring, or by high-speed impact. The pulverized material enters the classification zone with the airflow. Particles meeting the required fineness are separated and collected, while coarse particles are returned to the grinding chamber for further pulverization until the target particle size is achieved.



4.Advantages

  • High Processing Capacity: The equipment design enables continuous, high-volume processing of tire materials, delivering substantial throughput.


  • Flexible Particle Size Adjustment: Finished rubber powder fineness can be easily controlled by adjusting grinding parameters or the classification system to meet diverse application requirements.


  • High Adaptability: Capable of processing hard, tough tire materials and typically suited for dry grinding processes.


  • Integration and Automation: Easily integrates with classification and collection systems, featuring high automation levels that enhance overall processing efficiency.


  • Environmental Contribution: As specialized tire recycling equipment, it directly supports waste resource utilization and reduces environmental pollution.


5.Technical Specifications

Model Cylinder RPM (r/min) Ball Load (t) Feeding Size (mm) Discharging Size (mm) Capacity (t/h) Motor Model Power (kW) Weight (t)
MQG600*1800 45.5 0.5 ≤ 10 0.074-0.5 0.2-0.5 Y160M-6 7.5 2.5
MQG900*1800 38 1.8 ≤ 20 0.074-0.6 0.8-2 Y180L-6 15 5.8
MQG900*3000 37.4 2.7 ≤ 20 0.074-0.3 0.8-3 Y200L2-6 22 7.5
MQG1200*2400 32 4.8 ≤ 25 0.074-0.6 1.5-4 Y225M-6 30 9.8
MQG1200*4500 30 5.2 ≤ 25 0.074-0.6 1.5-6 Y280S-6 45 13.2
MQG1300*4000 36 5.8 ≤ 25 0.074-0.6 2-6 Y280S-8 45 14.8
MQG1500*3500 28.8 8.3 ≤ 25 0.074-0.6 3-6 YR280M-8 90 17.6
MQG1500*4500 28.8 10 ≤ 25 0.074-0.4 4-8 JR125-8 95 22.3
MQG1500*5700 28.8 12 ≤ 25 0.074-0.4 5-10 JR126-8 110 26.7
MQG1500*6400 28.8 13 ≤ 25 0.074-0.4 8-12 JR127-8 130 29.2
MQG1830*3600 24.5 12 ≤ 25 0.074-0.4 5-10 JR127-8 130 31.4
MQG1830*5400 24.5 15 ≤ 25 0.074-0.4 5-20 JR137-8 210 33.6
MQG1830*6400 24.5 19 ≤ 25 0.074-0.4 6-25 JR137-8 210 36.5
MQG1830*7000 24.5 20 ≤ 25 0.074-0.4 8-30 JR138-8 245 39.6
MQG2100*3600 24.1 21 ≤ 25 0.074-0.6 8-20 YR355L1-8 210 43.2
MQG2100*4500 24.57 26 ≤ 25 0.074-0.6 8-35 JR138-8 280 53.6
MQG2200*3600 21.8 22 ≤ 25 0.074-0.6 9-25 JR138-8 245 47.8
MQG2200*4500 21.4 27 ≤ 25 0.074-0.6 10-30 JR138-8 280 54.7
MQG2200*7500 21.8 35 ≤ 25 0.074-0.6 10-40 JR158-8 380 68.4
MQG2200*9000 21.4 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 76.5
MQG2400*3600 21.26 26 ≤ 25 0.074-0.6 10-40 JR138-8 280 63.8
MQG2400*7000 21.8 36 ≤ 25 0.074-0.6 10-45 JR1510-8 475 82.4
MQG2400*8000 21.8 42 ≤ 25 0.074-0.6 13-50 JR630-8 560 85.7
MQG2400*10000 21 65 ≤ 25 0.074-0.6 15-60 YR560-8 710 88.6
MQG2600*8000 19.6 52 ≤ 25 0.074-0.6 16-70 JR1512-8 630 97.8
MQG2700*3600 21.4 39 ≤ 25 0.074-0.4 13-75 JR158-8 380 86.8
MQG2700*4500 21.4 43 ≤ 25 0.074-0.4 13-90 JR1510-8 475 91.8
MQG3000*5400 19 58 ≤ 25 0.074-0.6 - TDMK-30 630 119.7
MQG3000*9000 18.3 78 ≤ 25 0.074-0.4 20-90 YR1000-8/1180 1000 152.4
MQG3000*11000 18 100 ≤ 25 0.074-0.6 30-90 YR6306-8 1120 166.7
MQG3200*3600 18.6 56.5 ≤ 25 0.074-0.6 20-80 YR6302-8 630 127.4
MQG3200*4500 18.6 65 ≤ 25 0.074-0.6 20-90 YR6302-8 800 138.6
MQG3200*5400 18 72 ≤ 25 0.074-0.6 30-100 YR1000-8 1000 146.7
MQG3200*9000 18 85 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 168.6
MQG3600*4500 18 86 ≤ 25 0.074-0.6 30-100 YR6302-8 1250 158.7
MQG3600*6000 18 117 ≤ 25 0.074-0.6 45-180 - 14000 195.6
MQG4000*6000 16.9 145 ≤ 25 0.074-0.6 60-230 - 1800 221.7
MQG4500*6000 15.6 180 ≤ 25 0.074-0.6 80-300 - 2300 269.6


Product Tags: Tyre Mill , Tyre Driving Ball Mill , Tire Mill
