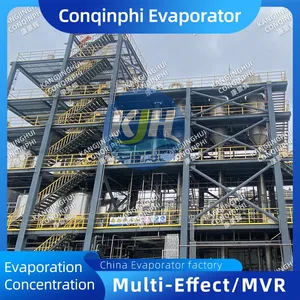

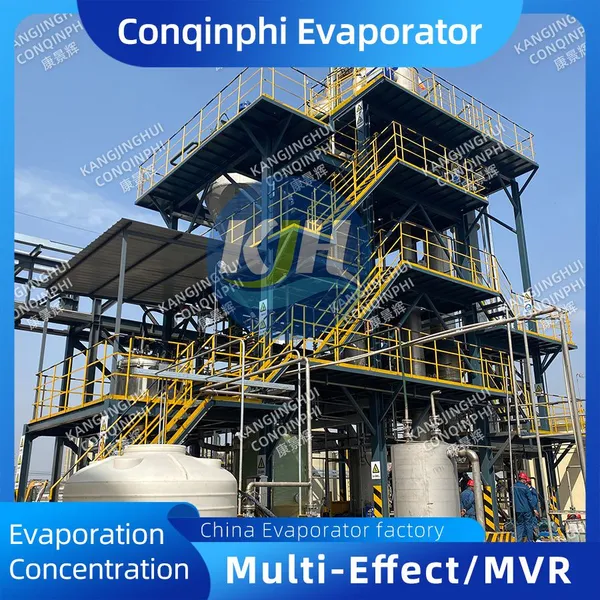

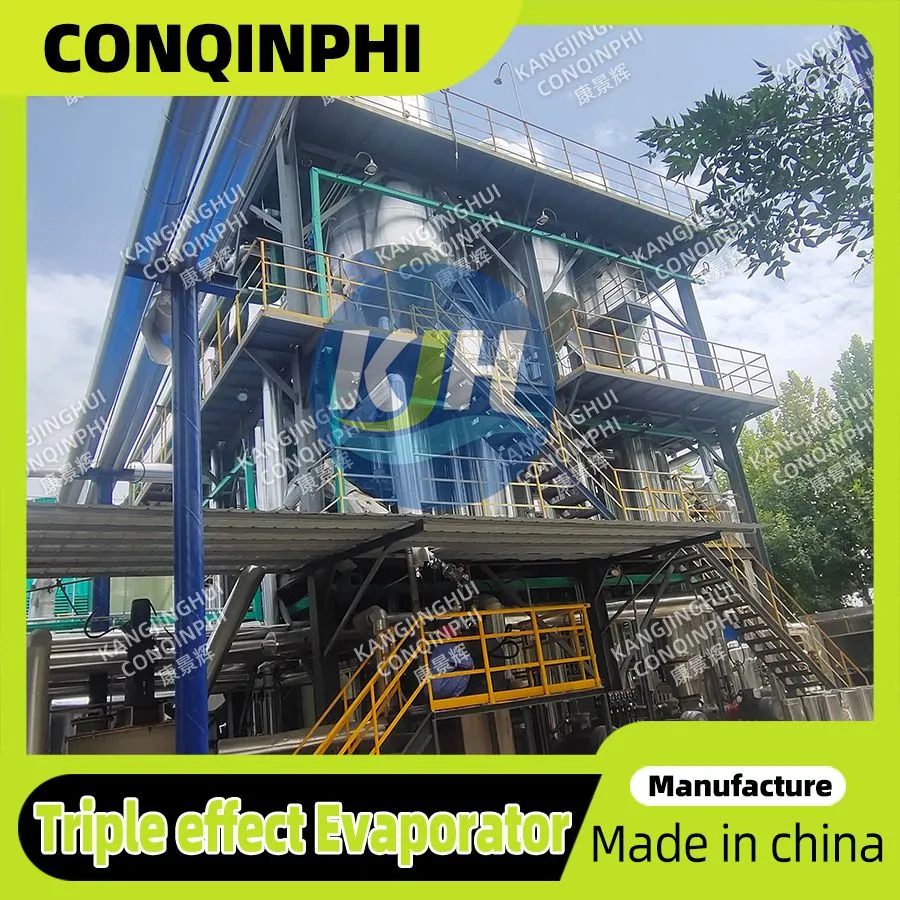

Help CenterThree-Effect Evaporation Crystallizer With 220V Power and IP65 Electric Control Cabinet
Product Spotlights
Related Products
-
Three-Effect Forced Circulation Evaporation Crystallizer CE Standard Compliant AutomaticUS$ 6580 - 379000MOQ: 2 Combos -
Compact Three-Effect Evaporation Crystallizer 50Hz 380V for Industrial Wastewater TreatmentUS$ 6580 - 379000MOQ: 2 Combos
-
Energy-Saving Three-Effect Evaporation Crystallizer 2000L/H Capacity Stainless SteelUS$ 6580 - 379000MOQ: 2 Combos
-
Three-Effect Evaporation Crystallizer for Chemical Industry High Salt Wastewater Zero Liquid DischargeUS$ 6580 - 379000MOQ: 2 Combos
-
Three-Effect Evaporation Crystallizer Used in Pharmaceutical Concentration and Salt RecoveryUS$ 6580 - 379000MOQ: 2 Combos
Welcome to Qingdao Conqinphi Environmental Technology Group Co., Ltd. – a leading manufacturer specializing in advanced evaporation and crystallization solutions since 2015. Our Three-Effect Evaporation Crystallizer with 220V power supply and IP65 electric control cabinet is designed to deliver efficient, reliable, and energy-saving concentration and crystallization for a wide range of industrial liquids. This system integrates triple-effect evaporation technology to maximize thermal efficiency, reduce operational costs, and achieve high-purity crystalline products. Whether you are treating wastewater, recovering valuable by-products, or concentrating process streams, this equipment offers a compact, robust, and fully automated solution.
Built with a factory covering 10,000–30,000 square meters and backed by a skilled team of 201–300 employees, we ensure every unit meets stringent quality standards. With an annual export value of US$10–50 million, our products have been shipped to markets across North America, South America, Europe, Southeast Asia, Africa, and the Middle East. This three-effect crystallizer is a testament to our engineering expertise – combining 220V single-phase power for easy integration worldwide and an IP65-rated control cabinet that withstands harsh industrial environments.
Key Features & Benefits
- Triple-Effect Design: Utilizes vapor from the first effect as heating medium for the second, and so on, reducing overall energy consumption by up to 50% compared to single-effect systems.
- 220V Power Input: Standard single-phase power (110V also available upon request) ensures compatibility with most industrial and rural electrical grids globally.
- IP65 Protection Grade: The electric control cabinet is dust-tight and protected against water jets, making it suitable for wet, dusty, or outdoor installations.
- High Crystallization Efficiency: Optimized circulation and temperature control yield consistent crystal size and high purity of recovered solids.
- PLC & Touch Screen Automation: User-friendly interface allows real-time monitoring of temperature, pressure, flow rate, and automatic adjustment of process parameters.
- Corrosion-Resistant Construction: Constructed from high-grade stainless steel (SS304 or SS316L) to handle acidic, alkaline, or saline feed streams.
- Compact Footprint: Vertical or horizontal configurations available to fit limited floor space.
- Low Maintenance: Self-cleaning mechanisms and durable seals minimize downtime and spare parts replacement.
Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Number of Effects | 3 |
| Power Supply | 220V / 110V (customizable) – Single Phase |
| Control Cabinet Protection | IP65 |
| Evaporation Capacity | 500 – 5000 L/h (depending on model) |
| Operating Temperature | 60°C – 120°C |
| Material of Construction | SS304 / SS316L |
| Control System | PLC + Touch Screen HMI |
| Heating Source | Steam / Thermal Oil (optional electric heating) |
| Product Crystal Purity | ≥99% (depending on feed) |
Additional specifications such as customized capacity, pressure ratings, and automation level can be tailored to your specific process requirements. We offer optional explosion-proof designs and remote monitoring via SCADA.
Why Choose Our Three-Effect Evaporation Crystallizer?
- Energy Savings: The three-effect configuration reuses latent heat, cutting steam consumption by over 40% compared to single-effect units. This translates directly to lower operating costs.
- Reliable Power Compatibility: The 220V standard ensures plug-and-play installation in countries like Japan, USA, Canada, and parts of Europe without step-down transformers.
- Durable Control in Tough Environments: IP65 cabinets protect sensitive electronics from dust, moisture, and chemical splashes – ideal for chemical plants, food processing, or outdoor installations.
- Proven Track Record: Our equipment is used in wastewater zero liquid discharge (ZLD) systems, salt recovery, pharmaceutical crystallization, and food concentration projects worldwide.
- Comprehensive Support: From process design through commissioning and after-sales, our team of over 200 engineers provides remote and on-site support. Spare parts are readily available from our Qingdao warehouse.
Trusted by Global Customers
As a manufacturer with ISO9001, ISO14001, OHSAS18001 certifications and multiple other quality management systems, we adhere to international manufacturing standards. Our factory has been refining our evaporation technology for over 8 years, resulting in robust designs that require minimal maintenance. With a strong annual export value exceeding US$10 million and delivery to over 20 countries, we have earned the trust of clients in the chemical, pharmaceutical, and environmental sectors.
Don’t just take our word for it – we offer factory acceptance tests (FAT) and on-site trials before purchase. Our team is ready to answer your technical questions and provide customized quotes. Contact us today to discuss how our Three-Effect Evaporation Crystallizer can improve your process efficiency and profitability.
Frequently Asked Questions (FAQ)
-
Q: Can this crystallizer handle high-viscosity liquids?
A: Yes, the three-effect design incorporates forced circulation which can handle moderate to high viscosities. For extremely viscous feeds, we recommend an optional scraper or wiped film assist. Contact our engineers for a feasibility study. -
Q: What is the typical payback period for the energy savings?
A: Depending on your operation hours and energy costs, many customers achieve payback within 12–18 months due to reduced steam consumption. The exact calculation can be provided after analyzing your feed stream and flow rate. -
Q: Is the IP65 control cabinet suitable for outdoor installation?
A: Absolutely. IP65 protection means it is dust-tight and can withstand low-pressure water jets from any direction. However, if exposed to direct sunlight or extreme cold, we recommend adding a weatherproof canopy or heated enclosure (available as optional extras). -
Q: Do you offer training for operators?
A: Yes, we provide comprehensive on-site training for your operators, as well as instructional manuals and remote video support. Our team will ensure your staff can run the system confidently. -
Q: Can the power supply be adapted to 380V or 440V?
A: Yes, the machine can be customized for 3-phase voltages such as 380V, 440V, or 480V upon request. The standard 220V version is intended for small to medium capacity where single-phase power is convenient. -
Q: What materials can I crystallize with this equipment?
A: Common applications include sodium chloride, ammonium sulfate, sodium sulfate, citric acid, and other salts or organic compounds that crystallize under vacuum. We can test samples in our lab to confirm compatibility. -
Q: How long does delivery take?
A: Typical lead time for a standard unit is 30–45 days from order confirmation. Custom designs may require 60–90 days. We work efficiently to meet your project timeline. -
Q: What certifications does this product carry?
A: The manufacturing facility is certified under ISO9001, ISO14001, OHSAS18001, and others. The equipment itself can be designed to meet CE, ASME, or GB standards as per your requirement. Please specify your target market for proper compliance.
