Help CenterPrecision Carbide Hollow Pin Blank
Product Spotlights
2.Precise inner hole & step tolerance
3.Mirror polished outer surface, smooth inner bore
4.Anti-bending, stable under high-speed stamping
5.Custom OD, ID, length and step size
6.Multiple WC grades for stamping & die industry
Related Products
-
Tungsten Carbide Square Insert KnivesUS$ 1 - 50MOQ: 1 Piece -
Tungsten Carbide Small Insert KnivesUS$ 0.1 - 1MOQ: 1 Piece
-
Double-Groove Tungsten Carbide Wire Guide WheelUS$ 200 - 1000MOQ: 1 Piece
-
Tungsten Carbide Flat StripsUS$ 5 - 100MOQ: 1 Piece
-
Sintered Diamond Core Drill BitUS$ 0.5 - 100MOQ: 1 Piece
1. Product Introduction

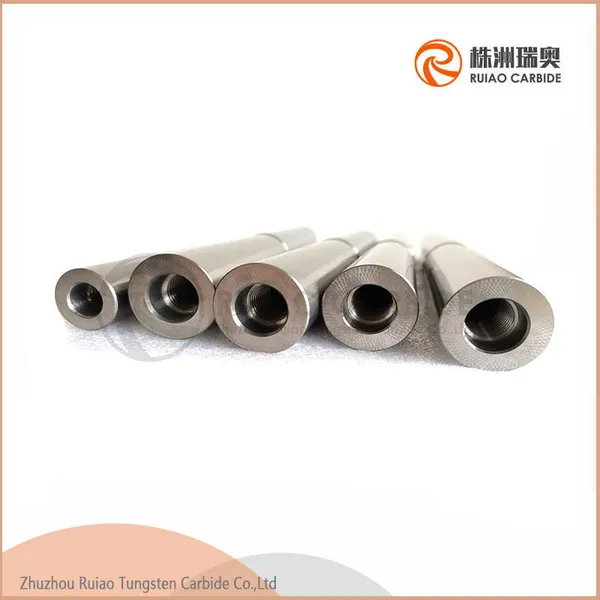

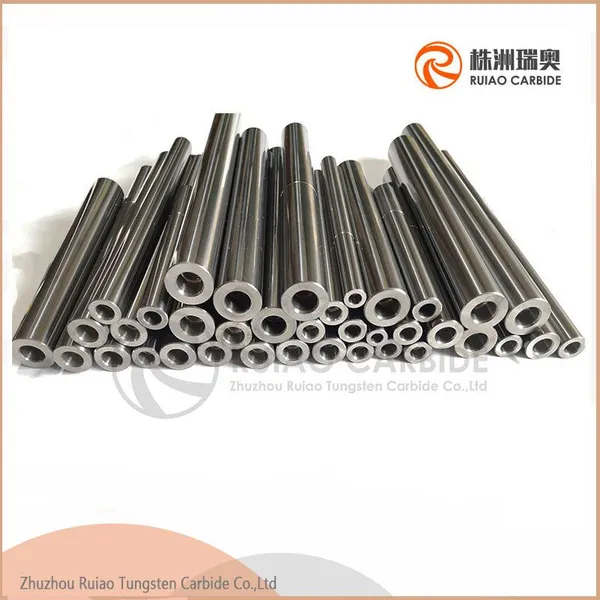

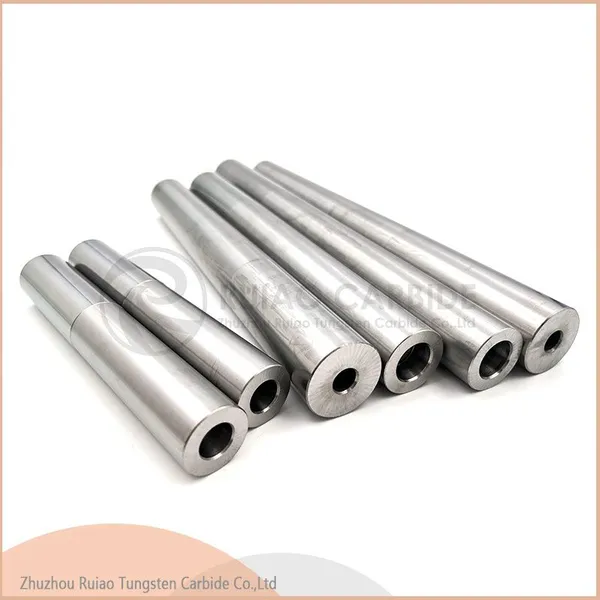

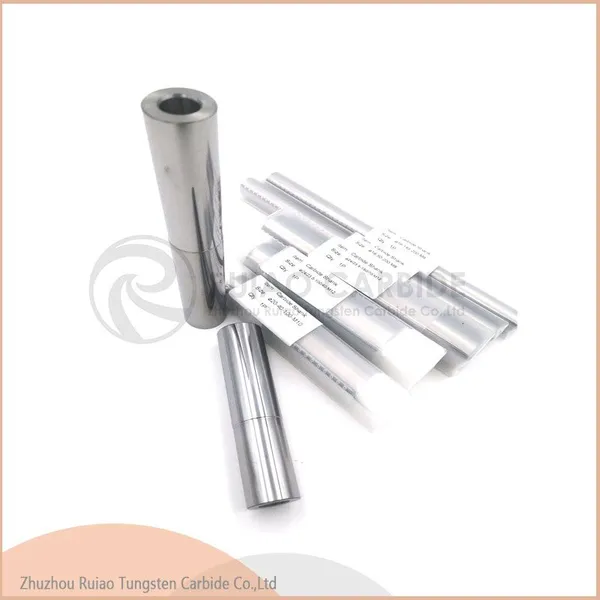

This step tungsten carbide hollow rod is a hollow cemented carbide bar with integrated step shoulder, made by powder metallurgy sintering and multi-step precision grinding. It serves as raw blank for stamping pins, ejector pins, wire drawing dies, mechanical wear-resistant shafts and guide sleeves.
2. Material & Manufacturing Process
Optional Grades: YG6, YG8, YG10X, YG15 (balance hardness & toughness for different die working conditions)
Production Flow: WC-Co powder molding → HIP sintering → Rough outer grinding → Inner hole precision boring → Step forming → Mirror polishing
Surface: Smooth burr-free inner and outer surface, tight dimensional tolerance
3. Core Advantages
✅ Super wear resistance, service life far longer than steel pins
✅ Integrated step design, no secondary welding required
✅ Ultra-precise inner hole, stable for wire threading or pin assembly
✅ High rigidity, resistant to deformation under high impact stamping
✅ Mirror polished surface reduces friction during reciprocating movement
✅ Fully customizable outer diameter, inner hole diameter, length and step dimension
4. Main Application
Precision mold industry: Stamping ejector pins, core pins, piercing pin blanks
Wire drawing industry: Mini wire drawing die blanks, small wire guide sleeves
Mechanical equipment: Wear-resistant guide shafts, positioning hollow sleeves
Automation machinery: High-speed reciprocating needle components
5. Customization Service
Size: Custom outer diameter, inner hole diameter, total length, step width & height
Alloy Grade: Adjust cobalt content for hard stamping or thin wire processing
Tolerance: Strict micron-level tolerance for high-precision matching
Surface Treatment: Matte finish / mirror polishing available
