Help CenterMulti-Groove Cemented Carbide Wire Pass Wheel
Product Spotlights
2.Super wear-resistant, long service life
3.Low friction, stable wire running
4.High red hardness, fit high-speed production
5.Multi-groove design, high efficiency
6.Custom size & groove types available
Related Products
1. Product Introduction

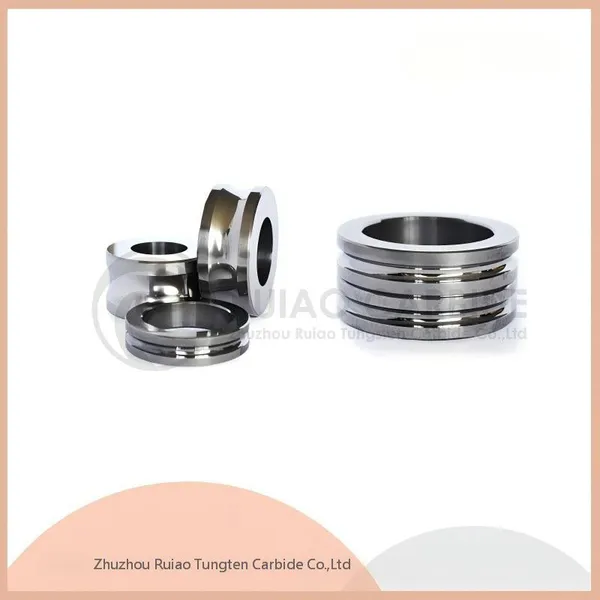

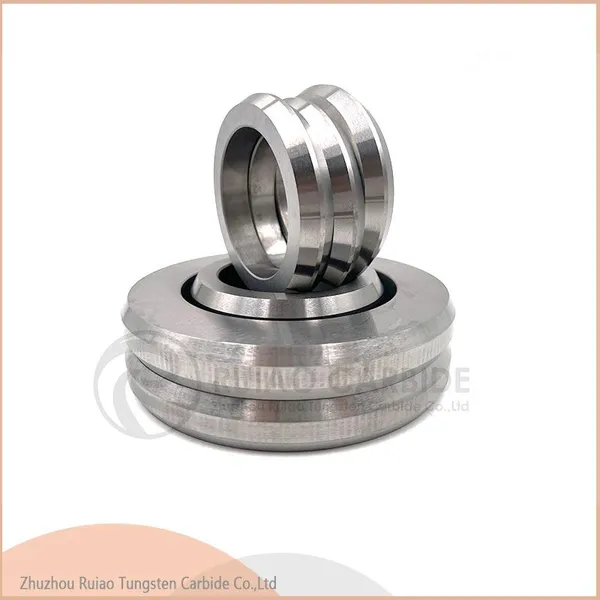

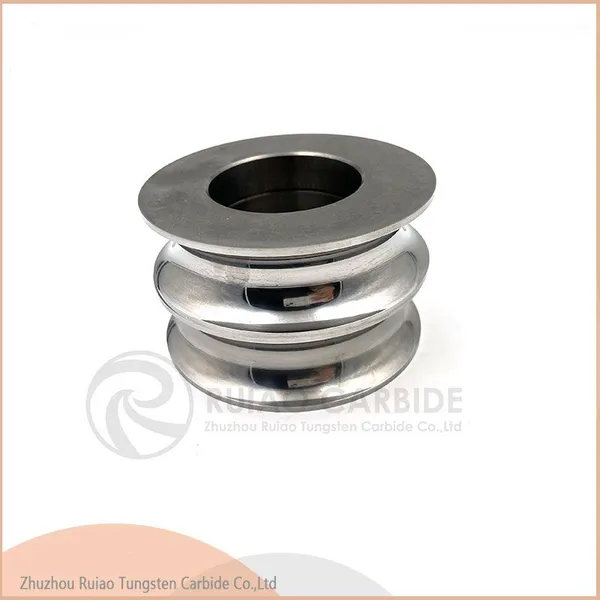

This multi-groove wire guide wheel is made of solid cemented tungsten carbide, precisely machined with multiple R-shaped wire grooves and mirror polished surface. It serves as a core wear-resistant spare part for wire drawing, stranding and cable manufacturing machines, delivering stable wire guiding and extending service life drastically.
2. Material & Craft
Raw Material: High purity tungsten carbide (grades YG6, YG6X, YG8, YG15 optional)
Production Process: Powder metallurgy sintering → Precision internal & external grinding → Ultra-precise groove forming → Mirror polishing
Surface Treatment: Mirror finish, burr-free, smooth inner & outer surface
3. Key Advantages
✅ Extreme wear resistance, service life 5–10 times longer than steel rollers✅ Mirror polished grooves, no scratch or damage to wire surface✅ Low rolling friction, effectively reduce wire breakage and jumping✅ Excellent red hardness, stable performance under high-speed & high-temperature working✅ Multi-groove design supports simultaneous guiding of multiple wires, boost production efficiency✅ Customizable dimension, groove quantity, R-radius, V/U/R groove types
4. Wide Application
Metal wire processing: Steel wire, copper wire, aluminum wire, stainless steel wire drawing & stranding machine
Cable industry: Electric wire, cable, optical fiber sheath production line
Precision metal: Welding wire, spring wire, tungsten & molybdenum fine wire
Other fields: Textile filament, precious metal wire traction, small rolling mill guide rollers
5. Customization Service
We accept full non-standard customization:
Size: Custom outer diameter, inner diameter, thickness
Groove: Adjustable groove number, R radius, V/U/R groove profile
Hardness & Toughness: Match carbide grade per your wire material
Tolerance: Strict dimensional tolerance for precise assembly with bearings & shafts
6. Working Principle
Install the carbide wheel on bearing shaft, route wires into the outer circular grooves. The wheel rotates synchronously with moving wires, converting sliding friction into rolling friction. It stabilizes wire tension and conveying track, avoiding abrasion on both wires and the guide wheel.
