Help CenterMining Copper Concentrate Drying Equipment
Product Spotlights
2.Preheated combustion air
3.Reduced electricity cost
4.Low operating cost
5.Energy-saving burner
6.Heat exchanger integrated
Related Products
Product Description
Our Energy-Saving Copper Concentrate Rotary Dryer System represents the next generation of industrial dewatering solutions, purpose-built to handle high-moisture, high-value non-ferrous sulfide concentrates. Specially designed to process copper, molybdenum, lead, and zinc concentrates, this system addresses the dual challenges of the modern mining industry: maximizing mineral grade preservation while drastically reducing carbon footprints and thermal energy costs.
Unlike conventional high-temperature dryers that cause severe mineral degradation and high fuel bills, this system integrates advanced low-temperature flexible thermal technology with an intelligent waste heat recovery loop. It efficiently reduces wet copper concentrate from an initial moisture level of 10%–18% down to 0.3%–1.2% or below in a single pass. This precise dewatering effortlessly satisfies the stringent feed requirements of downstream flash smelting, reverberatory furnaces, or hydrometallurgical processing plants. Available in single-line processing capacities ranging from 2 to 50 tons per hour (TPH), the entire system is custom-engineered to deliver maximum asset utilization, flawless environmental compliance, and rapid capital payback.
Functional Principle
The system operates on an engineered, low-temperature, counter-current drying thermal matrix designed to maximize heat transfer while strictly protecting the mineral matrix from thermal degradation.
1. Enclosed Sealing & Inclined Feeding

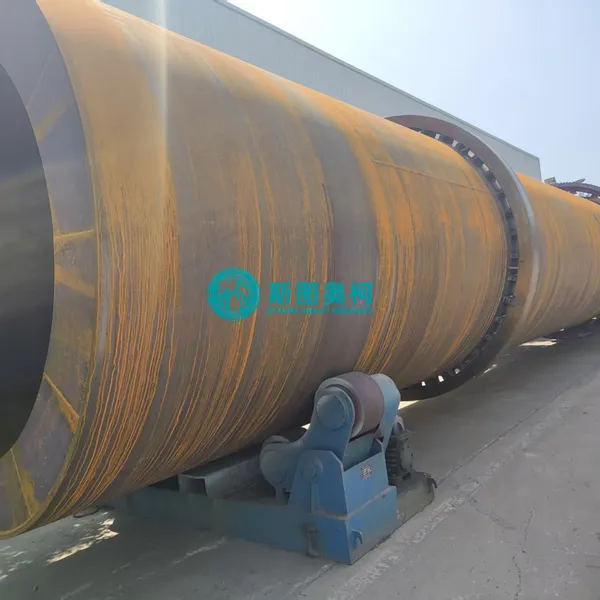

Wet copper concentrate (10%–18% moisture) is introduced uniformly into the heavy-duty rotating drum via an enclosed, variable-frequency belt conveyor or bucket elevator through a specialized mechanical soft-seal inlet. The drum is positioned at a 2° to 4° inclination angle relative to the horizontal axis and rotates at a controlled, low speed of 2 to 7 rpm. Gravity combined with mechanical rotation continuously advances the material from the elevated feed end toward the lower discharge end.
2. Low-Temperature Cascading and the "Material Curtain"
The drum interior is lined with a matrix of fluid-dynamics-optimized flow-guiding lifting flights. As the drum rotates, these flights gently lift and shower the fine copper concentrate grains across the drum's entire cross-section, creating a dense, continuous "material curtain." Medium-to-low temperature hot air (150°C to 400°C) is injected from the opposite end, creating a highly efficient counter-current flow. The thin layering of the material curtain ensures that surface free water and inter-granular moisture rapidly evaporate into water vapor without over-baking the core of the mineral grains.
3. Precision Thermal Modulation
Copper concentrates often carry heavy concentrations of chalcopyrite ($CuFeS_2$), bornite ($Cu_5FeS_4$), and pyrite ($FeS_2$). If exposed to traditional drying temperatures exceeding 500°C, these sulfides undergo rapid thermal oxidation, forming copper oxides, lowering the final copper grade by 2%–5%, and ruining downstream smelting recovery rates.
To prevent this, multi-point thermocouples map out real-time internal thermal distributions. The system automatically executes split-stage temperature curves, keeping the material temperature strictly between 120°C and 380°C—well below the thermal decomposition threshold of sulfide minerals.
4. Dual-Stage Recovery & Exhaust Management
The moisture-laden, spent exhaust gas is pulled from the feed end under continuous micro-negative pressure into a high-throughput cyclone collector for primary coarse particulate capture, followed by a pulse jet baghouse for secondary fine filtration. This achieves a total material recovery rate above 99%. Furthermore, before venting, the spent gas is routed through an integrated heat recovery exchanger to reclaim low-to-medium temperature thermal energy, which is redirected to preheat the incoming material or ambient air, slashing overall fuel metrics.
System Key Features
1. Exceptional Energy Savings & Thermal Efficiency
By utilizing an advanced counter-current thermal design and an optional tail-gas waste heat recycling loop, the comprehensive thermal efficiency of the system reaches 70% to 76%—nearly double the 35% to 45% efficiency of traditional, non-insulated dryers. When running on natural gas, the system consumes only 65 to 90 $m^3$ of gas per ton of evaporated water. For a standard
20 TPH line, this energy reduction translates to saving thousands of dollars daily, allowing operations to achieve complete capital investment payback within 4 to 7 months.
2. Total Copper Grade & Mineral Phase Protection
The low-temperature flexible drying profile ensures zero thermal degradation of high-value sulfides. By mapping out strict multi-stage temperature curves that guarantee processing conditions never spike past 380°C, our system ensures zero copper grade loss. This protects your margins and guarantees that subsequent downstream smelting or leaching recovery yields remain entirely uncompromised.
3. Universal Multi-Fuel & Grid Adaptability
To maintain maximum flexibility across remote mine sites worldwide, the thermal assembly supports six distinct burner configurations:
Natural Gas / LNG
LPG (Liquefied Petroleum Gas)
Diesel
Heavy Oil / Bunker Fuel
Steam Heat Exchangers
Thermal Oil Furnaces
The electrical and control grid architecture is universally engineered, supporting voltages from 220V up to 480V at both 50Hz and 60Hz frequencies, wiring directly into local three-phase grids without needing external step-up transformers.
4. Zero-Leakage & Flawless Environmental Compliance
The drying system runs under continuous micro-negative pressure with advanced soft mechanical seals at all connection joints, completely eliminating fugitive dust emissions within the plant workshop. The dual-stage filtration suppresses final particulate emissions to under 15 mg/$m^3$. For mines high in sulfur, the line can be integrated with a wet or dry flue gas desulfurization (FGD) tower, lowering $text{SO}_2$ emissions below 100 mg/$m^3$ to comfortably clear the strictest regional air quality mandates and the EU Industrial Emissions Directive (IED).
5. Quadruple Wear-Defense Armor
While copper concentrate is softer than raw ore, it is heavily accompanied by highly abrasive quartz gangue (Mohs hardness 7) and pyrite (Mohs hardness 6–6.5). To withstand this harsh scouring wear, our systems are built with a heavy-duty defensive matrix:
Shell Structure: Heavy-duty Q245R or Q345R heat-resistant boiler plate.
Inner Lining: Entire drum lined with high-manganese steel (Mn13) castings.
Lifting Elements: Flights cast from ZGMn13-4 wear-resistant alloy steel.
Impact Zones: Critical high-wear sections armored with 95% alumina ceramic tiles.
This engineering array pushes core component lifespan past 10,000 operational hours, minimizing maintenance downtime.
6. Multi-Language Intelligent PLC Automation
Managed by an advanced Siemens or Mitsubishi PLC paired with a 10-inch or 12-inch industrial touchscreen HMI, the system features true one-touch multi-language toggles (including English, Spanish, Russian, French, and Arabic). Operators simply set the target output moisture and safe temperature thresholds; the automated system independently modulates drum RPM, induced draft air volume, and burner combustion rates in real time, eliminating human error and lowering on-site labor costs.
24-Hour Custom Turnkey Engineering Schemes
Every mining asset features a unique metallurgical footprint. To receive a custom technical proposal and commercial quotation from our engineering team within 24 hours, please provide:
Target Mineral Profiles (Copper, Molybdenum, Lead, Zinc ratios)
Initial vs. Target Final Moisture Content (%)
Hourly or Daily Capacity Requirements (TPH / TPD)
Preferred Fuel / Thermal Energy Type
Local Site Voltage and Frequency Standards
Direct source factory manufacturing, modular containerized shipping, and guaranteed zero middleman markups. Contact us today to schedule an on-site or virtual factory tour!
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
8.
