Product Description
1. Working principle

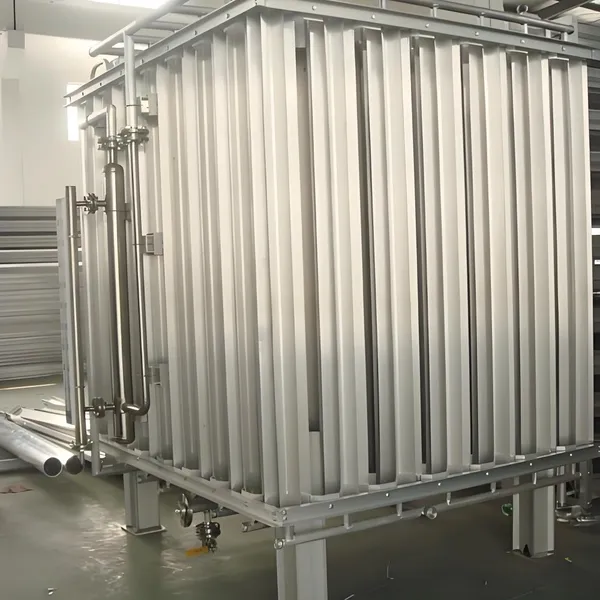

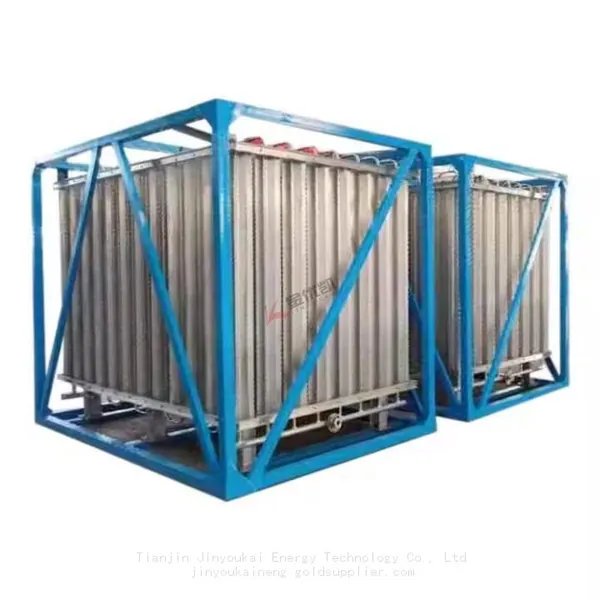

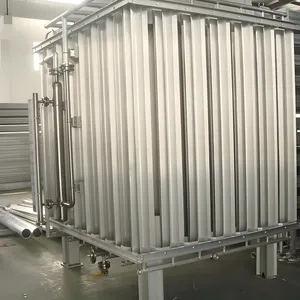

LPG is depressurized by the pressure regulating valve on the vaporizer (usually 0.02 to 0.1Mpa) and then enters the heat exchanger composed of aluminum alloy longitudinal finned tube bundles to absorb heat from the ambient air for vaporization. After passing through the separator, it is input to the gas-consuming end.
The vaporizer should be installed in an unobstructed outdoor environment.
It is a normal phenomenon for local frosting to occur during the operation of an air-cooled vaporizer. There is no need to remove it with external force to avoid damaging the heat pipe bundle. Generally, industrial users who use gas continuously should have a spare vaporizer to work alternately to allow the vaporizer to defrost naturally.

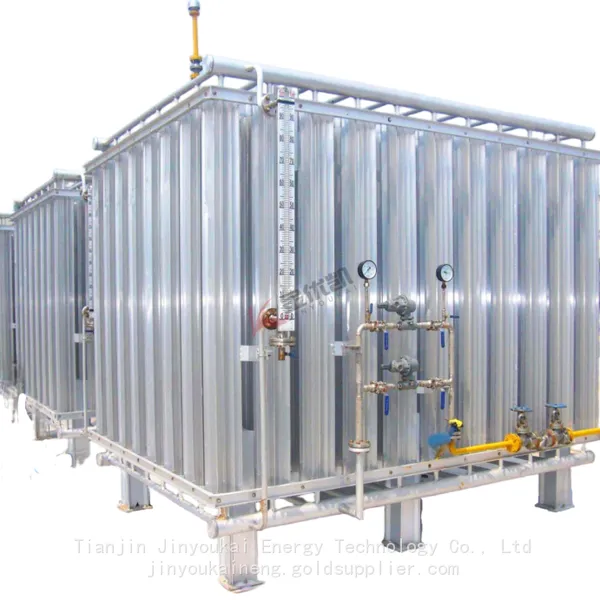

The vaporizer is equipped with a mechanical safety valve and on-site display instruments for inlet and outlet pressure.
2 Technical features
▲The main body is made of low-temperature aluminum alloy welded by argon arc welding, and the surface is treated for anti-corrosion.
▲The anti-overflow device is safe and reliable, and it can also be equipped with a remote early warning system.

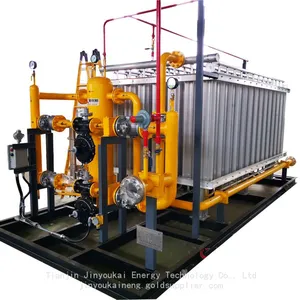

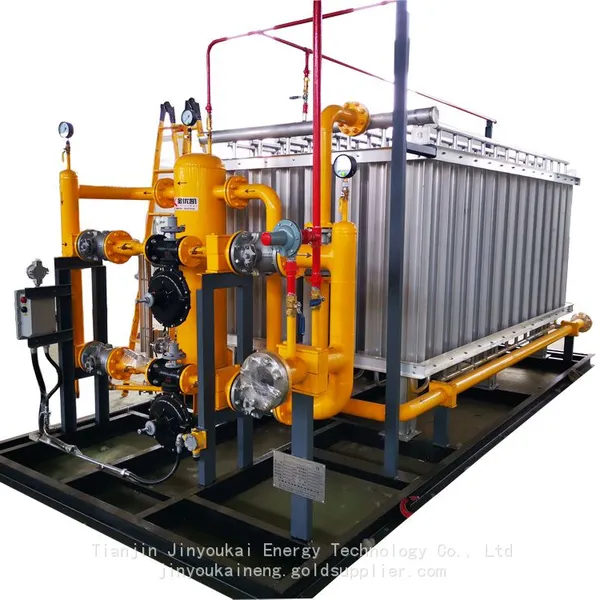

▲The series inlet pressure reducing valve provides dual protection for the output pressure.
▲The safety relief device provides overpressure protection inside the carburetor.
▲All the key components in the equipment are imported products from advanced countries.
▲By absorbing natural heat from the environment to complete gasification, it usually does not require any other energy, significantly reducing operation and maintenance costs and not polluting the environment.
▲Longitudinal low-temperature aluminum alloy finned tubes with wide fin ratio.
▲Super strong beam structure.

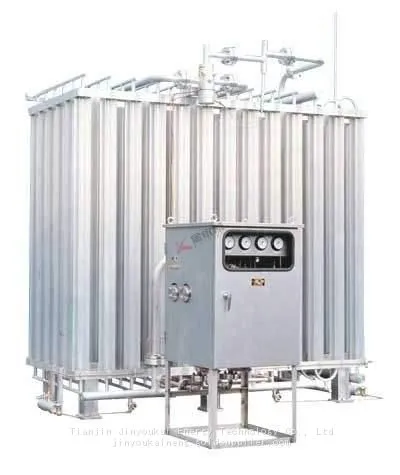

▲All stainless steel instrument box.
▲An enhanced explosion-proof ventilation system can be optionally equipped.
3 Technical parameters
Gasification capacity |
30-2000 Kg/h |
Control mode |
Double pressure regulating valve |
Design pressure |
1.92MPa |
Safe take-off pressure |
0.88MPa（adjustable） |
Safety chain point |
High level remote warning Turn off gas phase exits floa |
