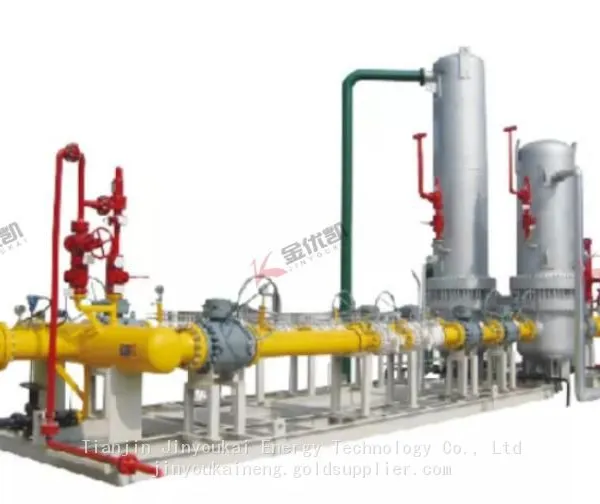

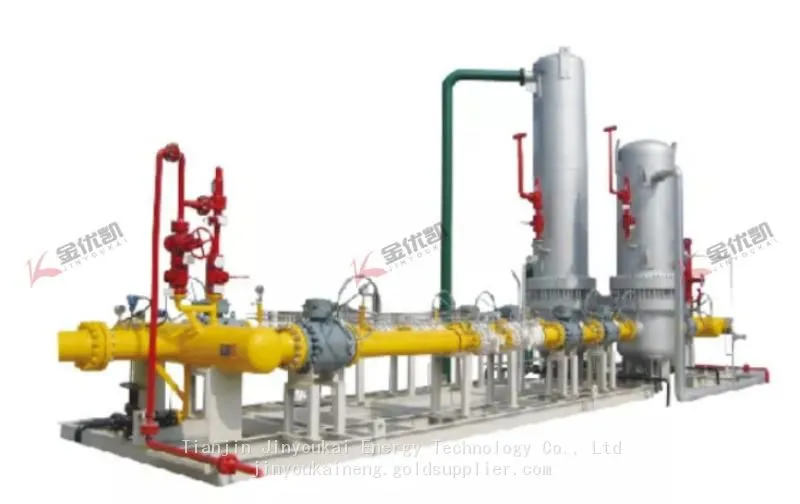

Help CenterTianjin Jinyoukai LPG Vaporizer-Steam Type Vaporizer-Large-scale LPG Vaporization Unit
Product Spotlights
Related Products
-
Tianjin Jinyoukai LPG Vaporizer-LPG Ambient Air Vaporizer-LPG Vaporize Regulating UnitNegotiableMOQ: 1 Set -
Tianjin Jinyoukai LPG Vaporizer-Electrical Heating LPG Vaporizer-LPG Vaporize Regulating UnitNegotiableMOQ: 1 Set
-
Tianjin Jinyoukai LPG Vaporizer-Hot Water Vaporizer-LPG Vaporize Regulating UnitNegotiableMOQ: 1 Set
-
Tianjin Jinyoukai LNG Vaporizer-LNG Ambient Air Vaporizer-LNG Vaporize Regulating UnitNegotiableMOQ: 1 Set
-
Tianjin Jinyoukai Industrial Gas Vaporizer（LO2,LN2,LAr,LCO2,LC2H4,）NegotiableMOQ: 1 Set
Product Description
1. Working Principle
The vaporizer is equipped with a coaxial heat exchange tube bundle. The saturated steam in the inner tube heats the condensate water flowing in the opposite direction in the outer tube during its upward movement. The condensate water in the outer tube then evenly transfers heat to the LPG outside the tube bundle (in the shell side) at a relatively mild temperature. After absorbing heat, the liquid LPG vaporizes and becomes superheated. After passing through the filter to remove the heavy components, it is input into the pipeline network. Steam is usually saturated steam with a pressure of 0.2 to 0.3MPa.
The steam heating series vaporizer adopts a liquid vaporization method. During operation, there is usually a certain level of liquid LPG in the vaporizer. The LPG level will automatically rise and fall to seek to increase or decrease the contact area with the steam tube bundle, thereby adapting to the changes in gas consumption.
2. Technical features
▲A larger heat exchange area than similar products.
▲The equipment can visually display the liquid level and provide a liquid level safety interlock signal.
▲It is equipped with safety interlock protection to prevent liquid leakage.
▲It is equipped with a high-efficiency stainless steel filter screen and a sewage discharge device.
▲Digital intelligent meters make the human-machine dialogue function more convenient.
▲The heat exchange tubes inside the evaporator are made of stainless steel to ensure the service life of the equipment.
3.Technical parameters
Gasification capacity |
1000-50000 Kg/h |
Control mode |
Fully automatic |
Design pressure |
1.92MPa |
Safe take-off pressure |
1.76MPa（adjustable） |
Gasification outlet temperature |
≧30℃ |
The steam pressure |
0.2-0.4MPa (adjustable) |
Safety chain point |
Steam temperature limit LPG liquid level upper limit LPG gas low temperature limit |
Power supply |
220V/50Hz |
We are a company that has been approved by the Ministry of Commerce of China and has obtained the independent right to engage in import and export business.
Jin - Integrity is gold. This is our creed.
You - High-quality products. This is the foundation of our business.
Kai - Kai Le, Innovation. This is our constant pursuit.
