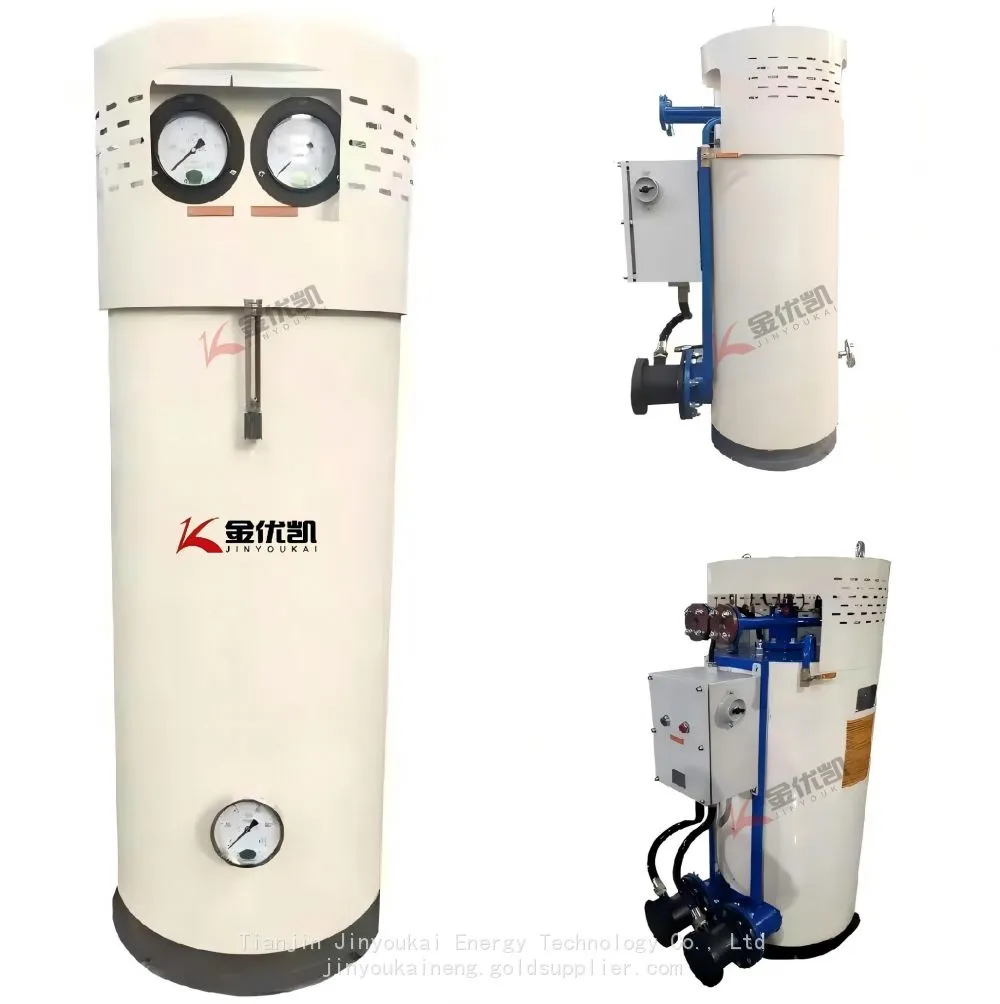

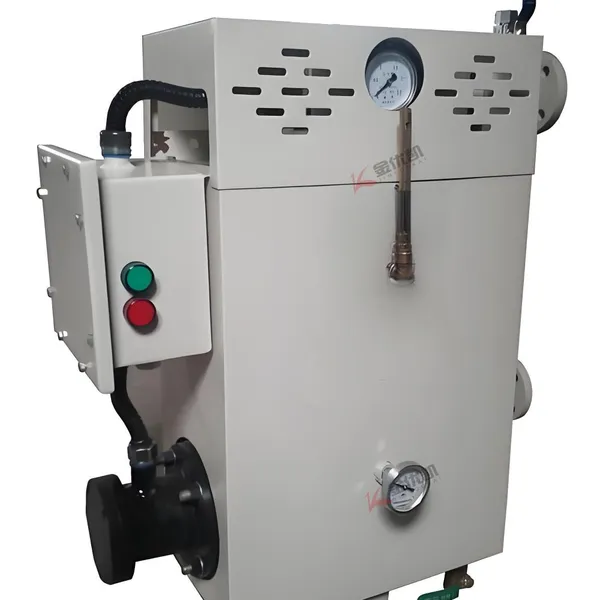

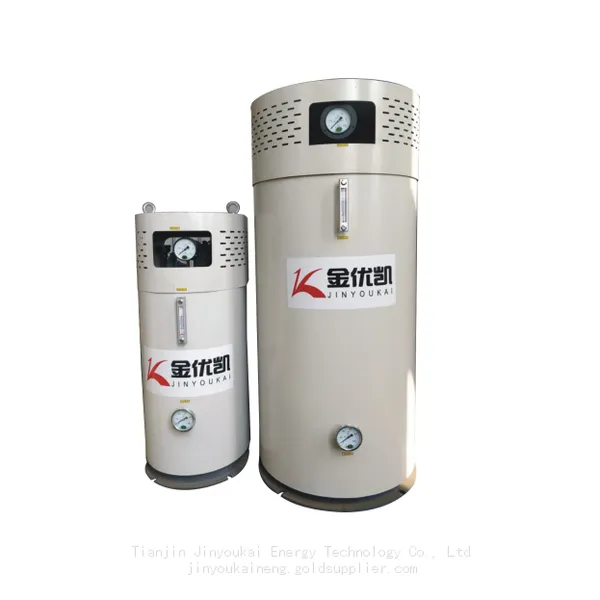

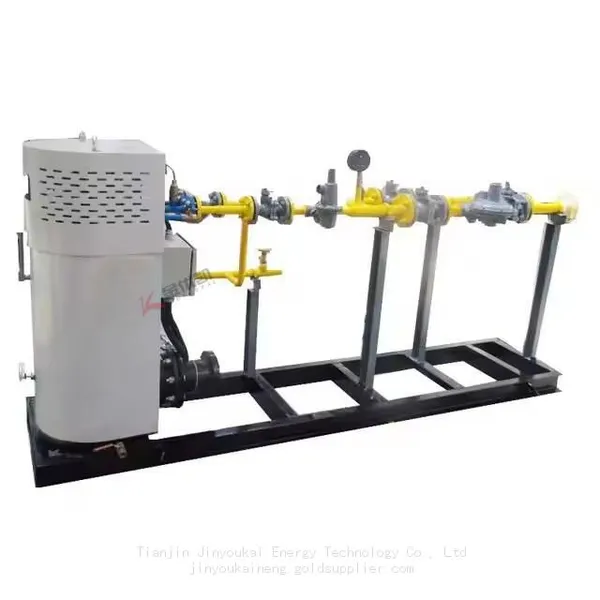

Help CenterTianjin Jinyoukai LPG Vaporizer-Electrical Heating LPG Vaporizer-LPG Vaporize Regulating Unit
Product Spotlights
Related Products
-
Tianjin Jinyoukai LPG Vaporizer-Hot Water Vaporizer-LPG Vaporize Regulating UnitNegotiableMOQ: 1 Set -
Tianjin Jinyoukai LPG Vaporizer-Steam Type Vaporizer-Large-scale LPG Vaporization UnitNegotiableMOQ: 1 Set
-
Tianjin Jinyoukai LPG Vaporizer-LPG Ambient Air Vaporizer-LPG Vaporize Regulating UnitNegotiableMOQ: 1 Set
-
Tianjin Jinyoukai LNG Vaporizer-LNG Ambient Air Vaporizer-LNG Vaporize Regulating UnitNegotiableMOQ: 1 Set
-
Tianjin Jinyoukai Industrial Gas Vaporizer（LO2,LN2,LAr,LCO2,LC2H4,）NegotiableMOQ: 1 Set
Product Description
1. Working principle
LPG passes through stainless steel coils immersed in warm water, absorbs the heat of the warm water, vaporizes and superheats, and is then fed into the pipeline network after passing through the gas-liquid separator.
The heat energy of the warm water is provided by a 1Cr18Ni9Ti stainless steel electric heater, and the water temperature is automatically controlled within the working range set by the user (usually 65±2.5℃) through the cycle start and stop of the electric heater by the instrument on the electric control panel.
When the water level drops below the lower limit point set by the user, the electric heater will stop heating regardless of the water temperature to prevent dry burning. The set pressure of the safety valve on the vaporizer is 1.76Mpa. The vaporizer is equipped with on-site display instruments for water level, water temperature and LPG inlet and outlet pressure.
2. Technical features
▲It is equipped with safety interlock protection to prevent liquid leakage.
▲Both the vaporizer and the heater are made of stainless steel, which extends the service life of the equipment.
▲The spacious heat exchange area is better adapted to various LPGS.
▲It is equipped with interlocking alarms for low temperature, high temperature and low water.
▲Reverse suction sewage discharge ensures more thorough removal of residual liquid.
▲The heat exchange tubes are made of 1Cr18Ni9Ti stainless steel, featuring high heat exchange efficiency.
▲Stainless steel 1Cr18Ni9Ti explosion-proof electric heater.
▲A larger heat exchange area than similar products.
3. Technical parameters
Gasification capacity |
30-2000 Kg/h |
Control mode |
Fully automatic |
Design pressure |
1.92MPa |
Safe take-off pressure |
0.88MPa（adjustable） |
Working water temperature: |
65±2.5℃ (adjustable) |
Safety chain point |
Upper/Lower limit of water temperature Lower limit of water level |
Power supply |
380V/50Hz |
Power |
6—500KW |
We are a company that has been approved by the Ministry of Commerce of China and has obtained the independent right to engage in import and export business.
Jin - Integrity is gold. This is our creed.
You - High-quality products. This is the foundation of our business.
Kai - Kai Le, Innovation. This is our constant pursuit.
