Heavy-Duty Gold Ore Rotary Dryer — Product Manual
Product Description
We are a heavy-duty gold ore rotary dryer R&D and manufacturing factory based in Zhengzhou, China. We possess over 18 years of experience in the research, development, manufacture, and export of precious metal and non-ferrous metal beneficiation drying equipment. Our factory covers an area of more than 60,000 square meters and is fully equipped with a complete range of production processing and quality inspection instrumentation—including CNC plasma cutting machines, automated welding robots, large-scale CNC lathes, dynamic balancing testers, ultrasonic non-destructive testing (NDT) flaw detectors, and Coordinate Measuring Machines (CMM)—yielding an annual production capacity of over 350 sets.
As a direct source manufacturer, we deal directly with global large-scale gold mining enterprises, mineral processing groups, precious metal smelters, and mining EPC contractors to provide full-chain, one-stop services encompassing customized scheme design, equipment manufacturing, installation, commissioning, and lifetime maintenance. By completely bypassing middleman trading brokers, our factory-direct pricing is 20% to 35% lower than commercial suppliers, while offering highly controllable lead times and immediate after-sales response.
Our flagship heavy-duty gold ore rotary dryer is purpose-built for large-scale gold processing plants and centralized dry-separation circuits. With single-line processing capacities spanning from 5 to 80 tons per hour (TPH), the system efficiently dries wet raw gold ore with an initial moisture content of 15% to 35% down to 0.5% to 2% or below in a single pass. This precise drying performance fully satisfies the strict moisture thresholds required for downstream large-scale crushers, ball mills, flotation banks, or gravity separation chutes.
The main shell of the equipment is fabricated from high-strength Q245R heat-resistant boiler steel or Q345R alloy steel, while the drum interior and lifting flights are cast as single pieces from high-manganese steel (Mn13). To counter the high hardness and severe abrasiveness of associated minerals commonly found in raw gold veins—such as quartz gangue (Mohs hardness 7), pyrite (Mohs hardness 6–6.5), and arsenopyrite—critical impact zones are reinforced with an additional 95% alumina ceramic tile or silicon carbide (SiC) protective layer, extending total wear life past 12,000 operational hours.
The heat source system natively supports eight thermal options: natural gas burners, diesel burners, liquefied petroleum gas (LPG) burners, heavy oil burners, steam heat exchangers, thermal oil furnaces, and electrical heating elements, allowing clients to select the most economical local energy source based on local fuel pricing and environmental mandates. The electrical control assembly features a high-end Siemens S7-1500 or Mitsubishi Q-series PLC paired with a 12-inch Weinview touchscreen HMI. The user interface supports instant multi-language switching—including English, Russian, French, Spanish, and Arabic—ensuring barrier-free daily operation for crews worldwide.
We are fully audited and certified under ISO9001 Quality Management Systems, ISO14000 Environmental Management Systems, CE (EU safety standards), and SGS factory audits. Our machinery has been successfully deployed across more than 50 countries and regions—including Africa (Ghana, Tanzania, Mali, Burkina Faso, Sudan, South Africa), Central Asia (Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan), Southeast Asia (Indonesia, Philippines, Laos, Myanmar, Vietnam), South America (Peru, Colombia, Ecuador, Brazil, Guyana, Suriname), Oceania (Papua New Guinea, Fiji), Russia, Mongolia, and Turkey—serving over 1,500 overseas clients and accumulating a vast repository of engineering cases and operational data in the heavy-duty gold drying field. We supply a comprehensive documentation package for international customs—including commercial invoices, packing lists, certificates of origin, CE/ISO certificates, SGS inspection reports, and fumigation certificates—to guarantee seamless clearance at your destination port.
Functional Principle
Wet raw gold ore with an initial moisture content of 15% to 35% is introduced uniformly into the slightly inclined, heavy-duty rotating drum via a specialized front-end heavy-duty apron feeder or robust belt conveyor through a sealed feed inlet. The drum is configured at a 2° to 5° inclination angle relative to the horizontal axis and rotates slowly at an adjustable speed of 1.5 to 6 rpm. This geometry leverages the joint forces of gravity and mechanical rotation to continuously advance the ore from the elevated feed end toward the lower discharge end.
The interior of the drum features multiple sets of specialized, fluid-dynamics-optimized heavy-duty hybrid lifting flights. Because raw gold ore carries high concentrations of quartz gangue and sulfide minerals, it displays extreme hardness and abrasiveness while exhibiting highly fluctuating moisture levels, which can cause standard lifting flights to crack or break prematurely. Our heavy-duty flights are cast as single pieces from ZGMn13-4 wear-resistant alloy steel and reinforced with a 95% alumina ceramic protective layer. During the lifting cycle, they provide aggressive mechanical grooming and agitation, continuously shattering agglomerated ore clumps and cascading the material downward to form a highly dense, uniform "material curtain" across the drum's entire cross-section. This layout maximizes the heat exchange area exposed to the high-temperature air, forcing surface free water and inter-granular moisture to evaporate rapidly into water vapor.
The high-temperature hot air generated by the heat source (ranging from 200°C to 750°C, precisely modulated based on mineralogy) is injected from the discharge end, creating an efficient counter-current heat exchange layout where the airflow moves opposite to the material path. The hottest air first contacts the driest ore right before discharge, while the cooler, spent air handles the incoming high-moisture wet material. This ensures that thermal energy is utilized to its full potential, pushing comprehensive thermal efficiency to 72% to 80% and drastically reducing fuel consumption. Sulfide minerals within gold ores, such as pyrite and arsenopyrite, are highly sensitive to thermal exposure. Excessive temperatures can trigger premature thermal oxidation or decomposition, which severely damages downstream flotation or cyanide leaching recovery rates. Our intelligent PLC system maps out real-time thermal distributions via multi-point thermocouples, automatically executing strict multi-stage temperature curves to avoid localized overheating, preserve the mineral phase matrix, and completely protect your final beneficiation yields.
The humid, dust-laden exhaust gas is pulled continuously from the feed end into a high-efficiency dual-stage filtration network: a high-throughput cyclone dust collector first intercepts large particles and coarse ore dust, followed by a pulse baghouse dust collector for secondary fine filtration. The single greatest hidden cost in raw gold ore drying is the loss of micro-fine gold particulates within the exhaust stream. Traditional dryers suffer a dust escape rate of 5% to 10%, meaning a loss of several grams or even dozens of grams of gold fines for every 100 tons processed. Our system completely resolves this through a fully enclosed micro-negative pressure environment paired with a dual-stage cyclone + pulse baghouse filtration setup. This suppresses final particulate emissions below 15 mg/m³. All captured fines are continuously recycled back into the finished product stream via an integrated screw conveyor, achieving an outstanding total material recovery rate above 99% to eliminate precious metal loss and directly protect your financial yields.
The thoroughly dried gold ore is continuously evacuated from the outlet via a sealed heavy-type star discharge valve, with an optional secondary cooling drum available to rapidly drop material temperatures for immediate automated downstream ball milling or storage. The entire drying cycle occurs under a continuous micro-negative pressure environment, completely preventing dust leaks while protecting the material inside from external dust contamination.
Product Features
Heavy-Duty Engineering: Built for Large-Scale Mining Concessions

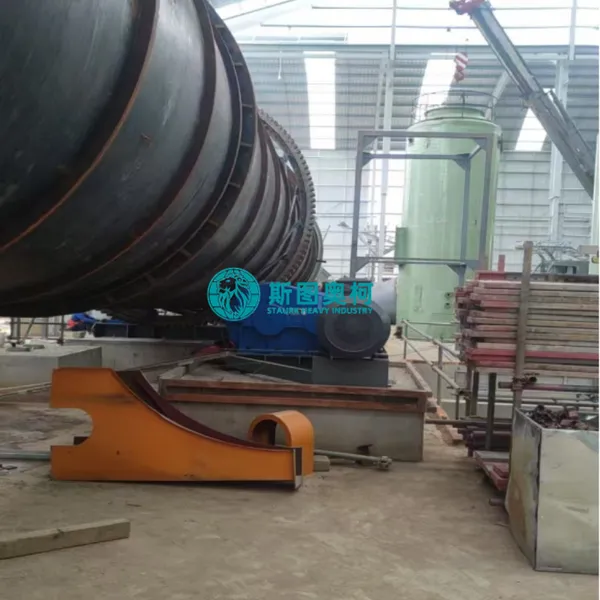

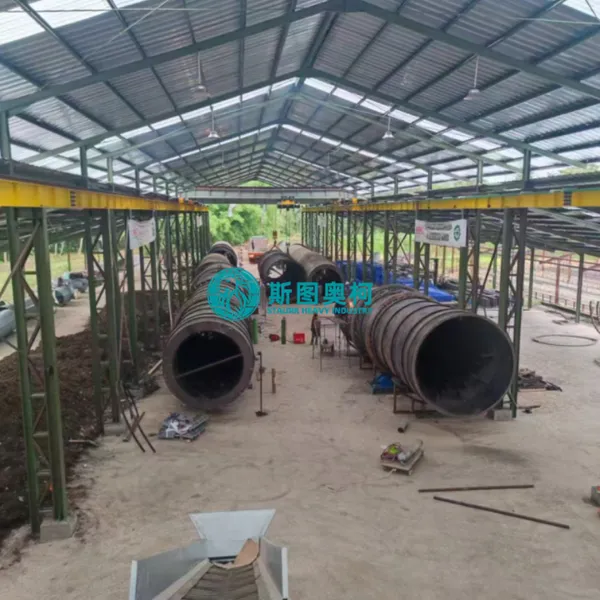

Purpose-built for large-scale gold processing plants handling over 500 tons per day, our drums feature diameters ranging from 2.2 meters to 3.6 meters and lengths from 14 meters to 28 meters, effortlessly scaling single-line capacities from 5 TPH to 80 TPH. Fabricated from thick Q245R or Q345R boiler steel with a shell wall thickness of 18 mm to 30 mm and driven by massive powertrain setups of 75 kW to 315 kW, the line utilizes imported SKF or FAG heavy-duty spherical roller bearings to clear the harsh requirements of continuous 24/7 mine-site operation. The system integrates seamlessly with upstream crushing grids and downstream flotation circuits to establish a fully automated processing line.
Five-Fold Wear-Defense Matrix: Industry-Leading Service Life
With quartz gangue at a Mohs hardness of 7 and pyrite at 6 to 6.5, raw gold ore is brutally abrasive. To combat this extreme mechanical wear, our equipment is built with a heavy-duty Five-Fold Wear-Defense Matrix:
First Layer: Main structural shell fabricated from heavy-duty Q245R heat-resistant boiler steel.
Second Layer: Drum inner wall entirely lined with high-manganese steel (Mn13) castings.
Third Layer: Internal lifting flights cast from ZGMn13-4 wear-resistant alloy steel.
Fourth Layer: High-impact zones additionally armored with 95% alumina ceramic tiles.
Fifth Layer: Inlet/outlet chutes and sealing sections shielded with a silicon carbide (SiC) composite layer.
This engineering matrix pushes the operational lifespan of core components past 12,000 hours—extending service life by 3 to 4 times compared to conventional carbon steel units and drastically lowering downtime and maintenance overheads.
Zero-Gold-Loss Recovery System: Saving Hundreds of Thousands of Dollars Annually
The single greatest hidden cost in large-scale gold ore drying is the loss of micro-fine gold particulates within the exhaust stream. For a site processing 1,000 TPD of 20% moisture ore, standard dryers lose 10 to 50 grams of gold fines daily, translating into hundreds of thousands or even millions of dollars lost annually at current gold prices. Our system completely resolves this through a fully enclosed micro-negative pressure environment paired with a dual-stage cyclone + pulse baghouse filtration setup. By suppressing final particulate emissions below 15 mg/m³ and routing all captured fines back into the finished stream, we ensure a total material recovery rate above 99%—fundamentally protecting your bottom line.
Intelligent Temperature Controls to Protect Flotation Yields
Sulfide minerals such as pyrite and arsenopyrite are highly sensitive to thermal exposure; excessive heat triggers premature oxidation, which severely degrades downstream flotation recovery rates. Integrated multi-point thermocouples map out real-time thermal distributions across internal drum zones, keeping the material discharge temperature accurate to within ±5°C. Our intelligent PLC system automatically executes strict multi-stage temperature curves to completely prevent localized overheating, protecting the mineral phase matrix and ensuring your final flotation or cyanide leaching yields remain completely unaffected by the drying process.
Universal Grid & Multi-Fuel Adaptability
The thermal assembly natively supports eight burner configurations (natural gas, diesel, LPG, heavy oil, steam, thermal oil, and electrical heating), allowing operators to pivot based on local fuel availability and market pricing. Furthermore, the electrical control architecture is engineered for universal compatibility, accommodating voltage standards including 220V, 380V, 415V, 440V, and 480V at both 50Hz and 60Hz frequencies, wiring directly into your local mine-site grid without requiring expensive external step-up/step-down transformers.
Multi-Language Automation & Zero-Gate Operation
Managed by an advanced Siemens S7-1500 or Mitsubishi Q-series PLC coupled with a 12-inch Weinview touchscreen HMI, the control interface supports one-touch language toggles for English, Russian, French, Spanish, and Arabic. Operators simply input the target output moisture and temperature, and the system independently modulates the drum speed, air volume, and combustion rate without requiring ongoing human intervention. Field operators can be fully trained for independent daily operation in under two hours, significantly lowering your expatriate labor costs.
Modular Containerized Shipping for Simplified Logistics
Thanks to its pre-engineered modular architecture, the system cleanly breaks down into six main functional modules: feeding, drying, discharging, heat source, filtration, and electrical control. Each module is securely crated in export-grade wooden cases and consolidated into 2 to 3 40-foot high-cube (40HQ) shipping containers. This modular block layout slashes ocean freight costs, simplifies port handling, and enables local field crews to complete full on-site assembly and commissioning within 7 to 10 days of port arrival. We work closely with leading global freight forwarders to support flexible FOB, CIF, or DDP shipping terms with end-to-end container tracking.
Quadruple International Certification for Global Compliance
The entire manufacturing sequence is fully certified and verified under CE (EU safety standards), ISO9001 Quality Management Systems, ISO14000 Environmental Management Systems, and SGS factory audits. Every critical structural weld undergoes non-destructive ultrasonic flaw detection (NDT), the drum assembly undergoes high-precision dynamic balancing verification, and every line completes a mandatory factory test run consisting of a minimum 72-hour continuous full-load test prior to packaging. We supply a comprehensive documentation package for international customs—including commercial invoices, packing lists, certificates of origin, CE/ISO certificates, SGS inspection reports, and fumigation documents—to ensure seamless clearance at your destination port.
7x24 Global Technical Support with 48-Hour Resolution
We maintain four permanent overseas after-sales service hubs equipped with resident field engineers and stocked spare part warehouses across major mining centers: Africa (Ghana, Tanzania), Central Asia (Kazakhstan), Southeast Asia (Indonesia, Philippines), and South America (Peru). Clients receive dedicated 7x24 technical support via WhatsApp, email, and live remote video diagnostic tools. The drying line includes a comprehensive 12-month warranty on the entire machine, alongside an extended 24-month warranty on core powertrain components. We maintain a 2-hour response window for technical inquiries, provide an engineered resolution path within 48 hours, and can dispatch field service engineers to your site within 72 hours for critical field emergencies.
Cross-Material Versatility Boosts Asset Utilization
Beyond gold ore, the system’s operational parameters are highly adaptable and fully compatible with copper, silver, lead-zinc, iron, manganese, and molybdenum ores, as well as non-metallic aggregates such as river sand and mineral powders. Switching between materials is highly simplified: operators only need to recalibrate the drum speed, temperature, and airflow parameters via the touchscreen—no core mechanical modifications required. For multi-mineral mining concessions, a single asset satisfies your entire processing footprint, maximizing equipment utilization and accelerating your return on investment.
Advanced Energy Conservation and Low Utility Costs
Our counter-current drying technology ensures a thermal efficiency rate between 72% and 80%. When configured with natural gas, the energy consumption required to evaporate 1 ton of water is compressed to just 65 to 95 m³. Operating at a 30 TPH capacity with an initial moisture drop from 22% down to a final 1.5%, the system removes roughly 6.2 tons of water per hour, consuming approximately 400 to 590 m³ of natural gas—driving utility metrics far lower than traditional dryers and yielding a complete capital investment payback period typically within 5 to 8 months. Large-scale projects can also be fitted with an optional waste heat recovery system to preheat incoming fresh material using exhaust heat, driving utilities down an additional 10% to 15%.
Environmental Compliance for Seamless Permitting
The system operates under a continuous micro-negative pressure environment, utilizing flexible mechanical seals at both the inlet and outlet junctions to completely eliminate dust leaks into your facility. Working in tandem with our dual-stage cyclone + pulse baghouse filtration, final particulate emissions are suppressed below 15 mg/m³, while SO2 and NOx emissions easily clear strict local air quality mandates and the EU Industrial Emissions Directive (IED). We have helped over 250 overseas mining operations successfully clear local environmental impact assessments (EIA) by providing complete technical data sheets and emissions verification reports.
Core Competitive Advantage Comparison
Compared to standard market alternatives, our heavy-duty gold ore drying system completely outperforms the competition across critical pillars:
In terms of fine gold recovery, conventional dryers achieve only 90% to 94%, letting a massive volume of fine gold escape into the atmosphere; our equipment reaches 99% or above through a fully enclosed, closed-loop collection cycle that leaves almost zero room for loss.
In terms of component lifespan, standard dryers last between 3,000 and 5,000 hours using standard carbon steel or basic alloy materials; our equipment reaches 12,000 hours or more due to our integrated Five-Fold Wear-Defense Matrix.
In terms of comprehensive heat efficiency, common alternatives sit at 35% to 45% due to basic co-current designs without heat recovery; our line pushes efficiency to 72% to 80% through advanced counter-current thermal engineering and heat recovery layout.
In terms of processing scale, the industry standard maxes out at 10 to 20 TPH for single lines; our system ranges from 5 to 80 TPH, delivering unmatched processing depth.
In terms of field setup, common units take 30 to 60 days to assemble, relying heavily on extensive field welding; our modular block design can be completely commissioned on-site within 7 to 10 days under plug-and-play engineering.
In terms of final moisture distribution, typical market deviations float between plus or minus 1.5% and 2.5%; our automation setup locks the deviation within an ultra-precise margin of plus or minus 0.3% or below.
In terms of applicable ore profile, standard models fail when material exceeds a Mohs hardness of 5; our heavy-duty design effortlessly processes quartz-heavy raw ores with a Mohs hardness of up to 7.
In terms of electrical engineering, basic dryers only support a single regional voltage; our system features universal grid compatibility, accommodating a 220V to 480V range at both 50Hz and 60Hz.
In terms of international quality compliance, standard products lack verified export testing or hold a single domestic certification; our machinery carries a comprehensive quadruple compliance framework covering CE, ISO9001, ISO14000, and SGS verification.
Factory-Direct Price Protection
By dealing directly with an authentic source manufacturer, you completely eliminate the 20% to 35% markups typically added by trading companies, agents, and distributors. Every dollar of your investment goes straight into heavy-duty metallurgy, high-end electronics, and structural longevity.
Lead Times & Quality Assurance
While the industry average for custom heavy-duty mineral drying machinery spans 60 to 90 days, our factory-wide optimization allows us to dispatch standard configurations within 15 days and deliver heavily customized setups within 30 to 45 days. To guarantee absolute reliability in the world’s most remote mining regions, every single drying system undergoes a mandatory 72-hour continuous full-load factory test run before it leaves our loading docks.
Get a Custom Engineering Proposal Within 24 HoursPlease share your ore type (gold, silver, copper, lead-zinc, etc.), initial moisture content, target final moisture, hourly or daily processing capacity, preferred fuel type, site dimensions, and local voltage standard. Our engineering team will deliver a comprehensive technical proposal and commercial quotation within 24 hours. Factory direct supply with zero middleman markups—contact us today to schedule your factory visit!
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
