We are a professional research, development, and manufacturing factory for precious metal concentrate drying equipment located in Zhengzhou, China. We possess over 16 years of experience in the R&D, manufacture, and export of drying equipment for precious metal and non-ferrous metal concentrates, including gold, silver, and copper concentrates. Our production base spans over 55,000 square meters and is fully equipped with a comprehensive suite of production processing and quality inspection machinery—including CNC plasma cutting machines, automated welding robots, large-scale CNC lathes, dynamic balancing testers, ultrasonic non-destructive testing (NDT) flaw detectors, and Coordinate Measuring Machines (CMM)—achieving an annual production capacity of over 300 sets.
As a direct source manufacturer, we serve global gold mining enterprises, precious metal smelters, mining contractors, and trading brokers with full-chain, one-stop services encompassing customized scheme design, equipment manufacturing, installation, commissioning, and lifetime maintenance. By completely bypassing intermediate middleman markups, our factory-direct pricing is 20% to 35% lower than commercial suppliers, while offering highly controllable lead times and immediate after-sales response.

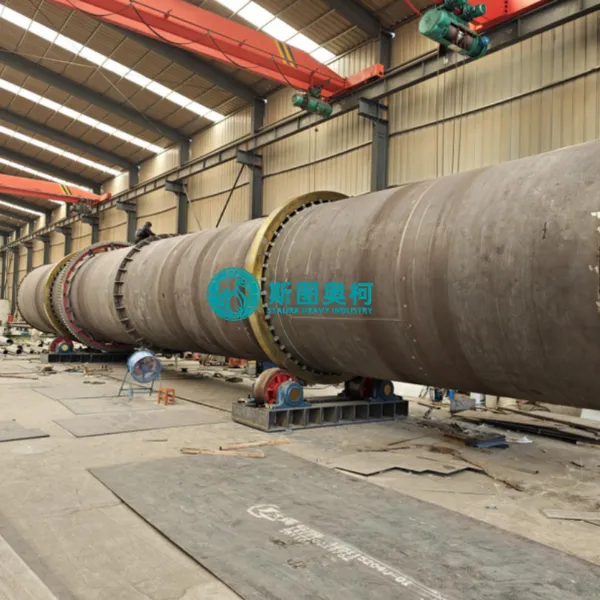

Our flagship high-efficiency gold concentrate rotary dryer is engineered specifically for the deep dewatering and drying of precious and non-ferrous metal concentrates, including gold, silver, copper, lead, and zinc concentrates. Gold concentrate differs fundamentally from raw run-of-mine ore: it features an ultra-fine particle size (typically with over 60% passing through a -200 mesh), high moisture retention (12% to 25%), high stickiness, and heavy specific gravity. Furthermore, because it is heavily enriched with precious metal particulates, any dust escaping the system represents a direct, substantial financial loss.
Our equipment efficiently processes wet concentrate with 12% to 25% moisture down to 0.3% to 1.5% or below in a single pass, fully satisfying the strict feed-moisture thresholds required by downstream cyanide leaching, hydrometallurgical processing, pyrometallurgical smelting, or refining. Single-line processing capacities span from 1 to 60 tons per hour (TPH), and we provide extensive non-standard customization to align perfectly with the operational scales of small flotation plants up to massive centralized smelting conglomerates.
The main shell of the equipment is fabricated from high-strength Q245R heat-resistant boiler steel or Q345R alloy steel, while the drum interior and lifting flights are cast as single pieces from high-manganese steel (Mn13). To counter the fine, sticky, and clumping-prone nature of gold concentrate, we have developed a proprietary comb-tooth + lifting-plate hybrid flight geometry. This structure provides aggressive mechanical grooming and agitation during the lifting cycle, effectively preventing material from clumping or sticking to the drum walls, and keeping the final moisture distribution variance strictly within a tight ±0.3% margin.
To withstand highly abrasive associated minerals like pyrite and quartz (which feature a Mohs hardness of 6 to 7), critical impact zones are reinforced with an additional 95% alumina ceramic tile or silicon carbide (SiC) protective layer, extending total wear life past 10,000 operational hours. The combustion system natively supports seven thermal options: natural gas burners, diesel burners, liquefied petroleum gas (LPG) burners, heavy oil burners, steam heat exchangers, thermal oil furnaces, and electrical heating elements, allowing clients to select the most economical local energy source based on regional fuel pricing and environmental mandates. The electrical control assembly features a high-end Siemens S7-1500 or Mitsubishi Q-series PLC paired with a 12-inch Weinview touchscreen HMI. The user interface supports instant multi-language switching—including English, Russian, French, Spanish, and Arabic—ensuring barrier-free daily operation for crews worldwide.
We are fully audited and certified under ISO9001 Quality Management Systems, ISO14000 Environmental Management Systems, CE (EU safety standards), and SGS factory audits. Our machinery has been successfully deployed across more than 50 countries and regions—including Africa (Ghana, Tanzania, Mali, Burkina Faso, Sudan, South Africa), Central Asia (Kazakhstan, Uzbekistan, Kyrgyzstan), Southeast Asia (Indonesia, Philippines, Laos, Myanmar, Vietnam), South America (Peru, Colombia, Ecuador, Brazil, Guyana), Oceania (Papua New Guinea, Fiji), Russia, Mongolia, and Turkey—serving over 1,400 overseas clients and accumulating a vast repository of engineering cases and operational data in the precious metal concentrate drying field. We supply a comprehensive documentation package for international customs—including commercial invoices, packing lists, certificates of origin, CE/ISO certificates, SGS inspection reports, and fumigation certificates—to guarantee seamless clearance at your destination port.
Functional Principle
Wet concentrate with an initial moisture content of 12% to 25% is introduced uniformly into the slightly inclined rotating drum via a specialized front-end enclosed screw feeder or rotary star feeder designed specifically for fine-grained particulates. The drum is configured at a 2° to 4° inclination angle relative to the horizontal axis and rotates slowly at an adjustable speed of 1.5 to 6 rpm. This geometry leverages the joint forces of gravity and mechanical rotation to continuously advance the concentrate from the elevated feed end toward the lower discharge end.
The interior of the drum features multiple sets of specialized, fluid-dynamics-optimized comb-tooth + lifting-plate hybrid lifting flights. Because fine gold concentrate is highly sticky, standard lifting flights quickly fail due to material clumping and wall-sticking, which leads to uneven drying, localized overheating, and eventual material bridging that halts production. Our specialized hybrid flights provide aggressive mechanical grooming and agitation during the lifting cycle, continuously shattering agglomerated concentrate clumps and cascading the material downward to form a highly dense, uniform "material curtain" across the drum's entire cross-section.
This layout maximizes the heat exchange area exposed to the high-temperature air, forcing surface free water and inter-granular moisture to evaporate rapidly into water vapor and vent out alongside the airflow. Thanks to this specialized flight geometry, even sticky concentrates with a moisture level as high as 25% are completely processed without any clumping or wall-sticking issues, holding final moisture variance strictly within ±0.3%.
The high-temperature hot air generated by the heat source (ranging from 150°C to 550°C, precisely modulated based on concentrate mineralogy) is injected from the discharge end, creating an efficient counter-current heat exchange layout where the airflow moves opposite to the material path. The hottest air first contacts the driest concentrate right before discharge, while the cooler, spent air handles the incoming high-moisture wet material. This ensures that thermal energy is utilized to its full potential, pushing comprehensive thermal efficiency to 72% to 78% and drastically reducing fuel consumption. Sulfide minerals within gold concentrates, such as pyrite ($FeS_2$) and arsenopyrite ($FeAsS$), are highly sensitive to thermal exposure. Excessive temperatures can trigger premature thermal oxidation or decomposition, which severely damages downstream flotation or cyanide leaching recovery rates. Our intelligent PLC system maps out real-time thermal distributions via multi-point thermocouples, automatically executing strict multi-stage temperature curves to avoid localized overheating, preserve the mineral phase matrix, and completely protect your final beneficiation yields.
The humid, dust-laden exhaust gas is pulled continuously from the feed end into a high-efficiency dual-stage filtration network: a high-throughput cyclone dust collector first intercepts large particles and coarse concentrate dust, followed by a pulse baghouse dust collector for secondary fine filtration. The single greatest economic risk in gold concentrate drying is the loss of micro-fine precious metal particulates within the exhaust stream—every single escaping dust grain can carry micrograms or even milligrams of gold. Our system completely resolves this through a fully enclosed micro-negative pressure environment paired with a dual-stage cyclone + pulse baghouse filtration setup. This suppresses final particulate emissions below 12 mg/m³. All captured fines are continuously recycled back into the finished product stream via an integrated screw conveyor, achieving an outstanding total material recovery rate above 99.5% to eliminate precious metal loss and directly protect your financial yields.
The thoroughly dried gold concentrate is continuously evacuated from the outlet via a sealed star discharge valve, with an optional secondary cooling drum available to rapidly drop material temperatures for immediate automated downstream cyanide leaching, smelting, or packaging storage. The entire drying cycle occurs under a continuous micro-negative pressure environment, completely preventing dust leaks while protecting the material inside from external dust contamination.
Product Features
High-Efficiency Deep Dewatering: Engineered for Concentrate Conditions
Purpose-built for the deep dewatering of high-value precious metal concentrates like gold and silver, this system achieves a comprehensive thermal efficiency of 72% to 78%, far exceeding the industry average of 35% to 45%. When operating on natural gas, the energy consumption required to evaporate 1 ton of water is compressed to just 65 to 95 m³. For a 20 TPH capacity setup dropping moisture from 18% down to a final 1%, the system removes roughly 3.2 tons of water per hour, consuming approximately 210 to 300 m³ of natural gas—driving utility metrics far lower than traditional dryers and yielding a complete capital investment payback period typically within 5 to 8 months. Large-scale projects can also be fitted with an optional waste heat recovery system to further reduce energy consumption by 10% to 15%.
Comb-Tooth Hybrid Flights: Overcoming Clumping and Wall-Sticking
Unlike raw ore, fine gold concentrate is highly prone to clumping and wall-sticking, which is recognized as the single greatest technical hurdle in the concentrate drying industry. Standard lifting flights handling high-moisture gold concentrate lead to severe material bridging and localized baking, requiring operations to shut down for hours of manual cleaning. Our specialized comb-tooth + lifting-plate hybrid flights provide aggressive mechanical grooming, continuously slicing and agitating the sticky concentrate grains to ensure every particle achieves uniform exposure to the hot air. This keeps final moisture distribution variance strictly within a tight ±0.3% margin—a benchmark technical achievement backed by 16 years of specialization that low-cost alternatives cannot replicate.
Zero Precious Metal Loss: Material Recovery Rate Above 99.5%
The primary economic hazard in gold concentrate drying is not energy consumption, but rather the loss of fine precious metal particulates within the exhaust stream. With over 60% of the material passing a -200 mesh, standard market dryers suffer a dust escape rate of 5% to 10%—meaning a loss of kilograms of precious metals for every 100 tons processed. Our system mitigates this through a fully enclosed micro-negative pressure environment paired with a dual-stage cyclone + pulse baghouse filtration setup. By suppressing final particulate emissions below 12 mg/m³ and routing all captured fines back into the finished stream, we ensure a total material recovery rate above 99.5%. For a plant processing 50 TPD of 15% moisture concentrate, this closed-loop architecture prevents the loss of substantial amounts of gold fines daily, saving clients hundreds of thousands or even millions of dollars annually compared to conventional dryers.
Source Factory Direct Pricing with Zero Middleman Markups
Because you buy directly from our production facility without brokers, trading companies, or agents, our factory-direct price is exactly your final price, yielding a savings of 20% to 35% lower than commercial trading companies. Direct factory sourcing also guarantees highly controllable lead times: standard inventory models ship within 15 days, while custom configurations deliver within 30 to 45 days—shortening the industry-average delivery cycle by over 30%. We support flexible FOB, CIF, or DDP shipping terms with end-to-end container tracking, allowing simple field assembly and commissioning within 7 to 10 days of port arrival.
Bespoke Non-Standard Customization for Exact Mineralogy
Every single drying line is custom-engineered to align perfectly with your exact field and circuit conditions. Our engineering team evaluates your specific concentrate mineralogy (gold, silver, copper, or polymetallic distributions, particle sizes, initial moisture, stickiness, gold grade, and associated minerals), daily capacity requirements, site footprints, preferred fuels, and local environmental mandates. From the drum diameter, length, and speed to the lifting flight geometry, heat source, filtration specifications, and PLC programming, everything is tailored to create a truly bespoke solution. Having delivered over 1,400 systems globally, we provide accurate sizing recommendations that prevent operational bottlenecks from day one.
Quadruple Wear Armor for High-Hardness Concentrates
Gold concentrates frequently feature a high concentration of pyrite and quartz gangue with a Mohs hardness of 6 to 7, creating a severe scouring effect on equipment interiors. To counter this abrasive wear, our equipment is built with a heavy-duty defensive layout: main inner shells are fabricated from high-strength steel, internal walls are lined with high-manganese steel (Mn13) castings, lifting flights are constructed from ZGMn13-4 wear-resistant alloy steel, and high-impact zones are reinforced with 95% alumina ceramic or silicon carbide (SiC) liners. This extends the machine's operational lifespan past 10,000 hours. Furthermore, high-impact wear zones utilize a quick-release bolted layout, allowing simple on-site component swap-outs in under 4 hours without requiring return to the factory.
Intelligent Phase Protection to Protect Leaching Yields
The core mandate of gold concentrate drying is protecting downstream metallurgical recovery rates. Integrated multi-point thermocouples map out real-time thermal distributions across internal drum zones, keeping the material discharge temperature accurate to within ±5°C. Because sulfide minerals are highly sensitive to thermal exposure, our intelligent PLC system allows engineers to configure and lock in strict multi-stage temperature curves, completely preventing localized overheating, protecting the mineral phase matrix, and ensuring your final cyanide leaching or flotation yields remain completely unaffected by the drying process.
Universal Grid & Multi-Fuel Adaptability
The thermal assembly natively supports seven burner configurations (natural gas, diesel, LPG, heavy oil, steam, thermal oil, and electrical heating), allowing operators to pivot based on local fuel availability and market pricing. Furthermore, the electrical control architecture is engineered for universal compatibility, accommodating voltage standards including 220V, 380V, 415V, 440V, and 480V at both 50Hz and 60Hz frequencies, wiring directly into your local three-phase mine-site grid without requiring expensive external step-up/step-down transformers.
Multi-Language HMI for Zero-Threshold Operations
Managed by an advanced Siemens S7-1500 or Mitsubishi Q-series PLC coupled with a 12-inch Weinview touchscreen HMI, the control interface supports one-touch language toggles for English, Russian, French, Spanish, and Arabic. Operators simply input the target output moisture and temperature, and the system independently modulates the drum speed, air volume, and combustion rate without requiring ongoing human intervention. Field operators can be fully trained for independent daily operation in under two hours, significantly lowering your expatriate labor costs.
Tri-Certified for Global Customs and Compliance
The entire manufacturing sequence is fully certified and verified under CE (EU safety standards), ISO9001 Quality Management Systems, ISO14000 Environmental Management Systems, and SGS factory audits. Every critical structural weld undergoes non-destructive ultrasonic flaw detection (NDT), the drum assembly undergoes high-precision dynamic balancing verification, and every line completes a mandatory factory test run consisting of a minimum 72-hour continuous full-load test prior to packaging. We supply a comprehensive documentation package for international customs—including commercial invoices, packing lists, certificates of origin, CE/ISO certificates, SGS inspection reports, and fumigation documents—to ensure seamless clearance at your destination port.
Single-Containerized Shipping for Simplified Logistics
Thanks to its pre-engineered modular architecture, the system cleanly breaks down into six main functional modules: feeding, drying, discharging, heat source, filtration, and electrical control. Each module is securely crated in heavy-duty export wooden cases and consolidated entirely into 2 to 3 40-foot high-cube (40HQ) containers. This containerized delivery slashes ocean freight costs, simplifies port handling, and enables local field crews to complete full on-site assembly and commissioning within 7 to 10 days of arrival. We work closely with leading global freight forwarders to support flexible FOB, CIF, or DDP shipping terms with end-to-end container tracking.
7x24 Global Technical Support with 48-Hour Response
We maintain four permanent overseas after-sales service hubs equipped with resident field engineers and stocked spare part warehouses across major mining centers: Africa (Ghana, Tanzania), Central Asia (Kazakhstan), Southeast Asia (Indonesia, Philippines), and South America (Peru). Clients receive dedicated 7x24 technical support via WhatsApp, email, and live remote video diagnostic tools. The drying line includes a comprehensive 12-month warranty on the entire machine, alongside an extended 24-month warranty on core powertrain components. We maintain a 2-hour response window for technical inquiries, provide an engineered resolution path within 48 hours, and can dispatch field service engineers to your site within 72 hours for critical field emergencies.
Cross-Material Versatility Boosts Asset Utilization
Beyond gold concentrate, the system’s operational parameters are highly adaptable and fully compatible with silver, copper, lead-zinc, molybdenum, and antimony concentrates, as well as flotation tailings and coal concentrates. Switching between materials is highly simplified: operators only need to recalibrate the drum speed, temperature, and airflow parameters via the touchscreen—no core mechanical modifications required. For multi-mineral mining concessions, a single asset satisfies your entire processing footprint, maximizing equipment utilization and accelerating your return on investment.
Environmental Compliance for Seamless Permitting
The system operates under a continuous micro-negative pressure environment, utilizing flexible mechanical seals at both the inlet and outlet junctions to completely eliminate dust leaks into your facility. Working in tandem with our dual-stage cyclone + pulse baghouse filtration, final particulate emissions are suppressed below 12 mg/m³, while $\text{SO}_2$ and $\text{NO}_x$ emissions easily clear strict local air quality mandates and the EU Industrial Emissions Directive (IED). Precious metal concentrate drying demands far stricter emissions control than standard minerals; we have helped over 250 overseas mining operations successfully clear local environmental impact assessments (EIA) by providing customized environmental data sheets and emissions verification reports aligned with your nation's specific regulations.
Proven Field Success with Global Mining Leaders
With more than 1,400 precious metal concentrate drying systems successfully delivered globally across more than 50 countries, our client portfolio includes world-class mining operations and major regional producers—including installations near or associated with sites operated by names like Ashanti Goldfields (Ghana), Geita Gold Mine (Tanzania), PT Freeport Indonesia (Indonesia), Kazzinc (Kazakhstan), Muruntau (Uzbekistan), Buenaventura (Peru), AngloGold Ashanti (Colombia), Endeavour Mining (Burkina Faso), B2Gold (Mali), and Zijin Mining (Guyana). This extensive project footprint gives our engineering team deep data and parameter insights, ensuring we recommend the exact model configuration your project needs from day one while avoiding common field pitfalls.
Core Competitive Advantage Comparison
Compared to standard market alternatives, our specialized precious metal concentrate drying system completely outperforms the competition across critical pillars:
In terms of fine precious metal recovery, conventional dryers achieve only 90% to 94%, letting a massive volume of fine particulates escape into the atmosphere; our equipment reaches 99.5% or above through a fully enclosed, closed-loop collection cycle that leaves almost zero room for loss.
In terms of component lifespan, standard dryers last between 3,000 and 4,000 hours using standard carbon steel; our equipment reaches 10,000 hours or more due to our integrated high-manganese steel construction and ceramic tile quadruple armor.
In terms of comprehensive heat efficiency, common alternatives sit at 35% to 45% due to basic co-current designs without heat recovery; our line pushes efficiency to 72% to 78% through advanced counter-current thermal engineering and heat recovery layout.
In terms of anti-clumping ability for ultra-fine concentrates, common alternatives suffer from severe material cake buildup and frequent bridging blockages; our hybrid comb-tooth flights provide active mechanical deagglomeration, completely eliminating sticking issues.
In terms of final moisture distribution uniformity, typical market deviations float between plus or minus 1.5% and 2.5%; our automation setup locks the deviation within an ultra-precise margin of plus or minus 0.3% or below.
In terms of field setup, common units take 30 to 45 days to assemble, relying heavily on extensive field welding; our modular block design can be completely commissioned on-site within 7 to 10 days under plug-and-play engineering.
In terms of electrical engineering, basic dryers only support a single regional voltage; our system features universal grid compatibility, accommodating a 220V to 480V range at both 50Hz and 60Hz without external transformers.
In terms of international quality compliance, standard products lack verified export testing or hold a single domestic certification; our machinery carries a comprehensive quadruple compliance framework covering CE, ISO9001, ISO14000, and SGS verification.
Factory-Direct Price Protection
By dealing directly with an authentic source manufacturer, you completely eliminate the 20% to 35% markups typically added by trading companies, agents, and distributors. Every dollar of your investment goes straight into heavy-duty metallurgy, high-end electronics, and structural longevity.
Lead Times & Quality Assurance
While the industry average for custom heavy-duty mineral drying machinery spans 60 to 90 days, our factory-wide optimization allows us to dispatch standard configurations within 15 days and deliver heavily customized setups within 30 to 45 days. To guarantee absolute reliability in the world’s most remote mining regions, every single drying system undergoes a mandatory 72-hour continuous full-load factory test run before it leaves our loading docks.
Get a Custom Engineering Proposal Within 24 Hours
Please share your concentrate type (gold, silver, copper, lead-zinc, etc.), initial moisture content, target final moisture, hourly or daily processing capacity, preferred fuel type, site dimensions, and local voltage standard. Our engineering team will deliver a comprehensive technical proposal and commercial quotation within 24 hours. Factory direct supply with zero middleman markups—contact us today to schedule your factory visit!
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
