Product Description
As a premier global mining gold ore dryer manufacturer with over 15 years of deep expertise in industrial mineral processing, we engineer heavy-duty rotary drying lines designed to withstand the brutal demands of mine-site operations. We are a direct source manufacturing factory—not an intermediary or trading company—operating a sprawling, fully equipped production base. From initial structural scheme design and precision CNC machining to automated robotic welding and exhaustive factory load tests, every single drying system is built entirely in-house.
Gold ore processing presents an aggressive combination of high-moisture stickiness, high thermal density, and extreme abrasiveness from quartz gangue. Standard industrial dryers quickly succumb to the scouring action of raw ore, leading to shell breach and flight failure within months. Our specialty gold ore dryers are engineered specifically to conquer these brutal conditions. They transform high-moisture raw ore into optimized, uniformly dried feed that perfectly satisfies the strict moisture thresholds required for downstream crushing, ball milling, flotation, or gravity separation processes.
Whether you run a regional mid-scale mining operation or a massive centralized gold beneficiation plant, our global shipping network, comprehensive engineering support, and direct factory-door pricing ensure your project is built for long-term stability and peak profitability.
Functional Principle

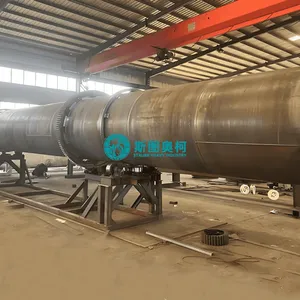

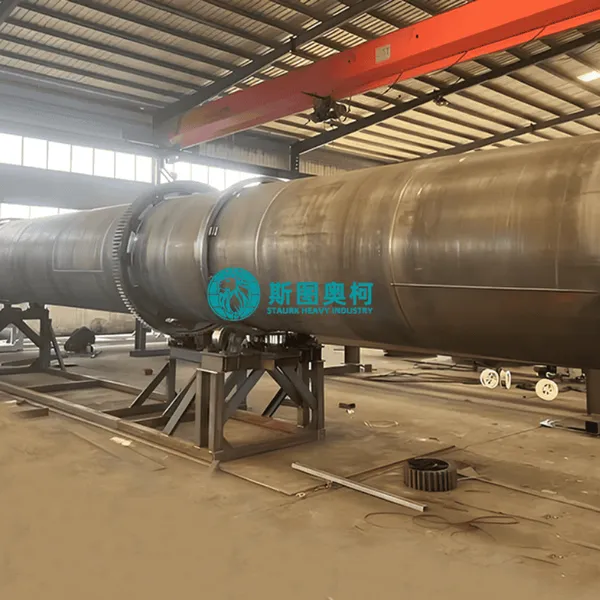

The core of the equipment is a heavy-duty, slightly inclined steel drum that rotates slowly on a precision-aligned drive assembly. Wet raw gold ore is introduced continuously and uniformly into the elevated feed inlet via an enclosed conveyor or heavy-duty bucket elevator. As the drum rotates, the internal material path naturalizes into three distinct functional thermal zones:
Preheating & Shock-Prevention Zone: At the inlet end, the raw ore gradually absorbs heat, lifting its temperature from ambient up to 80°C to 120°C. Gold ore carries a high specific heat capacity and is sensitive to extreme thermal shock. This zone uniformly preheats the ore matrix, preventing surface micro-cracking while rapidly stripping away surface free water.
Core Dehydration Zone: In the middle section, temperatures are maintained between 200°C and 650°C depending on the specific mineralogy. Here, specialized lifting flights continuously scoop up the wet ore and shower it downward across the drum’s cross-section, creating a highly dense and uniform "material curtain." This curtain makes full contact with high-temperature clean air, forcing rapid evaporation of deep inter-granular moisture.
Moisture-Lock Cooling Zone: Before reaching the discharge gate, the dried ore passes through a cooling zone where ambient airflow reduces its temperature to below 50°C. Gold ore is highly hygroscopic when hot; if discharged directly into storage silos at high temperatures, immediate condensation occurs due to the thermal delta, causing final moisture to bounce back. This zone locks the moisture precisely at your target value while eliminating safety hazards during material transport.
Counter-Current Thermal Integration
The heat source is injected from the lower discharge end, driving a high-efficiency counter-current layout where the airflow moves opposite to the material path. The hottest, cleanest air first encounters the driest ore right before discharge, while the cooler, spent air handles the incoming high-moisture raw material. This step-by-step heat exchange layout utilizes the thermal energy differential to its full potential, driving overall thermal efficiency past 70%.
The humid, dust-laden exhaust gas is pulled continuously from the feed end into a closed-loop multi-stage filtration network, while the dried gold ore is smoothly evacuated via an airtight rotary discharge valve.
Core Features
Zero-Loss Fine Gold Capture System: The single biggest financial risk in gold ore drying is the loss of micro-fine gold particulates within the exhaust stream. Our systems completely resolve this through a fully enclosed, micro-negative pressure environment paired with a dual-stage cyclone separator and pulse baghouse dust collector. By keeping final particulate emission concentrations strictly ≤ 20 mg/m³ and routing all captured fines back into the finished product stream via an integrated screw conveyor, we ensure a total material recovery rate above 99%—fundamentally protecting your gold yields.
Quadruple Wear-Defense Matrix: Raw gold ore frequently features a high concentration of quartz gangue with a Mohs hardness of 7, acting as an industrial abrasive against standard steel. To counter this, our dryers feature an unyielding defensive layout: main inner shells are fabricated from high-strength Q245R heat-resistant boiler steel, internal walls are lined with high-manganese steel (Mn13) castings, lifting flights are constructed from ZGMn13-4 wear-resistant alloy steel, and high-impact zones are reinforced with 95% alumina ceramic tiles. This engineering extends the machine's operational lifespan by 2 to 3 times compared to conventional carbon steel units.
Universal Grid & Fuel Adaptation: Designed for global deployment, our combustion assemblies natively support interchangeable burner packages for natural gas, diesel, and LPG, allowing you to pivot based on local fuel availability. Furthermore, the electrical architecture accommodates global voltage standards including 220V, 380V, 415V, 440V, and 480V at both 50Hz and 60Hz frequencies, wiring directly into your local mine-site grid without requiring expensive external step-up/step-down transformers.
Intelligent Phase-Protecting Temperature Control: Gold-bearing sulfide minerals (such as pyrite and arsenopyrite) are highly sensitive to thermal exposure; excessive heat can trigger premature thermal oxidation or decomposition, which severely damages downstream flotation recovery rates. Our integrated PLC system pairs with multi-point thermocouples to map out real-time thermal distributions, managing discharge temperatures to an accuracy of ±5°C and automatically executing multi-stage temperature curves to protect the mineral phase matrix.
Multi-Language Automation & Zero-Gate Operation: Managed by a premium PLC automation architecture coupled with an intuitive touchscreen HMI, the control interface supports instant toggles for English, Russian, French, Spanish, and Arabic. Field operators simply input the target output moisture and temperature, and the system independently modulates the drum speed, air volume, and combustion rate without requiring ongoing human intervention.

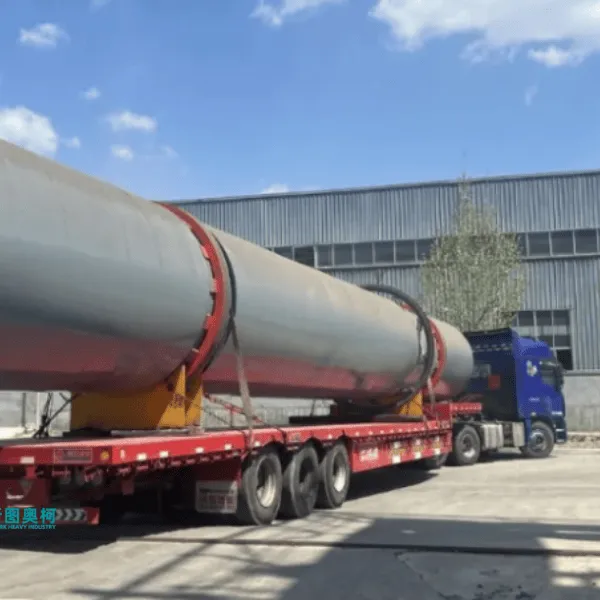

Modular Engineering for Containerized Shipping: The entire system features a modular, container-friendly design that cleanly breaks down into pre-engineered sections. Standard configurations can be completely packed into a single 40-foot high cube (40HQ) shipping container, drastically lowering international ocean freight costs, simplifying port handling, and enabling local field crews to complete full on-site assembly and commissioning within 7 to 10 days of arrival.
💰 Direct Factory-Price Protection
By dealing directly with an authentic source manufacturer, you completely eliminate the 20% to 35% markups typically added by trading companies, agents, and distributors. Every dollar of your investment goes straight into heavy-duty metallurgy, high-end electronics, and structural longevity.
⏱️ Unrivaled lead Times & Quality Assurance
While the industry average for custom mineral drying machinery spans 60 to 90 days, our factory-wide optimization allows us to dispatch standard configurations within 15 days and deliver heavily customized setups within 30 to 45 days. To guarantee absolute reliability in the world’s most remote mining regions, every single drying system undergoes a mandatory 72-hour continuous full-load test run before it leaves our loading docks.
Get a Custom Engineering Proposal Within 24 HoursDon't guess your project specifications. Please share your initial moisture content, target final moisture, hourly or daily ore capacity requirements, preferred fuel types, and site dimensions. Our engineering team will deliver a comprehensive technical proposal and commercial quotation within 24 hours. Factory direct supply with zero middleman markups—contact us today to schedule your factory visit!
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
