As a leading manufacturer in pipeline rehabilitation technology since 2010, Qingdao Yongke Machinery Co., Ltd. is proud to present our comprehensive Complete CIPP Liner Production Line. Engineered for efficiency and reliability, this integrated system is designed to produce high-quality cured-in-place pipe liners, offering a trenchless solution for the restoration of aging or damaged water and gas pipelines. Our 10,000-30,000 square meter factory, backed by ISO9001, ISO14000, and OHSAS18001 certifications, ensures every component meets rigorous quality standards, providing our global clients from North America to Oceania with a dependable source for advanced pipeline repair manufacturing equipment.

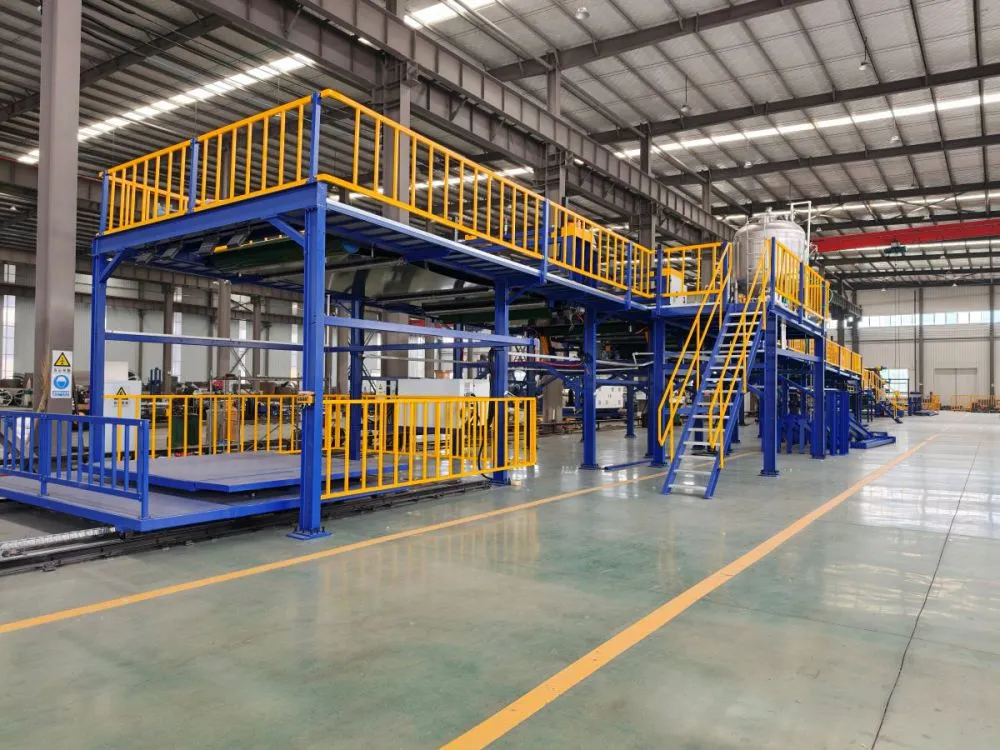

This production line represents a complete turnkey solution, transforming raw fabric materials into finished, resin-impregnated CIPP liners ready for installation. The core value lies in its ability to enable in-house liner production, giving pipeline rehabilitation contractors and municipalities greater control over supply, cost, and project timelines. By investing in this line, you are not just purchasing machinery; you are acquiring the capability to deliver consistent, high-performance pipeline repairs with a proven, environmentally friendly trenchless method.
Key Features & Technical Advantages:
- End-to-End Integration: The line seamlessly integrates all critical processes—from material feeding and cutting to resin impregnation, quality inspection, and final winding—minimizing manual handling and maximizing throughput.
- Precision Resin Application: Equipped with advanced vacuum and pressure impregnation tanks, the system ensures uniform resin saturation throughout the liner fabric, which is crucial for creating a structurally sound, leak-proof pipe-within-a-pipe.
- Flexible Curing Compatibility: The liners produced are compatible with various curing methods, including hot water, steam, and optional UV light systems, making them suitable for a wide range of field conditions and pipe materials.
- Robust Construction & Safety: Built with durable components and featuring a centralized PLC control panel, the line ensures stable, long-term operation with enhanced safety protocols for operators.
Technical Specifications Overview:
| Parameter Category | Specification Details |
| Target Pipeline Diameter Range | Customizable, typically from 2 inches to 48 inches (DN50 - DN1200) |
| Liner Material Compatibility | Felt, Non-Woven Fabrics, Fiberglass, Custom Composite Materials |
| Impregnation System | Closed-loop Vacuum & Pressure Tank for complete resin penetration |
| Control System | Programmable Logic Controller (PLC) with Touchscreen HMI |
| Power Requirements | Configurable for standard industrial power supply (e.g., 380V/50Hz or 460V/60Hz) |
| Factory Footprint | Layout can be optimized based on available space and desired production capacity |
Benefits for Your Business:
- Supply Chain Independence: Reduce reliance on external liner suppliers and mitigate project delays.
- Cost Efficiency: Lower long-term material costs through bulk purchasing of raw fabrics and resins.
- Quality Assurance: Maintain direct control over every production parameter, ensuring liner quality meets your specific project standards.
- Operational Scalability: The production capacity can be scaled or the line configured to produce liners for different pipeline diameters, allowing business growth.
- Technical Support: Benefit from our team's expertise, with comprehensive training provided for your operators.
Trust in a partner with a proven track record. Qingdao Yongke Machinery exports to major markets worldwide, supported by an annual export value in the range of US$1-1.5 Million and a dedicated team of 51-100 professionals. Our certifications are not just badges; they are a commitment to systematic quality management, environmental responsibility, and occupational health and safety throughout our manufacturing process. Choosing our Complete CIPP Liner Production Line means investing in more than equipment—it's partnering with a reliable manufacturer dedicated to empowering your pipeline rehabilitation projects with efficiency, quality, and long-term value. Contact us today to discuss how we can tailor this solution to your operational needs.
Frequently Asked Questions (FAQ)
-
Q: What is the lead time for a complete CIPP liner production line?
A: The lead time varies depending on the configuration and customization level. Typically, it ranges from 90 to 120 days after order confirmation, allowing for precise manufacturing and testing. -
Q: Can this production line handle different types of resin?
A: Yes, the impregnation system is designed to work with standard thermosetting resins used in CIPP, such as epoxy, vinyl ester, and polyester. The system parameters can be adjusted accordingly. -
Q: Do you provide installation and commissioning services?
A: We offer professional installation guidance, comprehensive commissioning support, and detailed operator training either at your site or through remote assistance to ensure a smooth start-up. -
Q: What is the typical production capacity or output of this line?
A: Capacity is highly customizable. It depends on factors like liner diameter, wall thickness, and length. We design the line based on your target daily or weekly output requirements. -
Q: Is the control system user-friendly for operators with basic skills?
A: Absolutely. The PLC-based control system features an intuitive touchscreen Human-Machine Interface (HMI) with pre-set recipes and clear operational guides, simplifying the production process. -
Q: What kind of after-sales support do you offer?
A: Our support includes a standard warranty, readily available spare parts, technical troubleshooting via email/phone/video call, and optional periodic maintenance service contracts. -
Q: Can the line be upgraded in the future to produce new types of liners?
A: The modular design allows for future upgrades. Components like the impregnation tank or winding system can be modified or expanded to accommodate new materials or processes. -
Q: What are the main utility requirements for operating this line?
A: The line requires a stable industrial power supply, compressed air, and potentially a water source (for cooling or cleaning, depending on configuration). A detailed utility list is provided during the planning phase.
