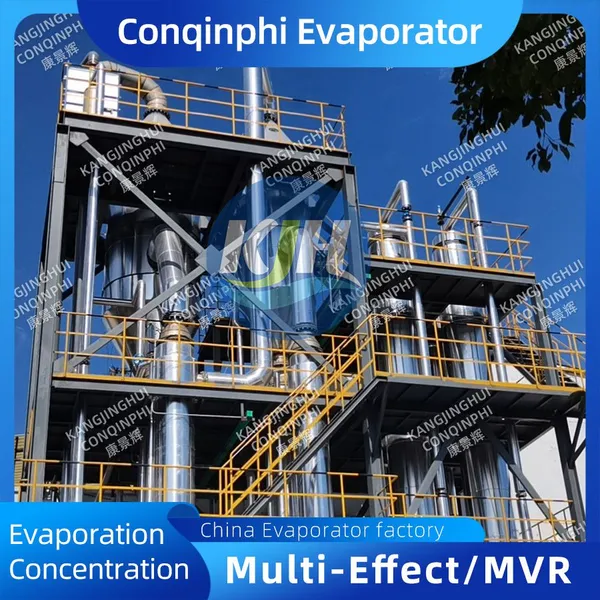

As a leading manufacturer specializing in advanced environmental solutions, Qingdao Conqinphi Environmental Technology Group is proud to introduce our High Efficiency Quadruple-effect Evaporator integrated with MVR Technology. This system represents a significant leap forward in sustainable industrial wastewater management, designed to tackle the challenges of high-concentration, complex wastewater streams. Our decade of expertise, since our establishment in 2015, is embodied in this robust solution, which is engineered not just to meet regulatory standards but to deliver substantial operational savings and environmental benefits for our global clientele across North America, Southeast Asia, Europe, and beyond.
The core innovation lies in the synergistic combination of Quadruple-effect evaporation and Mechanical Vapor Recompression (MVR). This design maximizes thermal efficiency by reusing latent heat across multiple stages, dramatically reducing the external energy input required. The MVR compressor further elevates efficiency by compressing low-pressure secondary vapor, raising its temperature and enabling it to serve as the primary heating source, creating a near-closed-loop energy cycle.
Key Technical Specifications & Advantages:
| Feature | Description | Client Benefit |
| Quadruple-effect Design | Utilizes four sequential evaporation chambers. | Achieves high concentration ratios, minimizing final waste volume for disposal. |
| MVR Compressor | Centrifugal or rotary type, compresses vapor for heat reuse. | Reduces steam consumption by up to 90% compared to single-effect systems, slashing energy costs. |
| Construction Material | Primary contact parts in SS316/SS304 stainless steel. | Excellent corrosion resistance for handling aggressive wastewater, ensuring long service life. |
| Automated PLC Control | Touchscreen HMI for monitoring and control of parameters. | Ensures stable operation, reduces manual labor, and allows for precise process optimization. |
| Crystallization Option | Integrated forced-circulation crystallizer available. | Enables recovery of salts or valuable solids, turning waste into a potential resource. |
The system's operation is streamlined for efficiency:
1. Pre-treatment: Wastewater is filtered and pre-heated.
2. Multi-stage Evaporation: The feed enters the first effect, heated by compressed vapor. The produced vapor heats the next effect, and this process repeats across four stages.
3. Vapor Recompression: Vapor from the final effect is compressed by the MVR unit, raising its energy grade for reuse.
4. Condensate & Concentrate Output: High-purity condensate (distillate) is recovered for reuse or safe discharge, while a highly concentrated brine or slurry is produced for further processing.
This technology is particularly advantageous for industries such as:
• Chemical & Pharmaceutical: Treating high-COD, saline process wastewater.
• Landfill Leachate: Concentrating complex leachate to reduce disposal costs.
• Food & Beverage: Managing high-BOD wastewater and recovering process water.
• Metal Plating & Mining: Treating heavy metal-containing streams and recovering water.
Trust in our solution is built on a solid foundation. Operating from a modern facility spanning 10,000-30,000 square meters and backed by a dedicated team of 201-300 professionals, Qingdao Conqinphi adheres to stringent quality management systems. Our consistent annual export value reflects the global confidence in our products. We invite you to leverage our expertise to transform your wastewater treatment from a cost center into an efficiency showcase. Contact us today to discuss how this high-efficiency evaporator can be customized to meet your specific flow rate, inlet concentration, and discharge goals.
Frequently Asked Questions (FAQ):
Q1: What is the primary advantage of combining MVR with a quadruple-effect design?
A: The combination creates an ultra-efficient thermal system. The quadruple-effect design reuses latent heat multiple times, while the MVR compressor recovers and upgrades low-grade vapor energy. Together, they minimize the need for fresh steam or external heating, leading to exceptionally low specific energy consumption per ton of water evaporated.
Q2: Can this system handle wastewater with high scaling or fouling potential?
A: Yes. The design incorporates strategies to mitigate scaling, such as forced circulation in critical areas, optimal velocity control, and the selection of anti-fouling materials. The operational parameters can be adjusted via the PLC system to minimize scaling tendencies. Pre-treatment recommendations are also provided based on water analysis.
Q3: What is the typical capacity range for these evaporators?
A: As a manufacturer, we design and build systems tailored to client needs. Capacities can range from a few tons per day to several hundred tons per day of evaporation. The specific design is optimized based on your wastewater characteristics and treatment objectives.
Q4: What is the quality of the recovered water (condensate)?
A: The distillate produced is of high purity, typically with a conductivity reduction of over 99%. It can often be reused as cooling tower makeup, boiler feed water, or process water, significantly reducing freshwater intake and discharge volumes.
Q5: How is the system controlled and monitored?
A: The system features a fully automated PLC control system with a user-friendly touchscreen interface (HMI). It monitors and controls temperatures, pressures, levels, flows, and conductivity. Remote monitoring options are often available upon request.
Q6: What are the main factors affecting the system's footprint?
A: The footprint is influenced by the required evaporation capacity, the inclusion of auxiliary equipment like crystallizers or pre-treatment tanks, and the layout optimization provided by our engineering team. We focus on compact, skid-mounted designs where possible to save space.
Q7: Do you provide support for installation and commissioning?
A> Yes. We offer comprehensive technical support, including detailed installation guidelines, on-site or remote supervision for commissioning, and operator training to ensure smooth start-up and long-term, reliable operation.
Q8: What is the expected lifespan of the key components, like the MVR compressor?
A> With proper maintenance and operation within design parameters, the major components, including the corrosion-resistant evaporator bodies and the high-quality MVR compressor, are designed for a service life exceeding 15 years.
