Automated Detection Equipment for Warp and Weft Density of Electronic Cloth, accurately measures the warp and weft density, cloth width, and gap area, eliminates manual errors, and realizes intelligent quality inspection.
This product complies with the standard of "GB_T 7689.2-2013 Reinforcement Materials - Test Methods for Woven Fabrics - Part 2: Determination of Warp and Weft Density".
The necessity of warp and weft density, width, and gap area of electronic cloth:
As the core substrate of copper-clad laminates and printed circuit boards, the three key indicators of electronic cloth, namely the warp and weft density, finished product width, and gap area, directly determine the insulation performance, resin infiltration effect, structural stability, and dimensional accuracy of downstream products. Uneven warp and weft density can lead to inconsistent plate strength and fluctuating electrical performance; width deviation can cause cutting waste and inability to adapt to the production process; out-of-control gap area can easily lead to serious quality defects such as uneven glue seepage, delamination and blistering, and insulation failure. Accurately detecting these three parameters is a necessary prerequisite for controlling the quality of electronic cloth from the source, meeting the strict standards of the PCB industry, avoiding batch scrap and customer claims, and ensuring product reliability and the market competitiveness of enterprises.

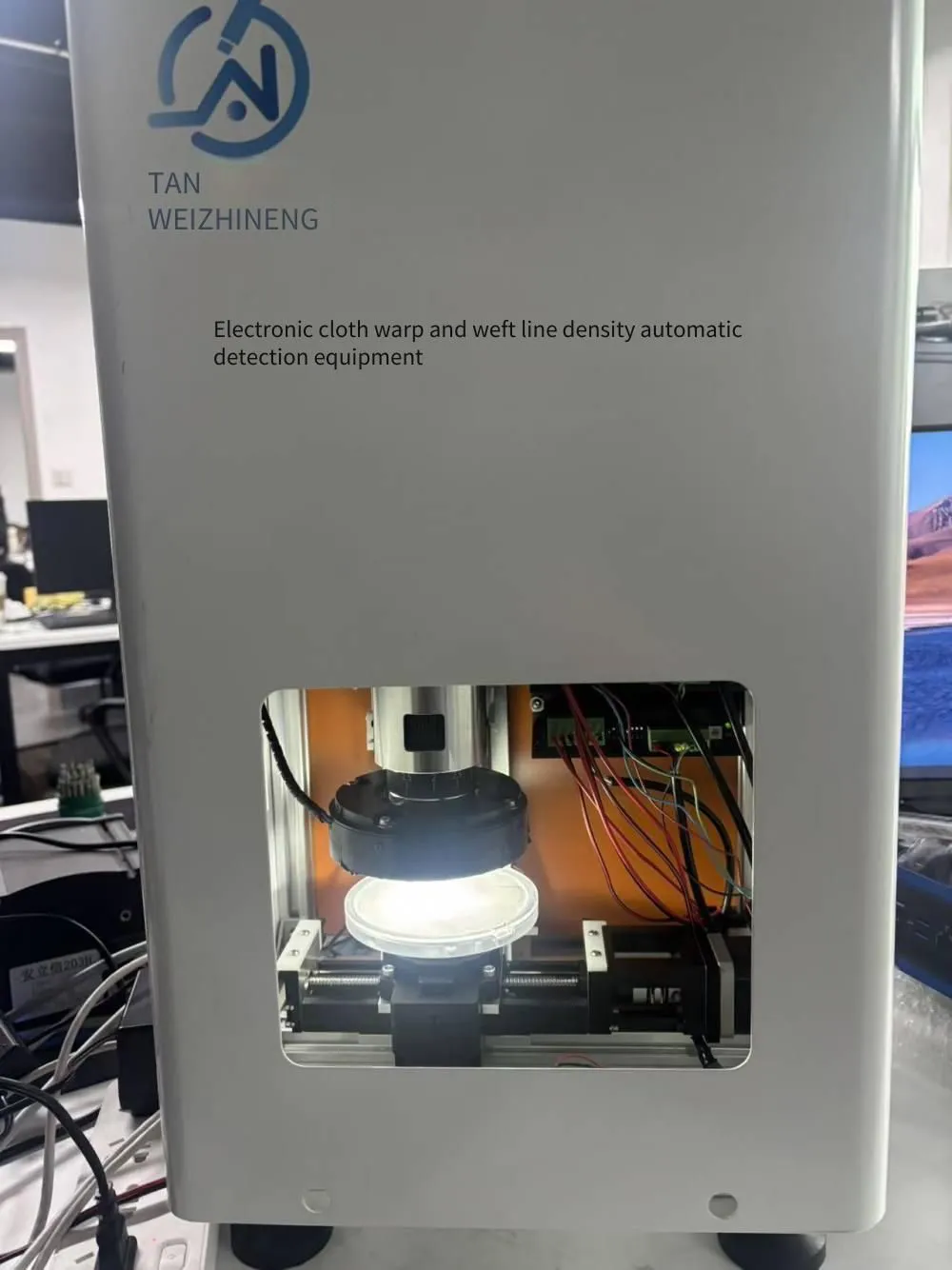

Actual photos of the equipment:

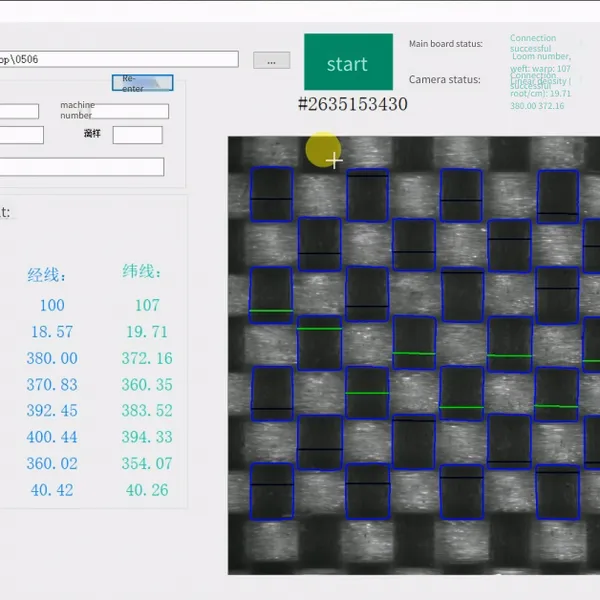

Product effects:

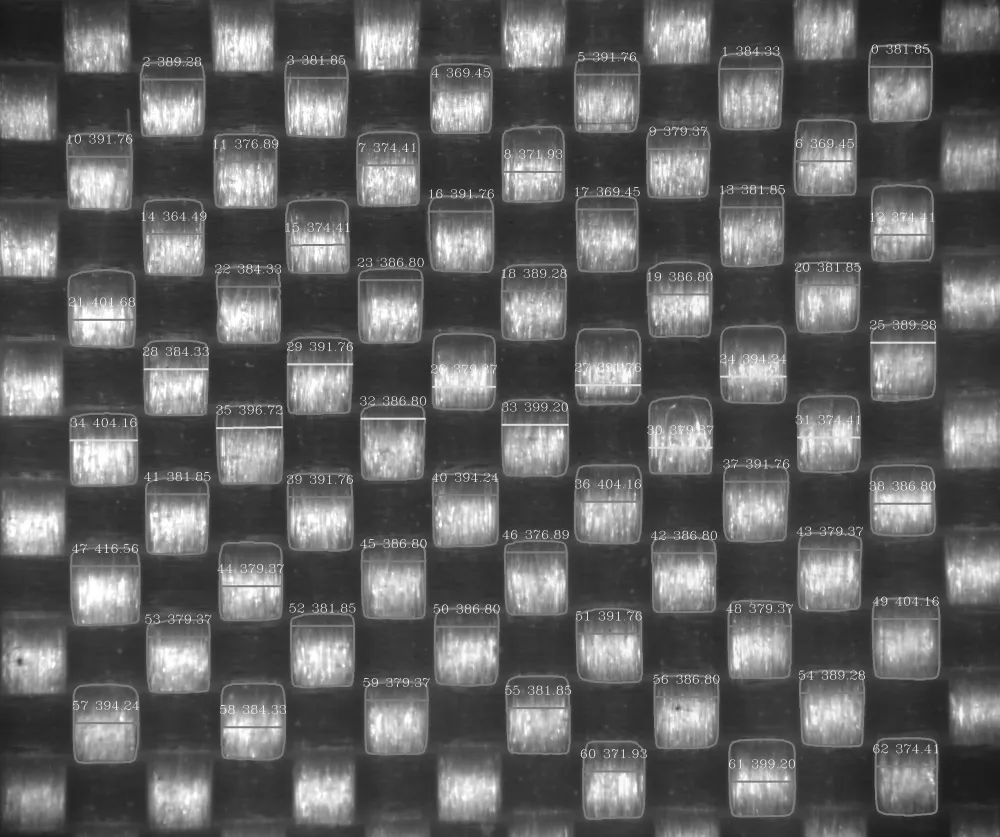

Measurement effects of warp and weft width and density:

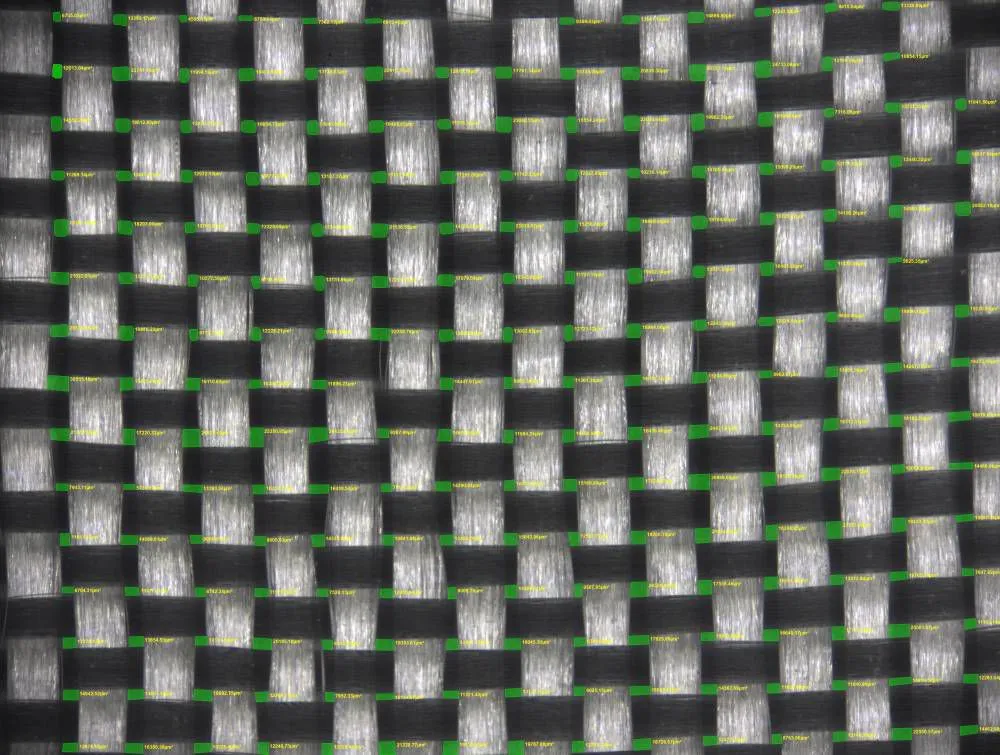

Effect of the gap area of electronic cloth:

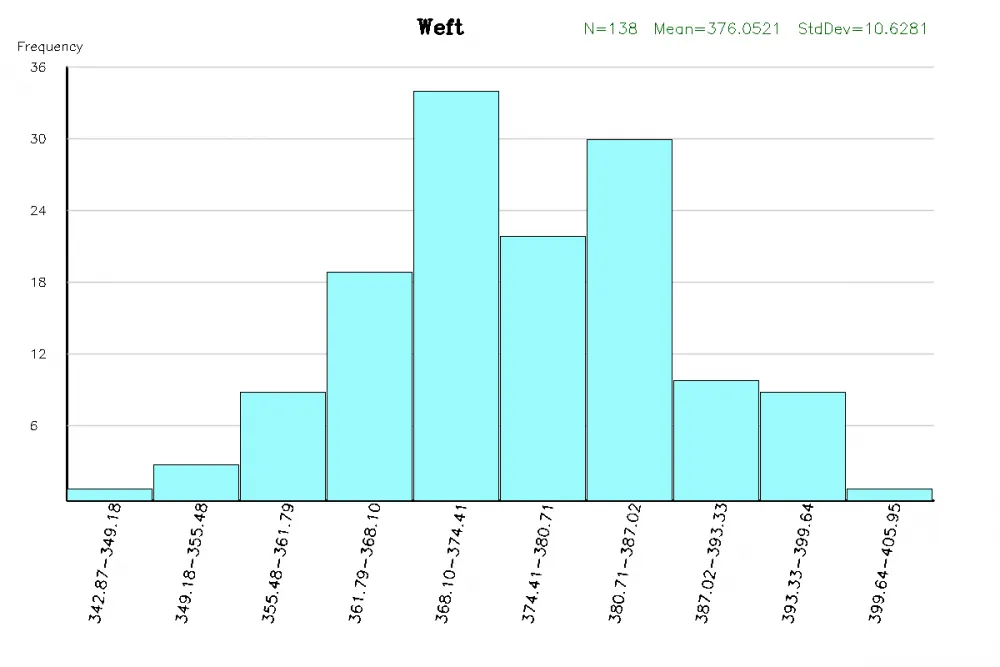

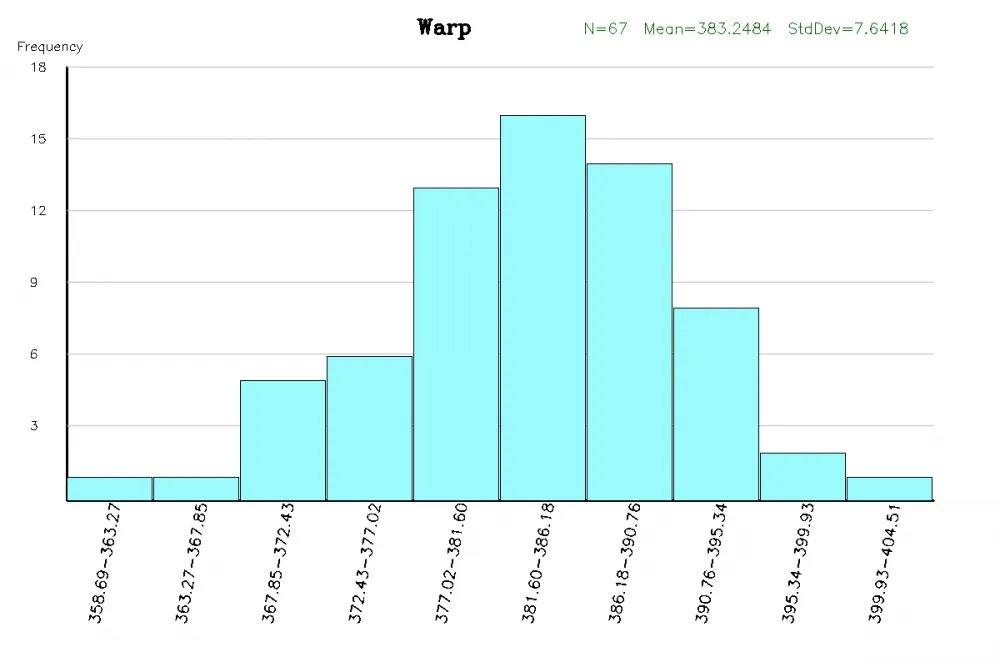

Report style:
Scope of use:
Automated Detection Equipment for Warp and Weft Density of Electronic Cloth is suitable for detecting the warp and weft density, width, and gap area of electronic cloth. The product complies with the standard of "GB_T 7689.2-2013 Reinforcement Materials - Test Methods for Woven Fabrics - Part 2: Determination of Warp and Weft Density".
Main functions:
1. Automatically measure the warp and weft density, width, and gap area of electronic cloth.
2. Automatic report: Automatically generate a statistical report from the measured data without manual participation. The report results can be seen in just 45 seconds.
3. Full data export: Support the export of all process data into an Excel spreadsheet or any custom format.
Product Parameters:
Electronic cloth size |
Square with a diameter less than or equal to 8cm Square with a diameter greater than or equal to 6cm |
Flux |
Single piece |
Scanning resolution |
≤2.5μm/pixel |
Measurement accuracy |
2.5μm |
Error |
≤10μm |
Statistical quantity |
Measure 5cm in both warp and weft directions |
Detection time |
45 seconds |
Physical magnification of the collected image |
30 times |
Power supply range |
AC220V ±15%, Frequency: 50/60Hz |
Operating software |
Windows |
